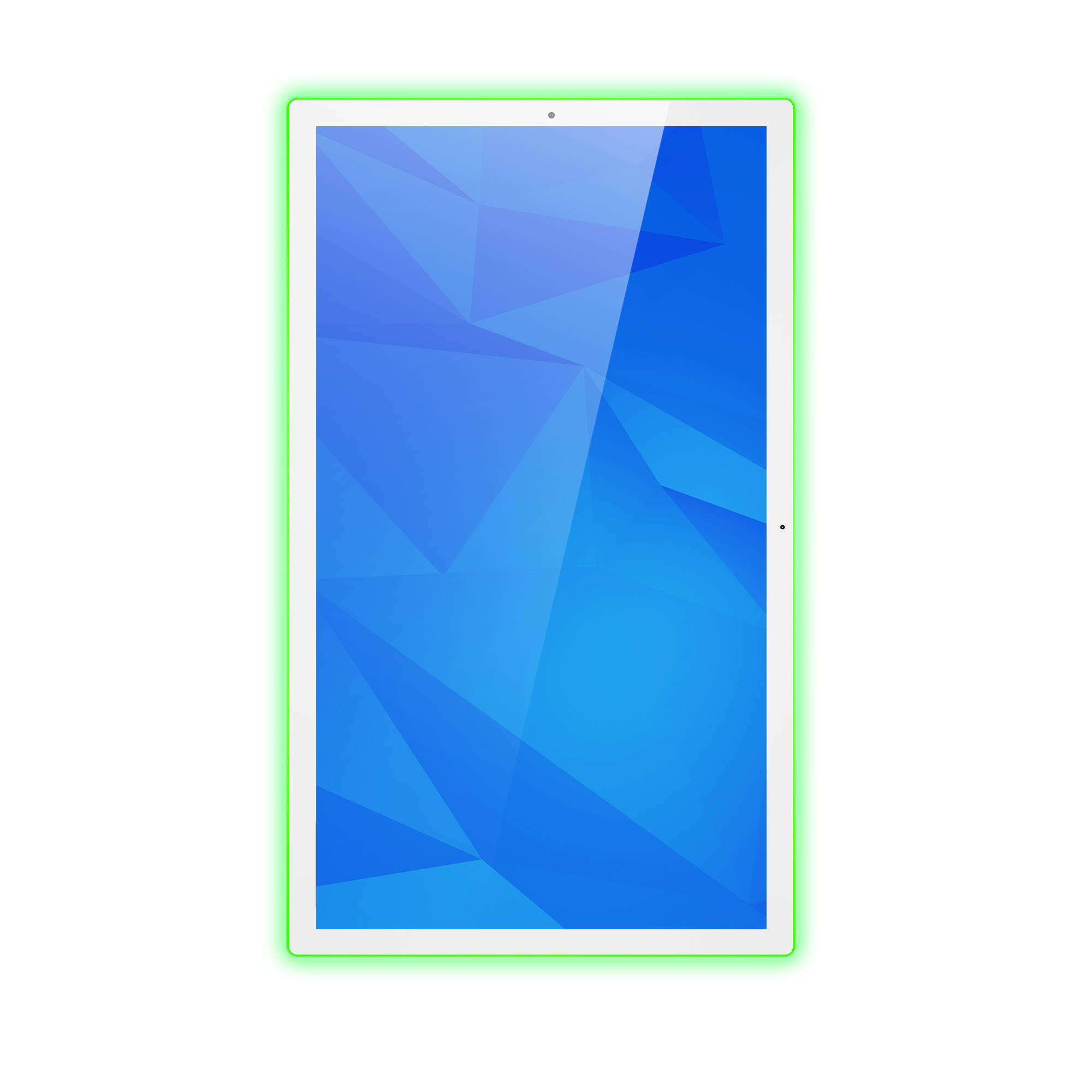

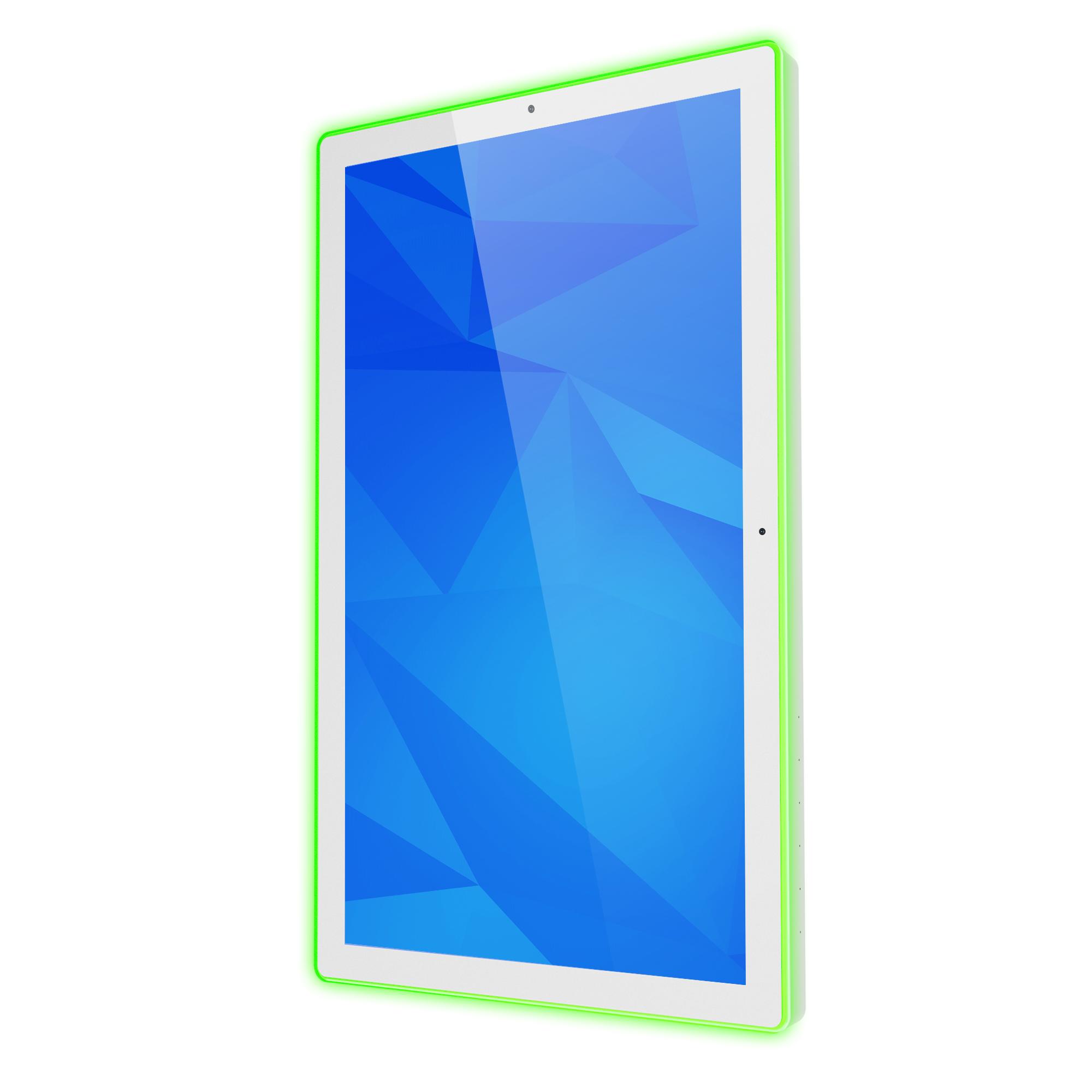

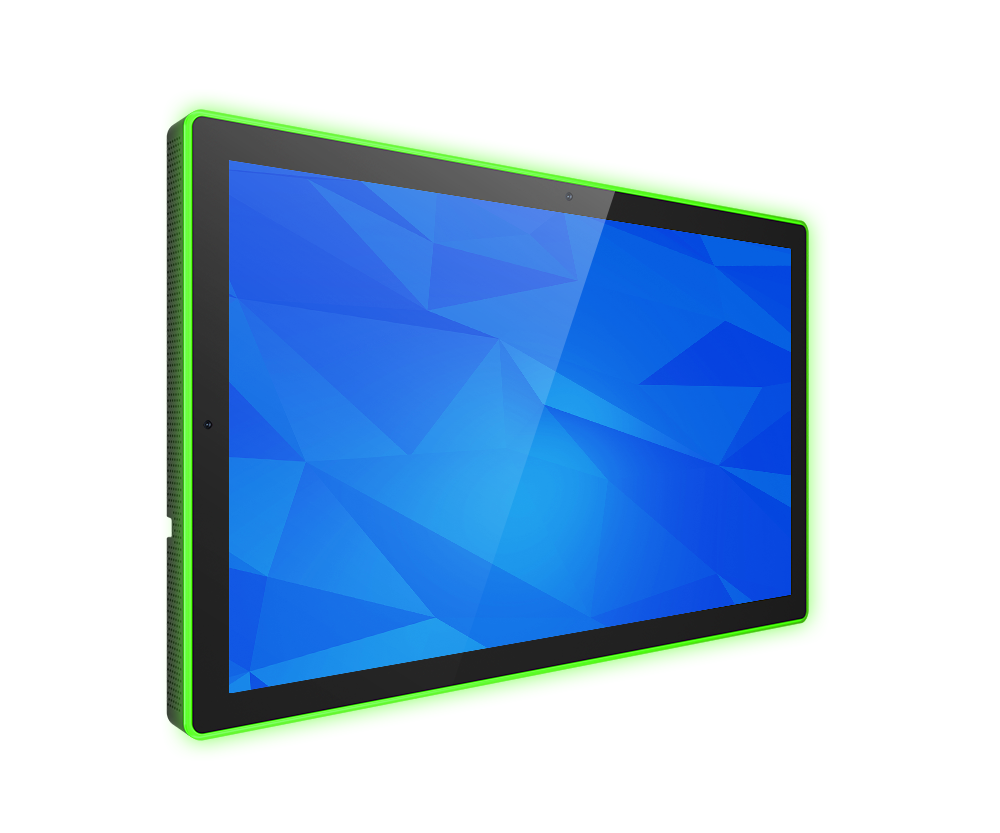

WA3289T

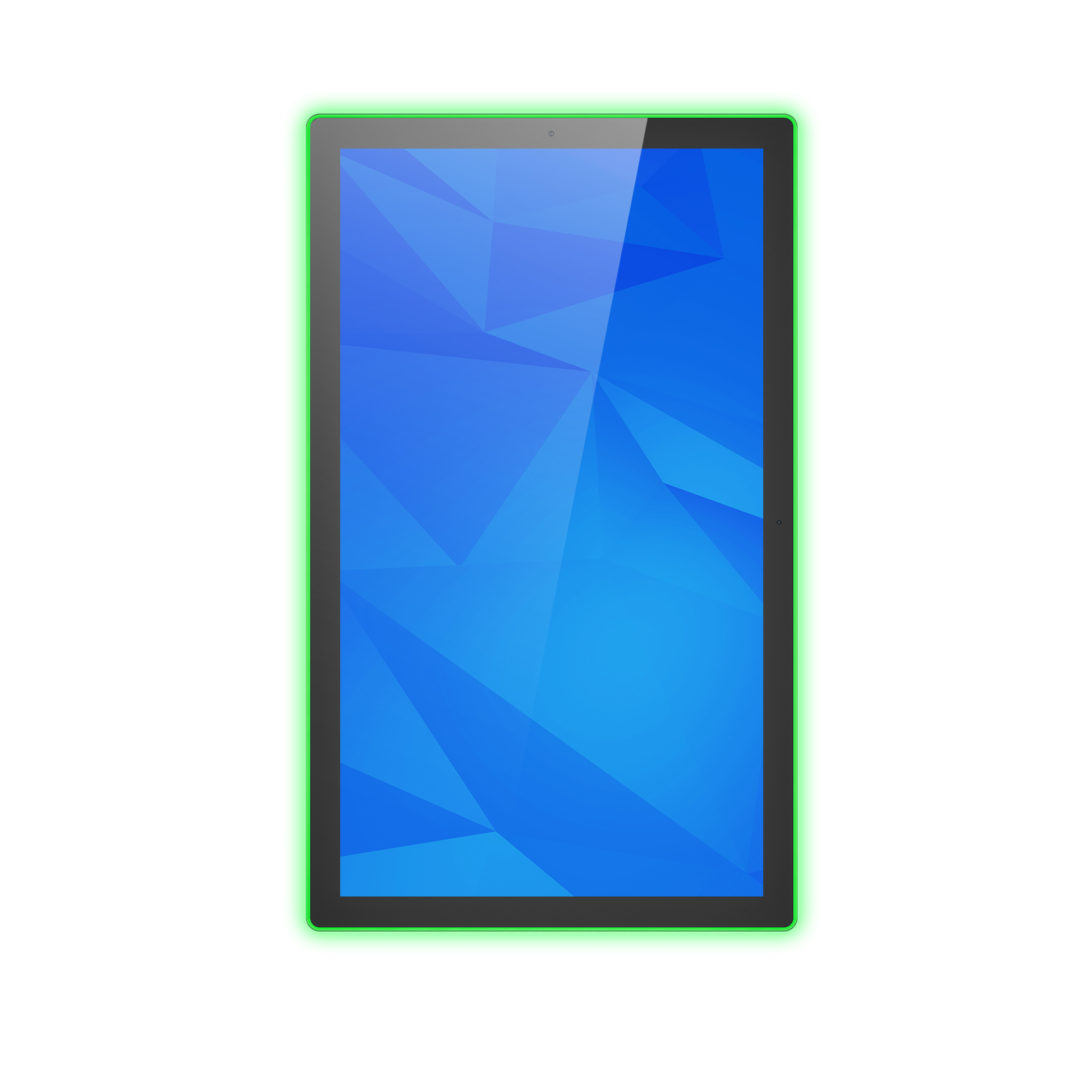

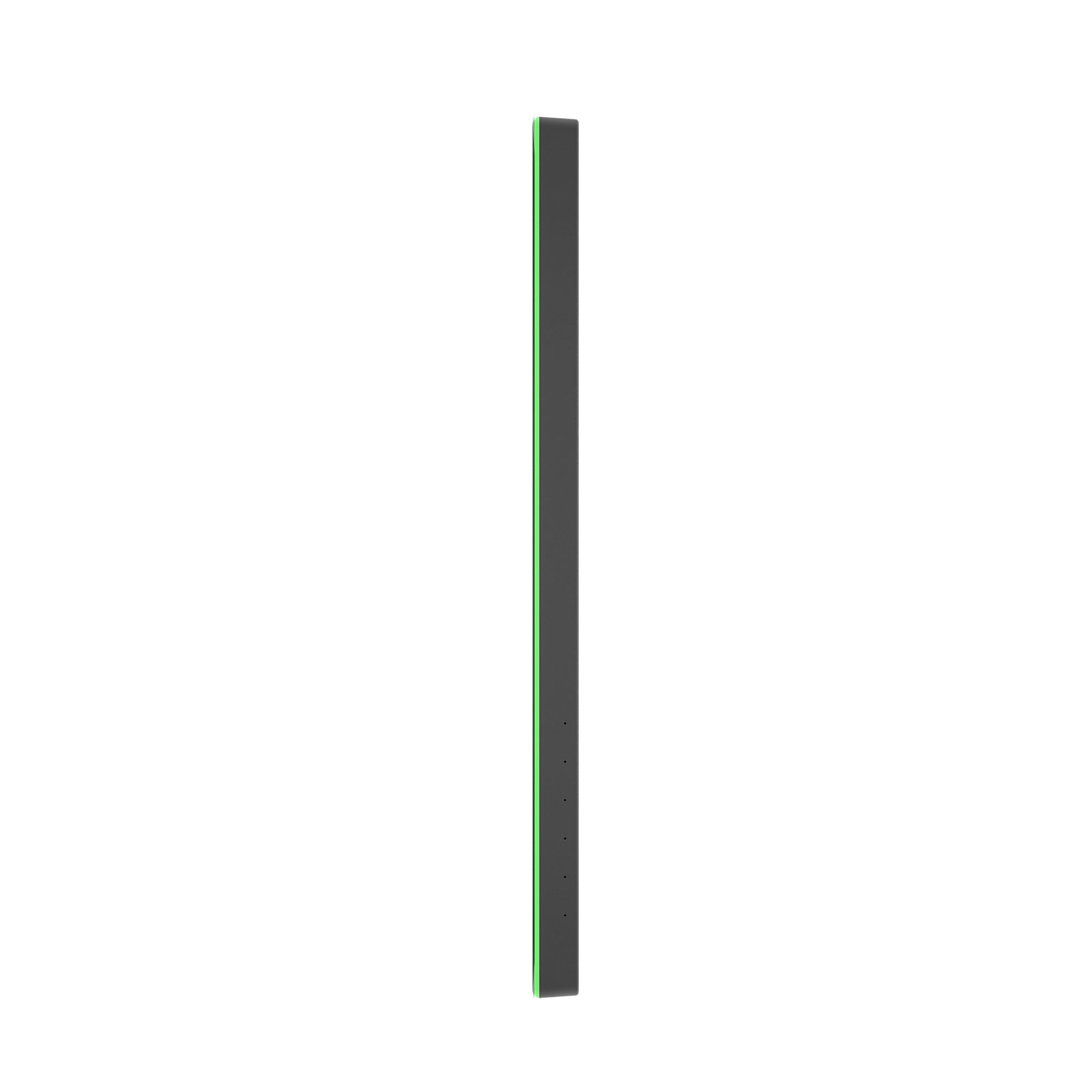

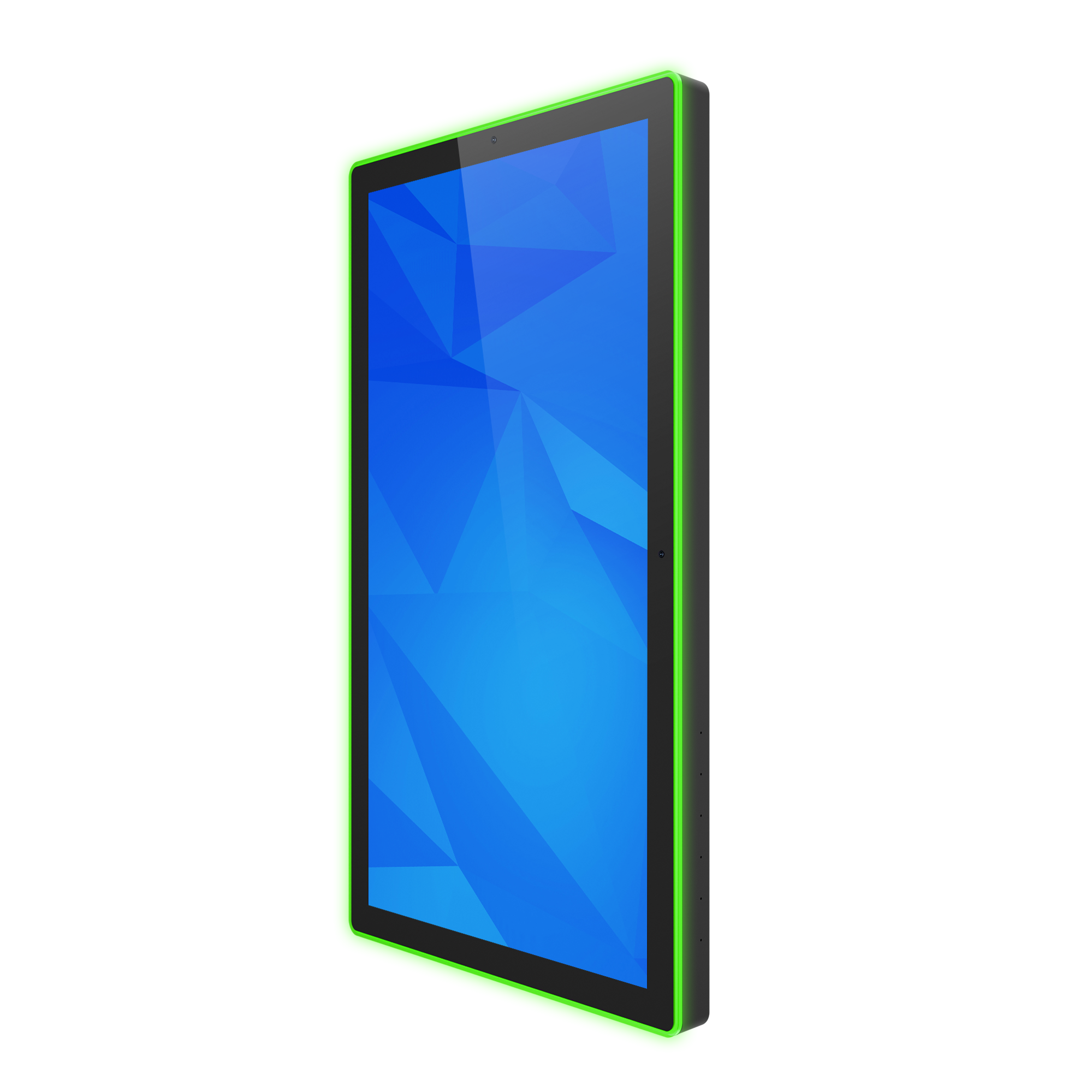

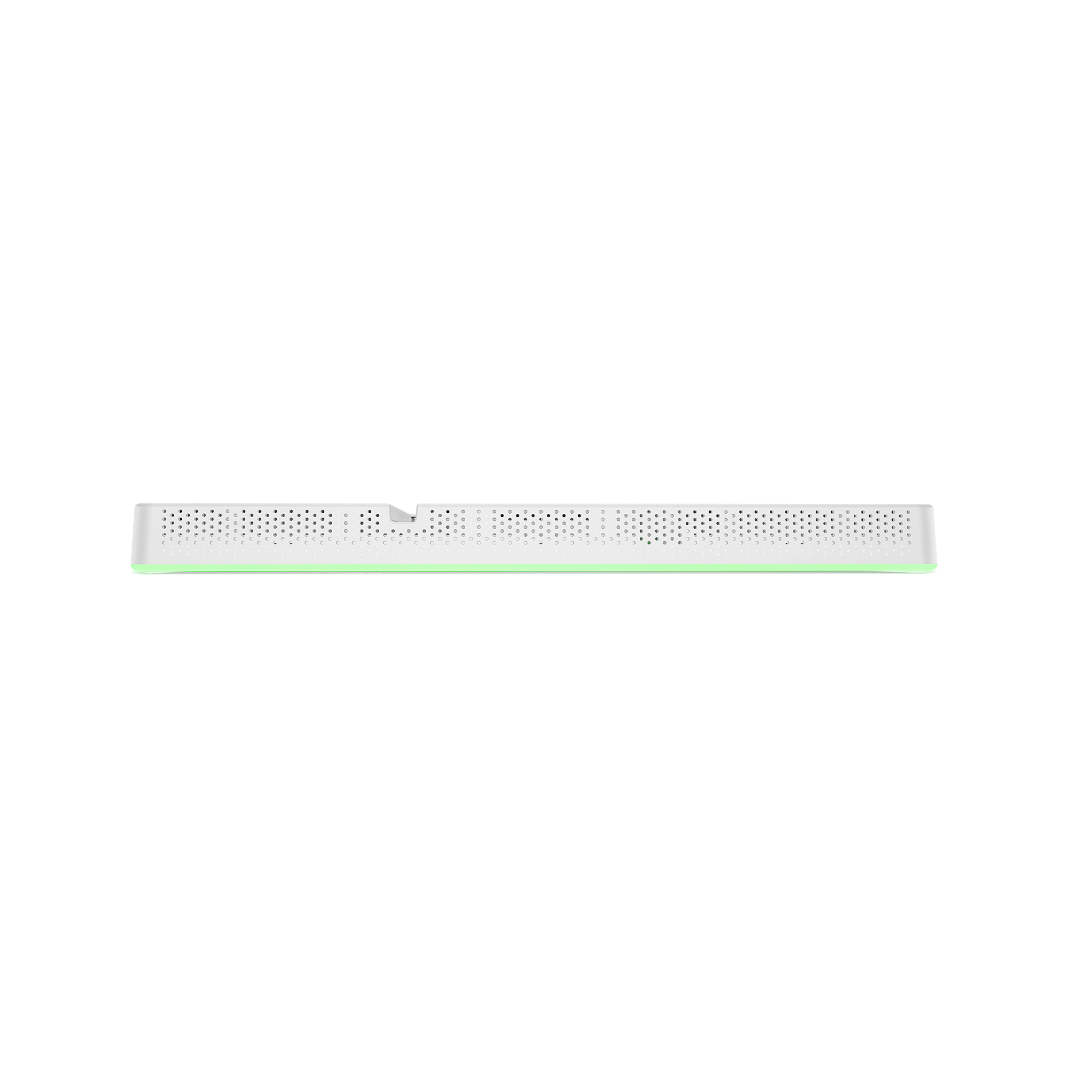

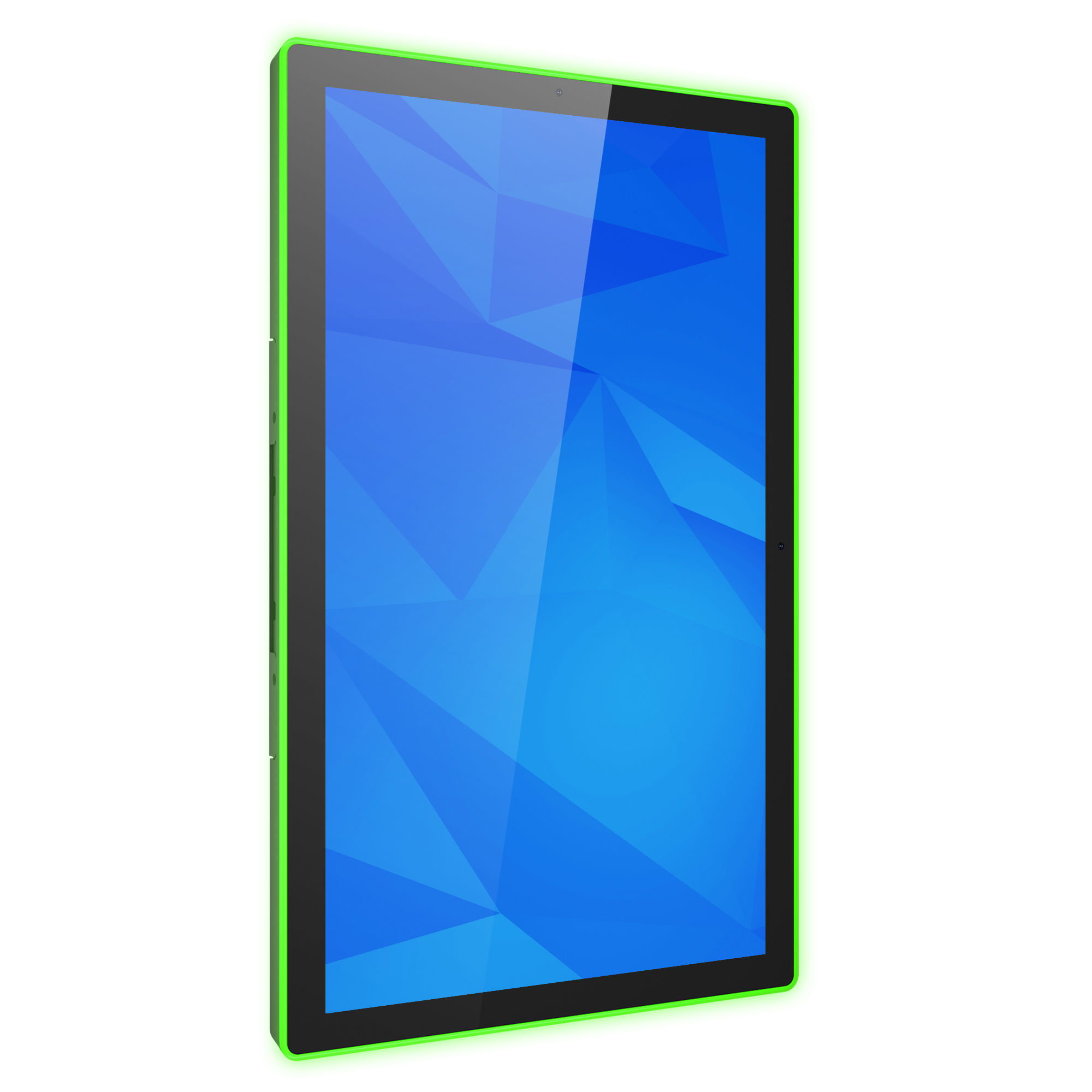

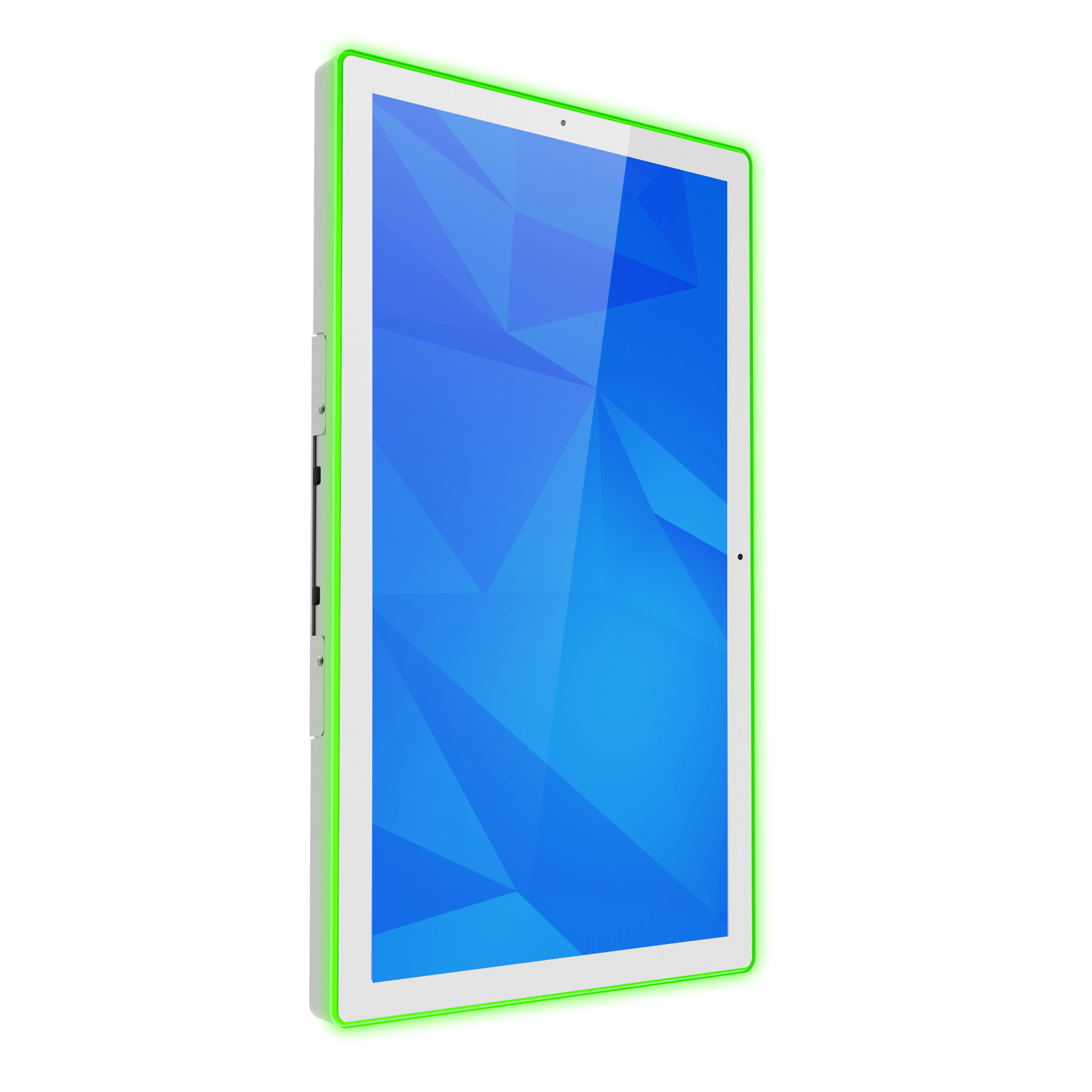

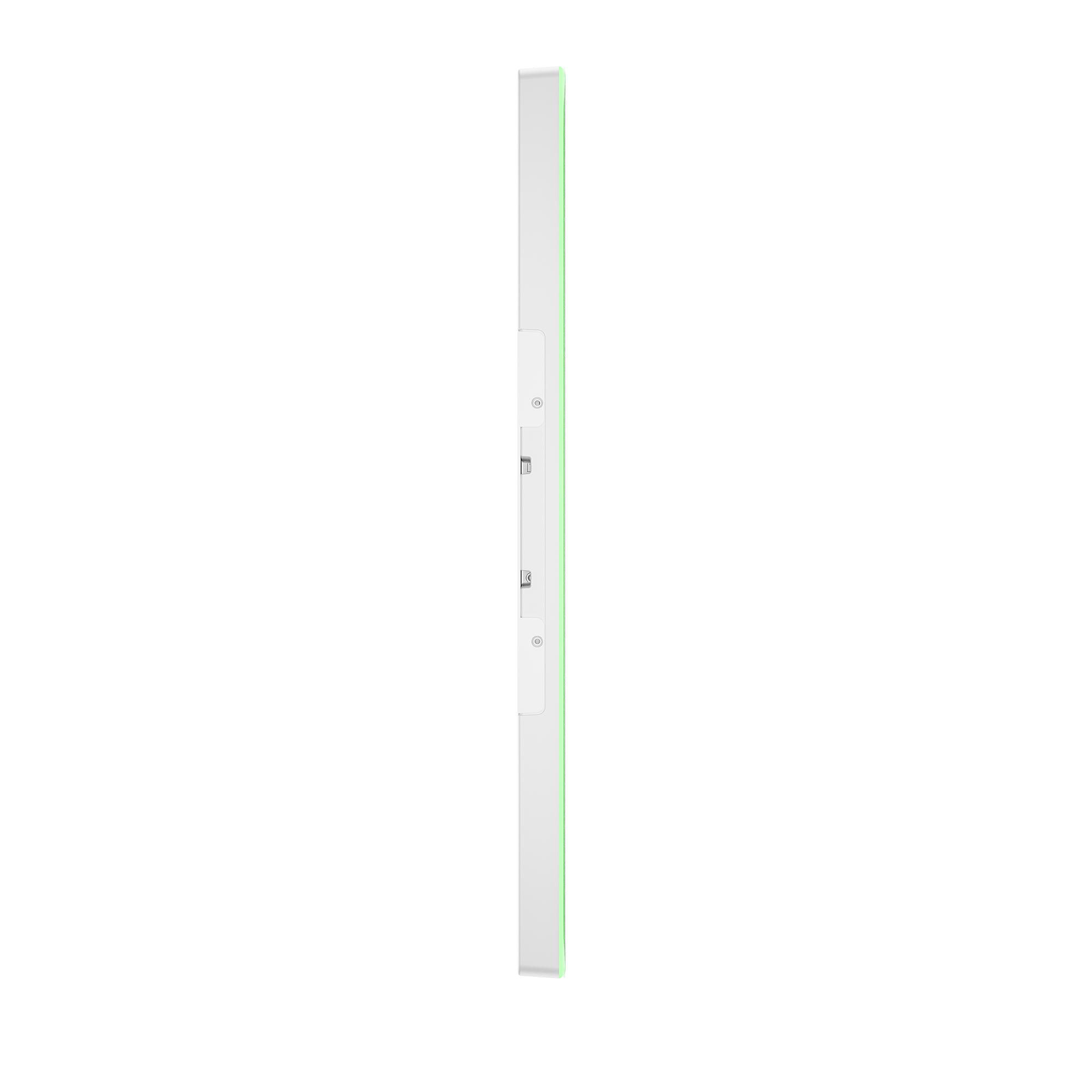

32" Edge-Light Tablet
The 32-inch edge-light Android tablet combines a Full HD touchscreen with customizable RGB edge lighting for clear, interactive communication. Ideal for retail stores, meeting rooms and reception areas, it supports flexible deployment across a wide range of commercial environments.
DISPLAY
32-inch Full HD Touchscreen

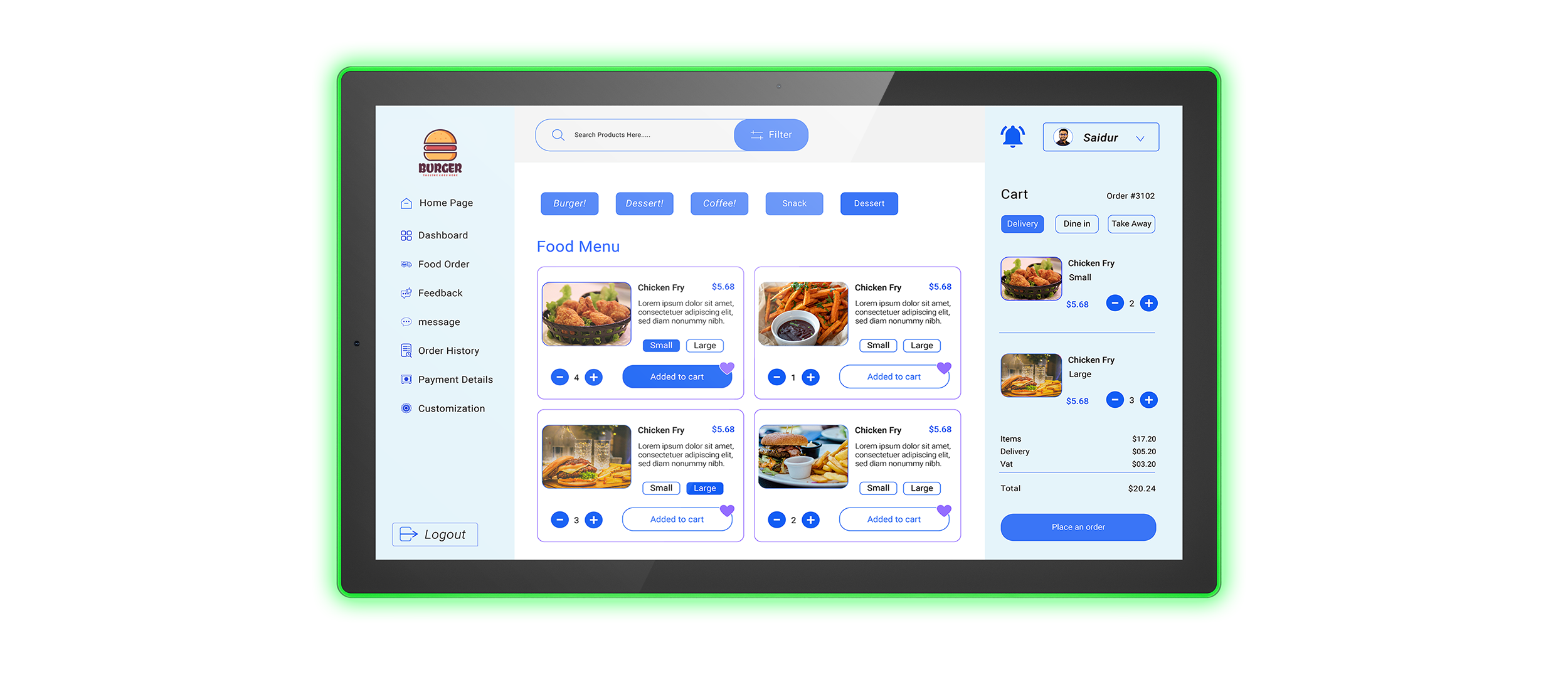

The 32-inch touchscreen delivers a Full HD resolution of 1920 × 1080 for clear, detailed visuals. Its 10-point capacitive touch supports responsive operation and multi-finger gestures, enabling smooth and efficient interaction across commercial applications.

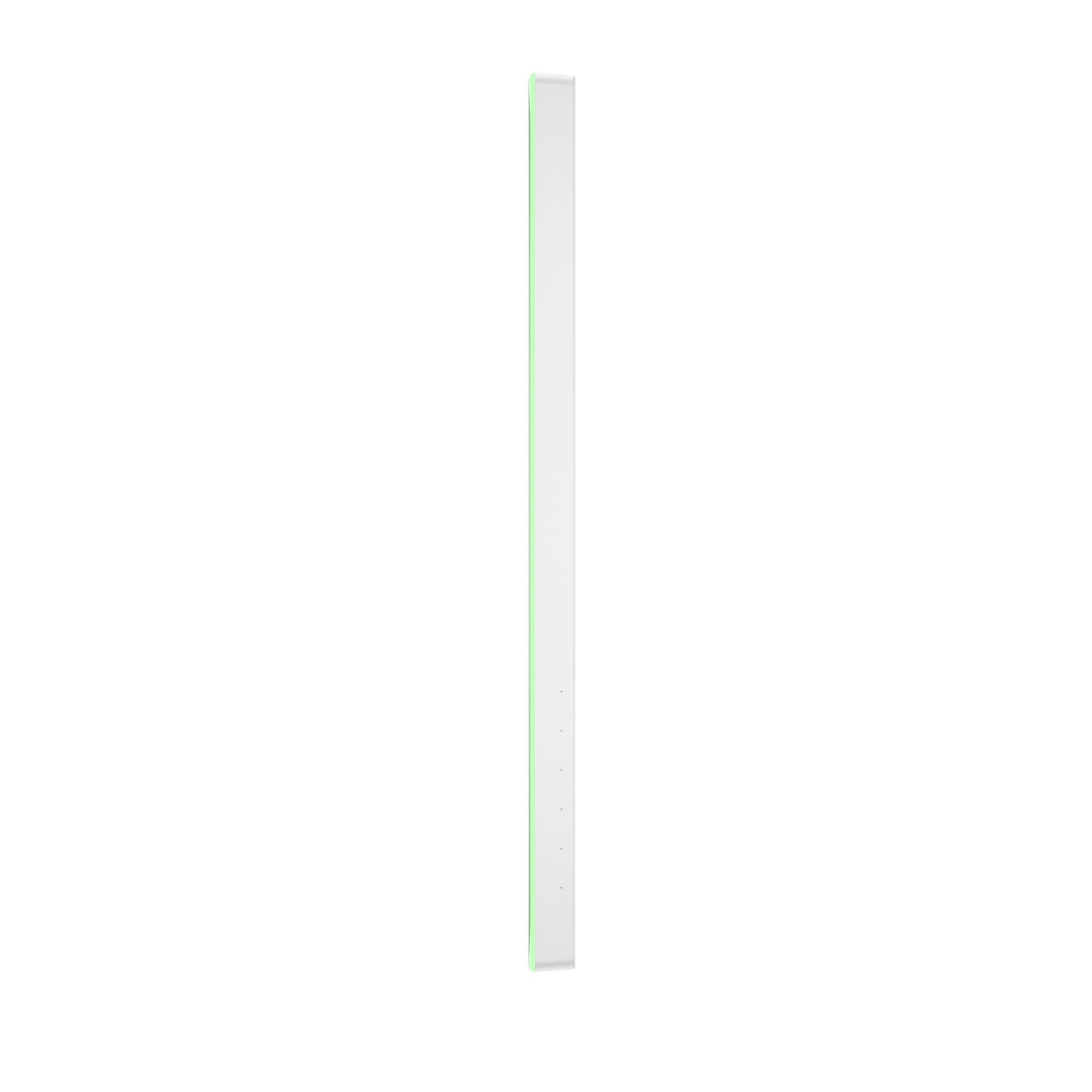

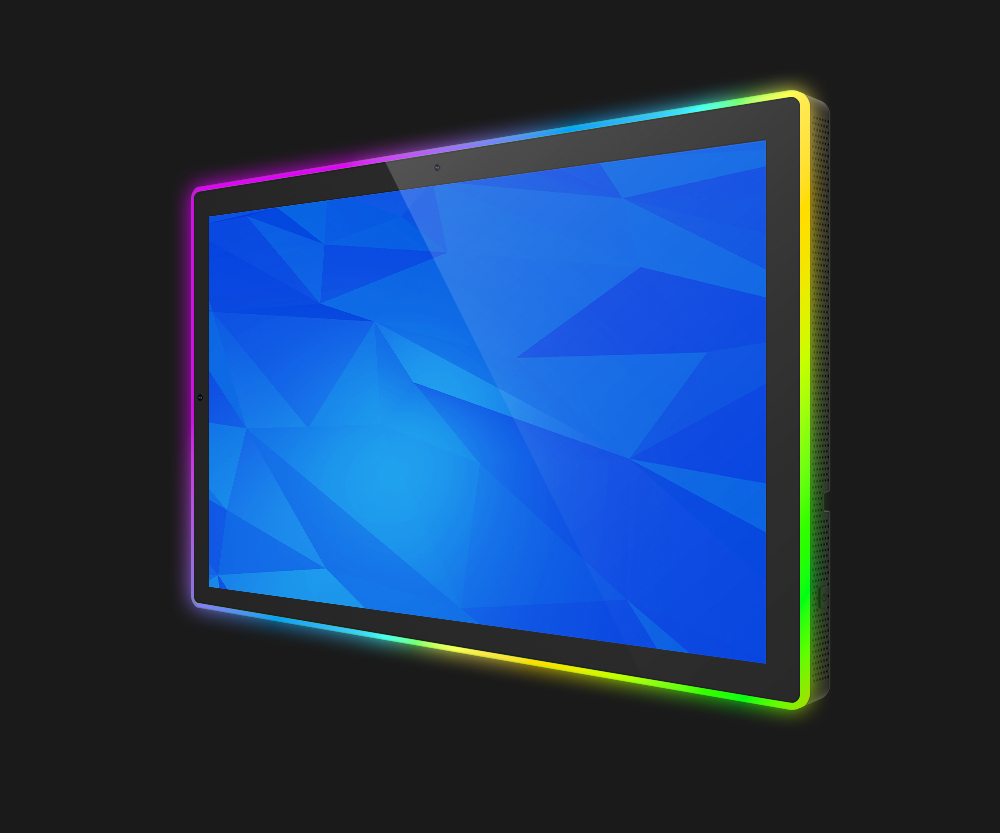

RGB EDGE LIGHTING
Dynamic Lighting That Stands Out

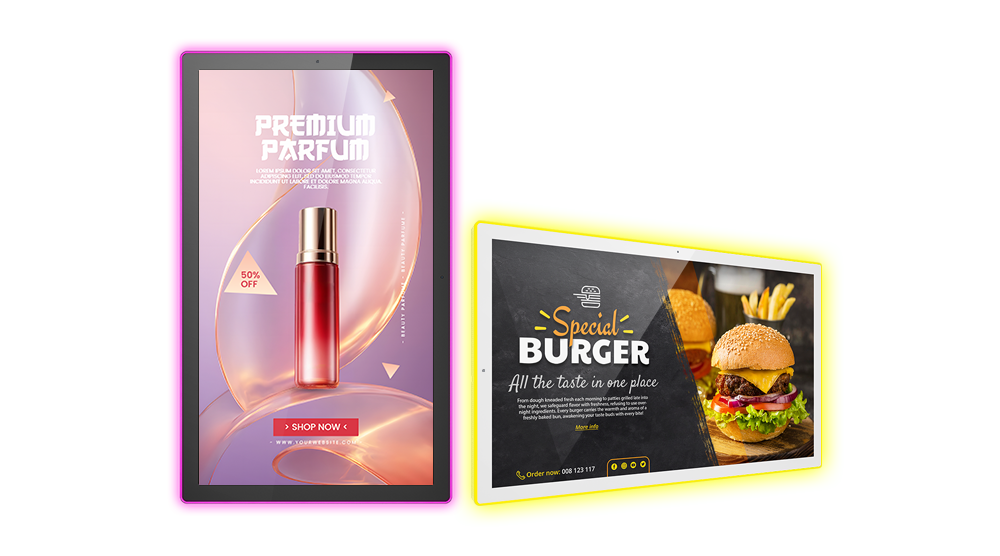

The integrated RGB edge lighting supports customizable colors and dynamic chasing-light effects, creating an eye-catching visual accent around the display. It helps the device stand out in retail stores, reception areas, meeting rooms and other commercial environments.
4 INSTALLATION OPTIONS
Flexible Installation for Commercial Spaces

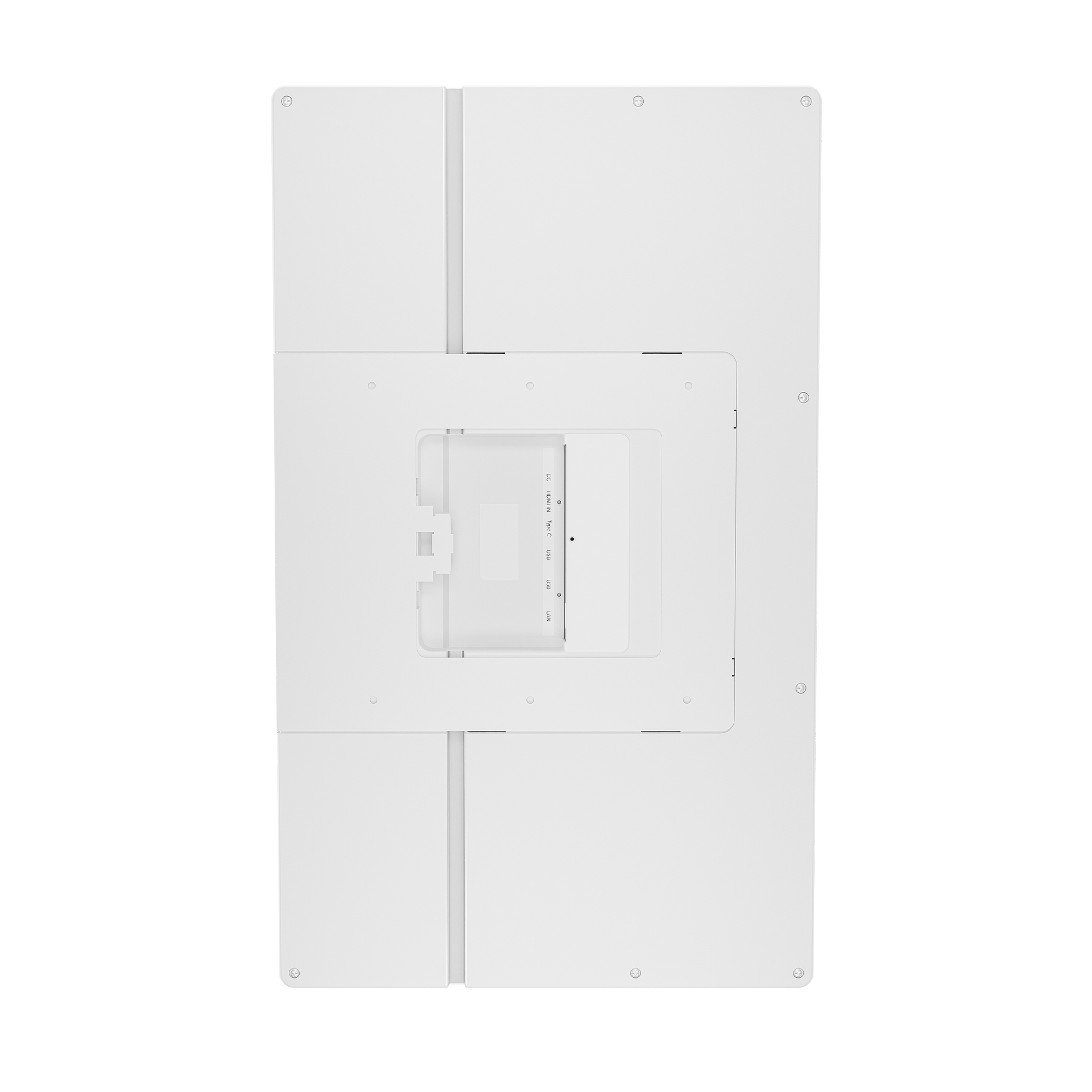

Standard installation uses a quick-hang wall bracket, with optional 75 × 75 mm and 100 × 100 mm VESA mounting holes available for compatible wall mounts, desk stands and floor stands.

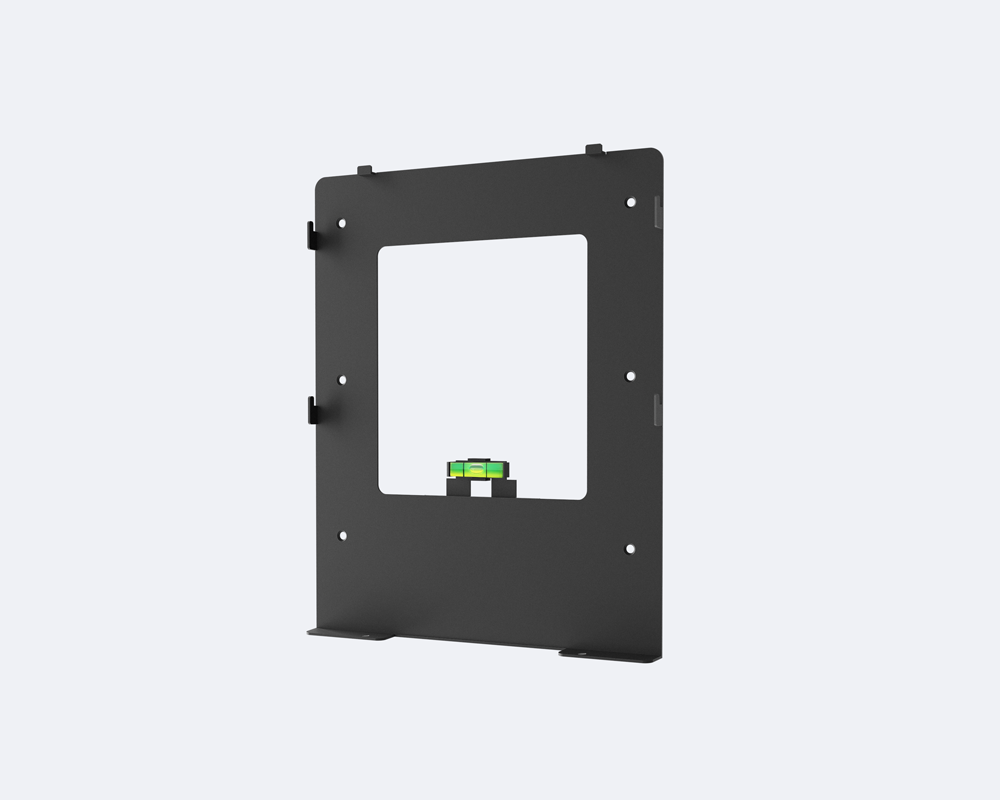

Quick-Hang Wall Mount
Wall Mount
Desk Stand
Floor Stand
OPTIONAL NFC
Fast Contactless Interaction
The WA3289T can be equipped with an optional NXP PN7160 NFC module for contactless identification, data exchange and access control applications. Simply tap a compatible card, tag or NFC-enabled device for quick and convenient interaction.
PERFORMANCE
Choose the Configuration You Need
Multiple processor configurations are available, with flexible RAM and storage options to meet different performance, software and project requirements.
OPERATING SYSTEM
All You Can Stream And Cast.
Utilize the intelligent screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.
BUILT-IN CAMERA, SPEAKERS AND MICROPHONE ARRAY
Clear Audio & Video

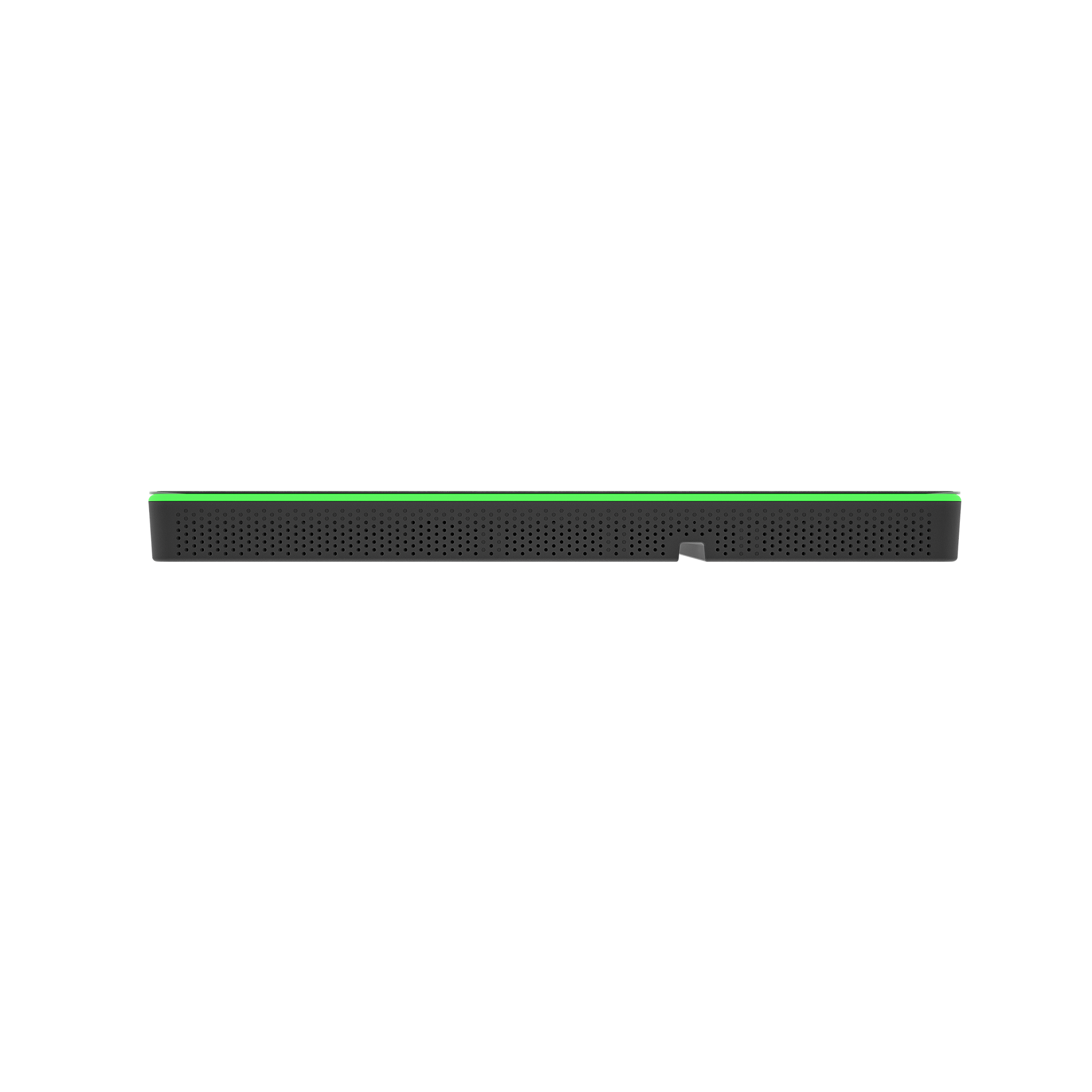

Equipped with an 8MP camera, dual 5W speakers and a four-microphone array, the device supports clear two-way audio and video communication. Noise reduction and echo cancellation improve voice clarity for video calls, remote assistance and other interactive applications.

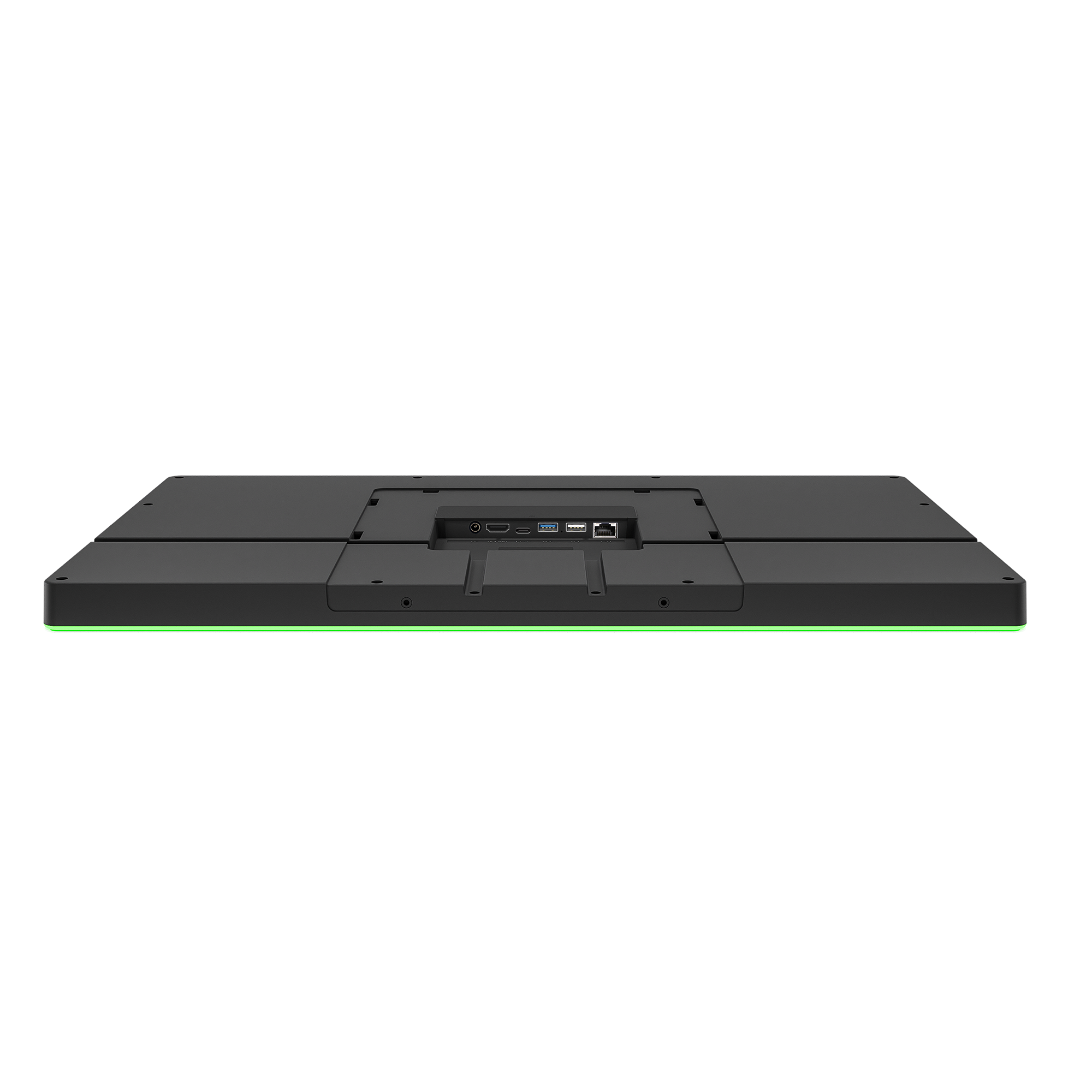

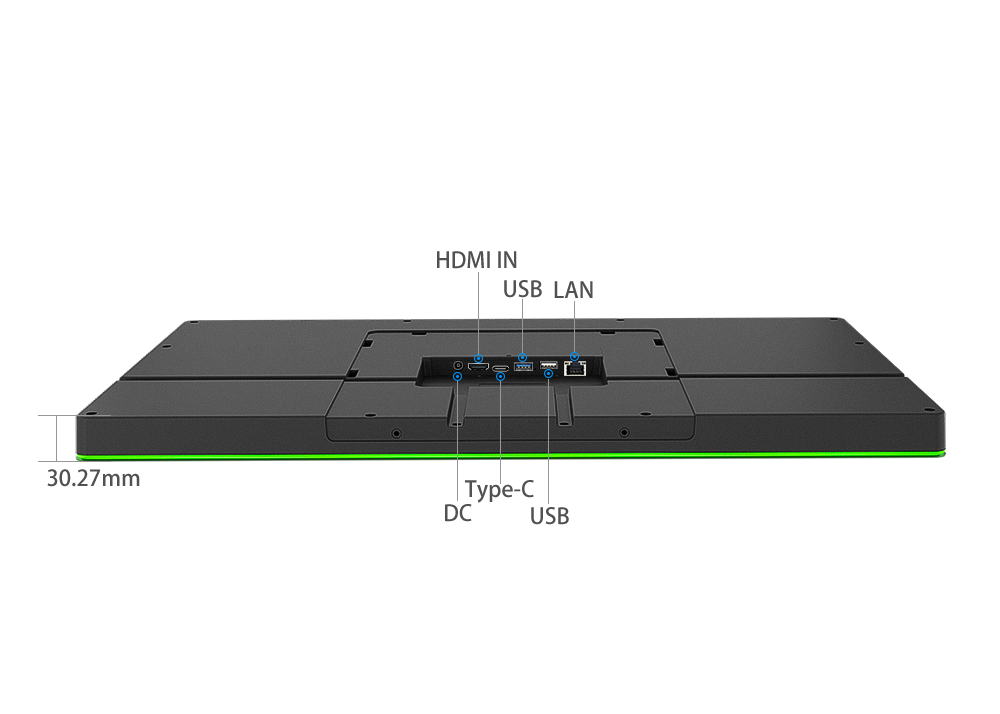

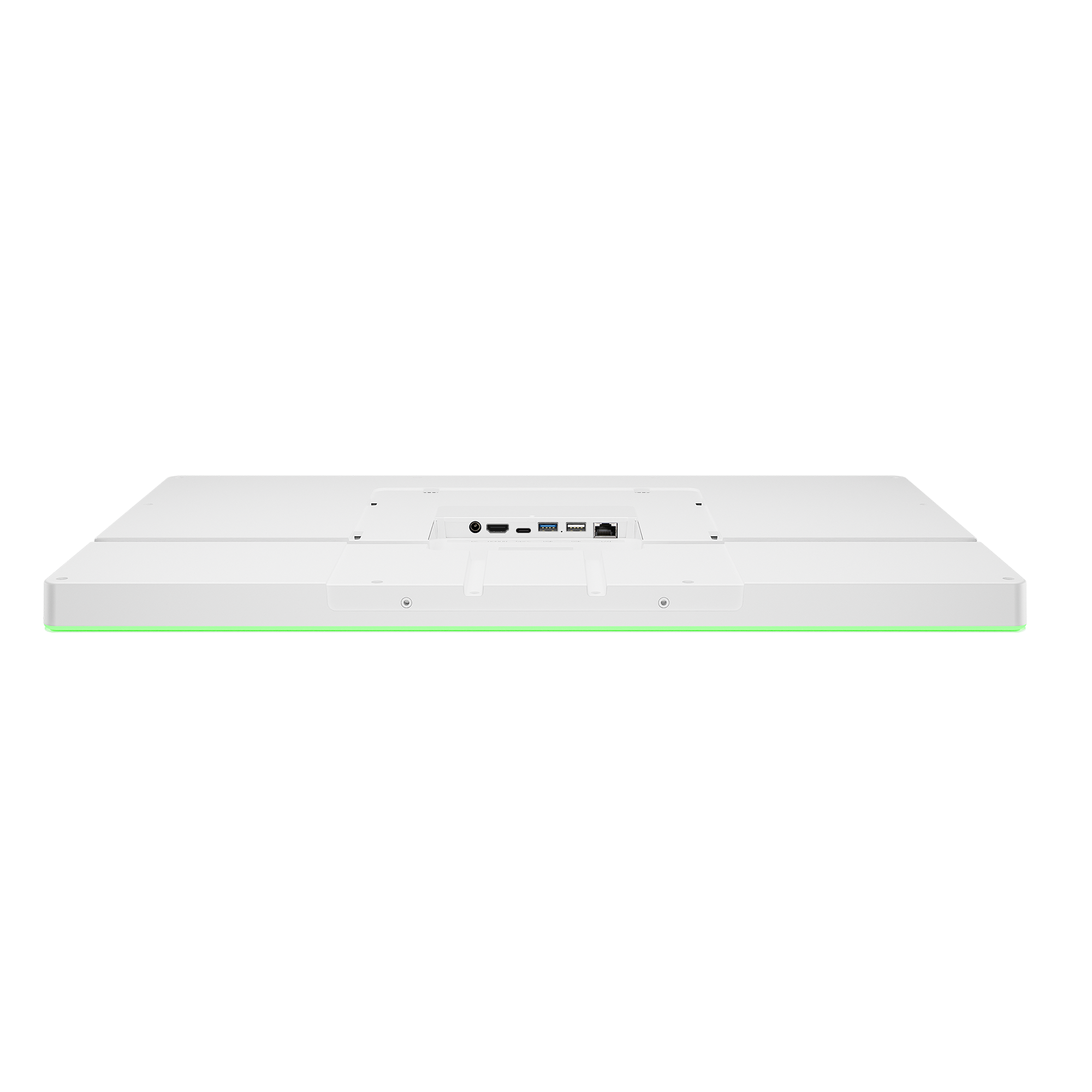

CONNECTIONS AND EXPANSION
Flexible Connectivity
The WA3289T integrates Gigabit Ethernet, USB 2.0 and USB 3.0 ports, Type-C OTG, HDMI 2.0 input and DC 18V power input, supporting reliable wired connectivity and flexible peripheral expansion.
32" Edge-Light Tablet
RK3576S Octa-Core Processor | 4GB RAM | 64GB Storage | Android 14
• RK3576S octa-core processor with 3 TOPS NPU
• Android 14 with 4GB RAM and 64GB storage
• 72% NTSC color gamut and 4000:1 contrast ratio
• Wi-Fi 6, Bluetooth 5.4 and Gigabit Ethernet
• 8.0MP camera, dual 5W speakers and quad microphones with noise reduction and echo cancellation
• HDMI 2.0 input, USB 3.0 and Type-C with OTG
• Optional NXP PN7160 NFC and 125 kHz RFID
• Integrated edge lighting with marquee effects
WA3289T
Specifications
Display
32-inch (LCD)
1920 x 1080 pixels
16:9
178° (H) / 178° (V)
Normally black
4000:1
300 nits
10-point
Processor
RK3576S Quad core cortex A72+Quad core cortex A53
4GB (Optional 8GB)
64GB (Optional 128GB)
Android 14
Size and Weight
750.2x 30.37 x 444.45mm (L × W × D)
Wireless
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
I/O Ports
1×USB 2.0 HOST
1×USB 3.0 HOST
1×Type-C (Only supports OTG function)
1 × Gigabit Ethernet Port (10/100/1000 Mbps)
DC 18V Power Input
1 × HDMI 2.0 Input
Media Format
H.264, H.265, VP9, AV1, AVS2
JPEG
H.264, H.265, JPEG
Others
White / Black
100 × 100 mm / 75 × 75 mm
4Ω*5W*2
Quad-Microphone Array with Noise Reduction and Echo Cancellation
Optional NXP PN7160; ISO/IEC 18092 (NFCIP-1), ISO/IEC 21481 (NFCIP-2), ISO/IEC 14443 Type A/B and ISO/IEC 15693; MIFARE Classic, MIFARE Ultralight, MIFARE DESFire EV1/EV2 and Sony FeliCa
Optional,125k,ISO/IEC11784/11785,EM4100,TK4100/GK4100
8MP
Multi-language
CE/FCC
0℃-40℃
