WL1032T | WL1033T | WL1036T | WL1037T | WL1038T

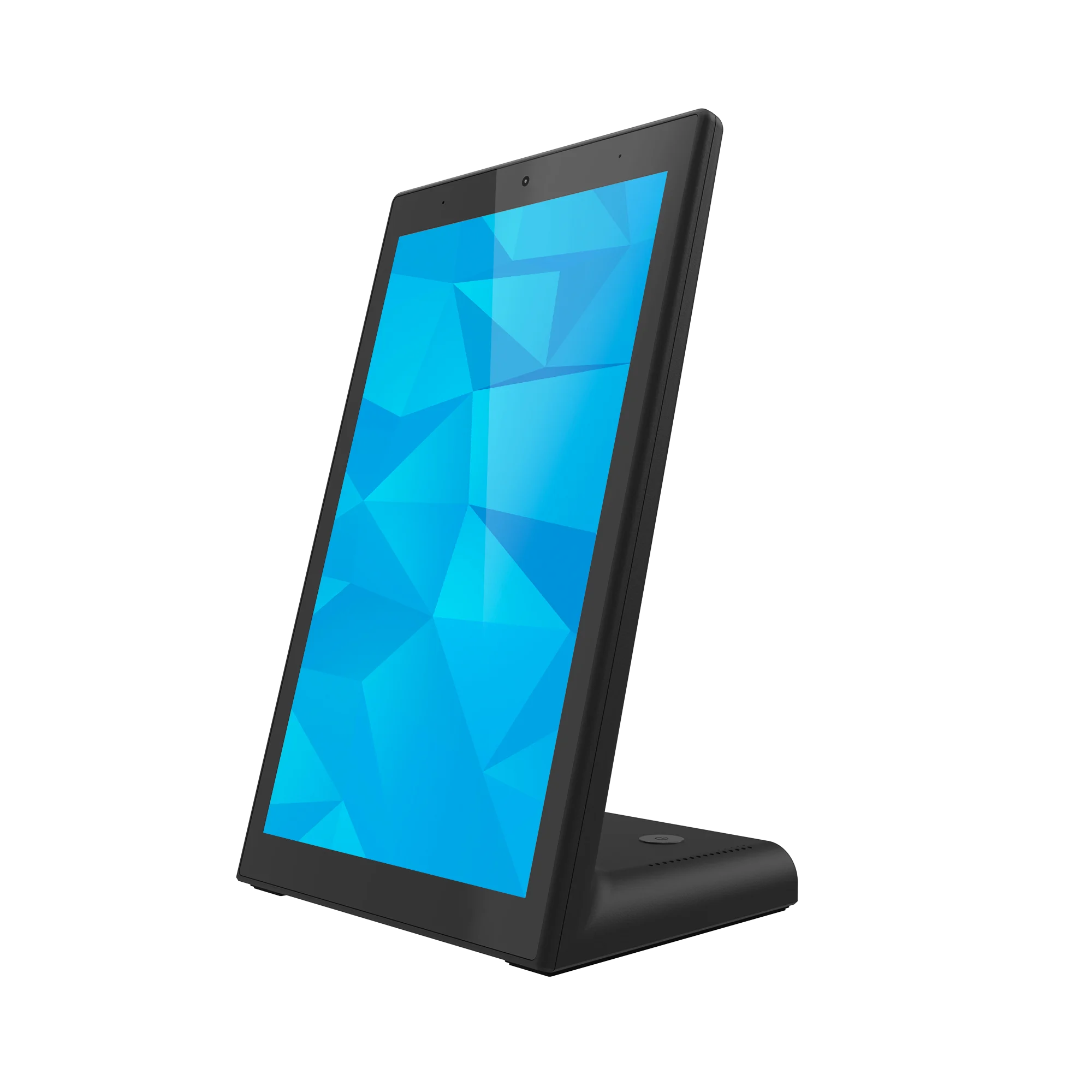

10.1-inch Desktop Signage
Features 800*1280 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An ideal multi-functional display equipment for advertising uses.
DISPLAY

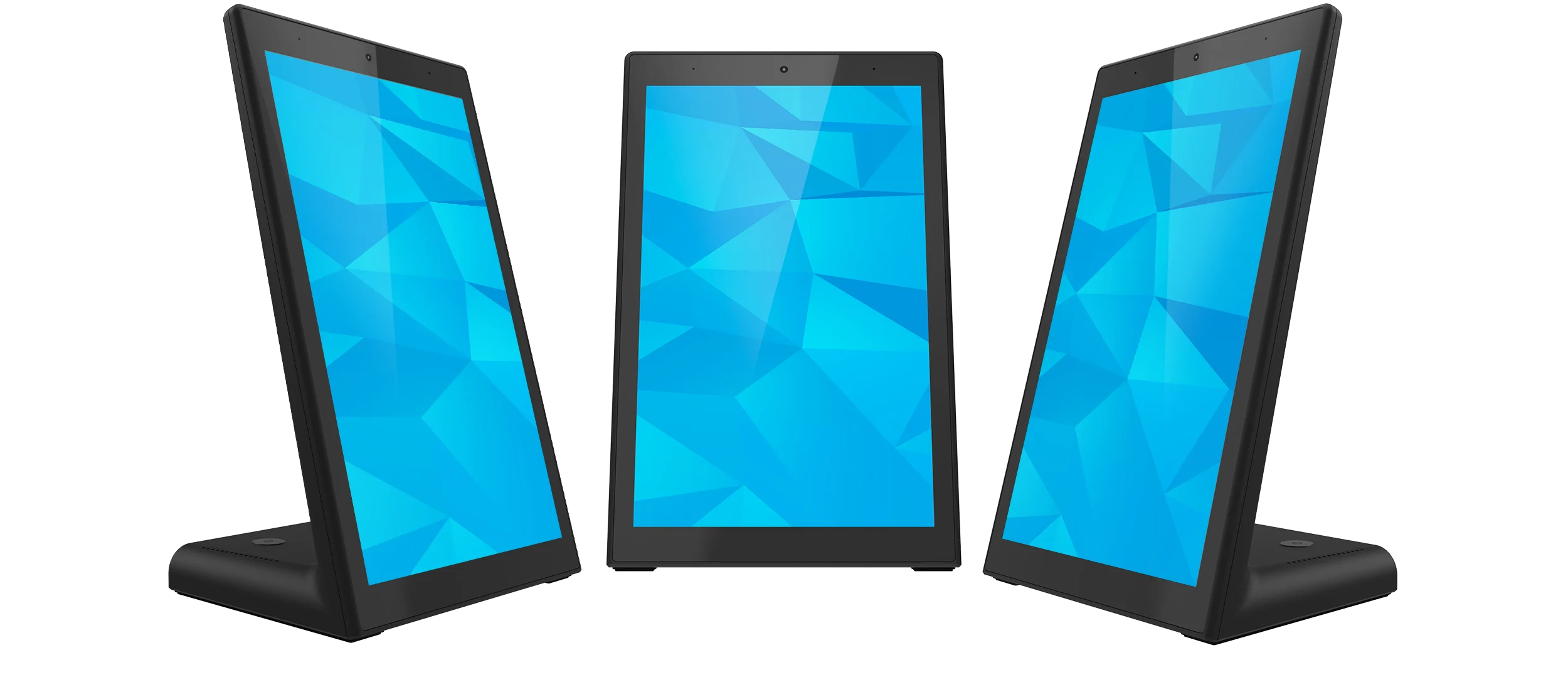

10.1-inch HD Multi-Touch Display

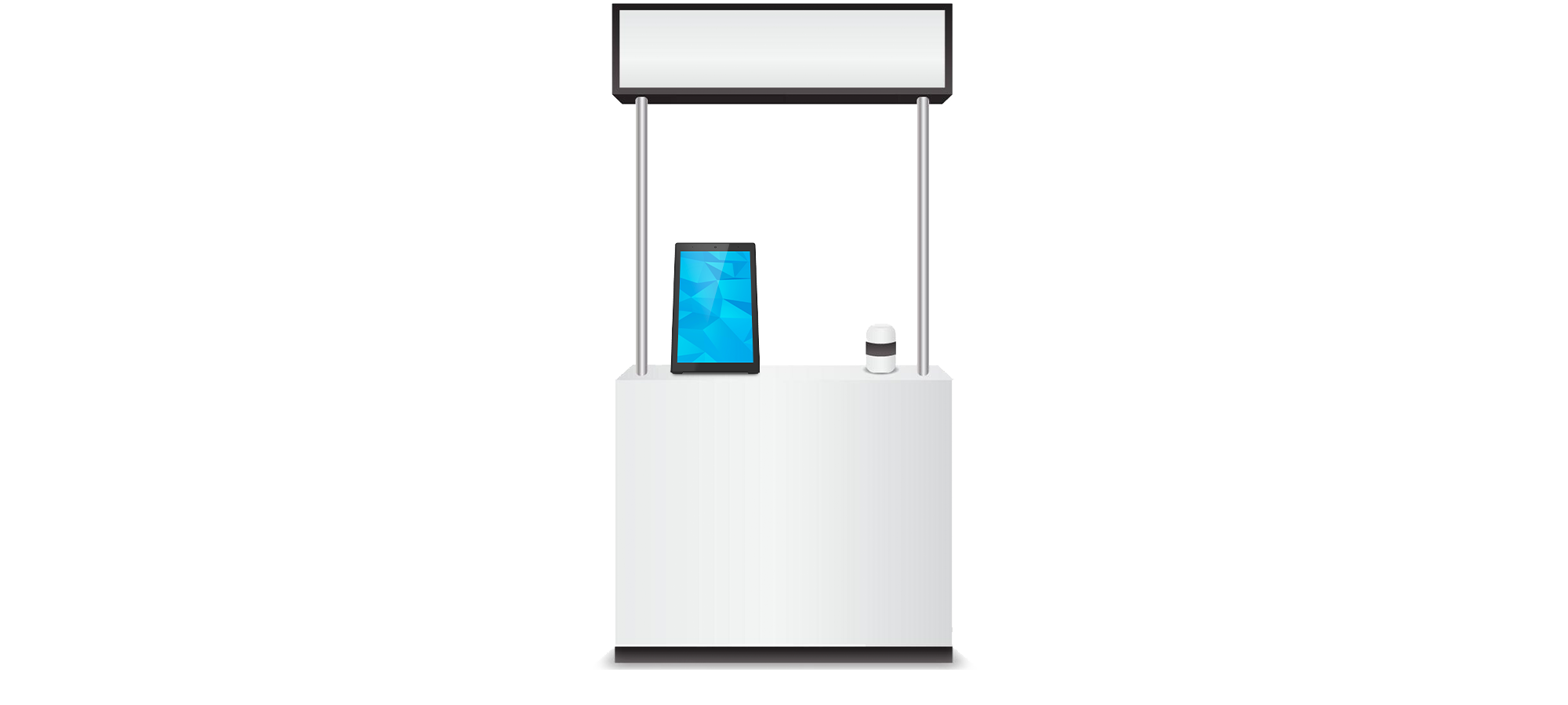

Enjoy high image and video quality with the 10.1-inch HD display screen, providing crisp and vibrant visuals. It offers customers a point of interaction to review transactions, see the latest promotions, and more.
OPERATING SYSTEM
Providing A More Stable, Secure, And Smooth Display Experience.
Utilize the intelligent split-screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.
PROCESSORS
Work Faster, Work More Efficiently.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

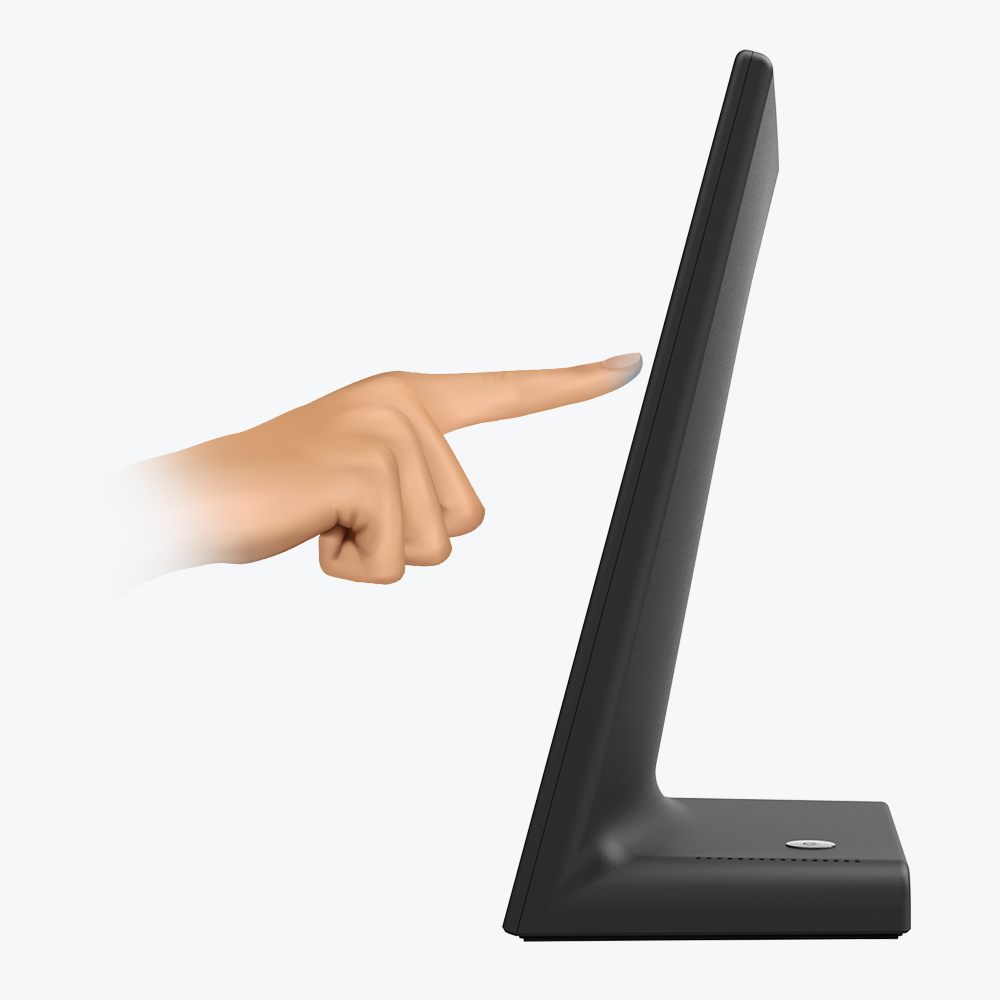

ERGONOMIC DESIGN
Elevates Your Using Experience.

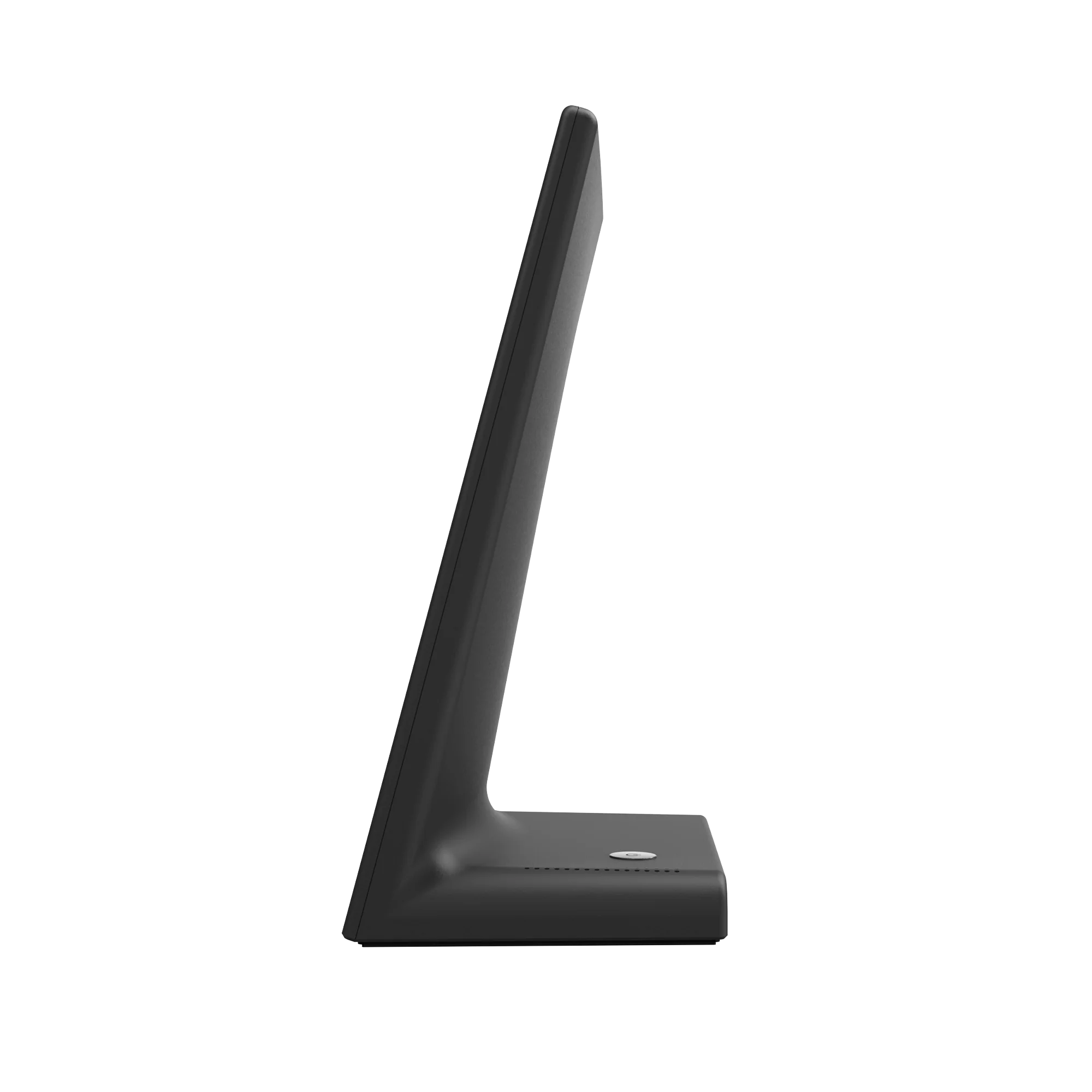

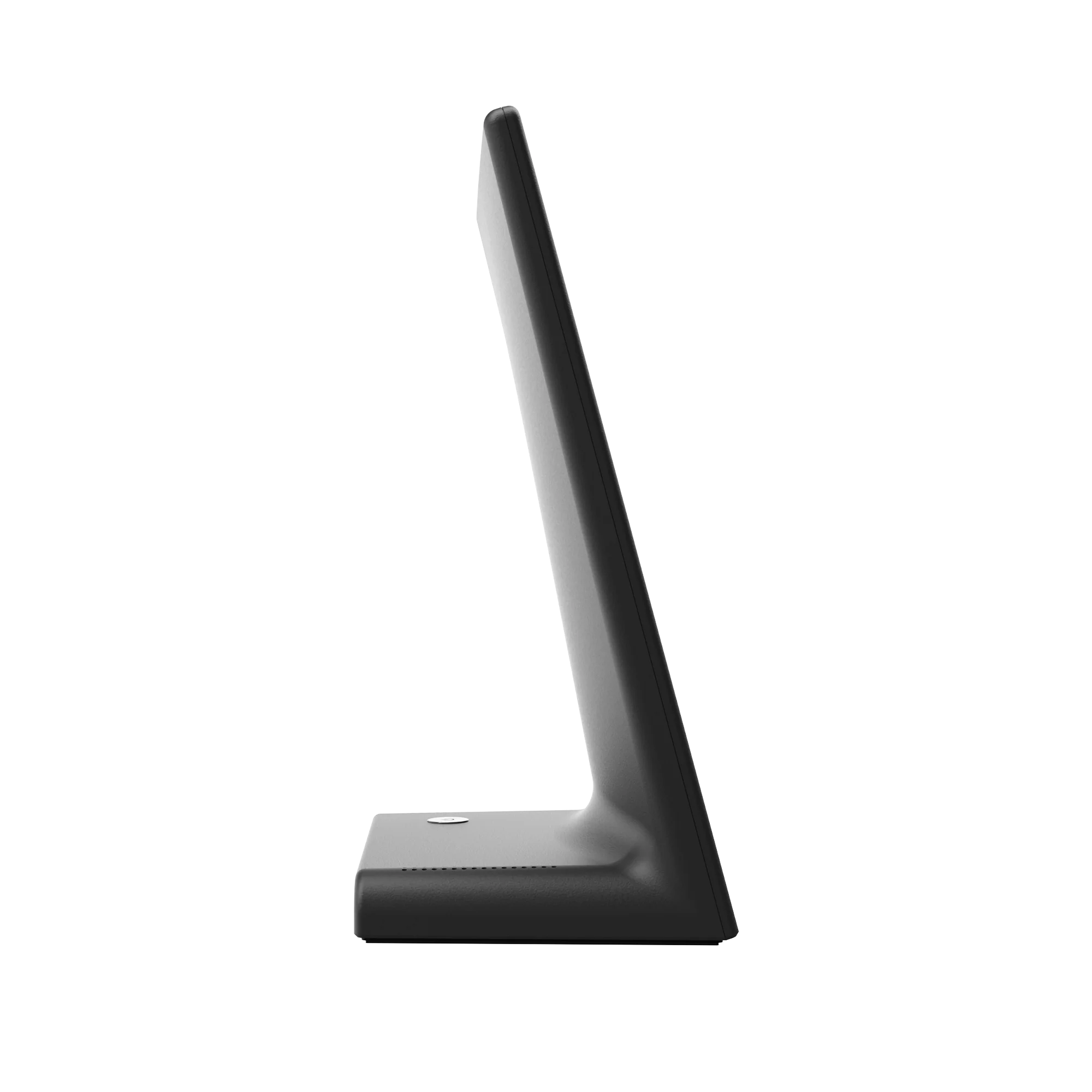

The L-shaped design makes it easy to place on a desktop without requiring external bracket and provides users a comfortable angle for use.

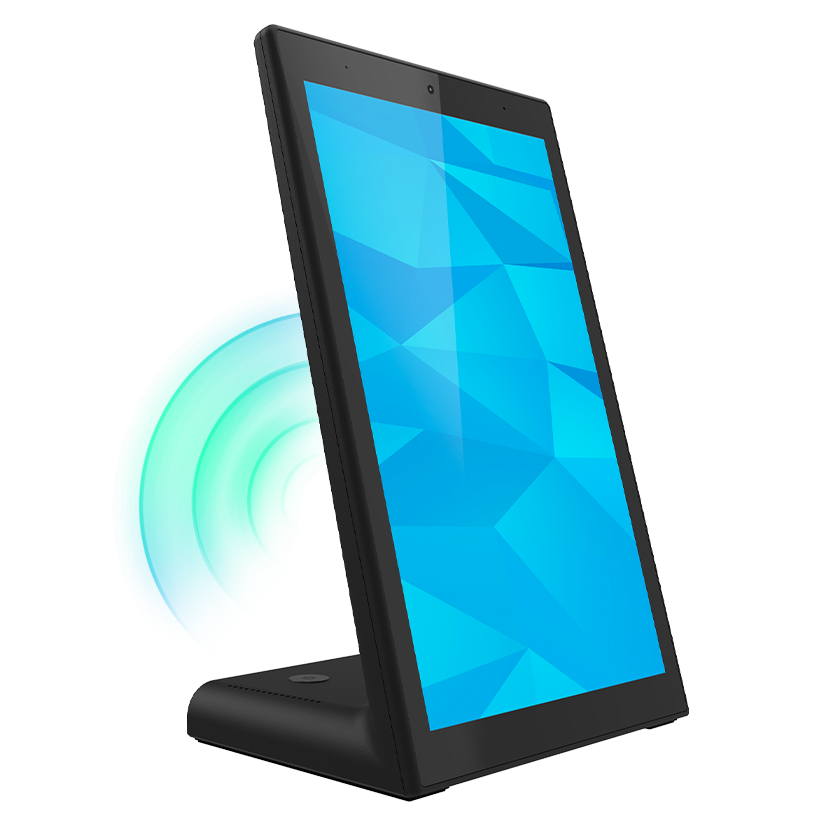

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One.
Requiring no additional setup or external hardware, making it easy to quickly initiate video calls or record videos without needing to connect extra peripherals. This also contributes to portability and space-saving benefits.

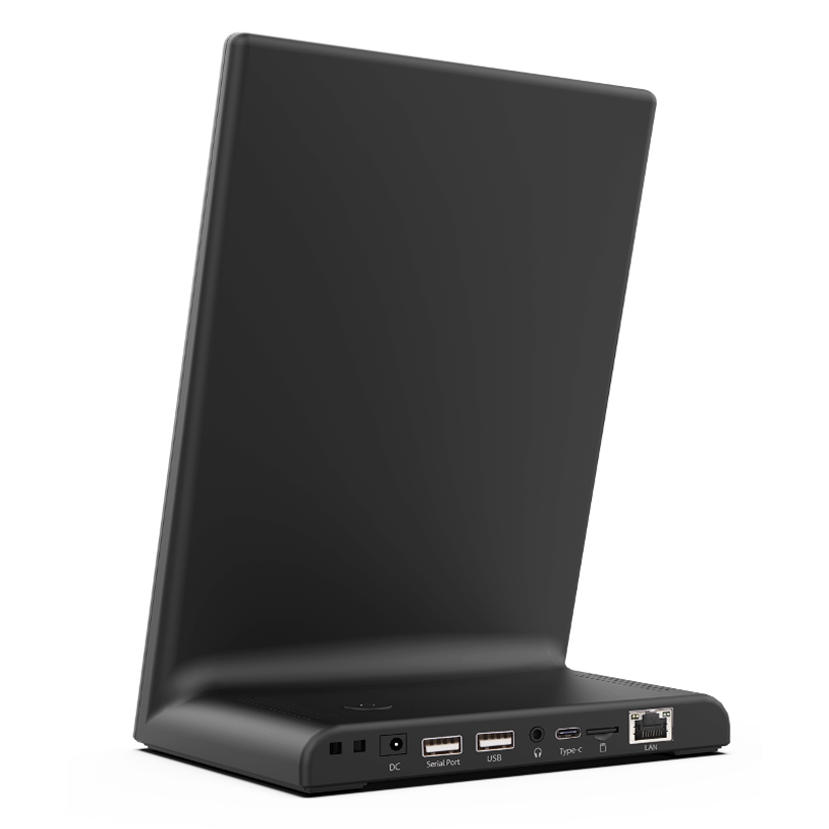

CONNECTIONS AND EXPANSION
Easy Connectivity.
Connect completely to the signage and gain full control by using all your peripherals at once - wireless mouse and keyboard, headphones, additional screens and more.
Explore More ELC Desktop Signages Now.
Screen sizes from 8-inch to 17.3-inch, horizontal or vertical.
Explore Now

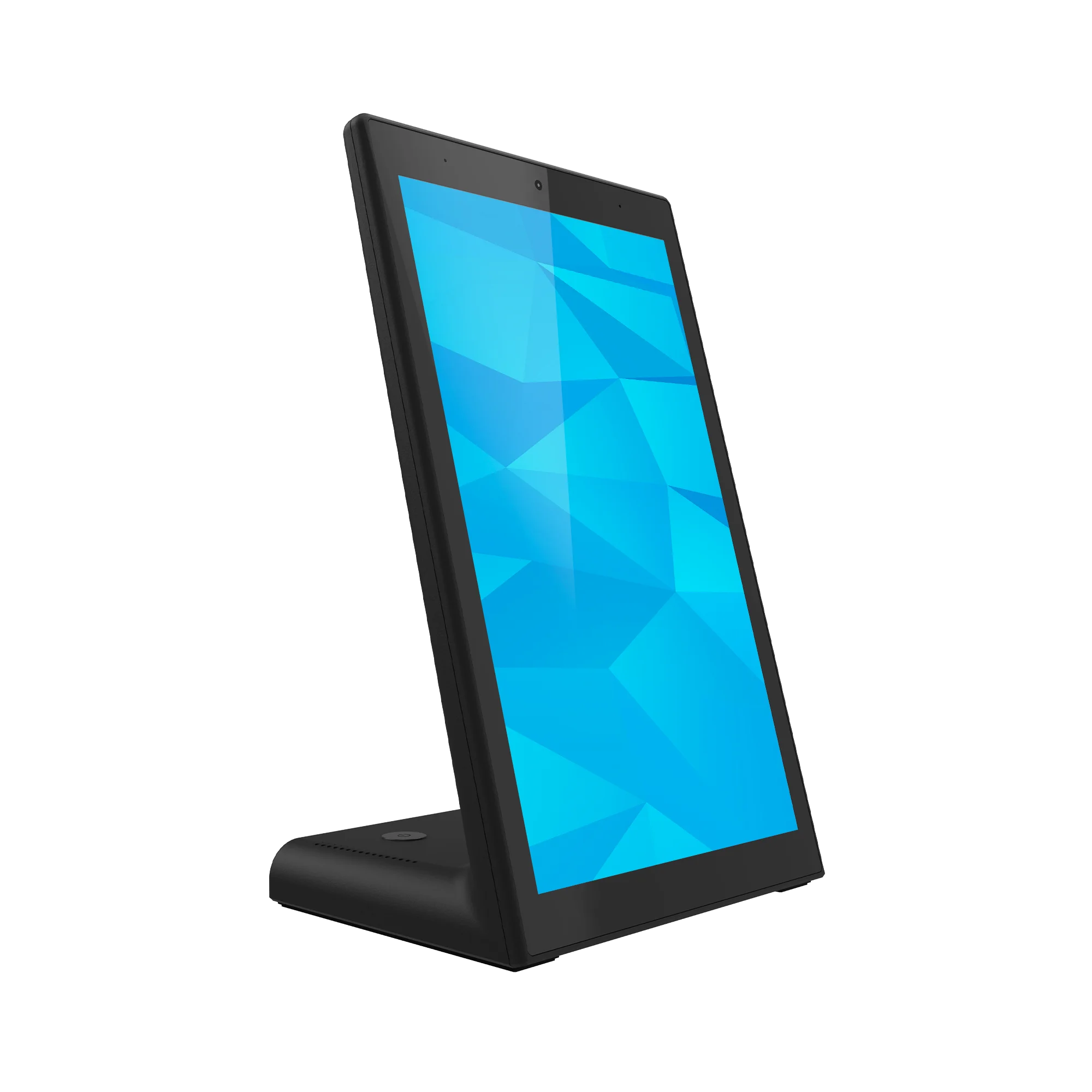

10.1" Desktop Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK 3128 Quad-core cortex A7 | 1GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WL1032T | WL1033T | WL1036T | WL1037T | WL1038T
Specifications
Display
10.1-inch (LCD)
800 x 1280 pixels
10:16
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WL1032T: RK3288 Quad-core cortex A17
- WL1033T: RK3399 Dual-core A72+Quad-core A53
- WL1036T: RK3568 Quad-core cortex A55
- WL1037T: RK3128 Quad-core cortex A7
- WL1038T: RK3568 Quad-core cortex A55
- WL1032T: 2GB
- WL1033T: 2GB (Optional 4GB)
- WL1036T: 2GB (Optional 4GB)
- WL1037T: 1GB
- WL1038T: 2GB (Optional 4GB)
- WL1032T: 16GB
- WL1033T: 16GB (Optional 32GB/64GB)
- WL1036T: 16GB (Optional 32GB/64GB)
- WL1037T: 16GB
- WL1038T: 16GB (Optional 32GB/64GB)
- WL1032T: Android 8.1/10.0
- WL1033T: Android 7.1/10.0
- WL1036T: Android 11
- WL1037T: Android 6.0
- WL1038T: Android 11
Size and Weight
160.2 x 255.5 x 114.03 mm (L × W × D)
Wireless
- WL1032T: IEEE 802.11b/g/n
- WL1033T: IEEE 802.11ac/a/b/g/n 2.4G+5G
- WL1036T: IEEE 802.11 b/g/n
- WL1037T: IEEE 802.11 b/g/n
- WL1038T: IEEE 802.11 b/g/n
Bluetooth 4.2

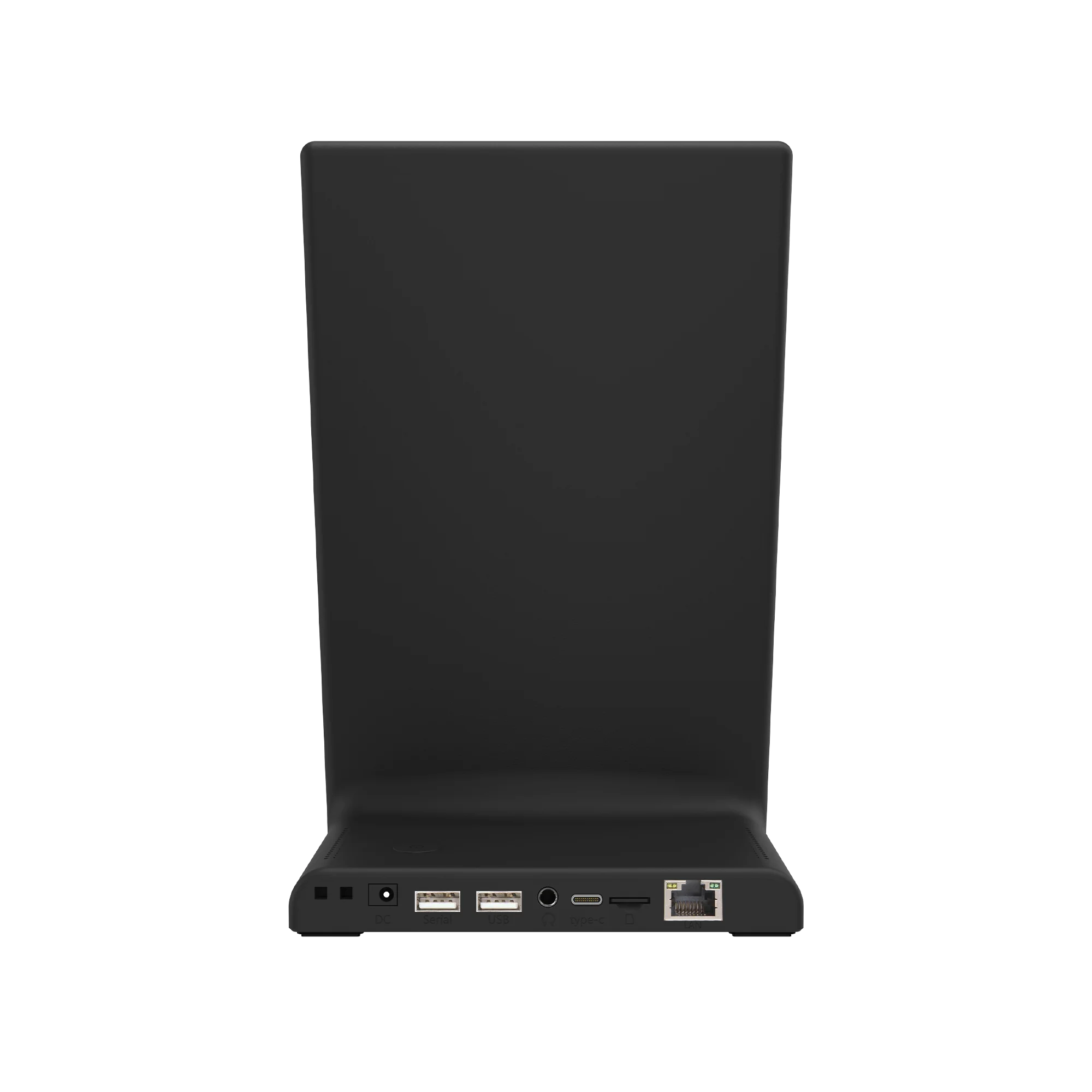

I/O Ports
- WL1032T: USB 2.0 Host
- WL1033T: USB 3.0 Host
- WL1036T: USB 3.0 Host
- WL1037T: USB 2.0 Host
- WL1038T: USB 3.0 Host
- WL1032T: USB for serial (TTL Level)
- WL1033T: USB for serial (TTL Level ), Optional USB host
- WL1036T: USB for serial (TTL Level ), Optional USB host
- WL1037T: USB for serial ( TTL format)
- WL1038T: USB for serial (TTL Level), Optional USB host
- WL1032T: Support USB OTG only
- WL1033T: Support full function (Except for charging function)
- WL1036T: Support USB OTG only
- WL1037T: Support USB OTG only
- WL1038T: Support USB OTG only
Ethernet interface(Standard POE IEEE802.3at, POE+, class 4, 25.5W)
DC power input
3.5mm earphone
Media Format
- WL1032T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WL1033T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WL1036T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WL1037T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 1080p
- WL1038T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
- WL1032T: JPEG/PNG
- WL1033T: JPEG/PNG
- WL1036T: JPEG
- WL1037T: JPEG
- WL1038T: JPEG/PNG
Others
Black
2W*2
- WL1032T: Single microphone
- WL1033T: Standard single microphone, Optional dual microphone
- WL1036T: Standard single microphone, Optional dual microphone
- WL1037T: Single microphone
- WL1038T: Standard single microphone, Optional dual microphone
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
- WL1032T: Routine angle 5.0MP
- WL1033T: Routine angle 5.0MP
- WL1036T: Routine angle 5.0MP
- WL1037T: Routine angle 2.0MP
- WL1038T: Routine angle 5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/1.5A
×1
