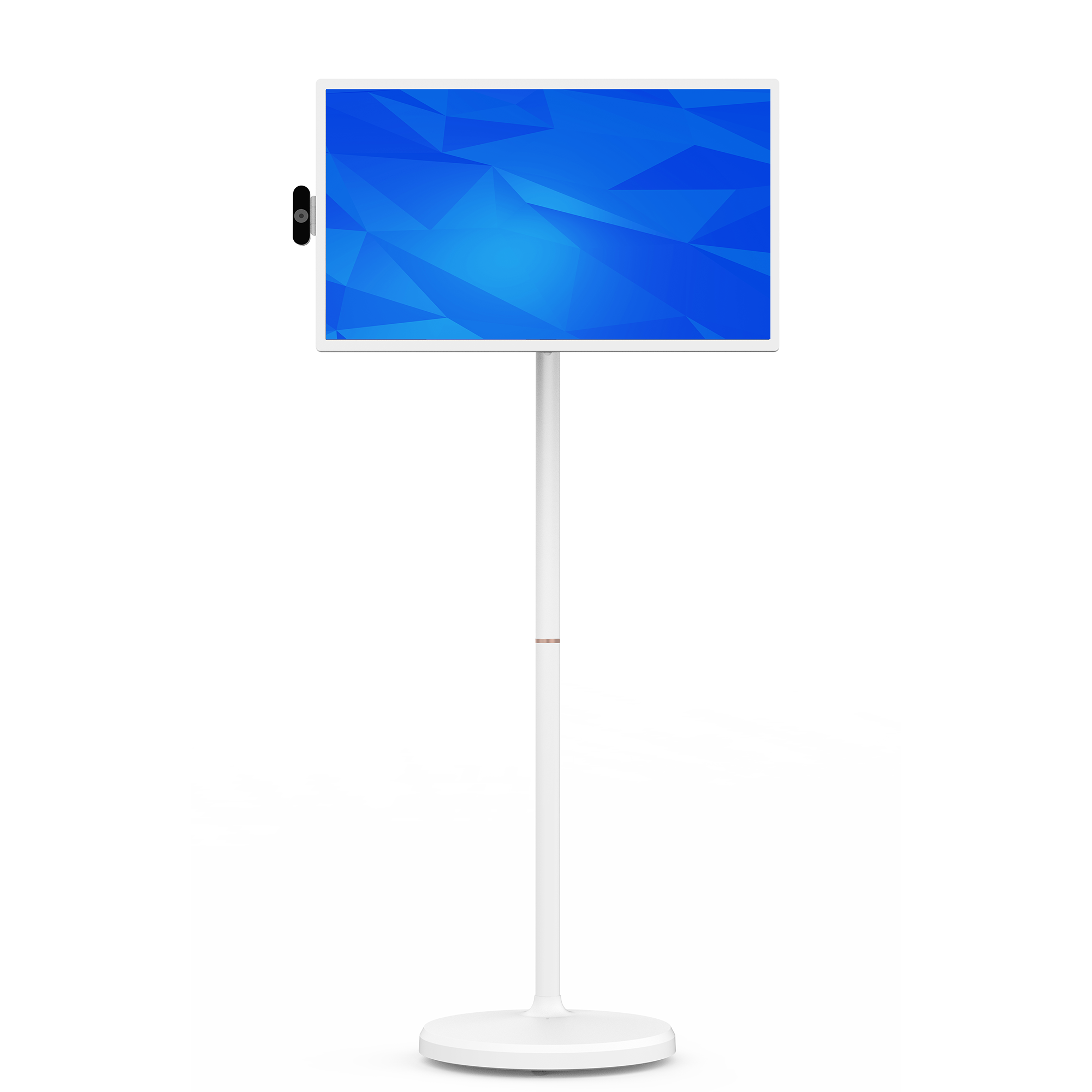

32"-4K Smart Portable Signage
Options:
- RK3588S2 Quad core cortex A55+Quad core cortex A76
- 8GB
- 128GB
- Android 13
- RK3576S Quad core cortex A53+Quad core cortex A72
- 4GB
- 64GB
- Android 14
SW3295T-4K | SW3299T-4K
32-Inch 4K Smart Portable Signage
Powered by Android 13 and the RK3588S2 octa-core processor, it combines a 4K 10-point touchscreen, 8GB RAM and 128GB storage. The built-in battery and adjustable rolling stand support mobile use for presentations, advertising and commercial applications.

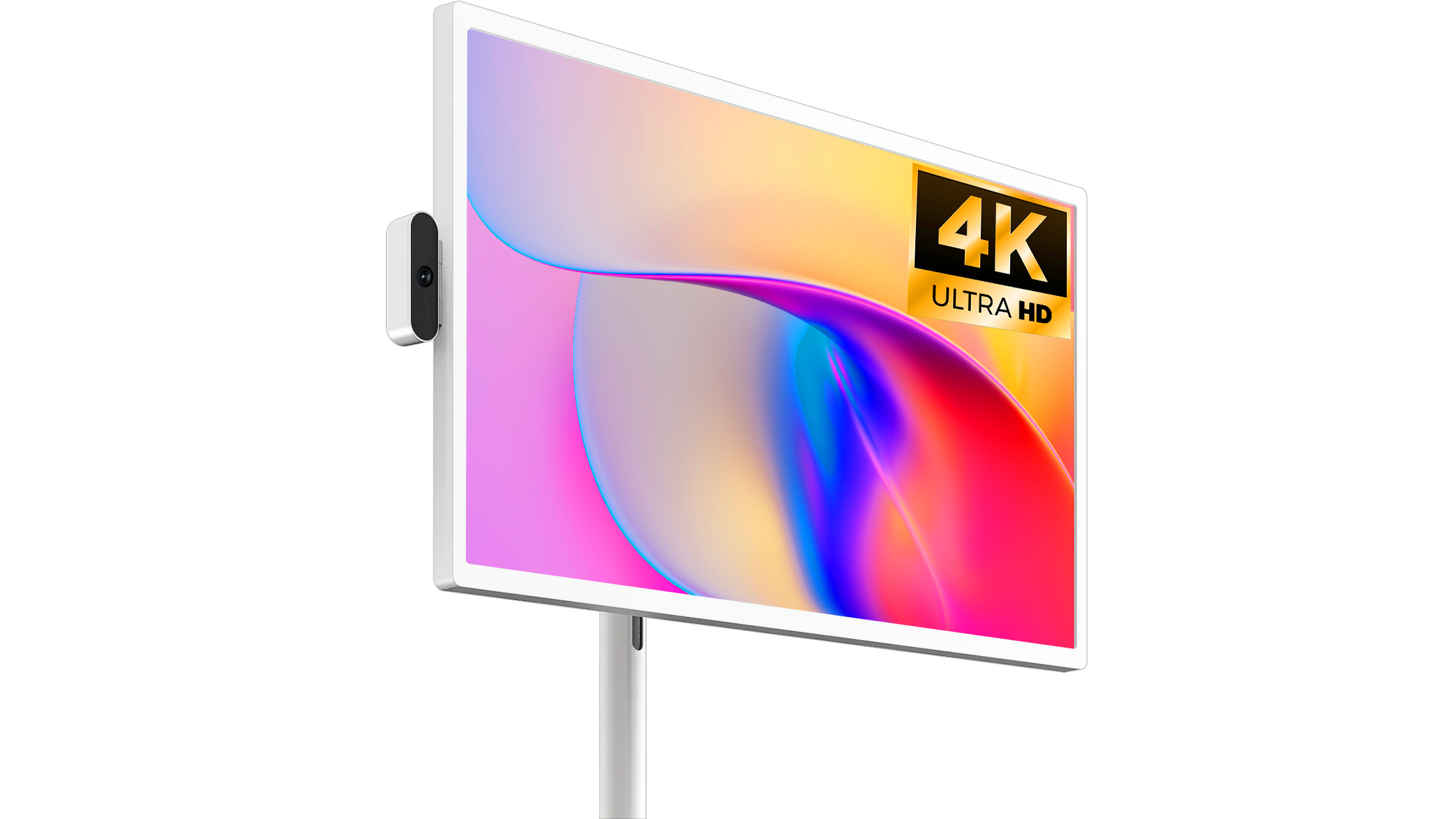

DISPLAY
4K Touchscreen for Clear, Detailed Visuals
The 32-inch display delivers 3840 × 2160 4K UHD resolution, a 2500:1 contrast ratio and 72% NTSC color gamut for clear, detailed content. Its 10-point capacitive touchscreen supports responsive multi-touch operation for presentations, product demonstrations and other commercial applications.
USE CASES
One Device for Multiple Uses.

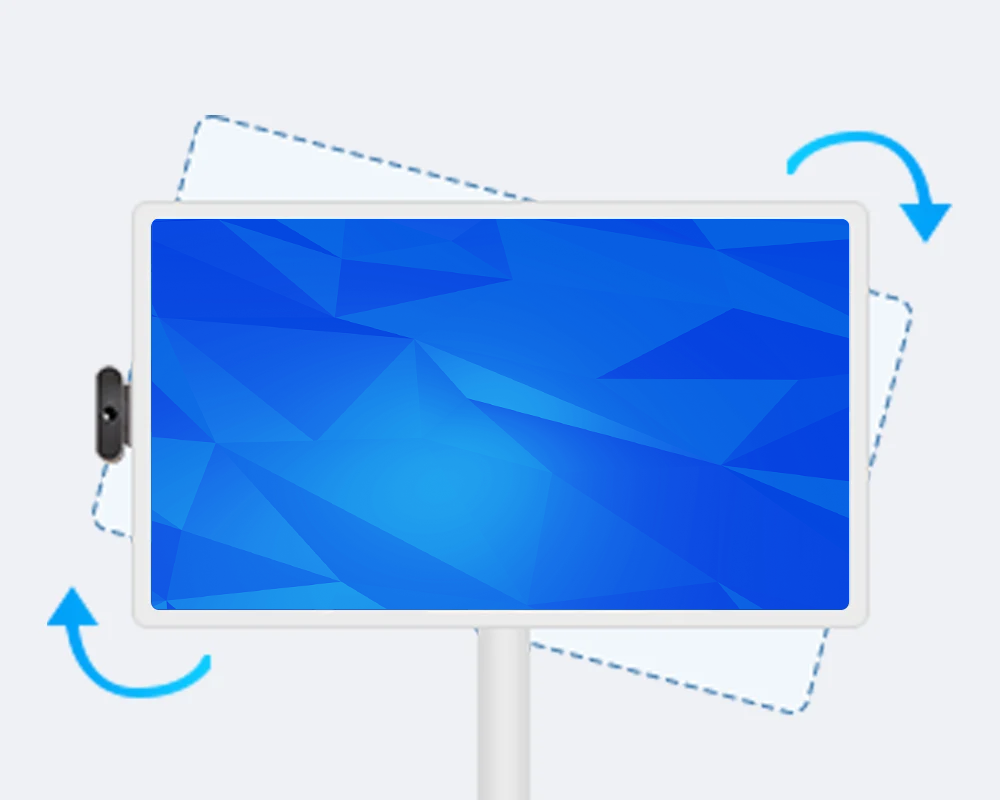

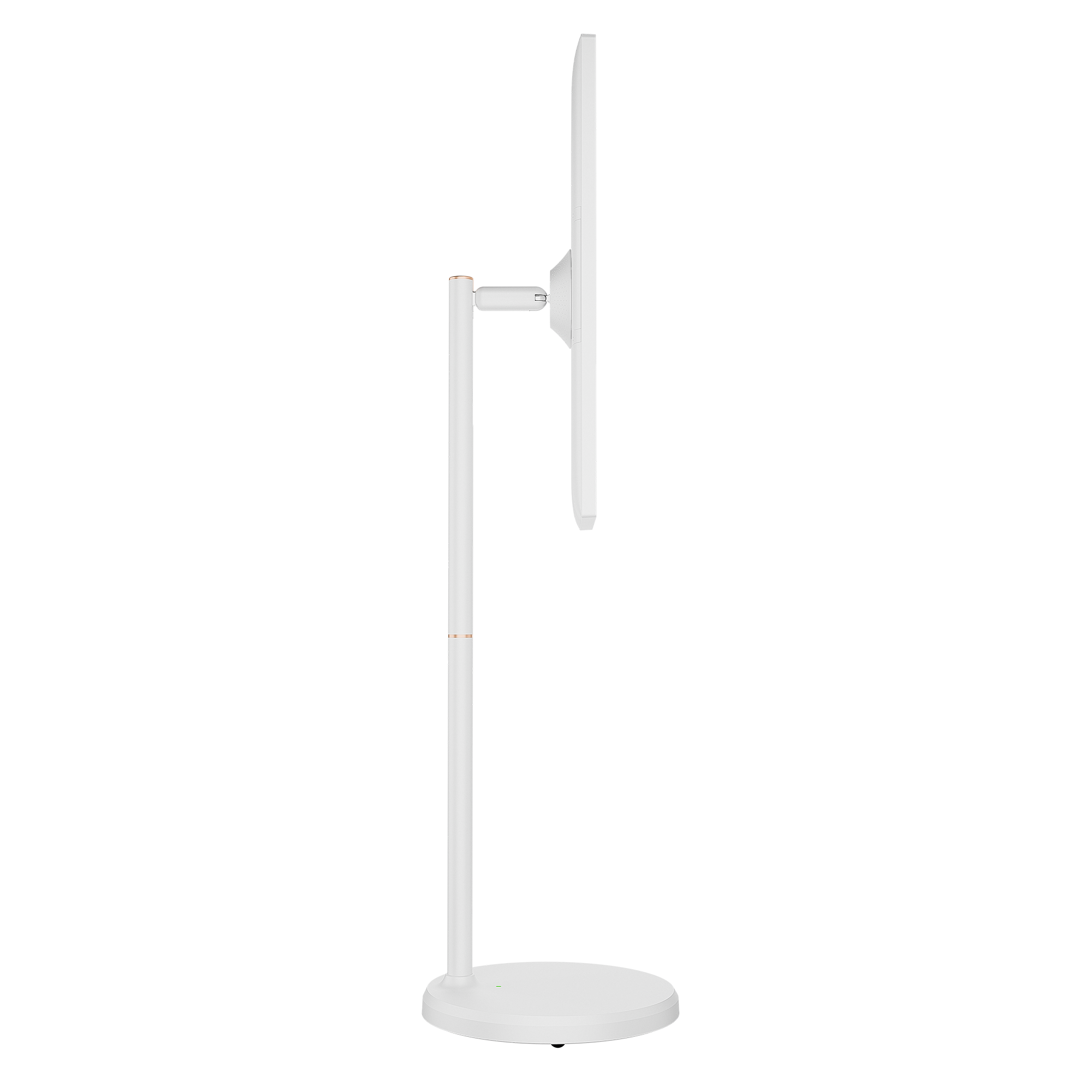

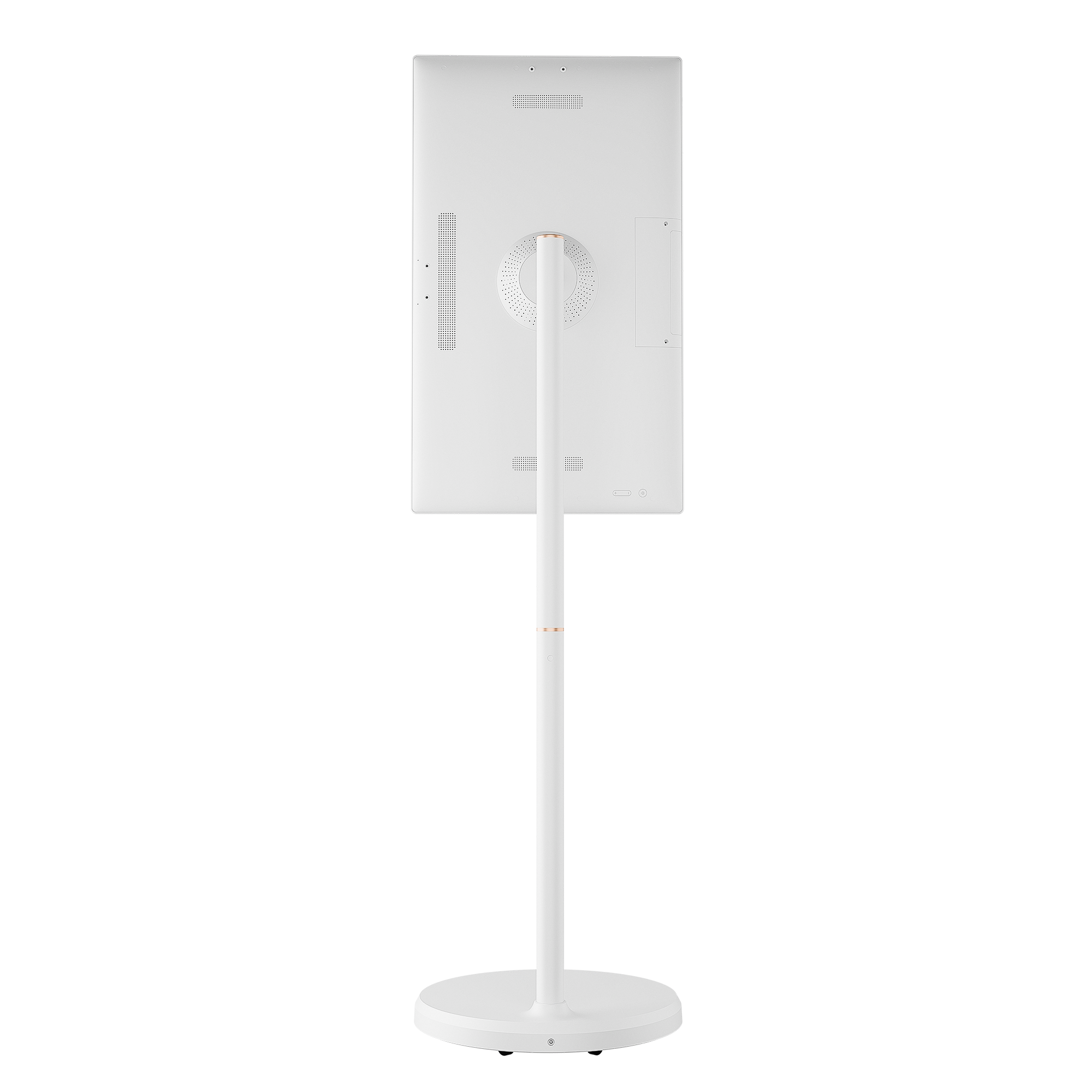

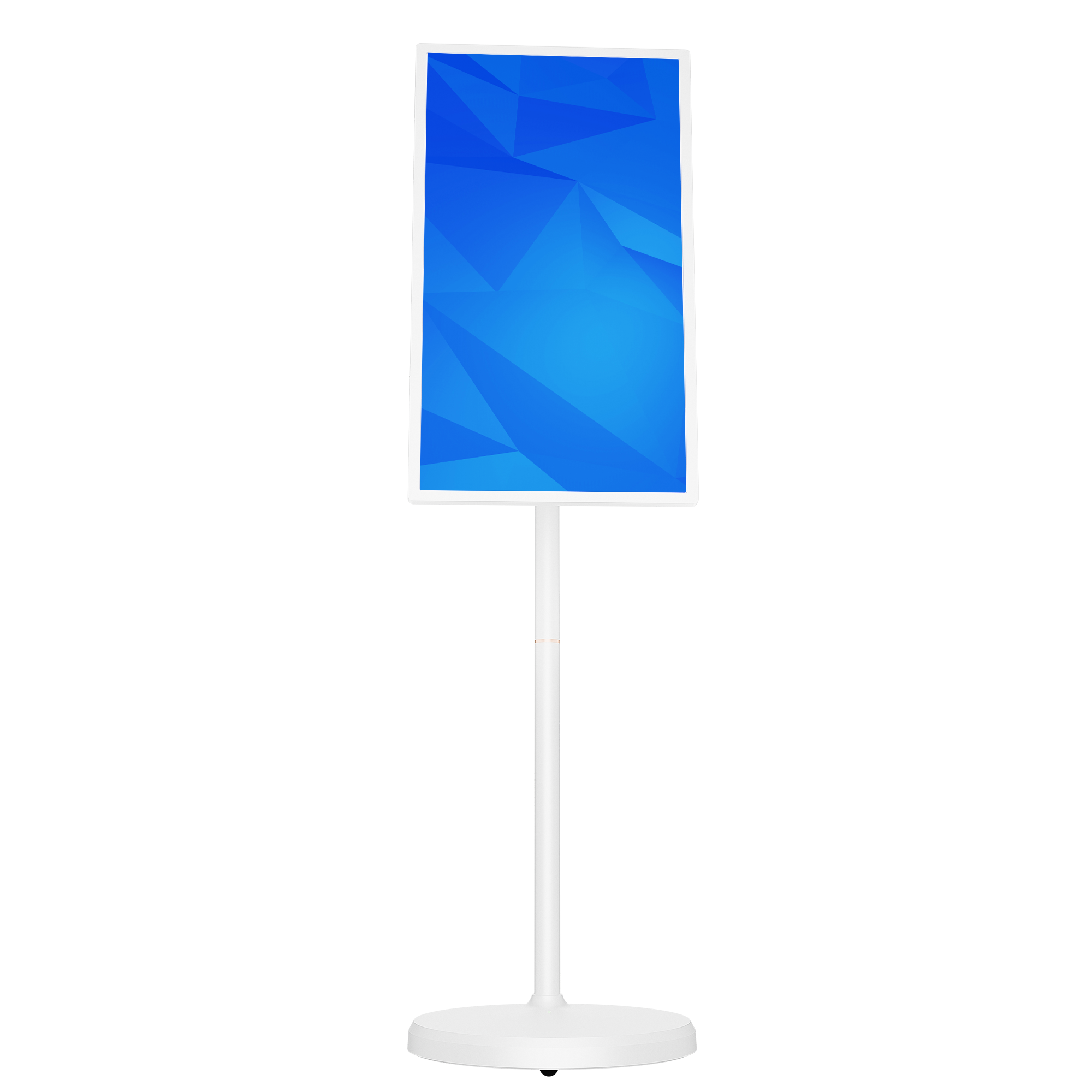

ADJUSTABLE STAND
Ergonomic Stand For Customized Comfort.

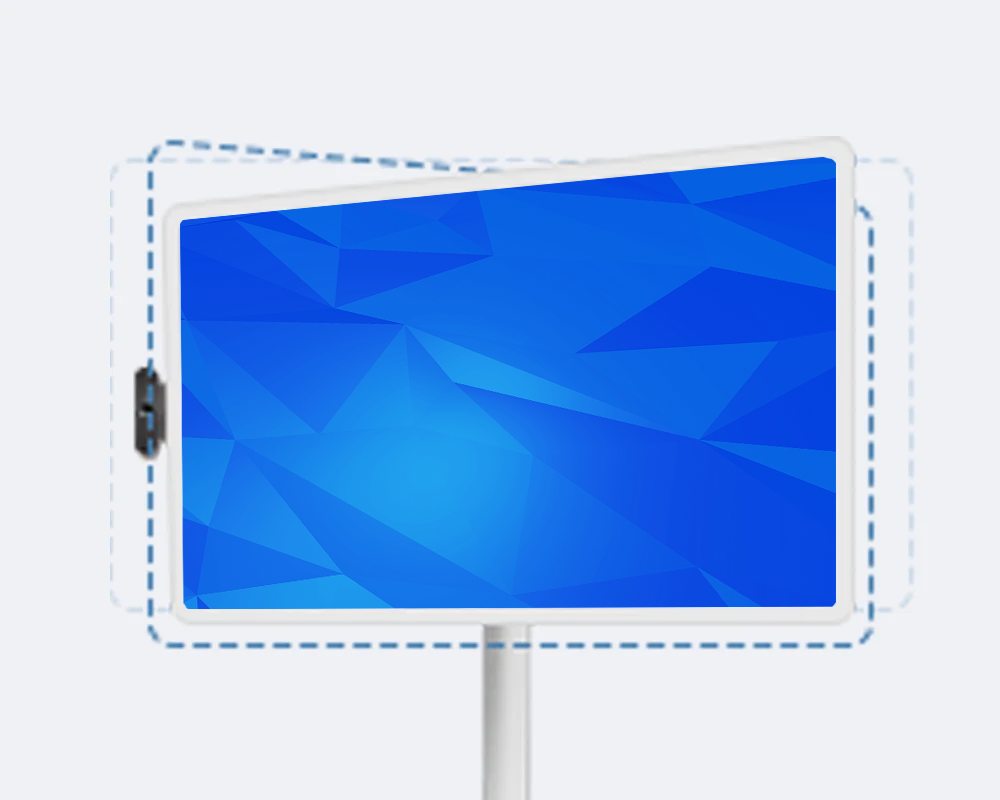

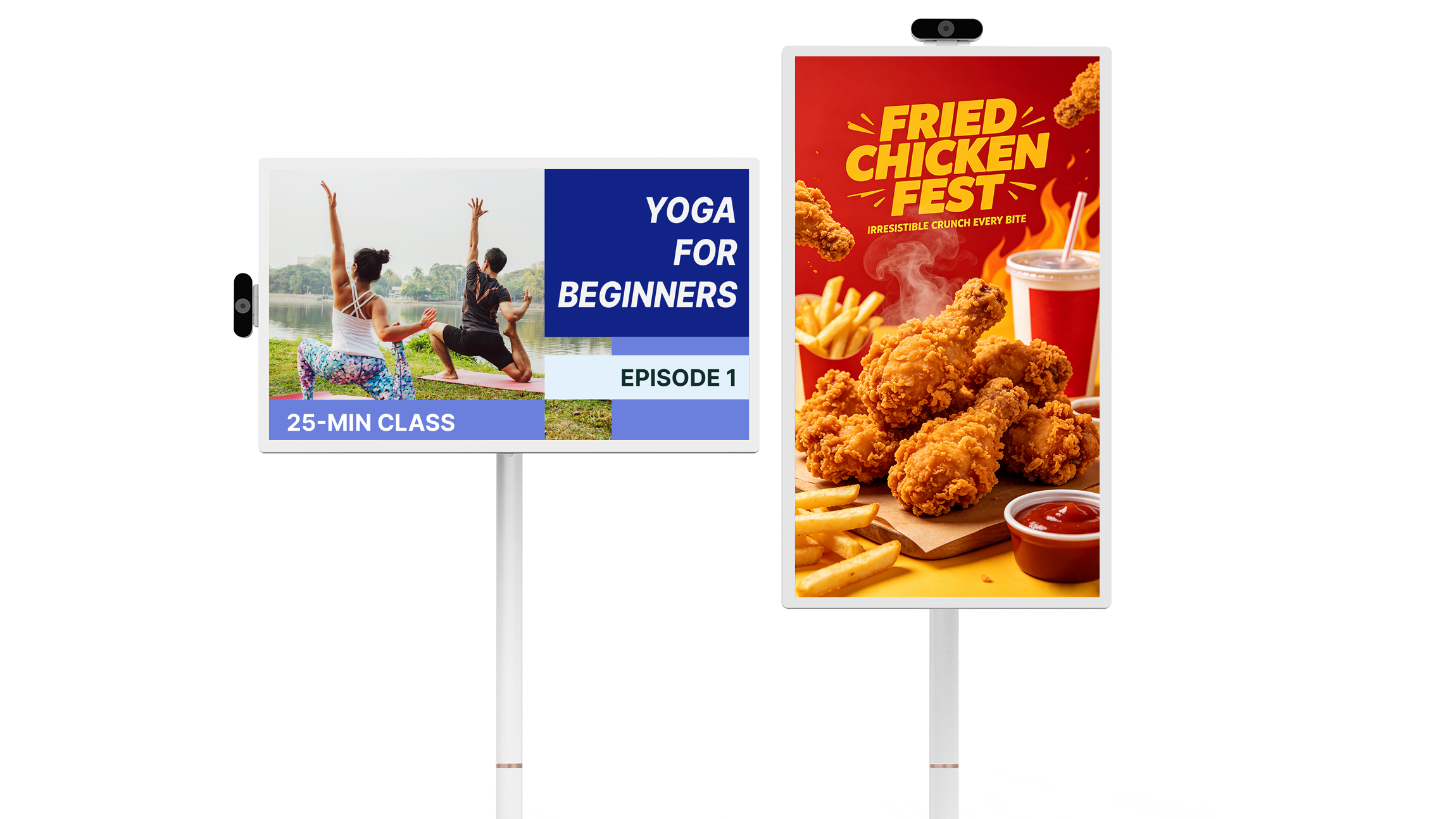

With an adjustable screen, portable TV enables users to adjust it to horizontal or vertical mode, as well as tilt it at various angles, to create a comfortable viewing experience.
Pivot 0-90˚
Swivel ± 15˚
Tilt ± 20˚

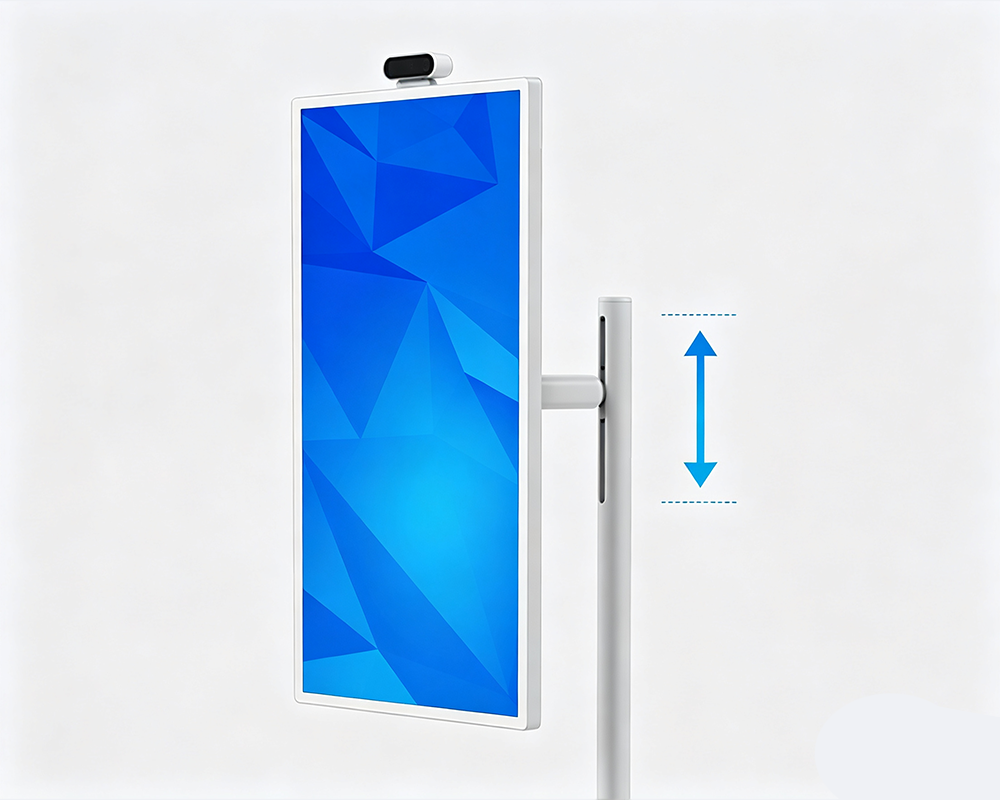

Height 0-18cm
Explore More Features.

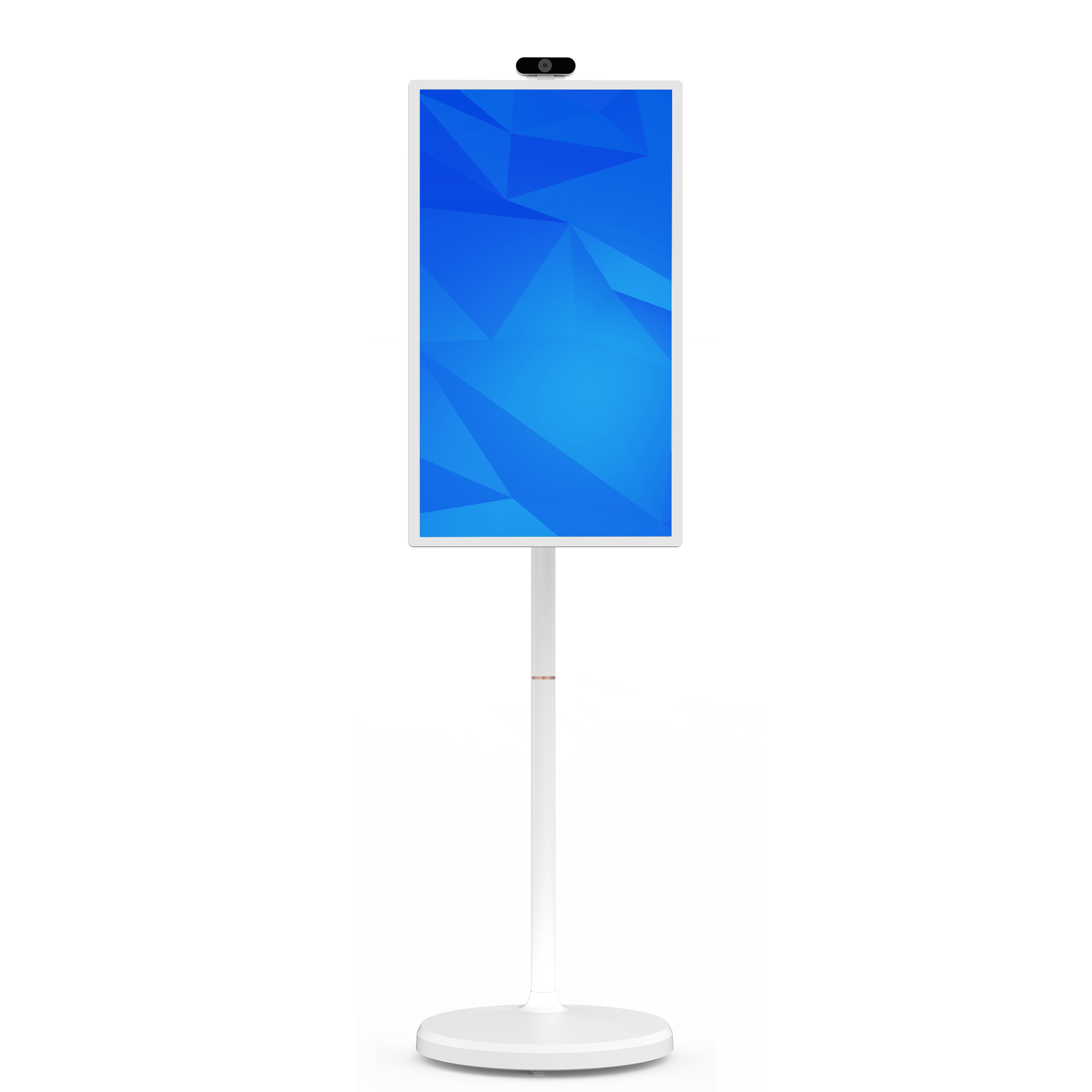

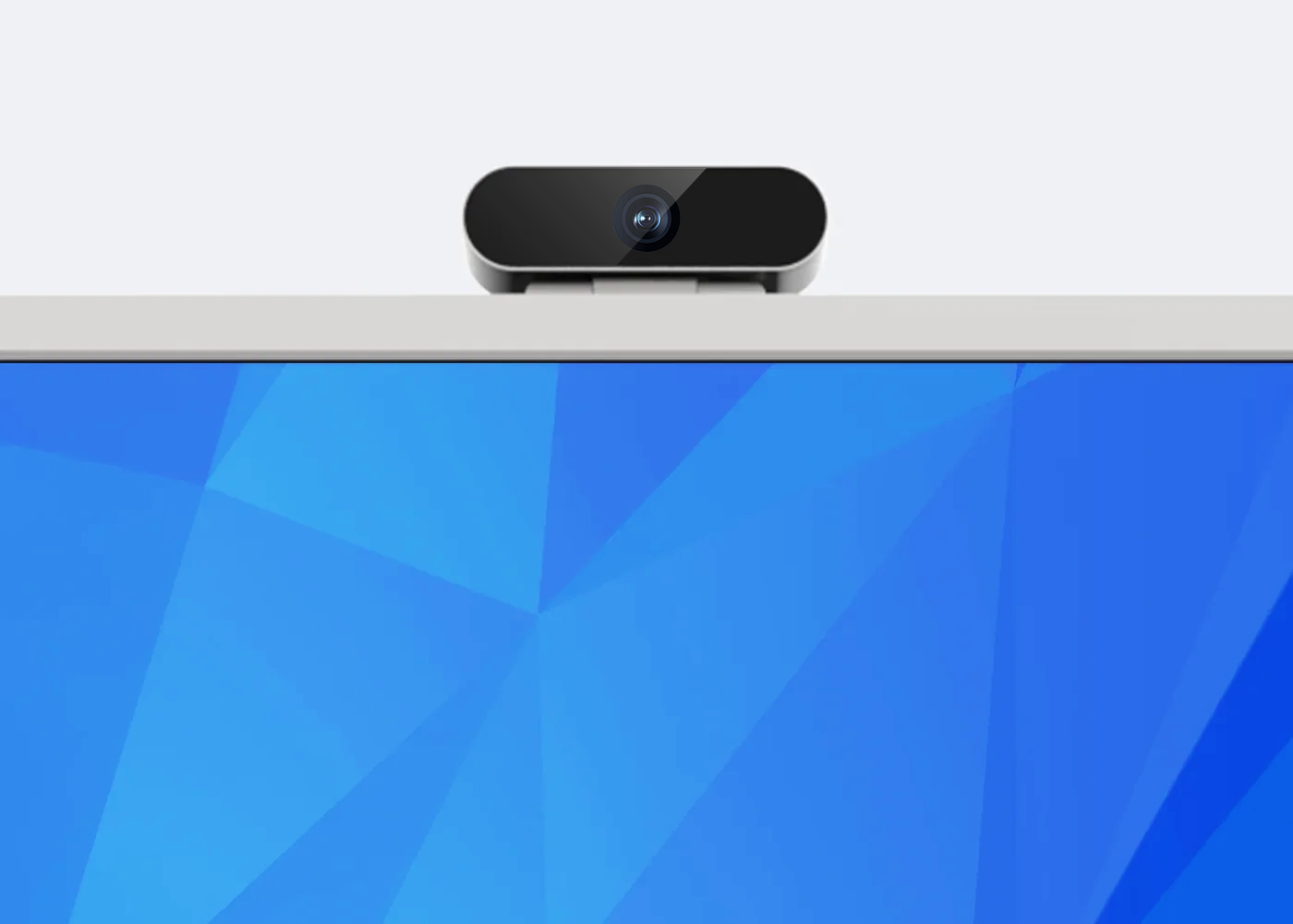

Optional External 8MP Camera
Connect the optional 8MP USB camera for video conferencing, remote training and other interactive communication applications.

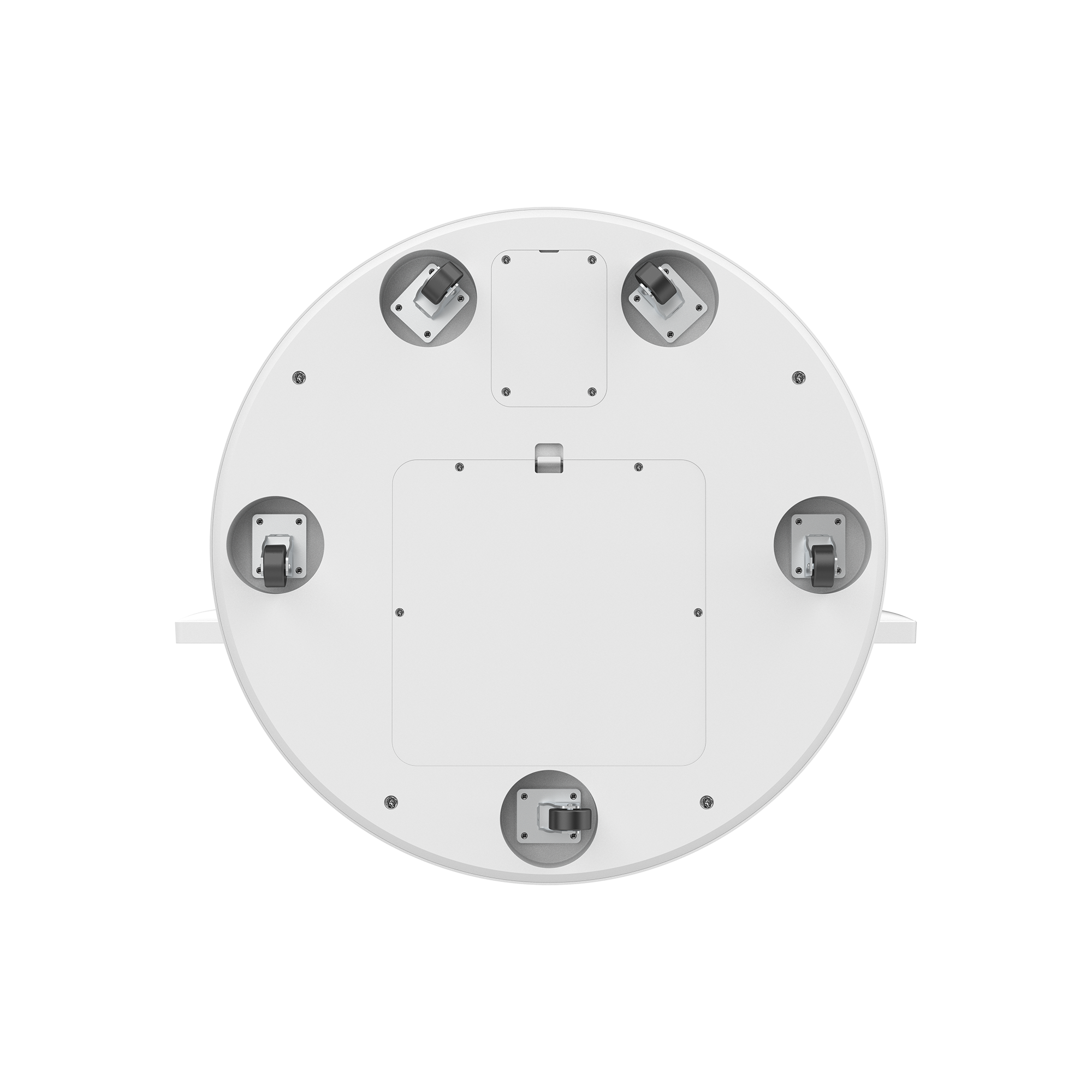

5 -Wheel Mobile Base
Five swivel wheels provide stable, smooth movement, making the display easy to reposition between rooms or application areas.
Dual 5W Speakers
Built-in dual 5W speakers deliver clear audio for presentations, promotional videos, training content and video conferencing.
15000mAh Built-In Battery
The 14.6V/15000mAh built-in battery provides approximately 6–8 hours of operation, supporting flexible use without continuous connection to a power outlet.

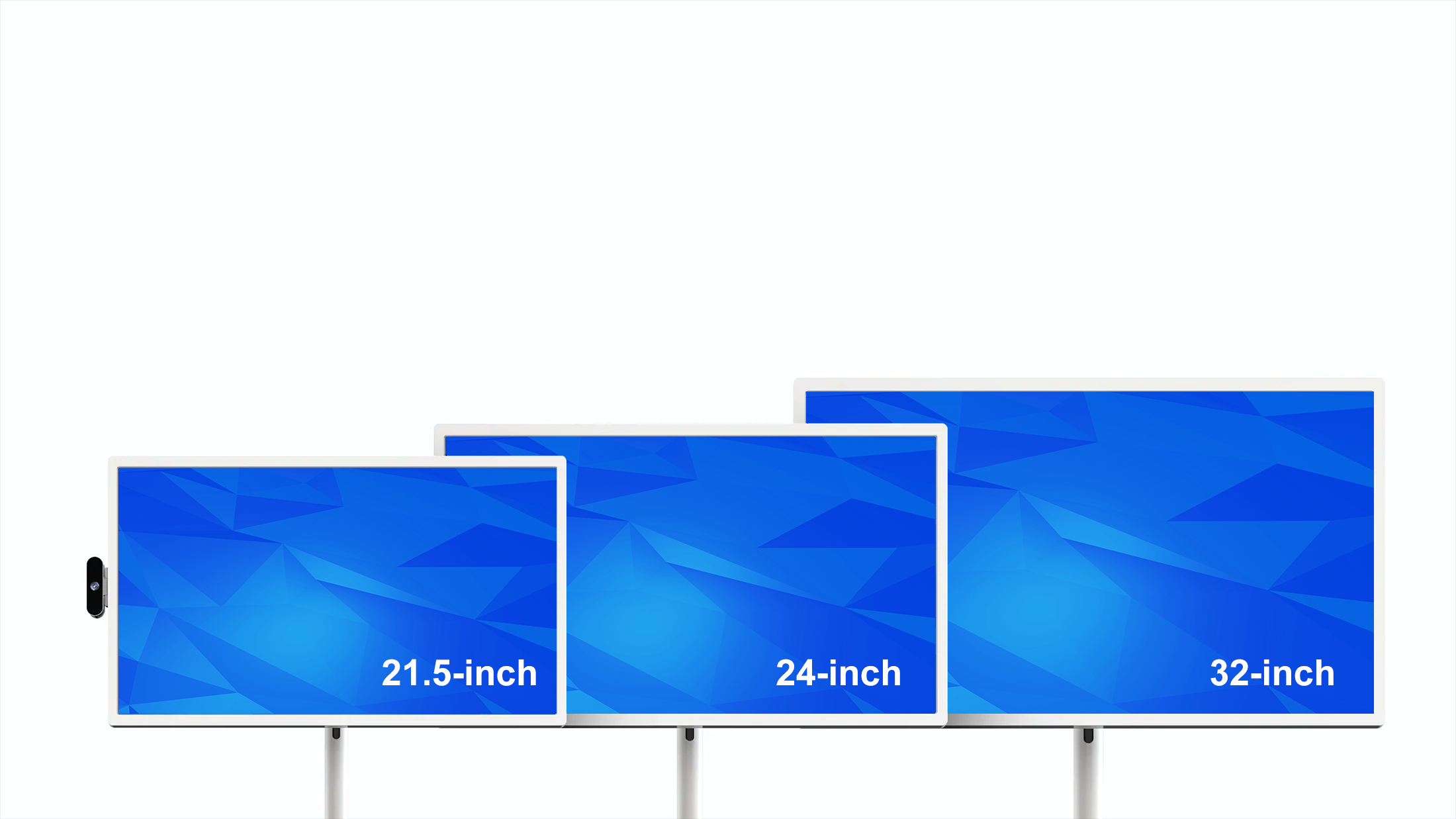

SCREEN SIZES
OPERATING SYSTEM
Android 13/16 for Flexible Software Deployment
Android 13/16 supports compatible third-party app installation and customized software, providing a flexible platform for digital signage, interactive presentations, self-service ordering and other commercial applications.
CONNECTIVITY
Wireless & Wired Projection for Effortless Sharing.
Wireless Screen Casting
Share content from a compatible phone, tablet or laptop through supported wireless casting software for presentations, training and promotional displays.
Flexible Wired Connection
Connect compatible laptops and other source devices through HDMI IN or the multifunction Type-C port for stable, high-resolution content display.
SW3295T-4K | SW3299T-4K
Specifications
Display
32-inch
IPS
3840 × 2160 pixels
16:9
16.7M Colors
72% NTSC
R/L 89/89, U/D 89/89
Normally black
2500:1
8ms
Eled
250 nits
10-point
HID-USB
Processor
- SW3295T-4K: RK3588S2 Octa-Core Processor
4 × Cortex-A76 + 4 × Cortex-A55 - SW3299T-4K: RK3576S Octa-Core Processor
4 × Cortex-A72 + 4 × Cortex-A53
- SW3295T-4K: 8GB
- SW3299T-4K: 4GB
- SW3295T-4K: 128GB
- SW3299T-4K: 64GB
- SW3295T-4K: Android 13
- SW3299T-4K: Android 14
Size and Weight
432.1 × 410 × 1530.7 mm (L × W × H)
20.4 kg
Power and Battery
Rechargeable Lithium-Ion Battery
14.6V / 15000mAh
Approximately 6–8 Hours
Wireless
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- SW3295T-4K: Bluetooth 5.3
- SW3299T-4K: Bluetooth 5.4
I/O Ports
USB 2.0 Host
USB 3.0 Host
- SW3295T-4K: Multifunction Type-C, supporting video input and touch signal transmission
- SW3299T-4K: Type-C for ADB only
HDMI Input, supporting resolutions up to 3840 × 2160
DC power input
Media Format
- SW3295T-4K: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC and AV1; supports up to 4K@60fps
- SW3299T-4K: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC and AV1; supports up to 4K@60fps
MP3, WMA, AAC, WAV, OGG, etc.
JPEG, PNG, GIF, etc.
Others
White/Black
100mm × 100mm
Power/Vol+/Vol-
Support 90 degrees
4Ω/5W*2
Dual Microphones with Noise Reduction and Echo Cancellation
Optional External 8MP USB Camera (Portrait Orientation)
Multi-Language OSD
CCC/CE/FCC
-20° ~ 20° ±3°
-15° ~ 15° ±3°
90°
180mm
0℃-40℃
-20℃-60℃
20%–80% RH
10%–95% RH
In The Box
18V/5A
Length=1.5m
BM 3x16*5, PWM 3x5*2, PWM 4x6*3, PM 4x16*4
×1
×1
×1
×1 Optional
×4
×1 (Bluetooth voice version)
