DISPLAY
Easy to Use. Excellent Visuals.
The 21.5-inch in cell touch screen features a 1920x1080 pixel resolution for an high-definition visual experience. An optianal external 8MP camera (vertical top mount only) and a remote control (Bluetooth voice version) are provided, allowing you to easily use and control the device.

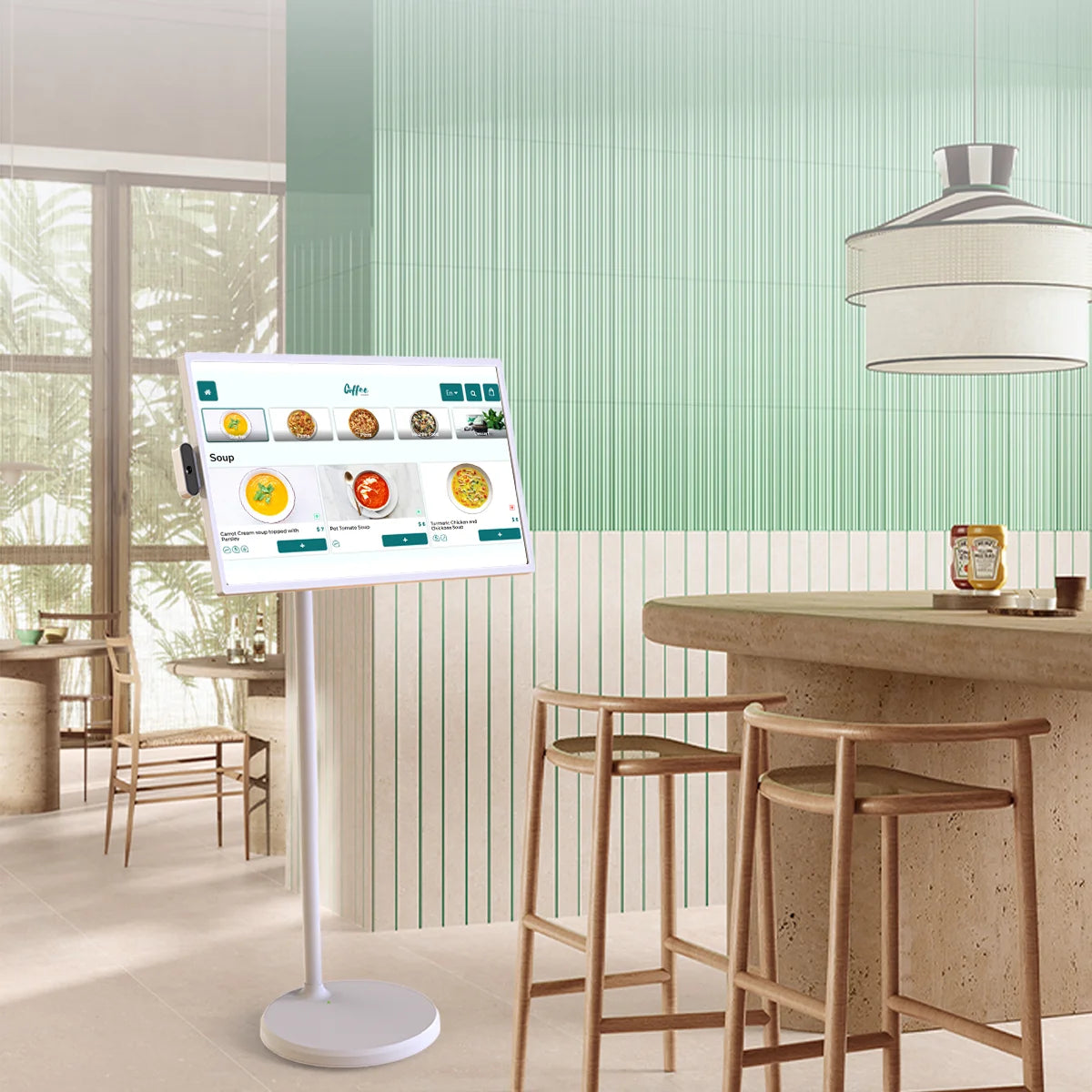

USE CASES
One Device for Multiple-use.

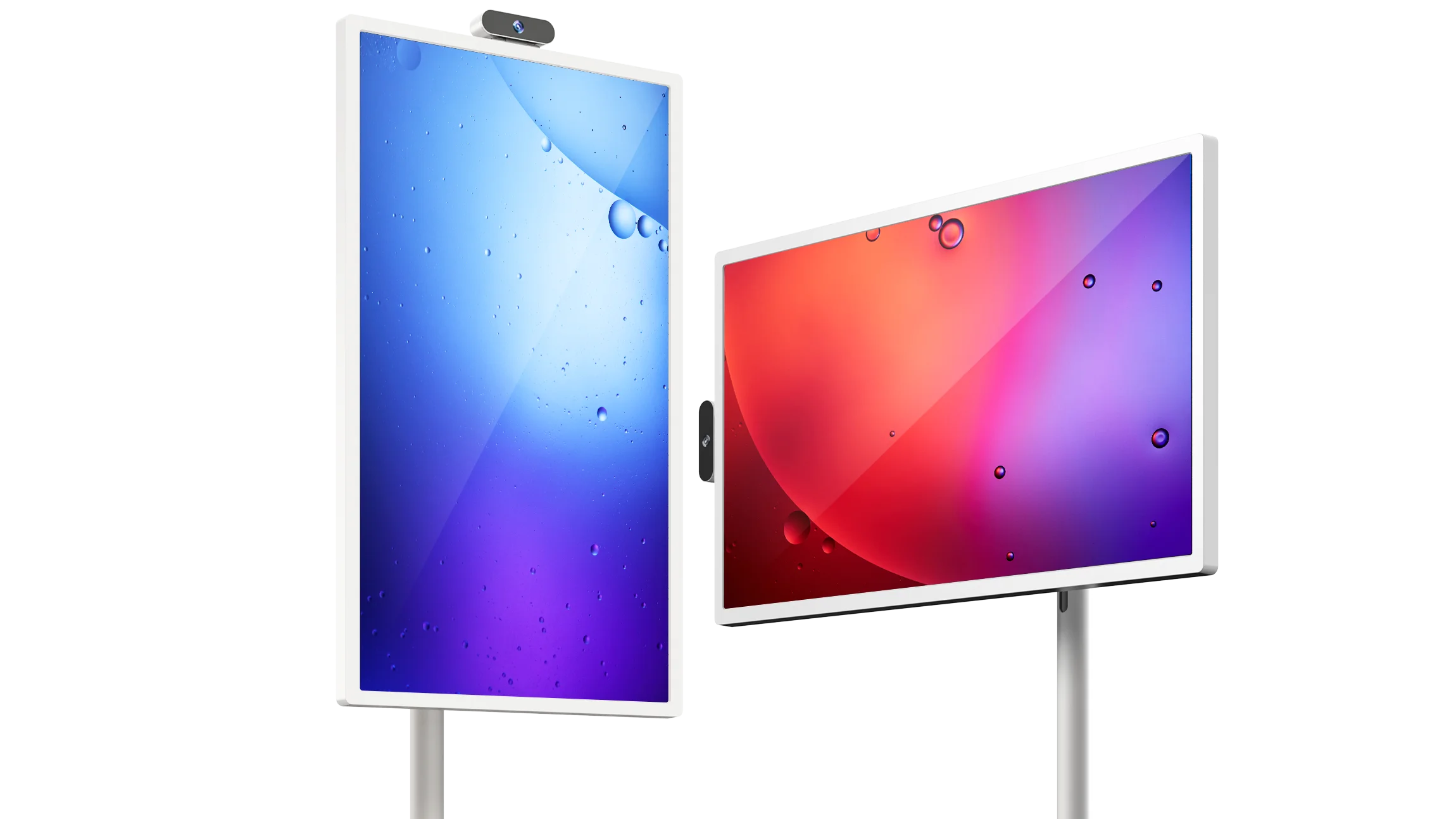

ADJUSTABLE STAND
Ergonomic Stand For Customized Comfort.
With an adjustable screen, portable TV enables users to adjust it to horizontal or vertical mode, as well as tilt it at various angles, to create a comfortable viewing experience.
Pivot 0-90˚
Swivel ± 15˚
Tilt ± 20˚
Height 0-18cm
FULLY ADJUSTABLE SCREEN
Explore More Features.
Optional External 8MP Camera
With an external HD camera, this display screen makes video calls a breeze.
5 Wheels, Move With Mood
Five silent swivel wheels in the movable base allow you to easily roll the Tv over different surfaces from room to room.

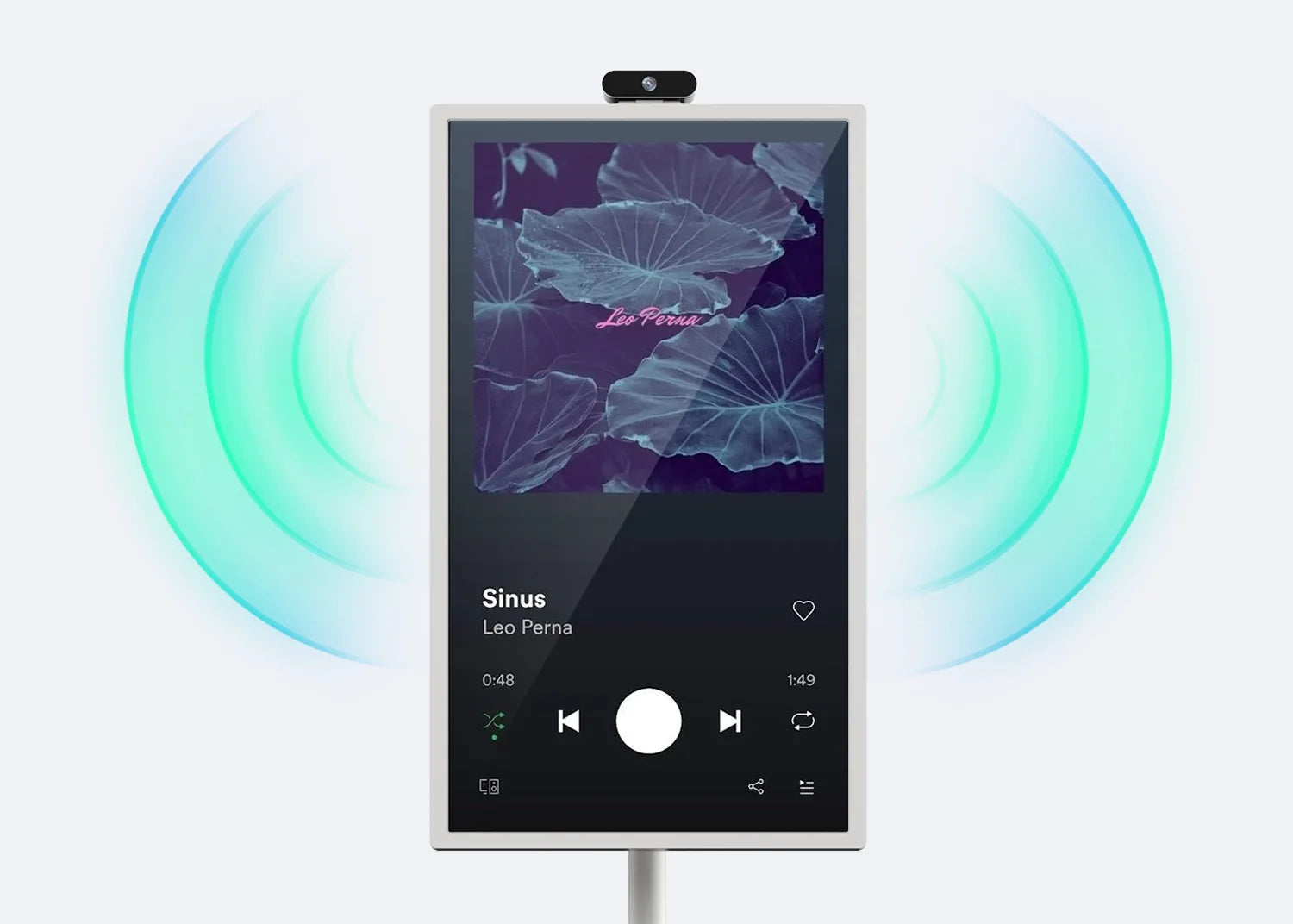

Dual 5W Speakers
Experience enhanced audio with the built-in speakers of this portable monitor. Enjoy immersive sound for movies, music, and gaming wherever you go.
Built-in 18650 Battery
With built-in 18650 battery that can last up to 4 hours, Portable TV frees you from power outlets and cables with a built-in battery that lets you work or play wherever you want.

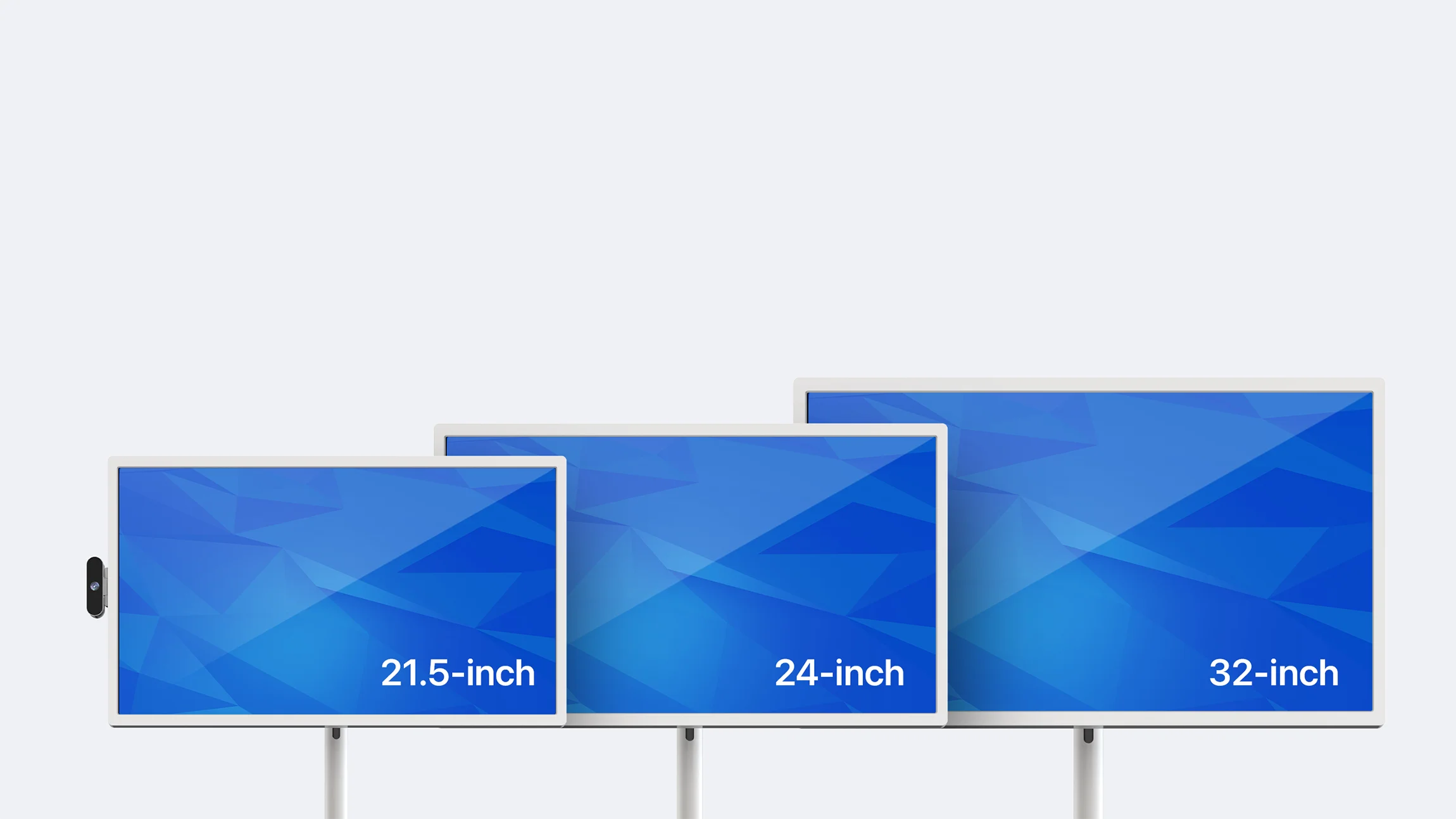

SCREEN SIZES
OPERATING SYSTEM
Personalize Your Own TV With Ease.
With the Android system, you can personalize devices with themes, icons, fonts and more. Android also allows you to run multiple apps simultaneously and switch between them easily. Moreover, you can download a wide range of apps.
CONNECTIVITY
Wireless & Wired Projection for Effortless Sharing.
A simple way to share and play.
Wirelessly mirror content from your phone, tablet, or laptop via NFC—just tap your device to the NFC logo on the rear of the screen for immersive content on a larger screen.
Connect with convenience.
Expanded connectivity with USB support, allow you to use portable TV in more places, for more of the things you love to do.

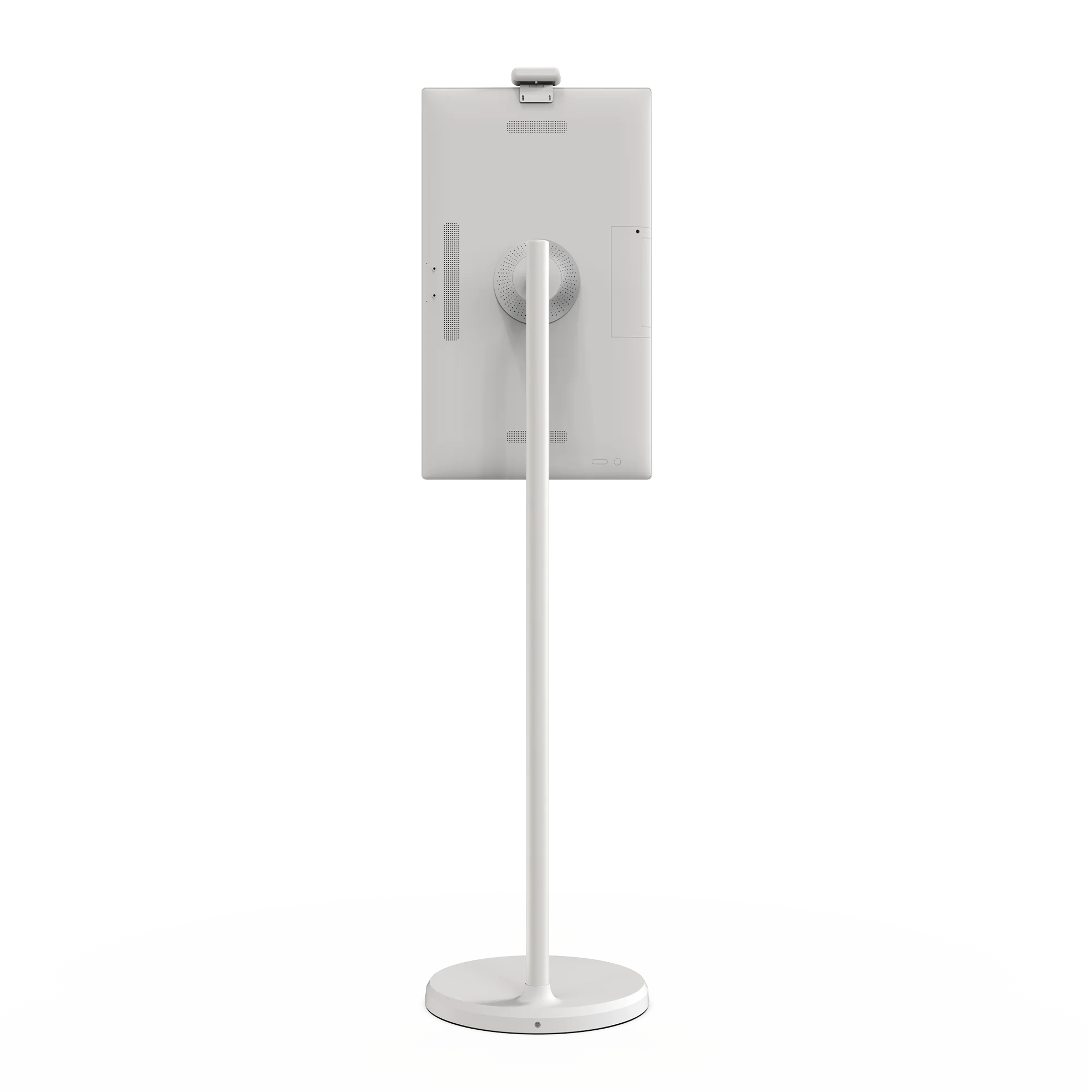

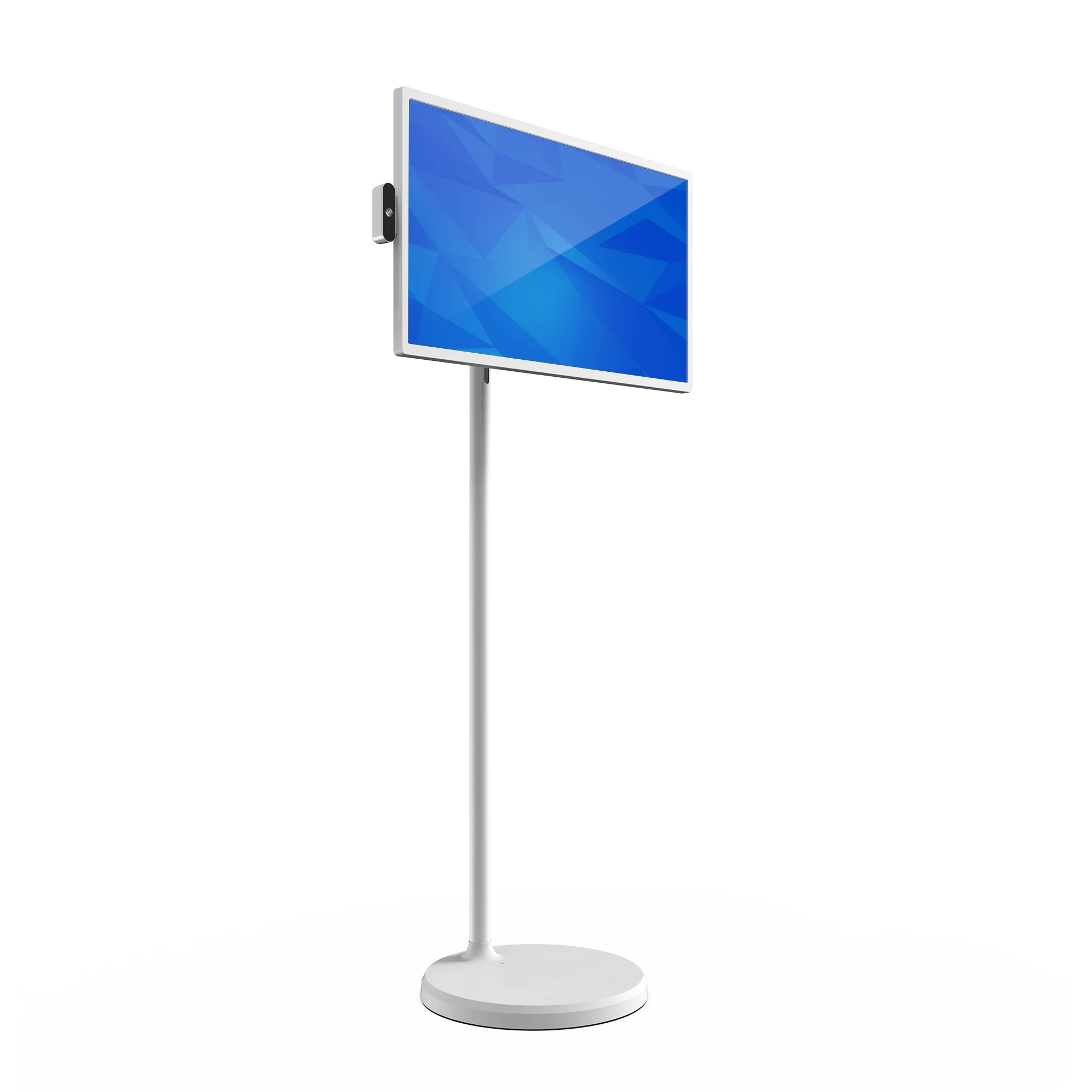

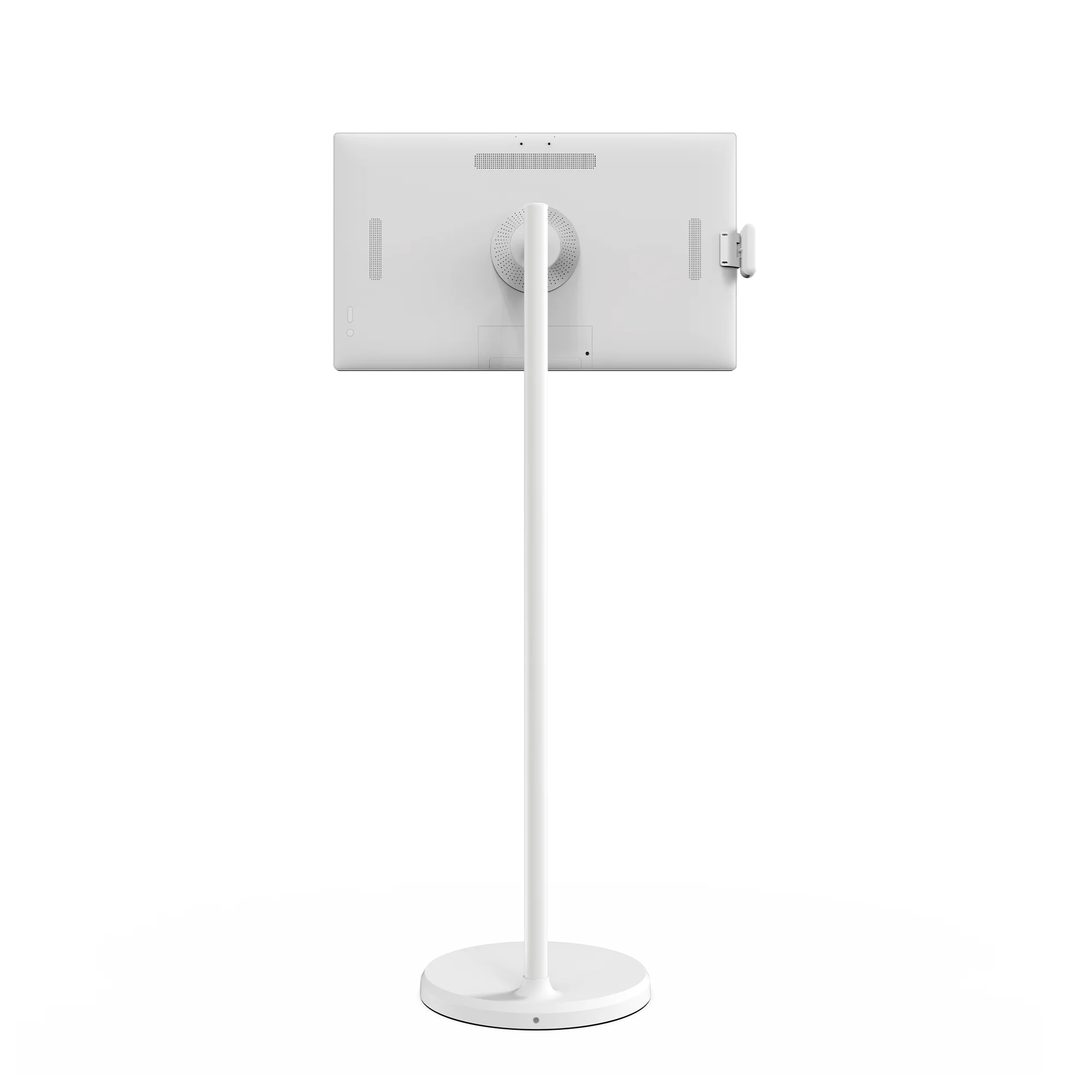

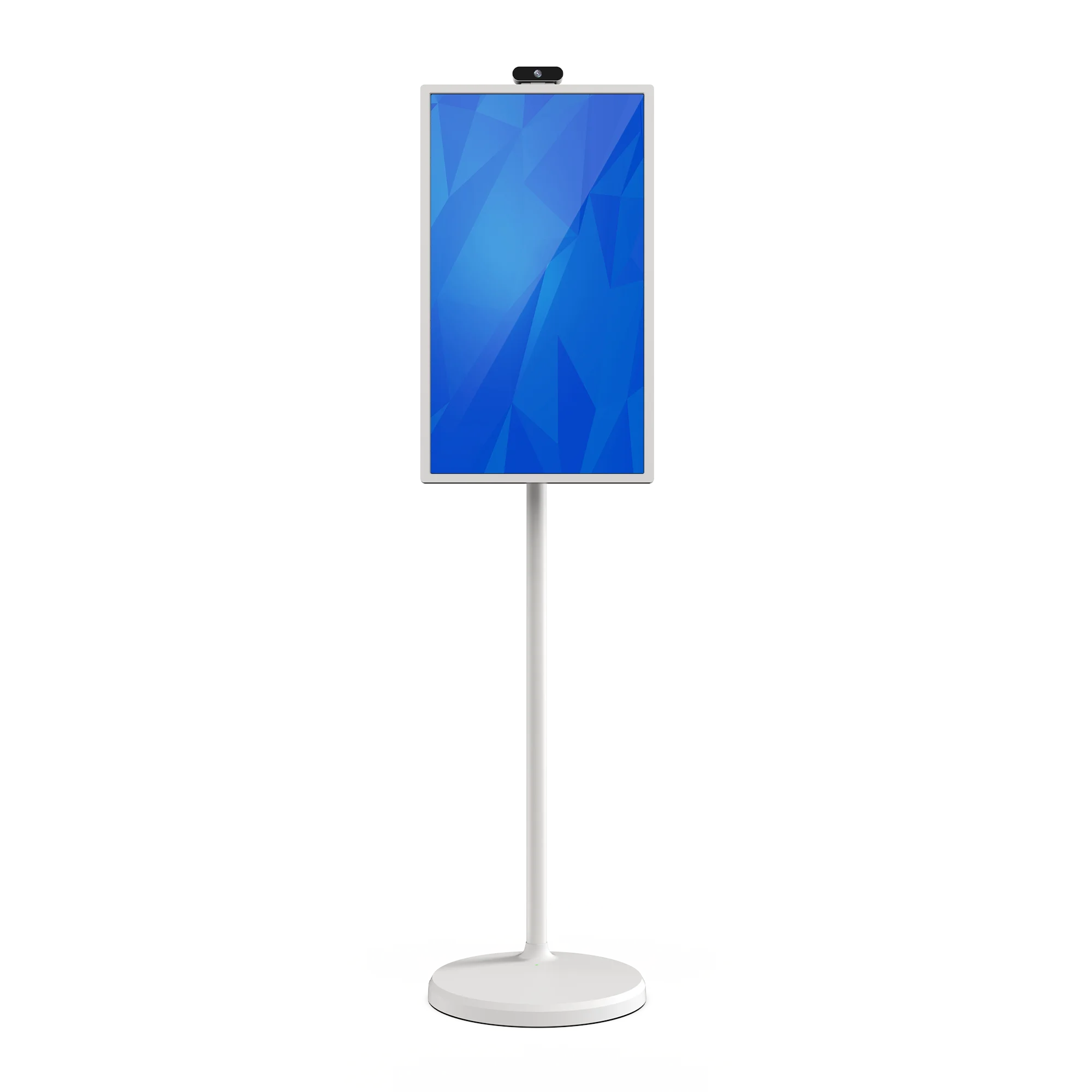

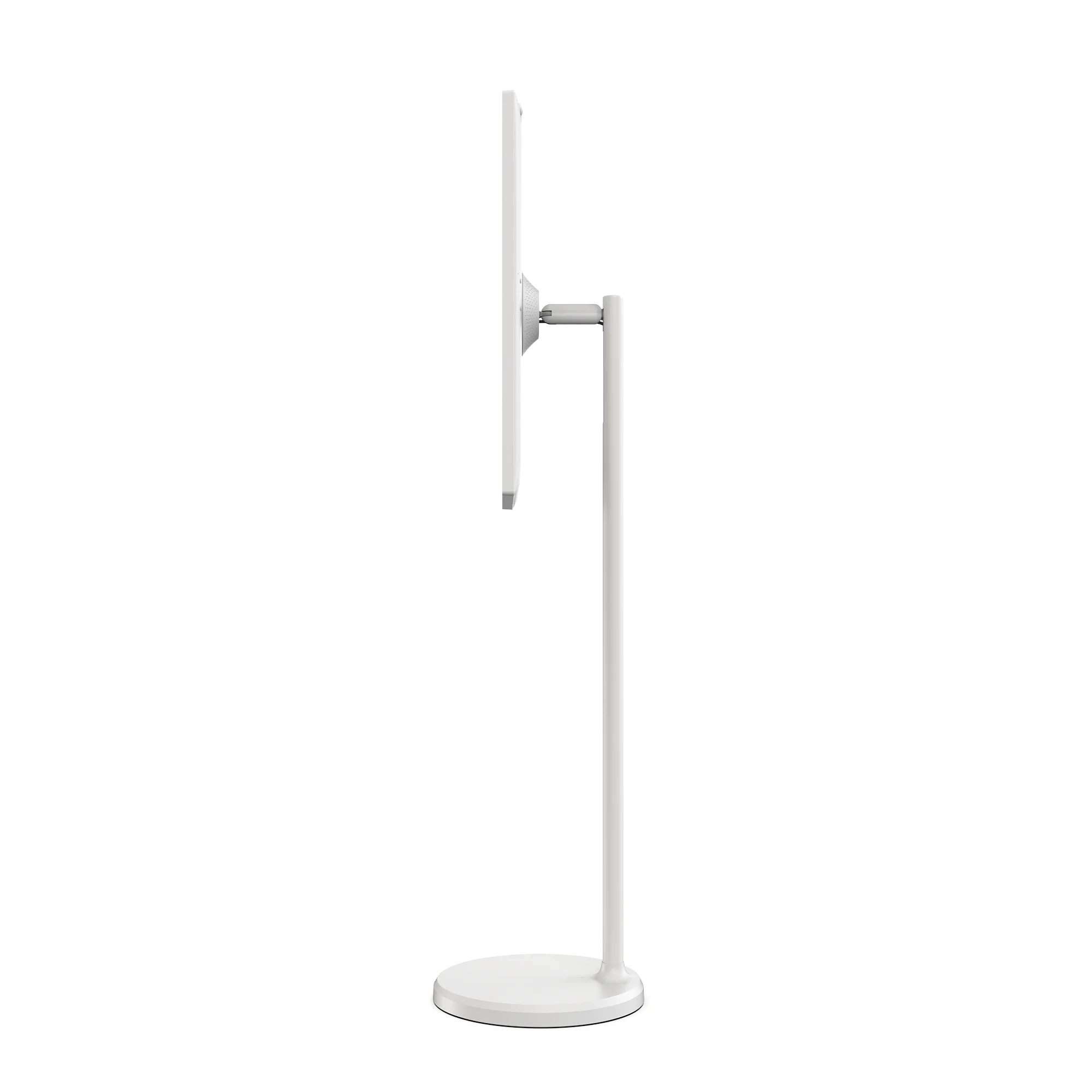

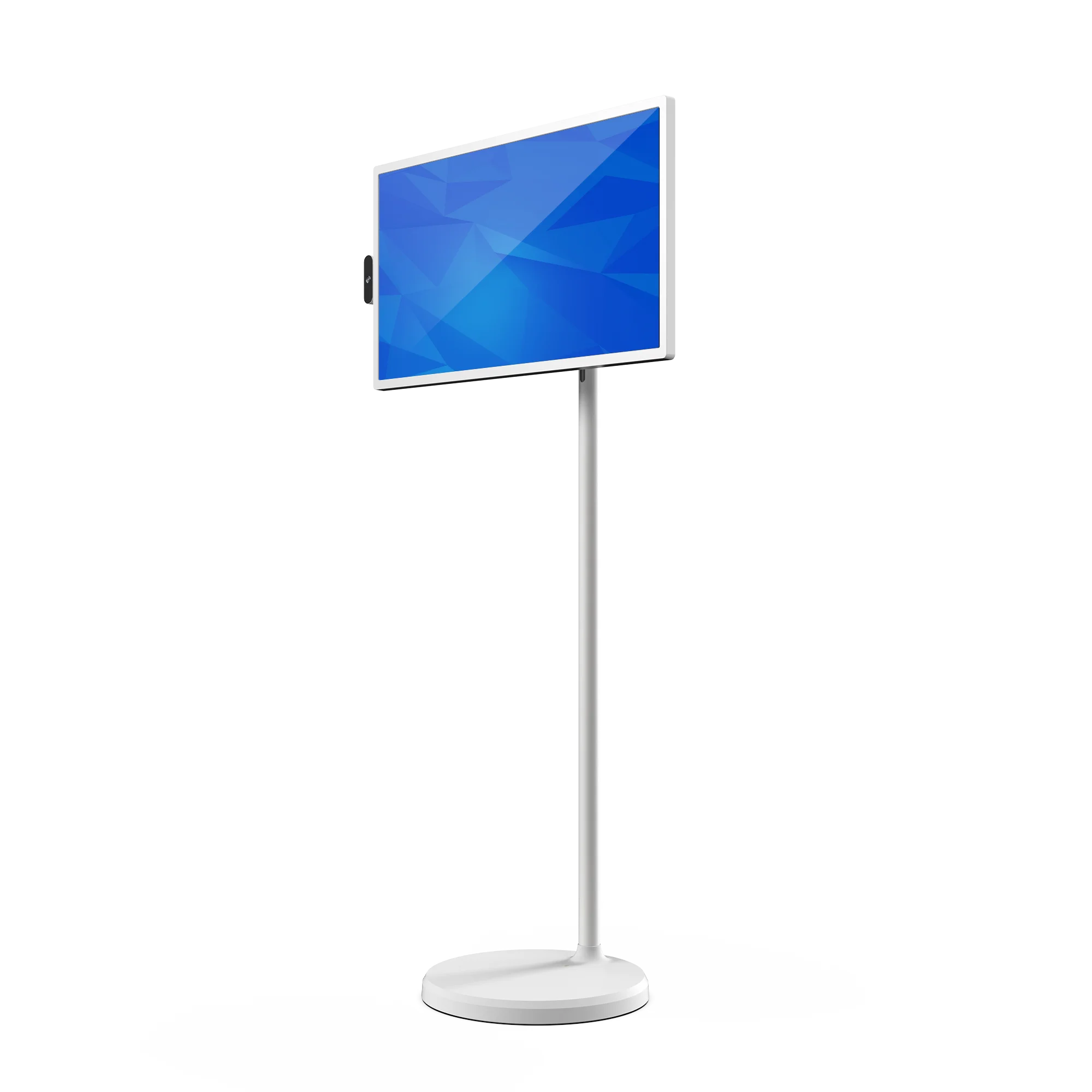

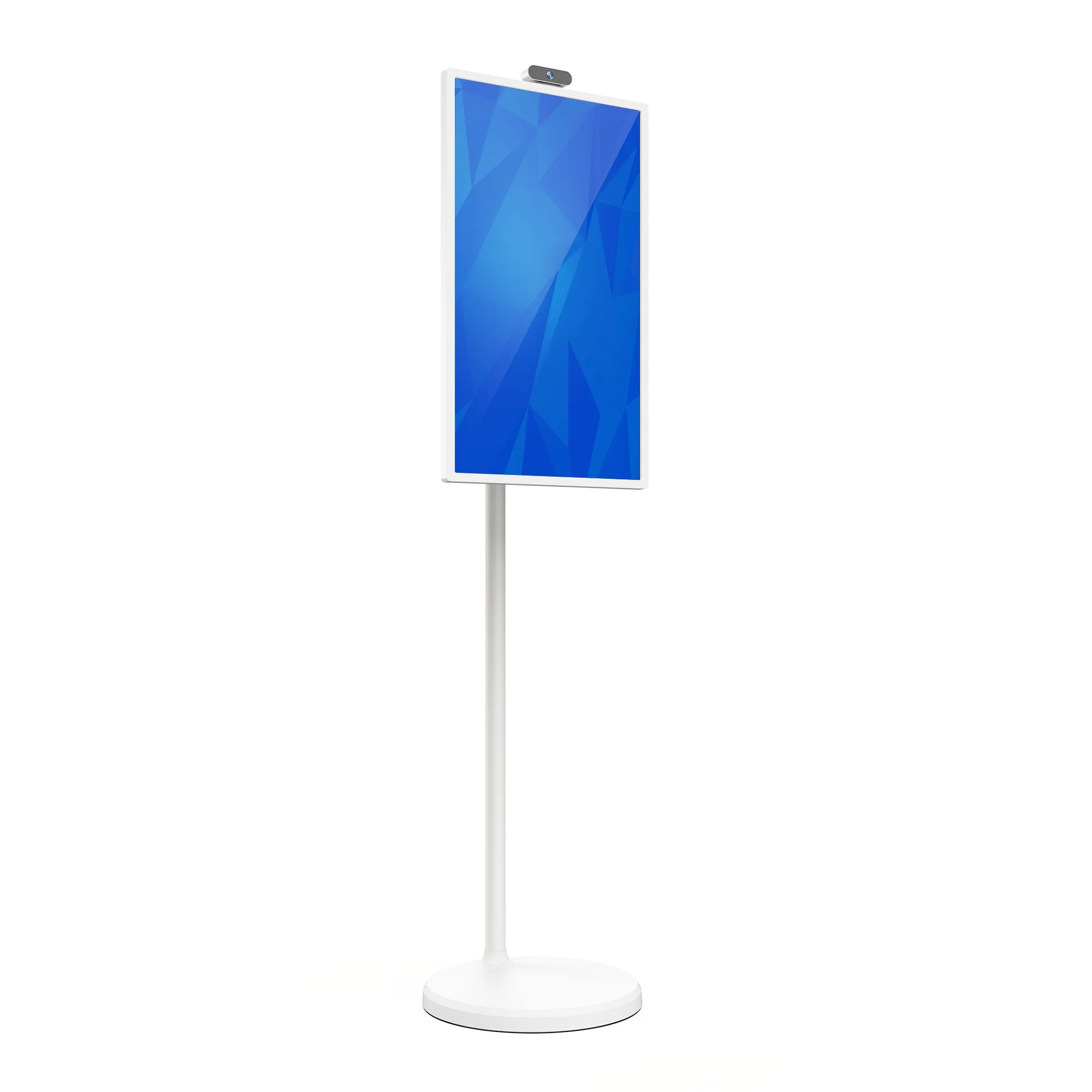

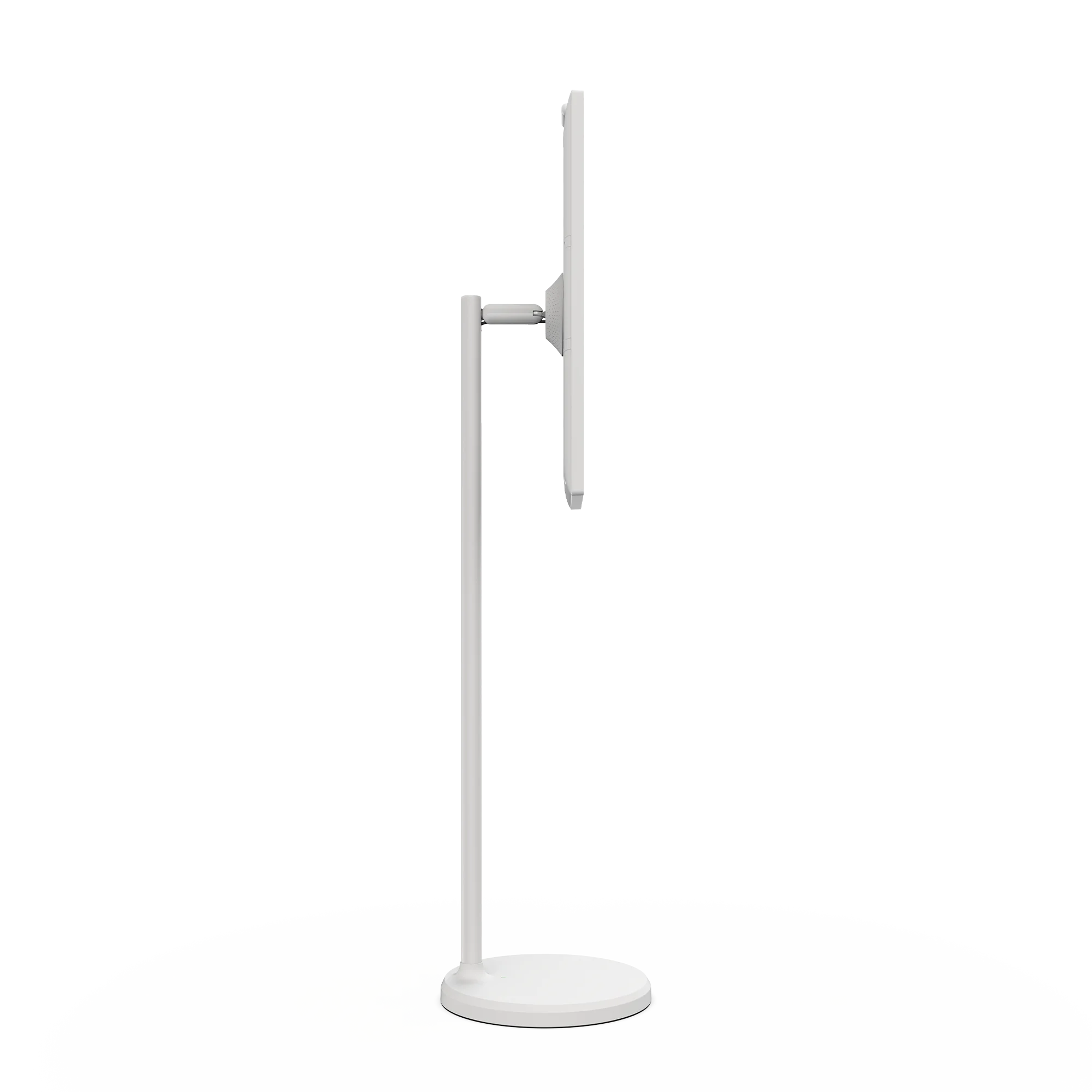

21.5" Portable TV
RK3399 Dual-core cortex A72+Quad-core cortex A53 | 4GB RAM | 128GB ROM
RK3588S2 Quad-core cortex A55+Quad-core cortex A76 | 8GB RAM | 128GB ROM
SW2193T | SW2195T
Specifications
Display
21.5-inch
IPS
1920 x 1080 pixels
16:9
16.7M Colors
72% NTSC
R/L 89/89, U/D 89/89
Normally black
3000:1
7ms
Eled
250 nits
10-point
USB
Processor
- SW2193T: RK3399 Dual-core cortex A72+Quad-core cortex A53
- SW2195T: RK3588S2 Quad-core cortex A55+Quad-core cortex A76
- SW2193T: 4GB
- SW2195T: 8GB
- SW2193T: 128GB
- SW2195T: 128GB
- SW2193T: Android 12
- SW2195T: Android 13
Size and Weight
510.24 x 410 x 1342.17 mm (L × W × H)
Power and Battery
18650 rechargeable lithium-ion battery
14.4V/ 5200mAh
3-4 hours
Wireless
- SW2193T: IEEE 802.11b/g/n/a/ac
- SW2195T: IEEE 802.11a/b/g/n/ac/axwith Mu-MIMO standard
- SW2193T: Bluetooth 5.4
- SW2195T: Bluetooth 5.3
I/O Ports
USB 2.0 Host
USB 3.0 Host
Full Function (Except for charging function)
- SW2193T: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, etc
- SW2195T: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, 3840*2160, etc
DC power input
Media Format
- SW2193T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, etc. support up to 4K
- SW2195T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, AV1, etc., support up to 8K@60fps
MP3/WMA/AAC/WAV/OGG, etc
JPEG/PNG/GIF, etc
Others
White/Black
100mm × 100mm
Power/Vol+/Vol-
Support 90 degrees
4Ω/5W*2
Standard dual Microphone, Support noise reduction and echo cancellation
Optional NXP, 13.56MHz, ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards
Optional External USB type camera (vertical portrait , 8MP)
Multi-language
CCC
-20° ~ 20° ±3°
-15° ~ 15° ±3°
90°
180mm
0℃-40℃
-20℃-60℃
20~80%RH
10~95%RH
In The Box
18V/3A
Length=1.5m
BM 3x16*5, PWM 3x5*2, PWM 4x6*3, PM 4x16*4
×1
×1
×1
×1 Optional
×4
×1 (Bluetooth voice version)
