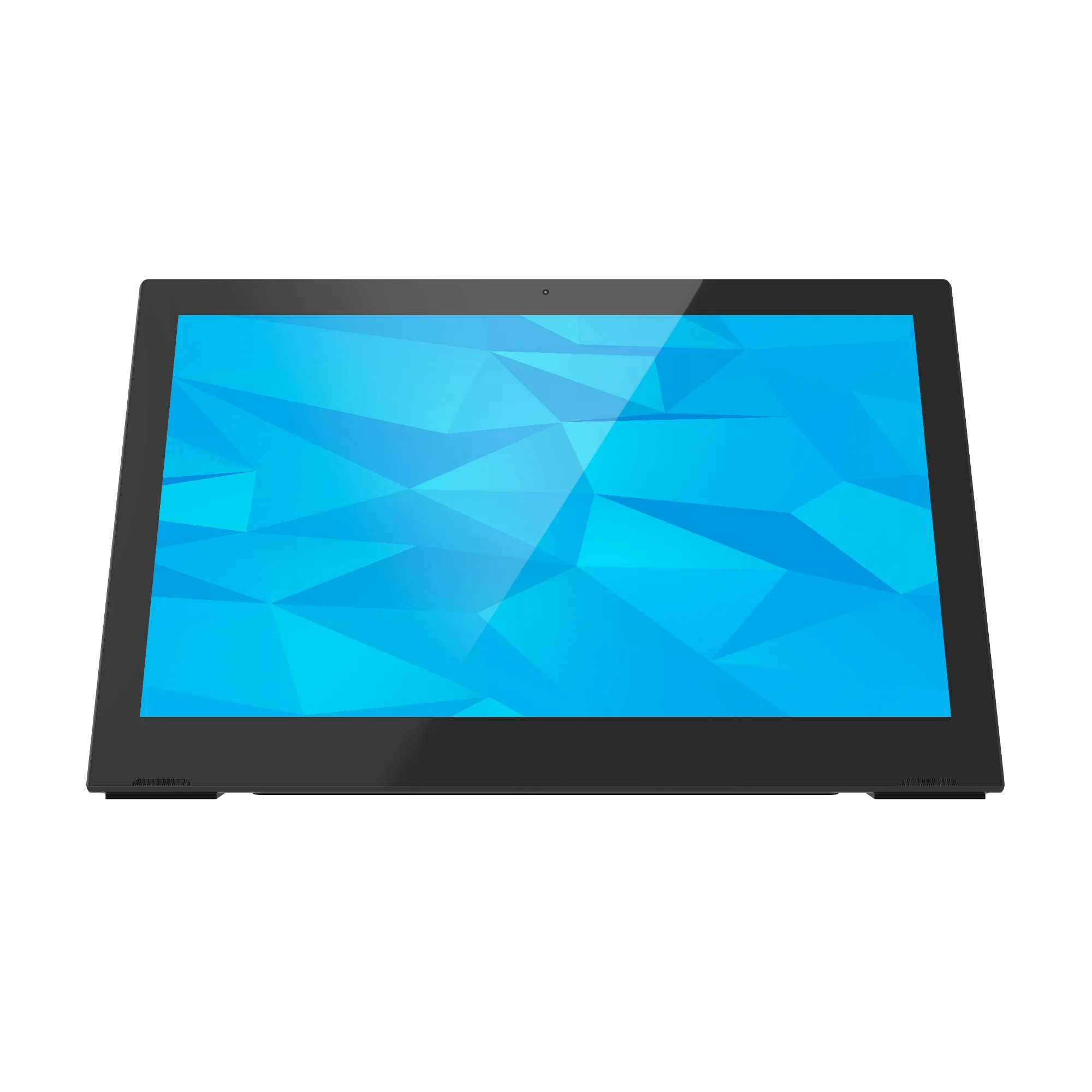

DISPLAY
17.3-inch HD Multi-Touch Display
With this 17.3-inch HD screen, a 10-point multi-touch screen can recognize and respond to ten simultaneous points of contact. This allows you to easily zoom, flick, rotate, swipe, drag, pinch, press, double tap or use other gestures with up to ten fingers on the screen at the same time.
OPERATING SYSTEM
Personalize Your Devices With Ease.
You can easily personalize devices to suit your preferences and style. Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.
PROCESSORS
Work Faster, Work More Efficiently.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

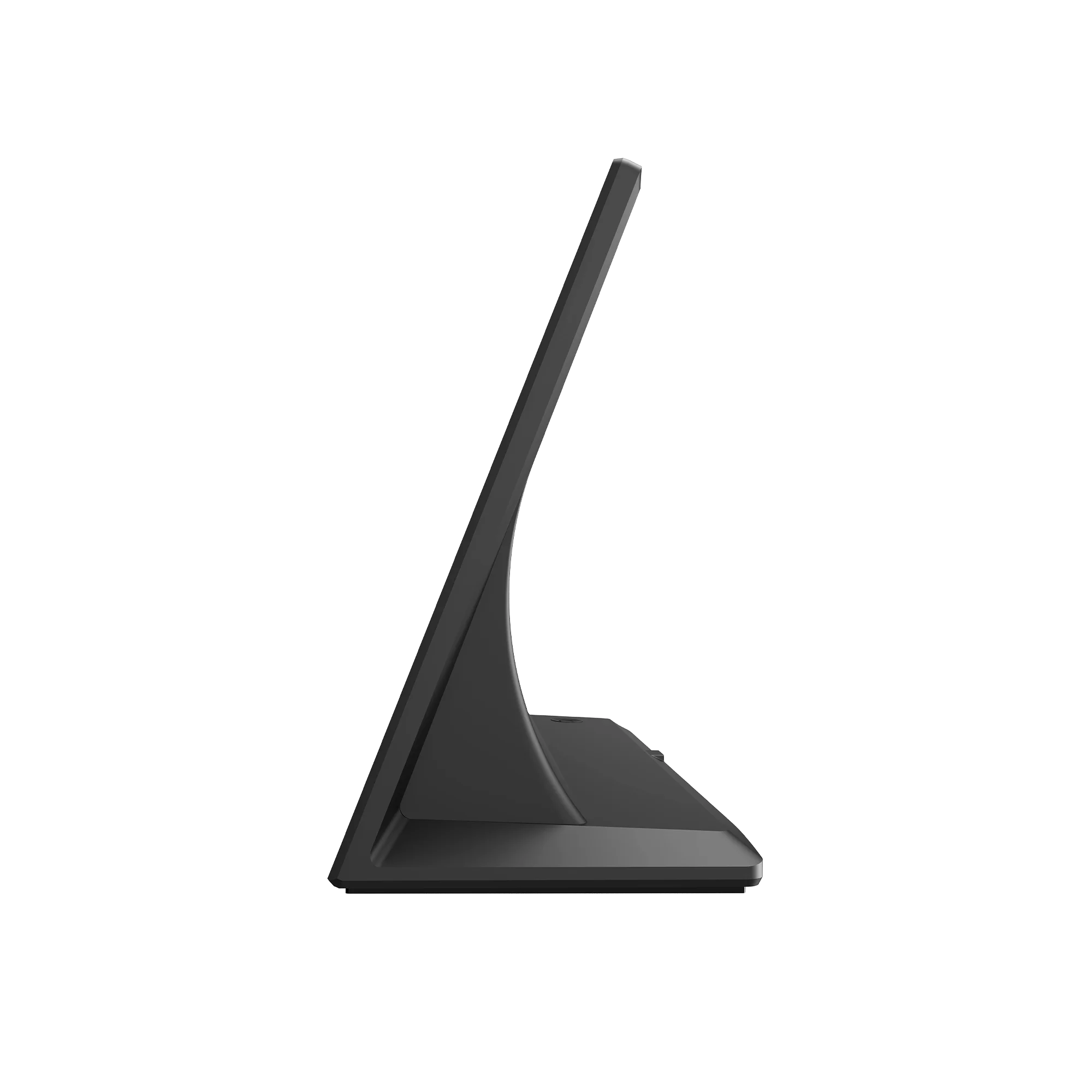

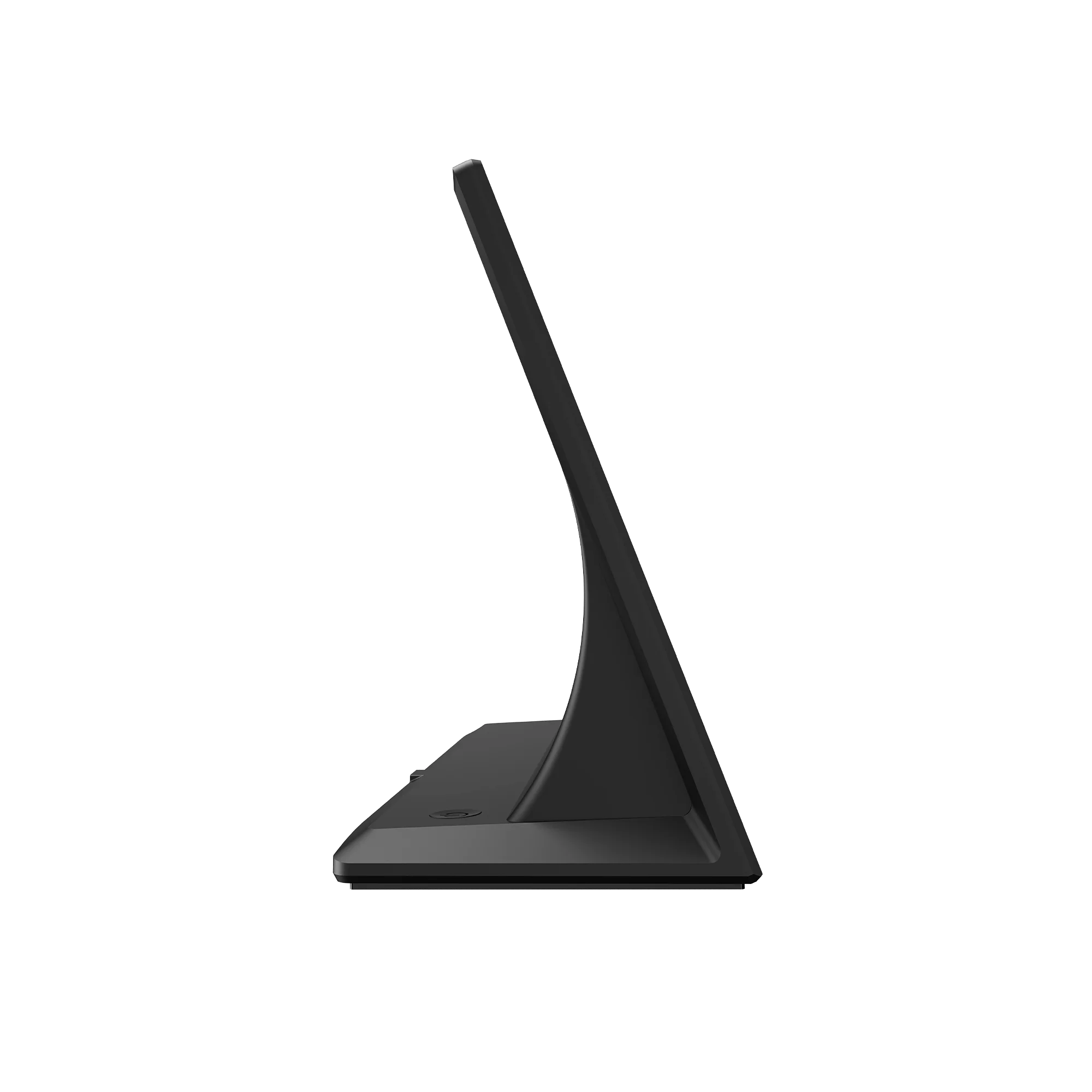

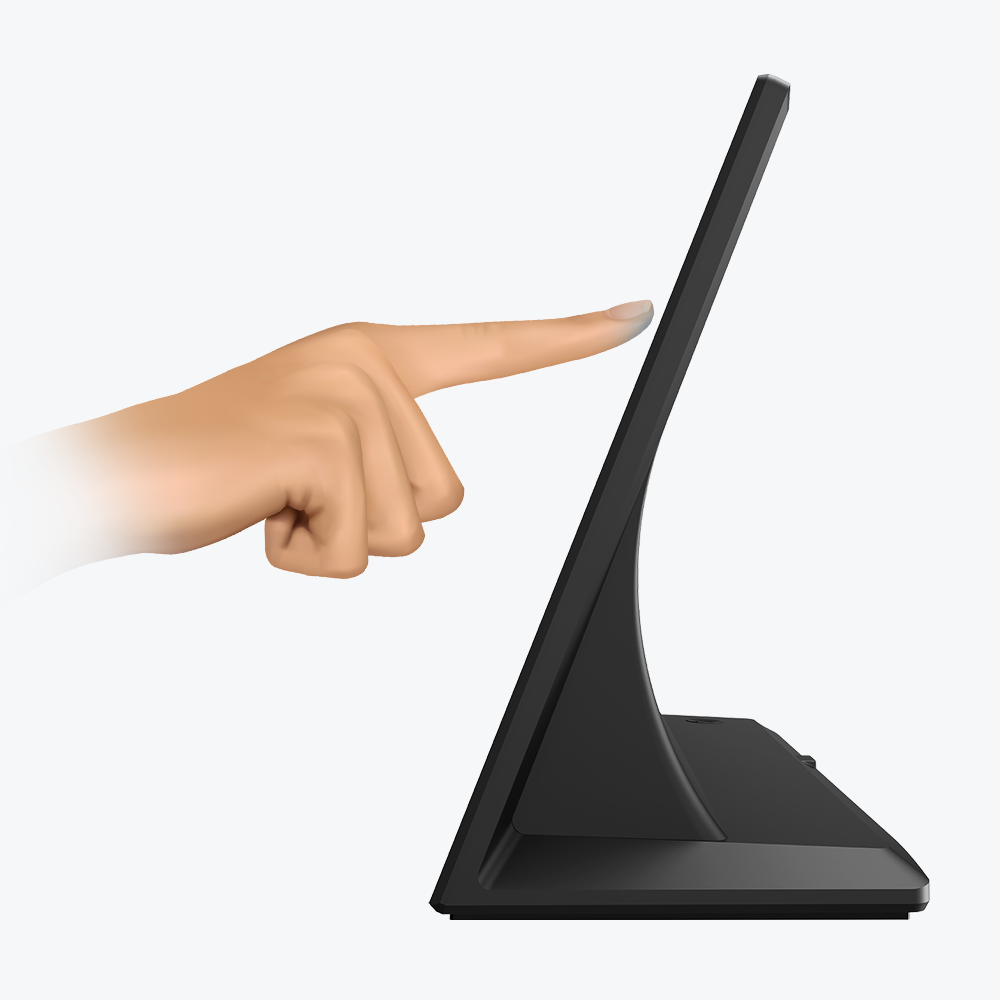

ERGONOMIC DESIGN
Design For Better Custom Comfort.
The L-shaped design makes it easy to place on a desktop without requiring external bracket and provides users a comfortable angle for use. This can reduce back strain and fatigue.

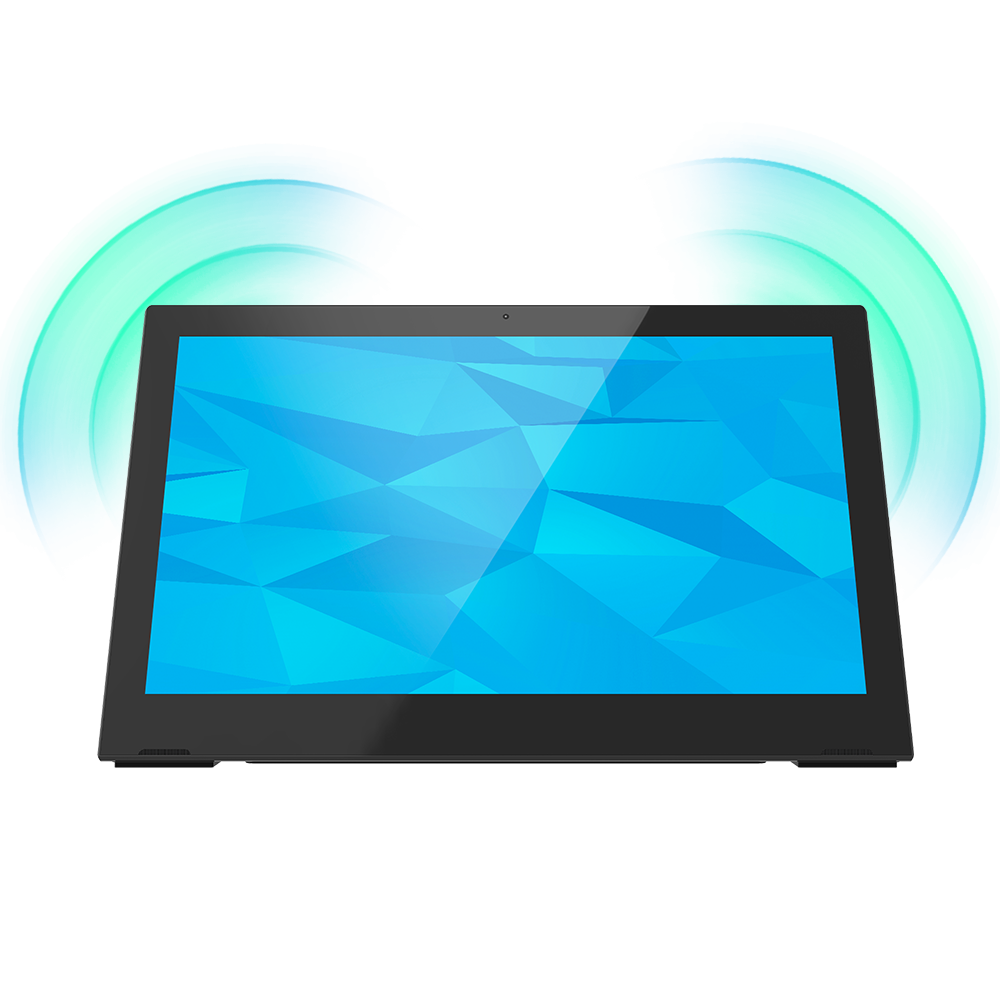

BUILT-IN CAMERA, SPEAKERS AND MIC
Ideal For On-the-go Use.
Integrated into a device, there is no need to connect external devices, just turn on your device and start using the camera, speakers, and mic.

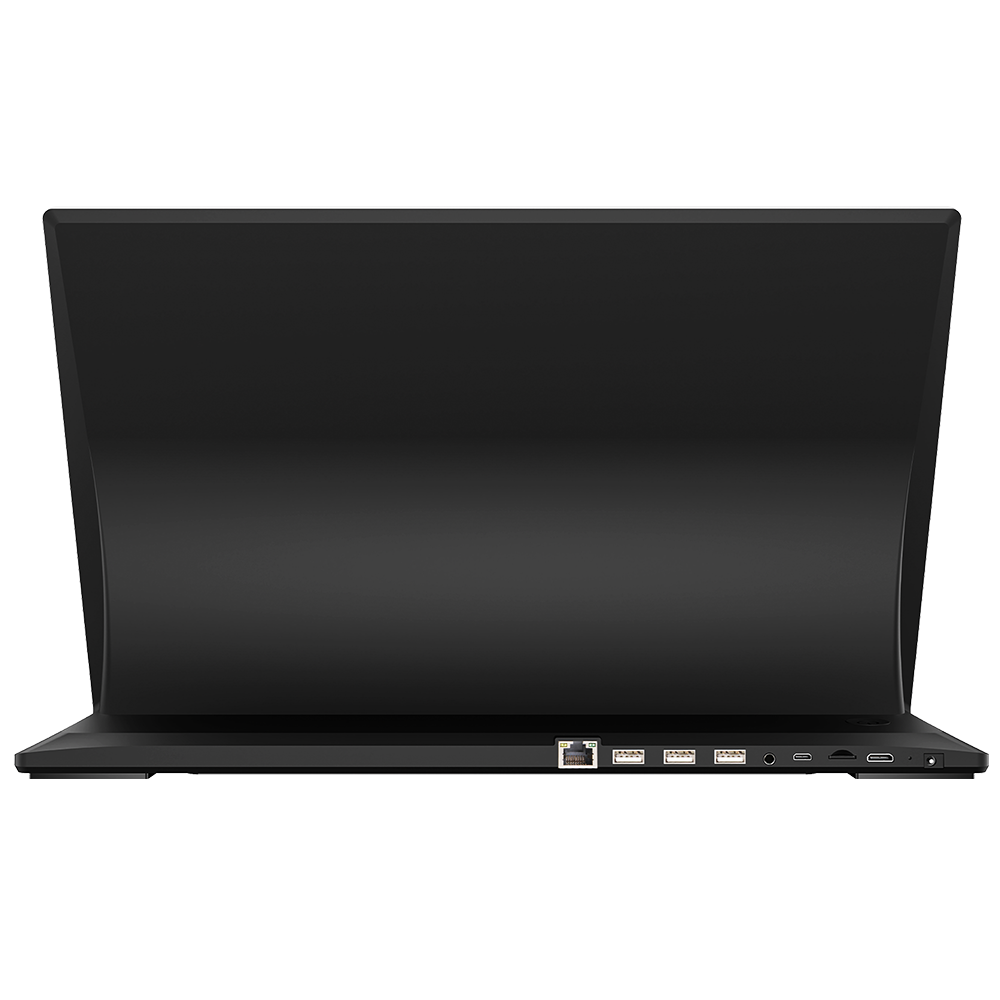

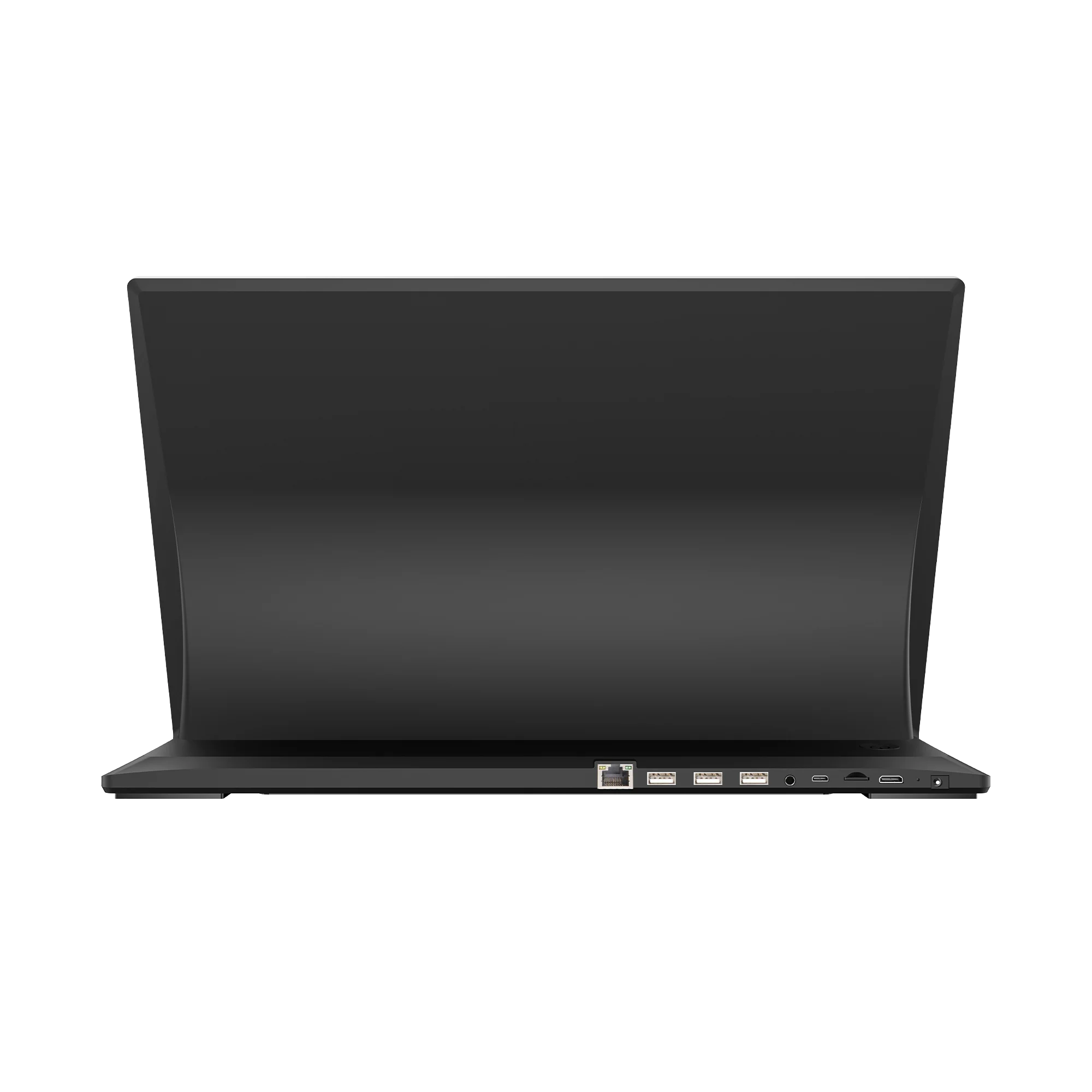

CONNECTIONS AND EXPANSION
Multiple connections for your devices.
Connect easily and create your customized setup using HDMI and USB ports without any adapters. Plug in to charge, transfer or create your ideal multiscreen station.
Explore More ELC Desktop Signages Now.
Screen sizes from 8-inch to 17.3-inch, horizontal or vertical.
Explore Now

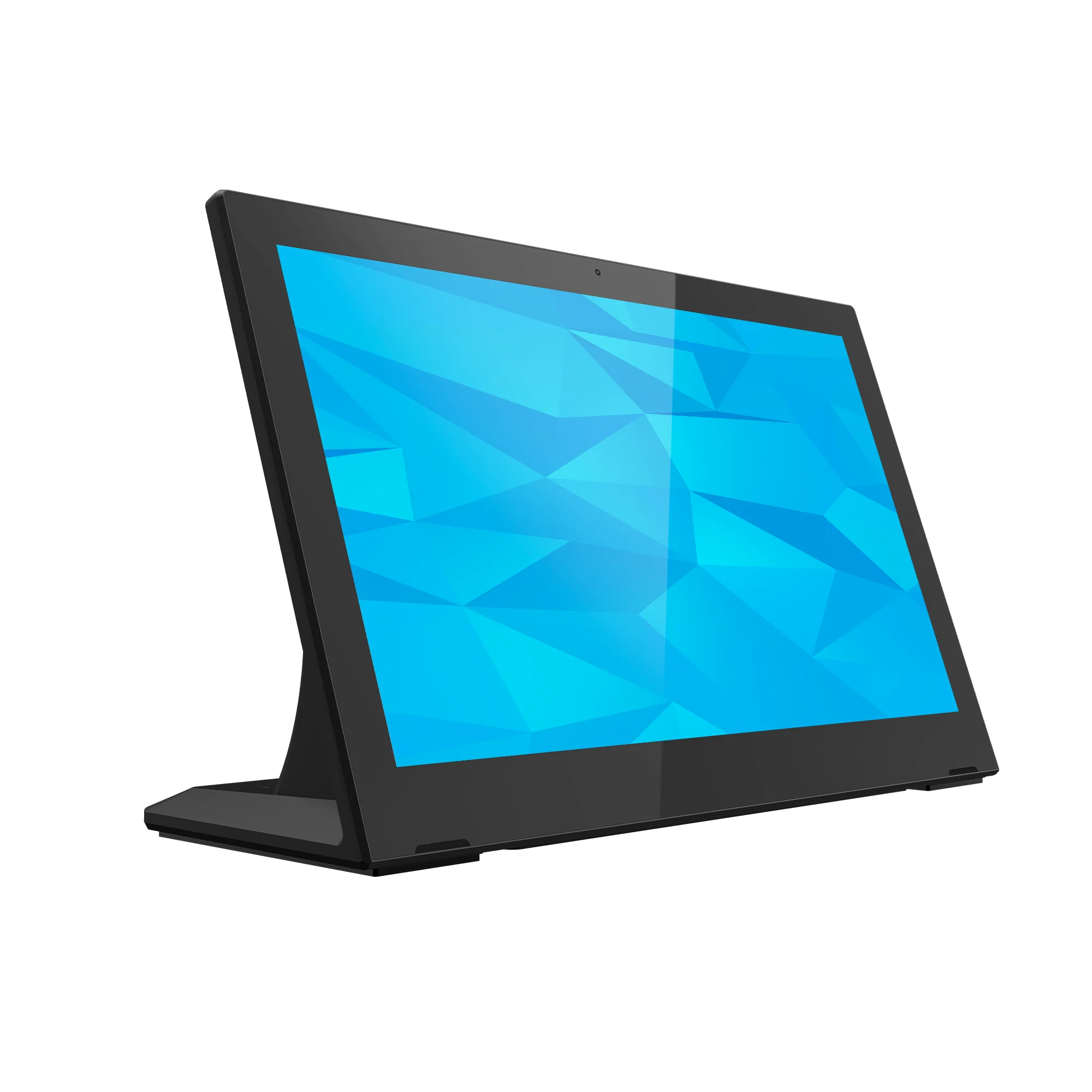

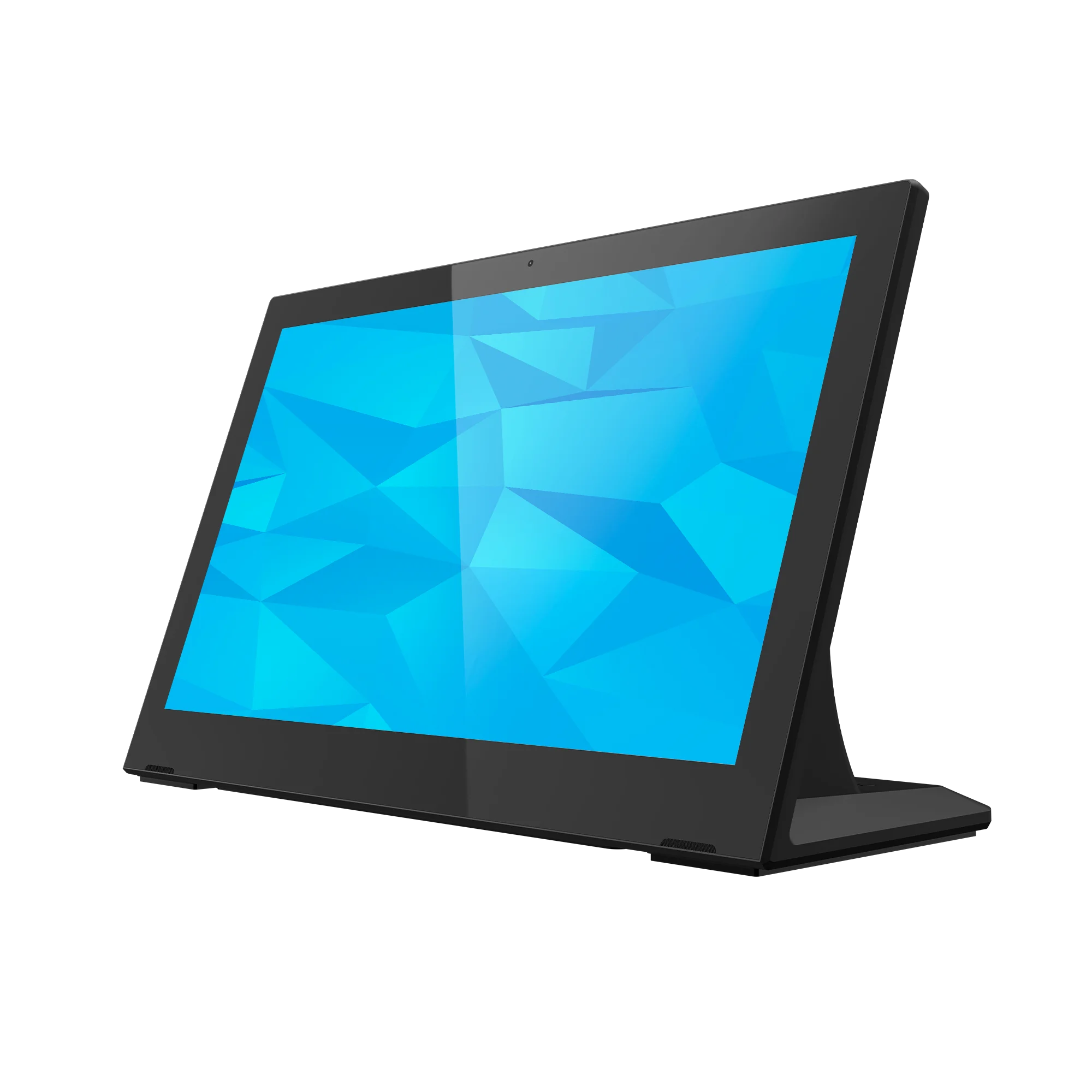

17.3" Desktop Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WL1712T | WL1713T | WL1716T | WL1718T
Specifications
Display
17.3-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WL1712T: RK3288 Quad-core cortex A17
- WL1713T: RK3399 Dual-core A72+Quad-core A53
- WL1716T: RK3566 Quad-core cortex A55
- WL1718T: RK3568 Quad-core cortex A55
- WL1712T: 2GB
- WL1713T: 2GB (Optional 4GB)
- WL1716T: 2GB (Optional 4GB)
- WL1718T: 2GB (Optional 4GB)
- WL1712T: 16GB
- WL1713T: 16GB (Optional 32GB/64GB)
- WL1716T: 16GB (Optional 32GB)
- WL1718T: 16GB (Optional 32GB)
- WL1712T: Android 8.1/10.0
- WL1713T: Android 7.1/10.0
- WL1716T: Android 11
- WL1718T: Android 11
Size and Weight
427.8 x 268.03 x 152.95mm (L × W × D)
Power and Battery
Optional 4500mAh
Wireless
IEEE 802.11b/g/n
Bluetooth 4.2
I/O Ports
- WL1712T: USB 2.0 Host
- WL1713T: USB 2.0 Host
- WL1716T: USB 3.0 Host
- WL1718T: USB 3.0 Host
- WL1712T: USB for serial port (RS232 format)
- WL1713T: USB for serial port (RS232 format)
- WL1716T: USB for serial (TTL format)
- WL1718T: USB for serial (TTL format)
HDMI output, support 4K
DC power input
Media Format
- WL1712T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WL1713T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WL1716T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WL1718T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
- WL1712T: JPEG
- WL1713T: JPEG
- WL1716T: JPEG/PNG
- WL1718T: JPEG/PNG
Others
Black
2W*2
Single microphone
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Routine angle 5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/2A
×1
