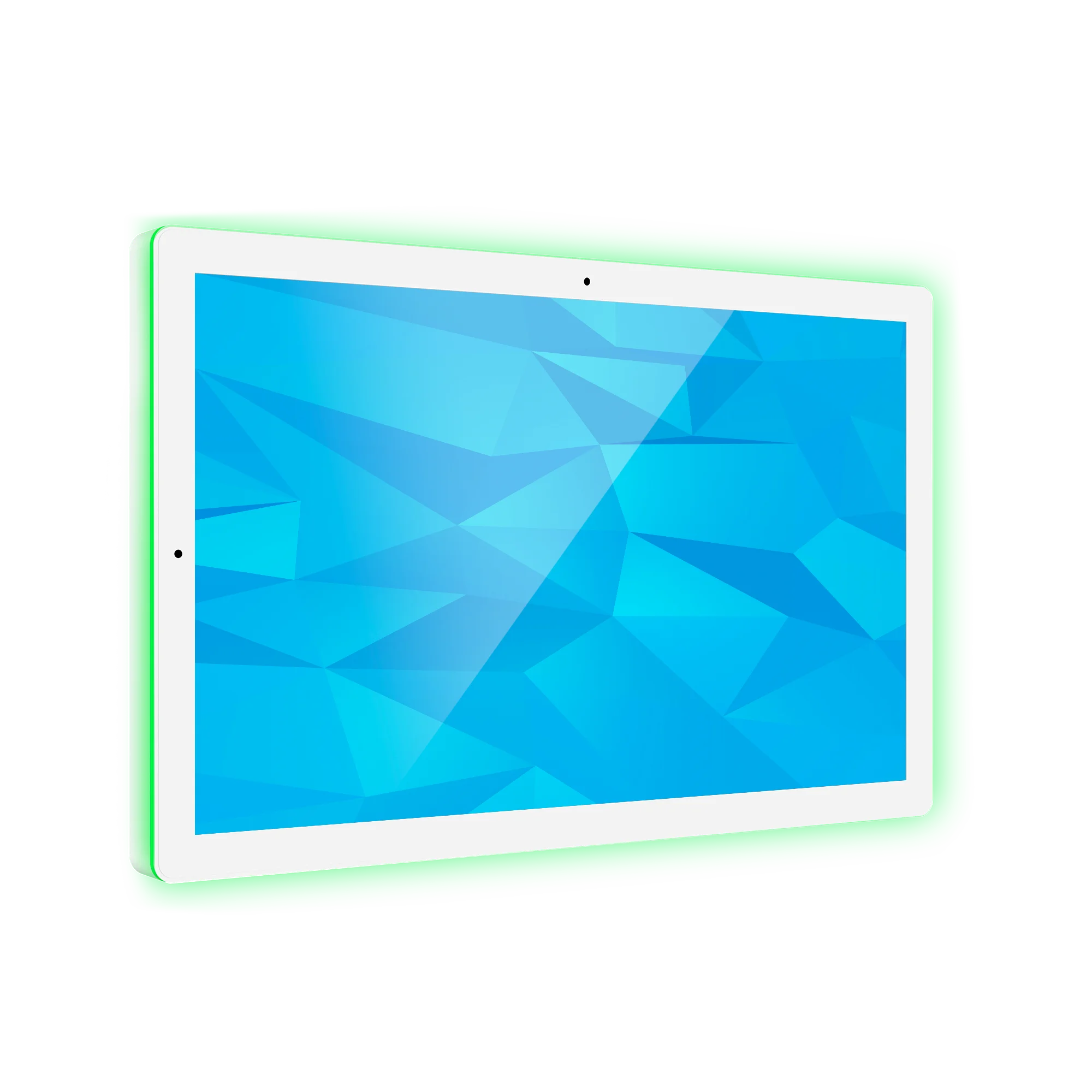

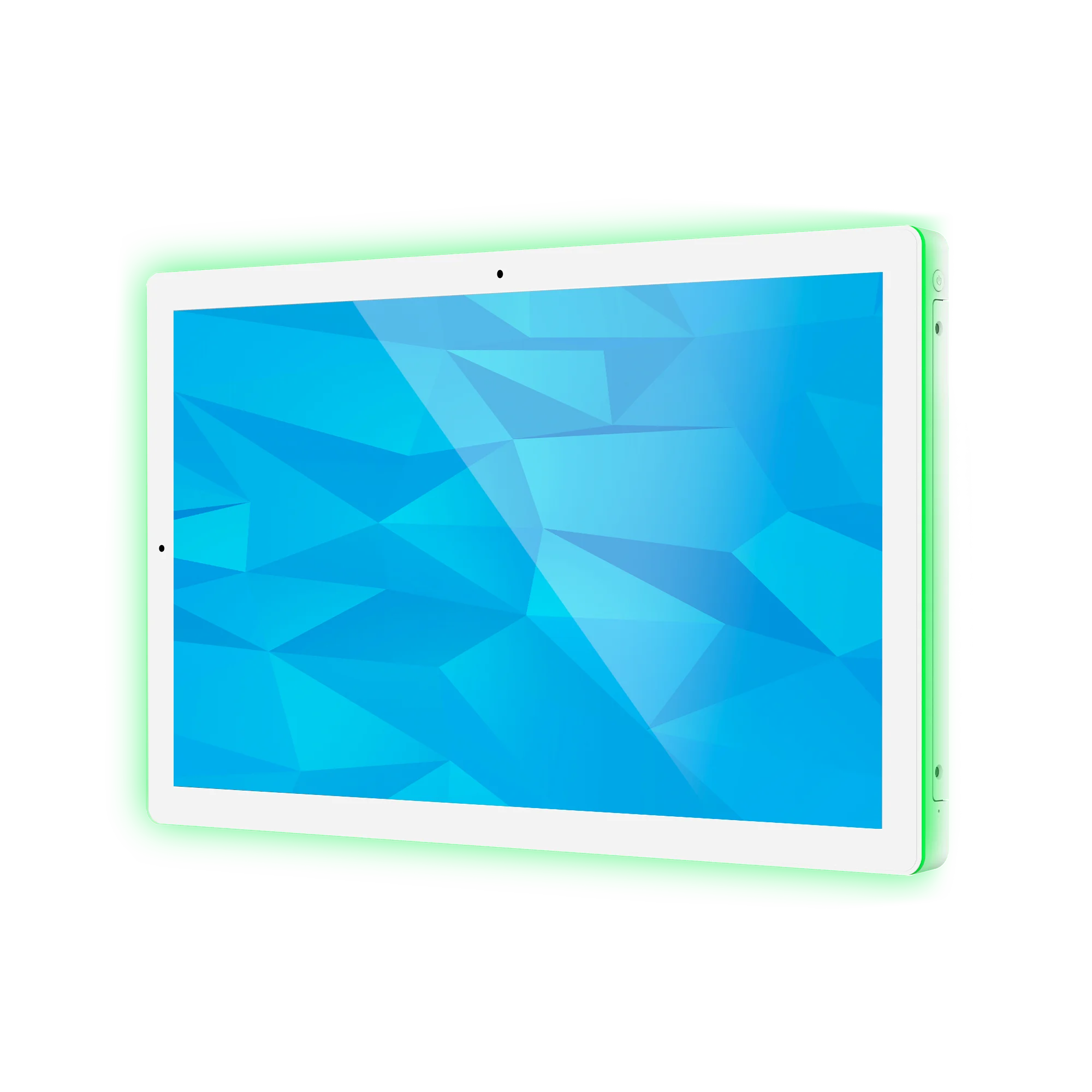

WA2189T

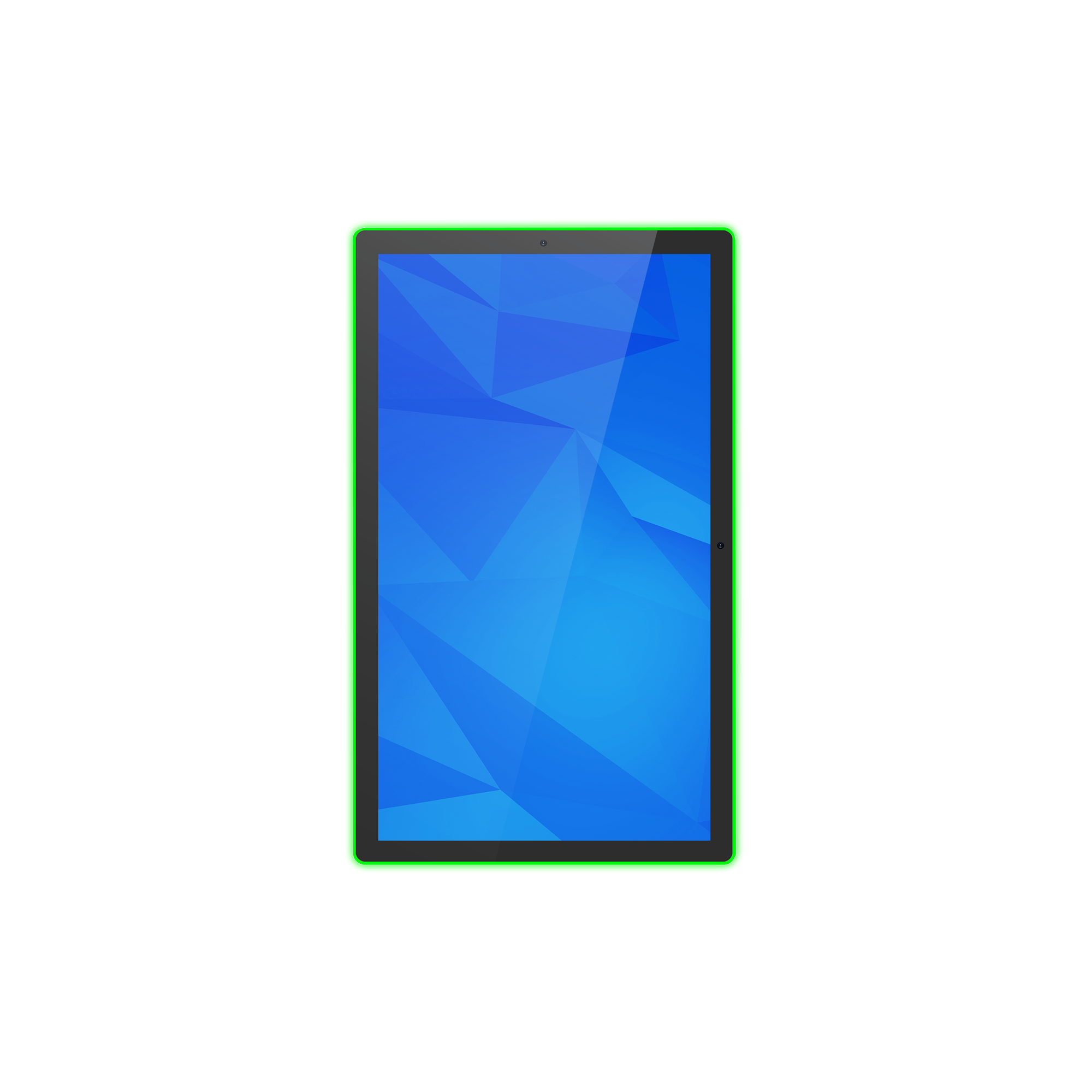

21.5" Edge-Light Tablet
The 21.5-inch edge-light tablet combines a Full HD touchscreen, RGB edge lighting and PoE connectivity for clear, interactive communication. Ideal for retail stores, meeting rooms and reception areas, it supports flexible deployment across a wide range of commercial environments.
DISPLAY
21.5-inch Full HD Touchscreen
The 21.5-inch touchscreen delivers Full HD 1920 × 1080 resolution for clear, detailed visuals. Its 10-point capacitive multi-touch supports responsive control and multi-finger gestures, enabling smooth and efficient interaction across commercial applications.

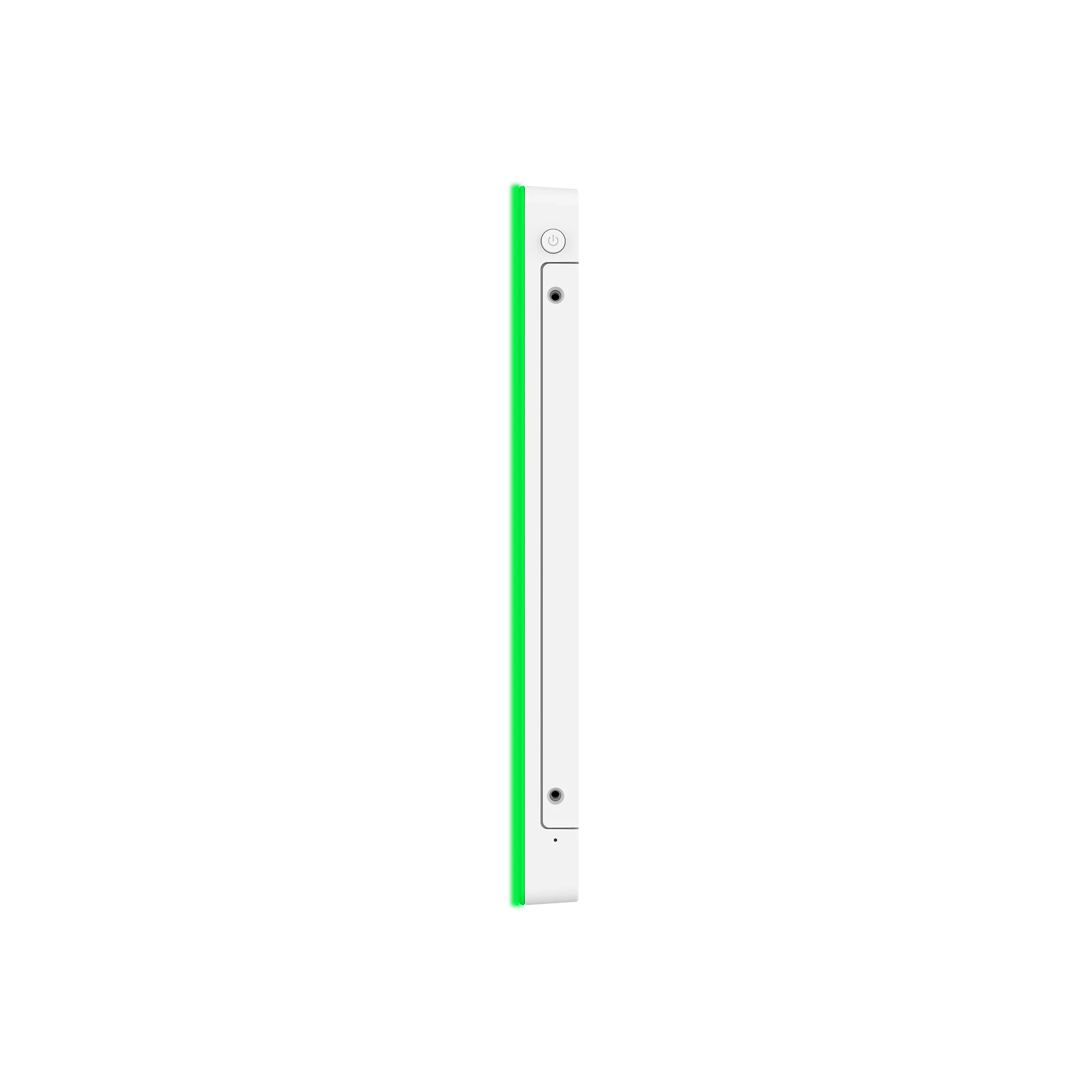

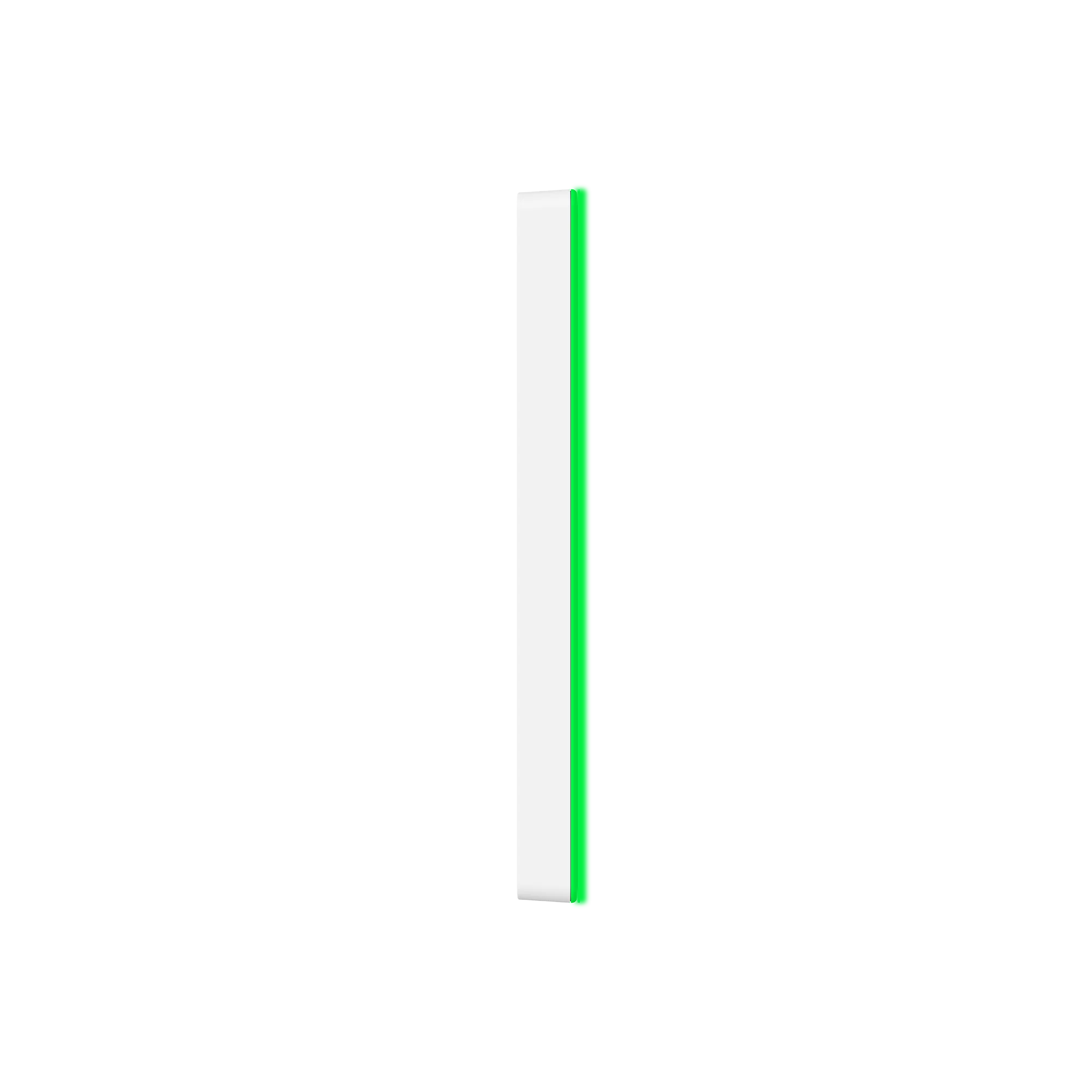

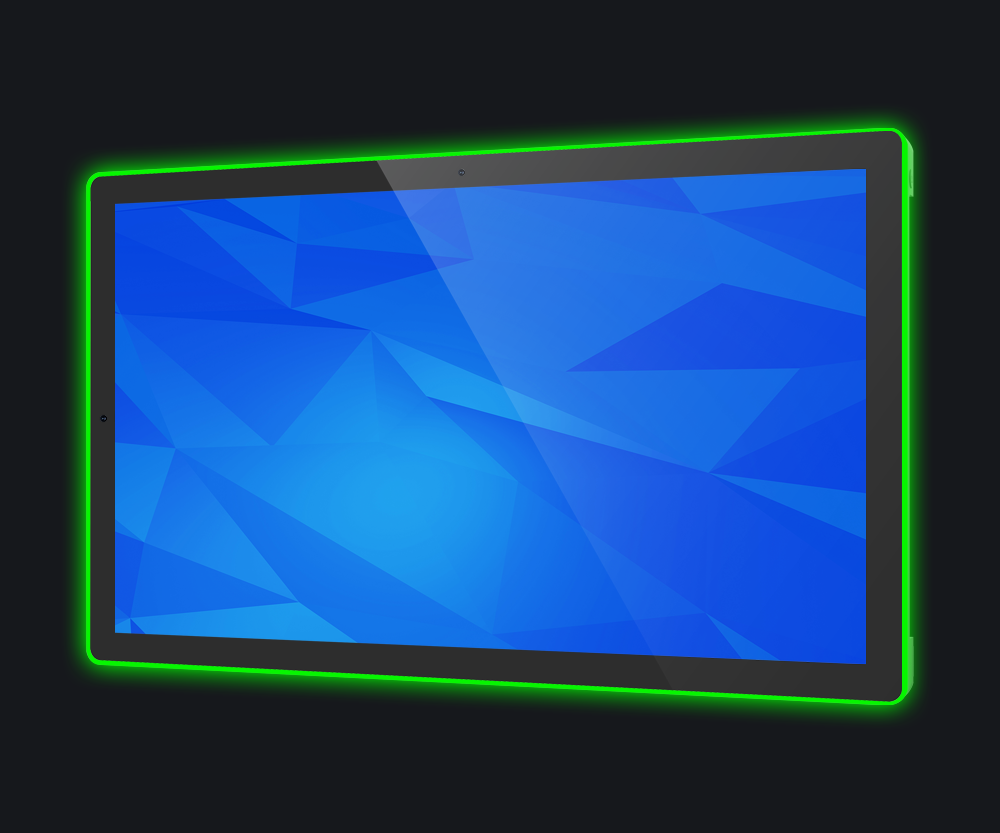

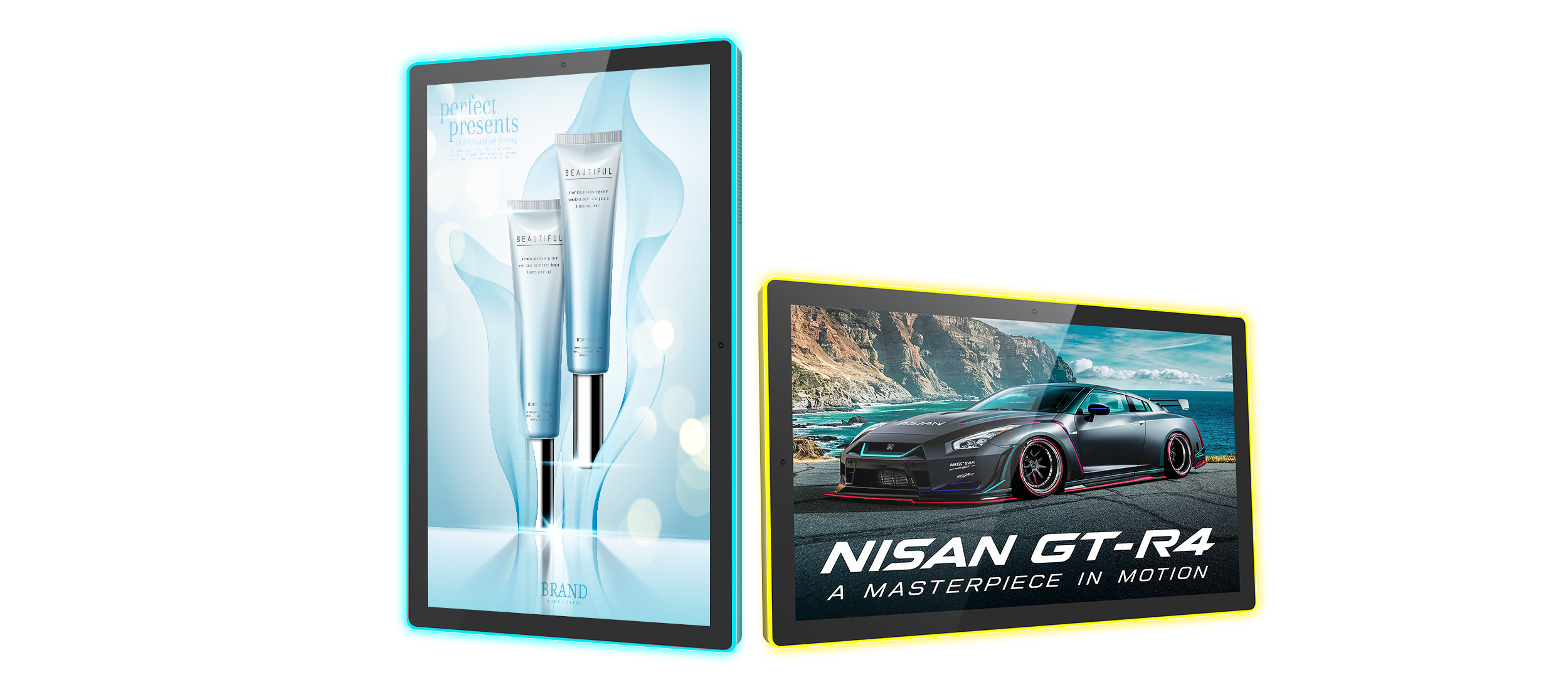

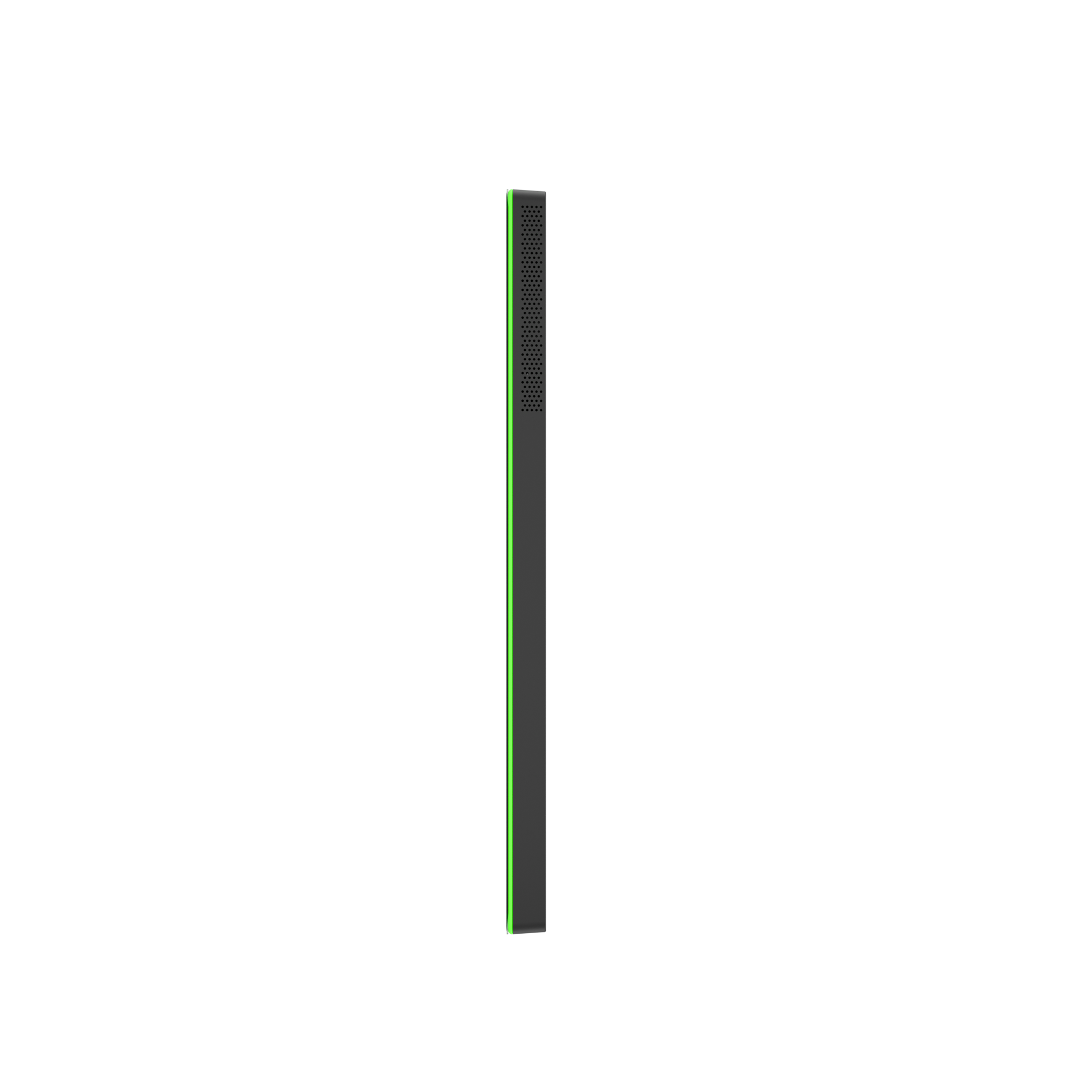

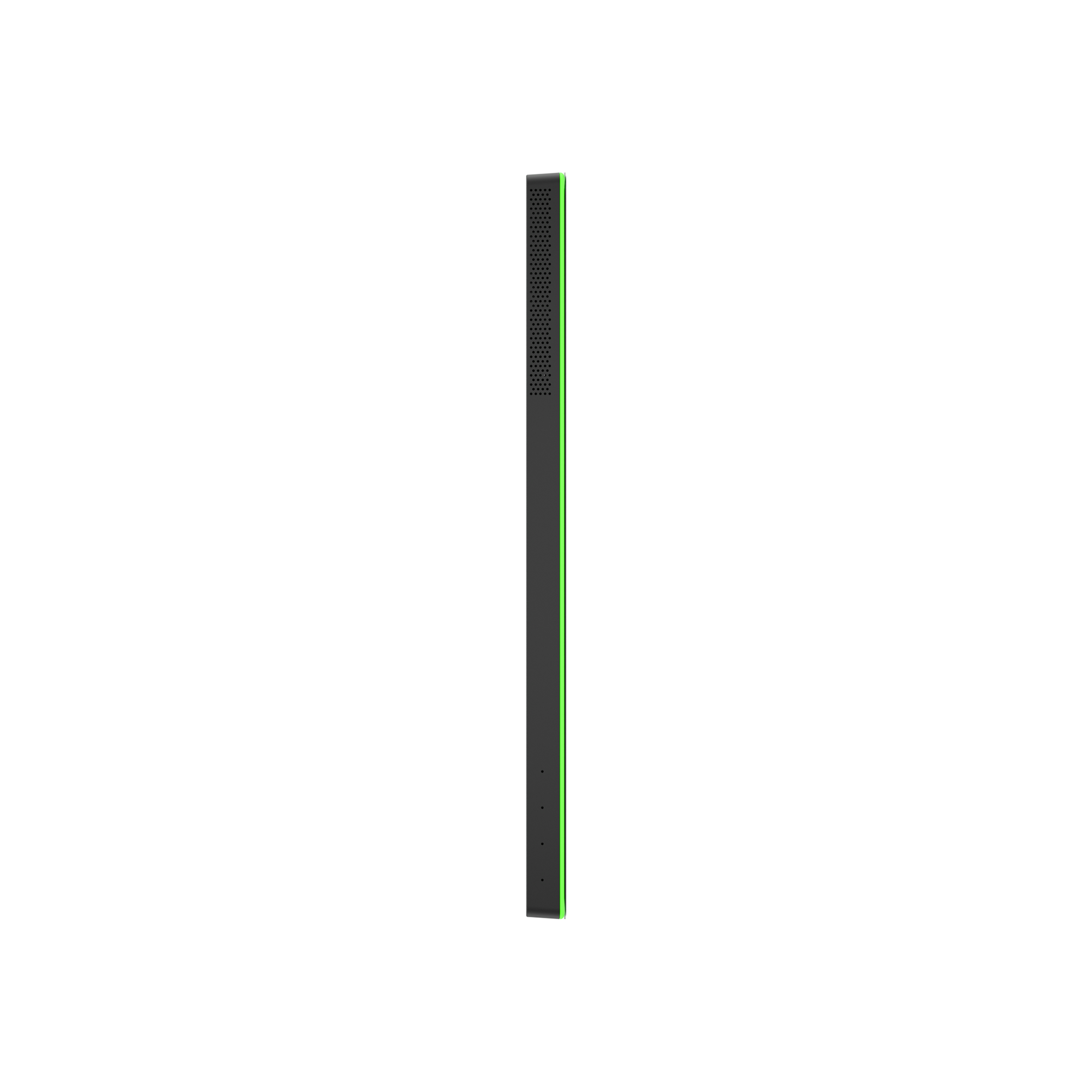

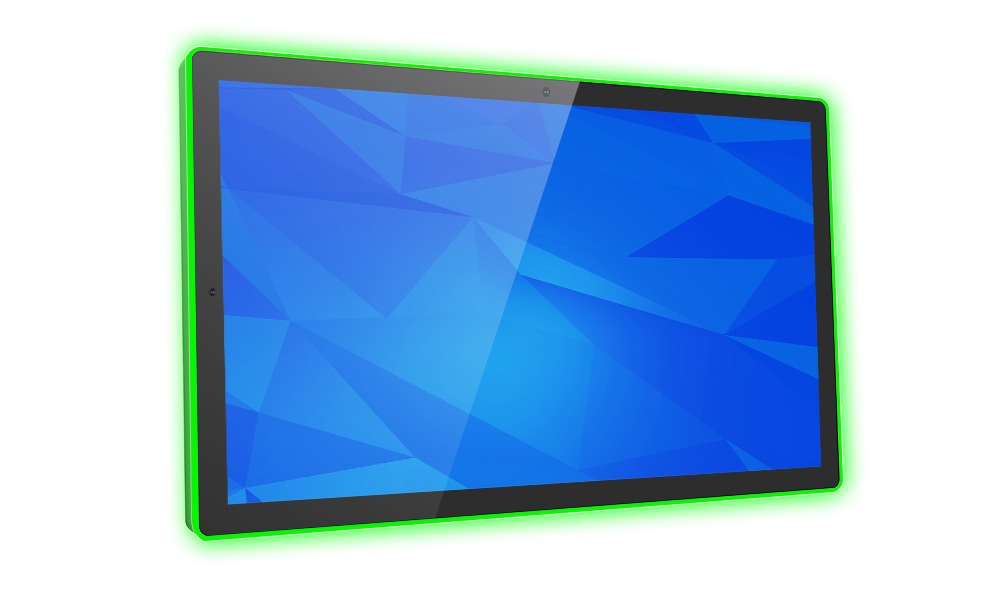

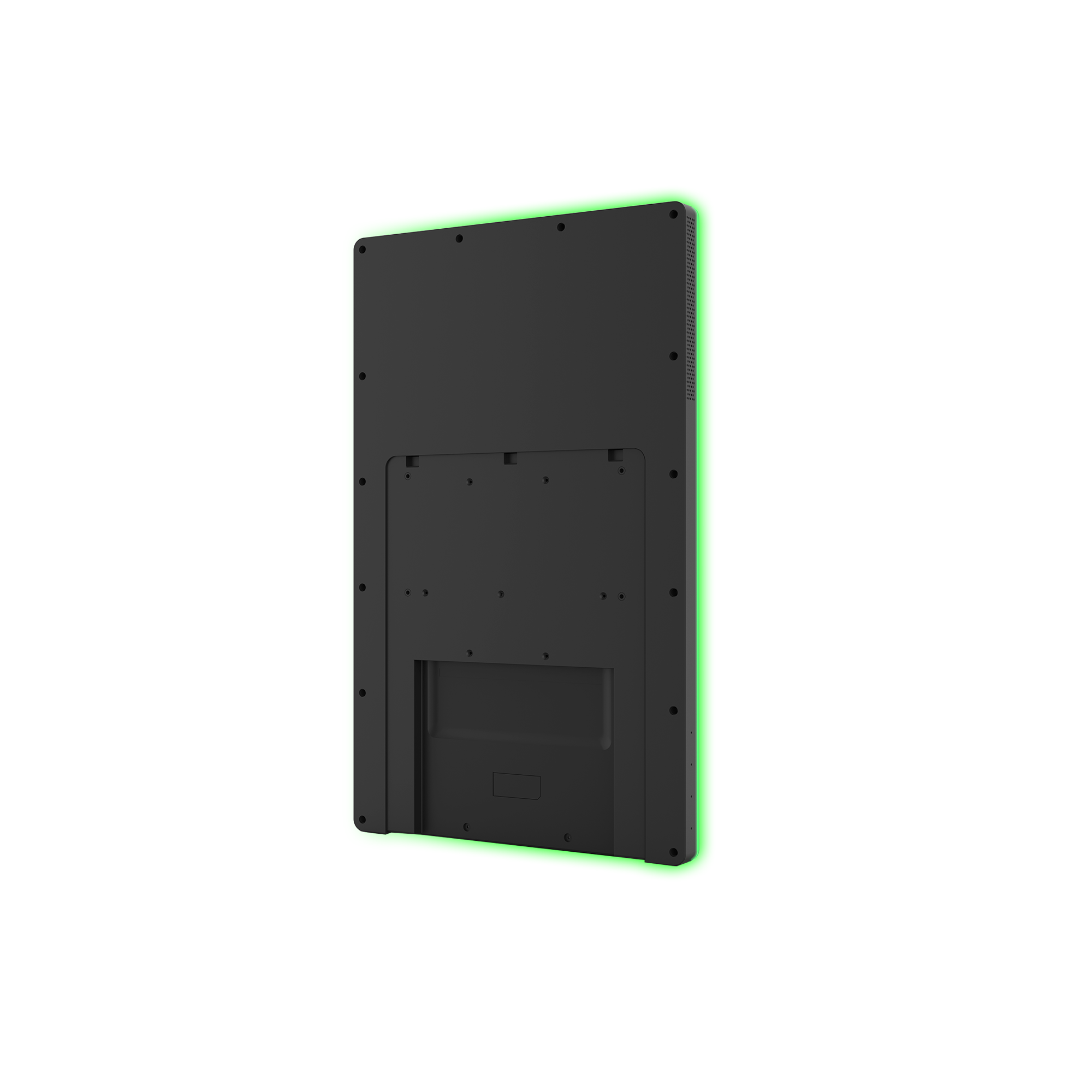

RGB EDGE LIGHTING
A Distinctive Visual Accent
The integrated RGB edge lighting adds a distinctive visual element around the display, helping the device stand out in retail stores, reception areas, meeting rooms and other commercial environments.
4 INSTALLATION OPTIONS
Flexible Installation for Commercial Spaces

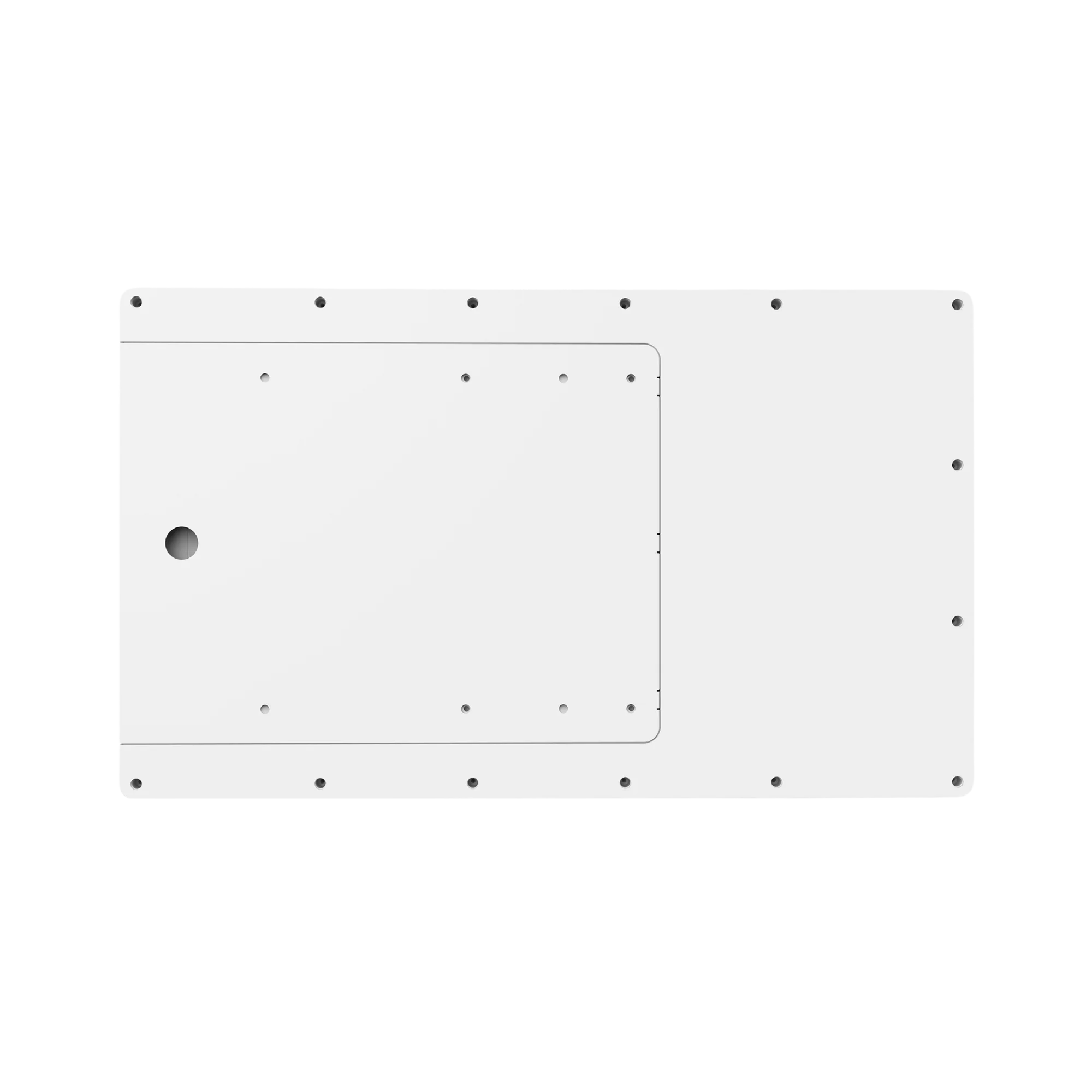

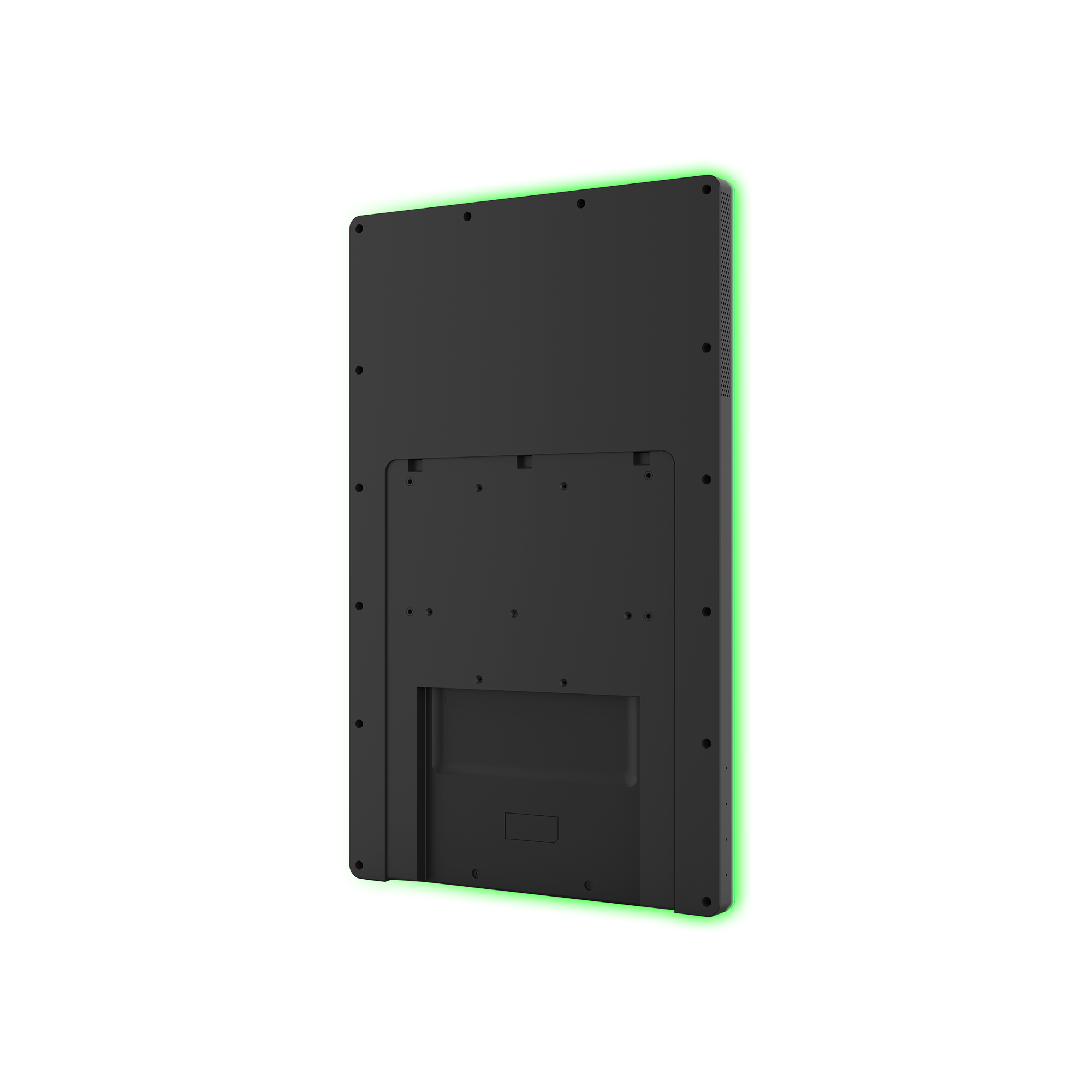

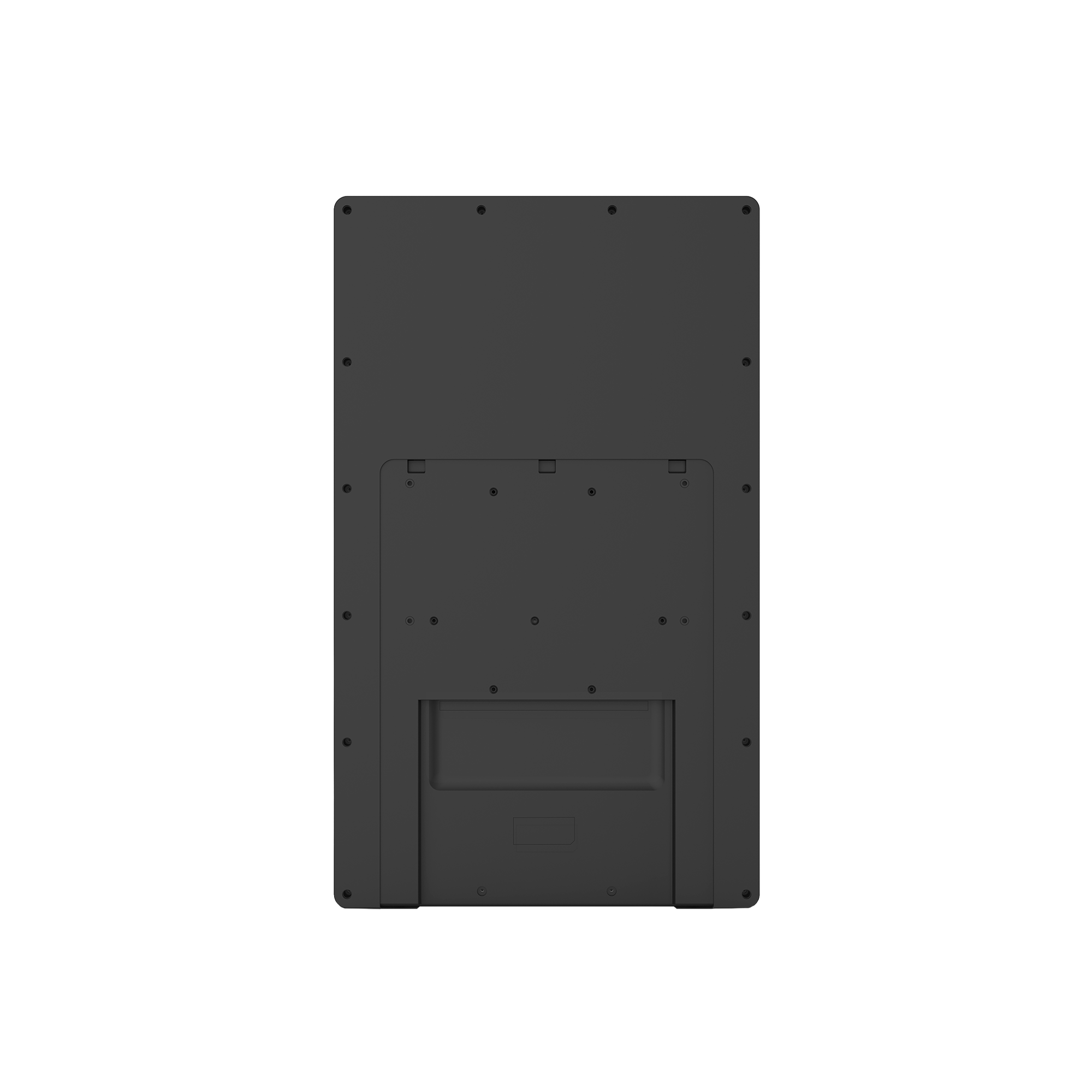

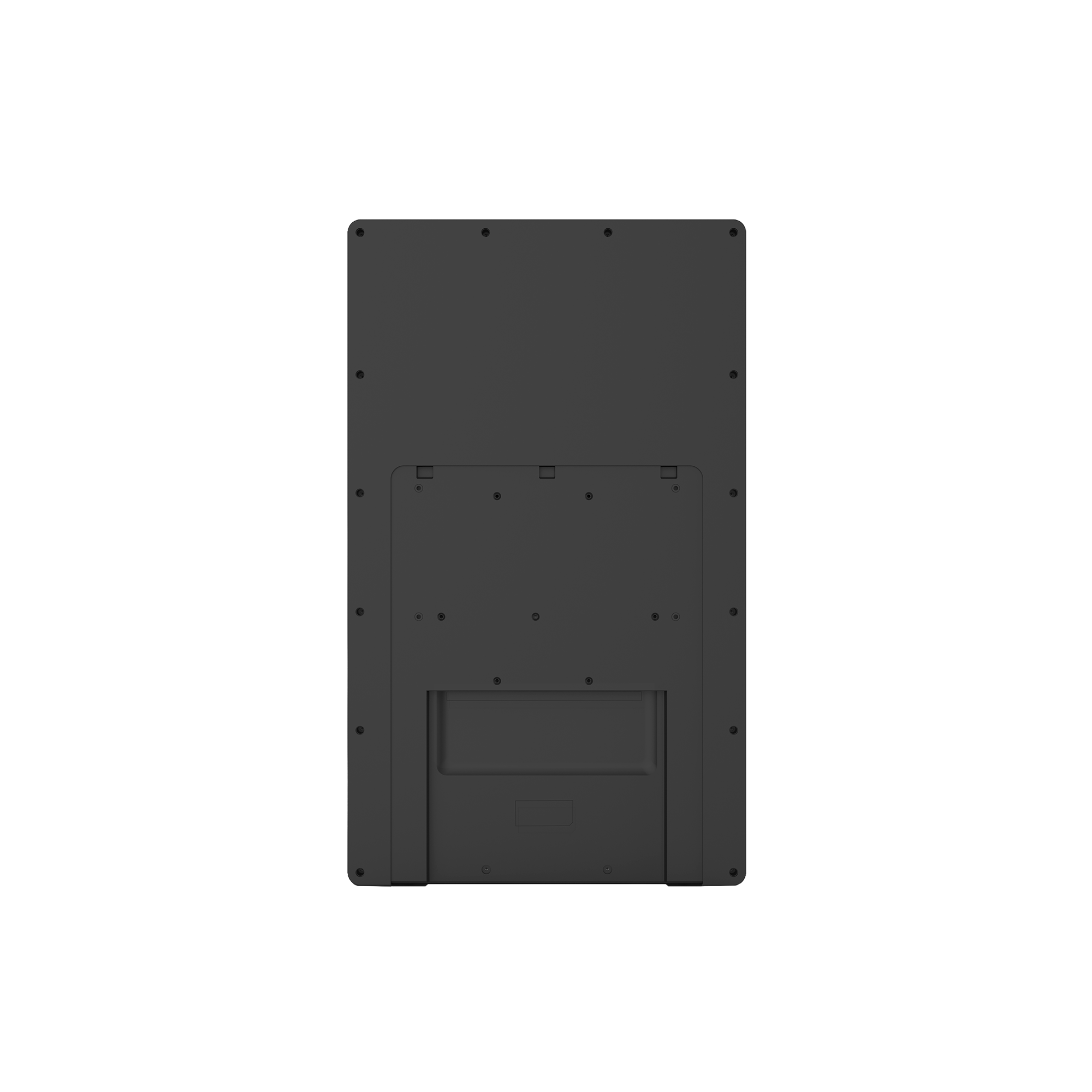

With a 200 × 100 mm VESA mounting interface, the WA2189T supports wall mounting and compatible desk stands, floor stands and monitor arms, allowing flexible installation across different commercial environments.
Wall Mount
Desk Stand
Floor Stand
Mount with 3M Tape
OPTIONAL NFC
Fast Contactless Interaction
The WA2189T can be equipped with an optional NXP PN7160 NFC module for contactless identification, data exchange and access control applications. Simply tap a compatible card, tag or NFC-enabled device for quick and convenient interaction.
PERFORMANCE
Choose the Configuration You Need
Multiple processor configurations are available, with flexible RAM and storage options to meet different performance, software and project requirements.
OPERATING SYSTEM
All You Can Stream And Cast.
Utilize the intelligent screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.
BUILT-IN CAMERA, SPEAKERS AND MICROPHONE ARRAY
Clear Audio & Video
Equipped with a 5MP camera, dual 5W speakers and a quad-microphone array, the WA2189T supports clear audio and video communication. Noise reduction and echo cancellation help improve voice clarity for meeting rooms, reception areas and interactive applications.

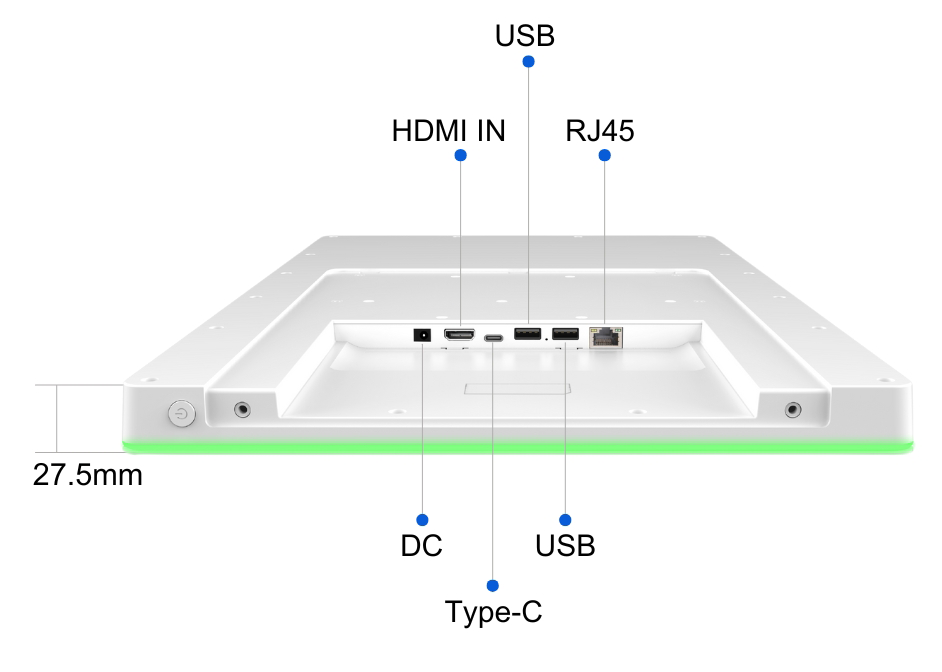

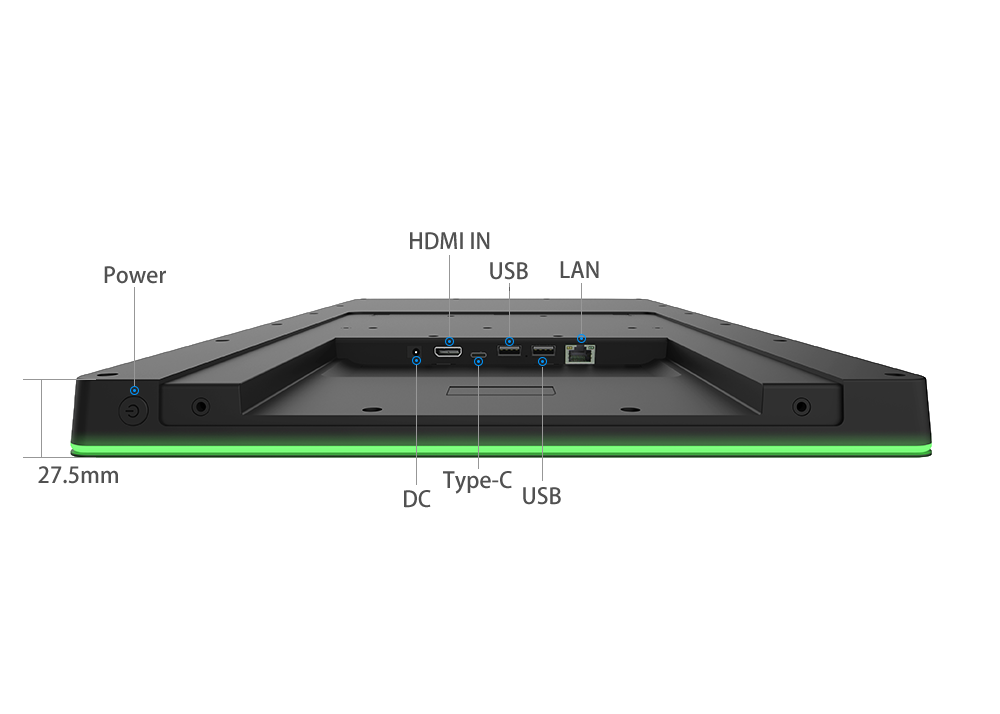

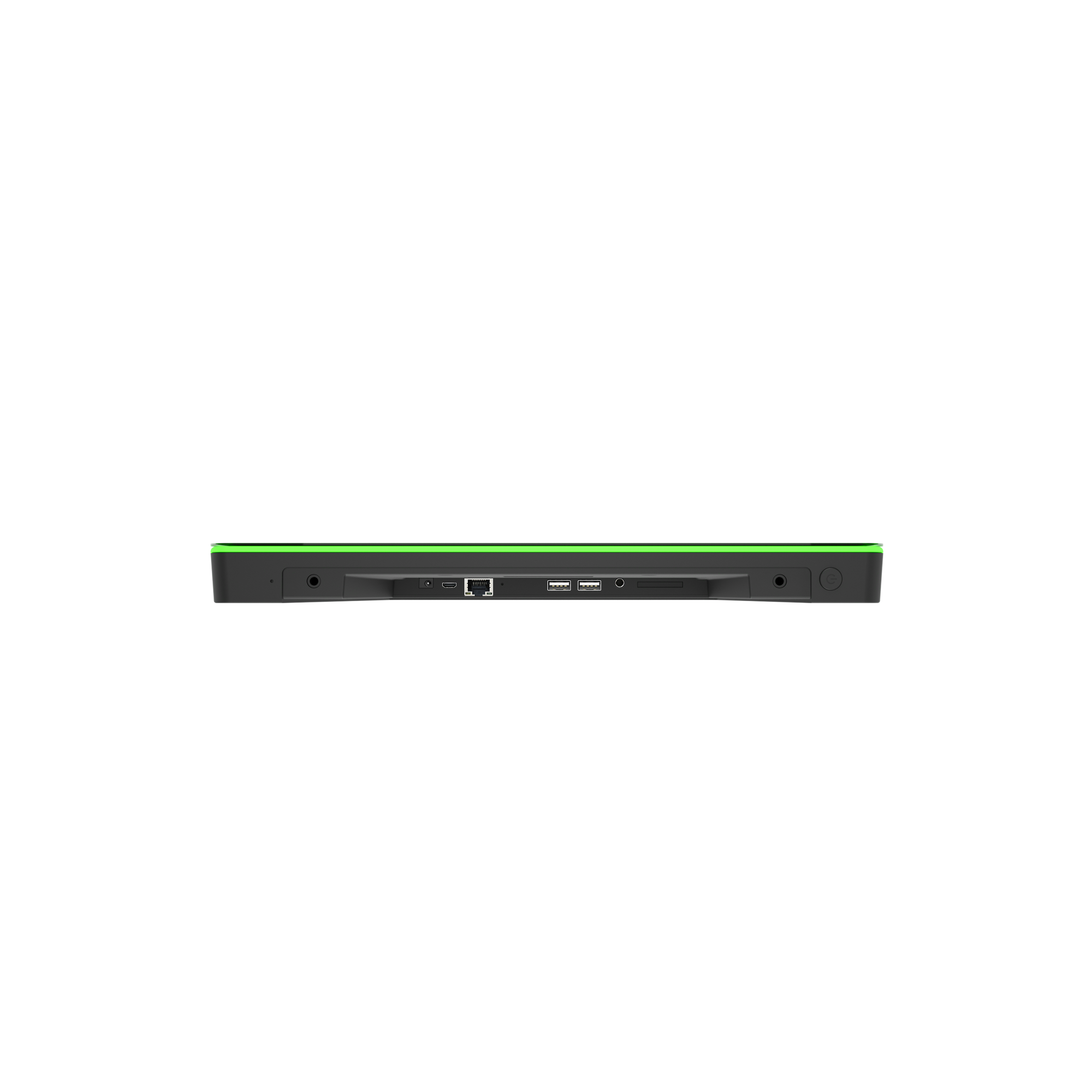

CONNECTIONS AND EXPANSION
Flexible Connectivity
The WA2189T integrates Gigabit Ethernet with PoE, USB 2.0 and USB 3.0 ports, Type-C OTG, HDMI 2.0 input and DC 12V power input, supporting reliable network connectivity and flexible peripheral expansion.
21.5" Edge-Light Tablet
RK3576S Octa-Core Processor | 4GB RAM | 32GB Storage | Android 14
• RK3576S octa-core processor with 3 TOPS NPU
• Android 14 with 4GB RAM and 64GB storage
• 97% sRGB color gamut and 4000:1 contrast ratio
• Wi-Fi 6, Bluetooth 5.4 and Gigabit Ethernet
• 8MP camera, dual 5W speakers and quad-microphone array
• HDMI 2.0 input, USB 3.0 and Type-C OTG
• Optional NXP PN7160 NFC and 125 kHz RFID
• Integrated edge lighting with marquee effects
WA2189T
Specifications
Display
21.5-inch (LCD)
1920 x 1080 pixels
16:9
R/L 89/89, U/D 89/89
Normally black
3000:1
250 nits
10-point
Processor
RK3576S Quad core cortex A72+Quad core cortex A53
4GB (Optional 8GB)
32GB (Optional 64GB)
Android 14
Size and Weight
520.6 x 27.5 x 312.5 mm (L × W × D)
Wireless
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
I/O Ports
1×USB 2.0 HOST
1×USB 3.0 HOST
1×Type-C (Only supports OTG function)
1 × Gigabit Ethernet Port (10/100/1000 Mbps, IEEE 802.3bt PoE)
DC 12V Power Input
1 × HDMI 2.0 Input
Media Format
H.264, H.265, VP9, AV1, AVS2
JPEG
H.264, H.265, JPEG
Others
White / Black
200 × 100 mm
2 × 5W (4Ω)
Quad-Microphone Array with Noise Reduction and Echo Cancellation
Optional NXP PN7160
NFC Protocols: ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443A/B, ISO/IEC 15693, MIFARE Classic, MIFARE Ultralight, MIFARE DESFire EV1/EV2 and Sony FeliCa
Optional 125 kHz RFID Supporting ISO/IEC 11784/11785, EM4100 and TK4100/GK4100
5MP
Multi-language
CE/FCC
0℃-40℃
