WT1539T
15.6-inch Desktop Signage
Features a 15.6-inch Full HD display with 1920 × 1080 resolution and 10-point capacitive touch for responsive on-screen interaction. Powered by Android 14 and the RK3576S octa-core processor, it provides a flexible desktop platform for interactive commercial applications.

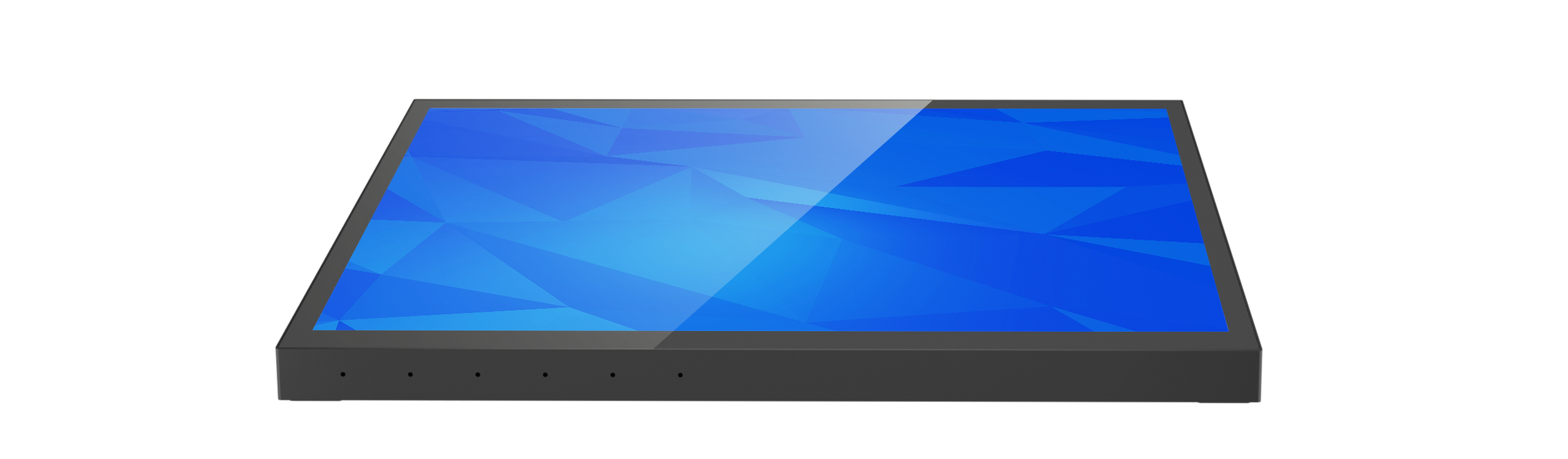

DISPLAY

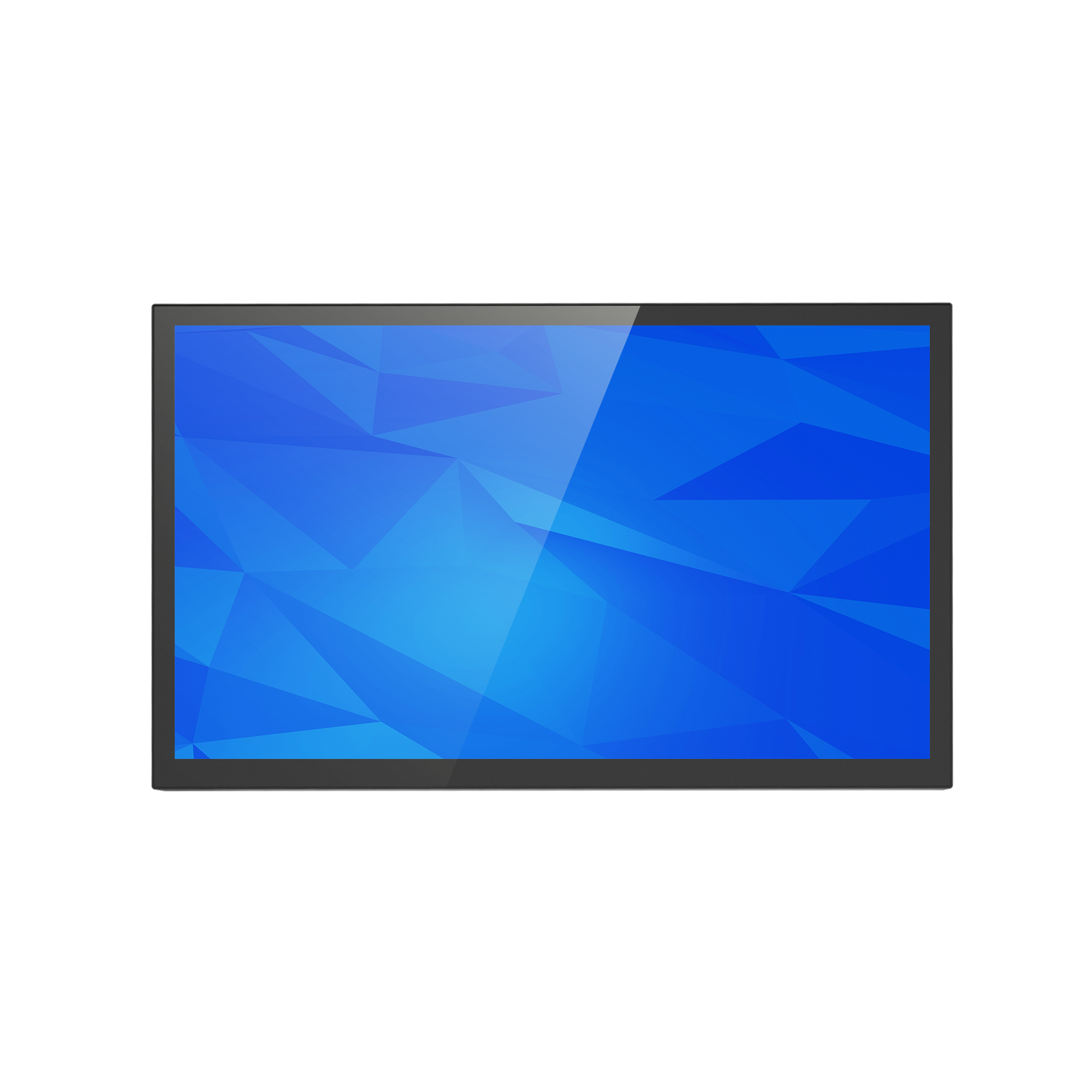

15.6-inch Full HD Touch Display
The 15.6-inch display combines 1920 × 1080 Full HD resolution with 10-point capacitive touch, providing clear visuals and responsive interaction for commercial software and customer-facing applications.
OPERATING SYSTEM
Easy Management With Android Devices.
Easily personalize devices to meet your needs. Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.
PROCESSORS
Work Faster, Work More Efficiently.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

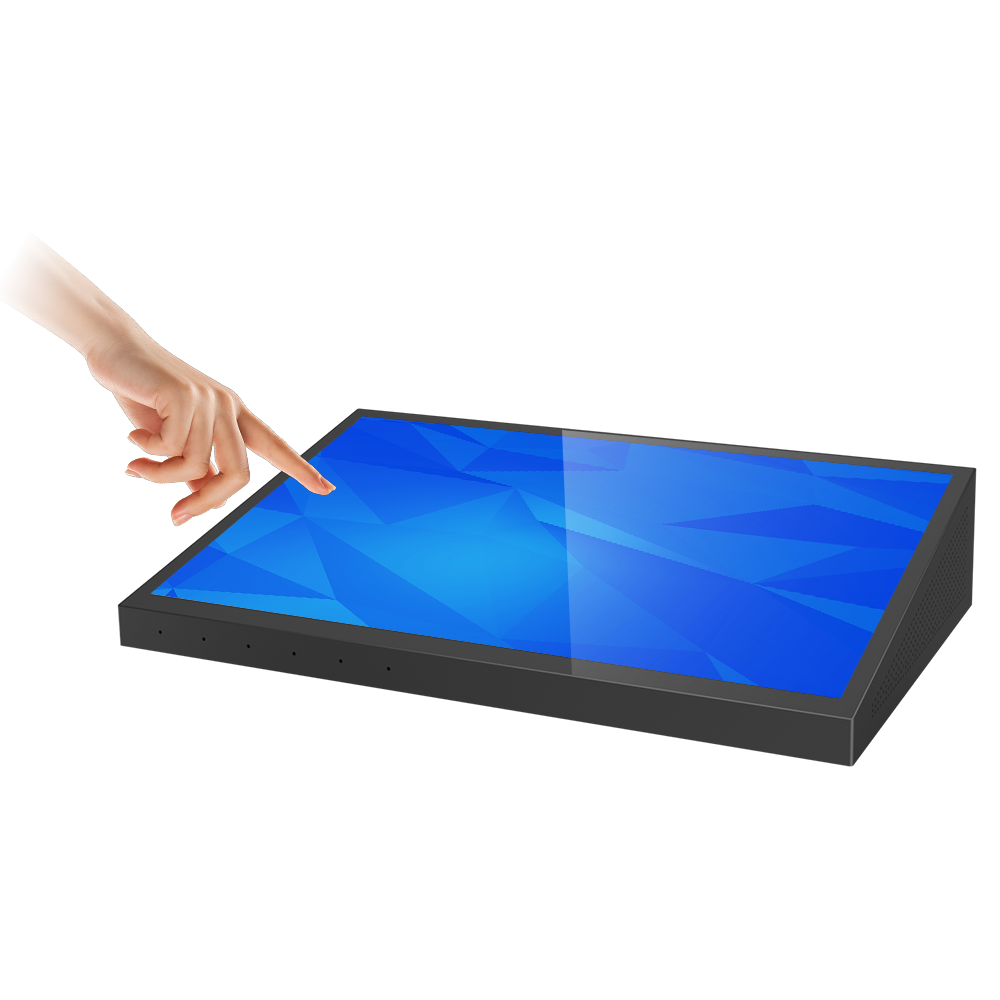

VIEWING & TOUCH

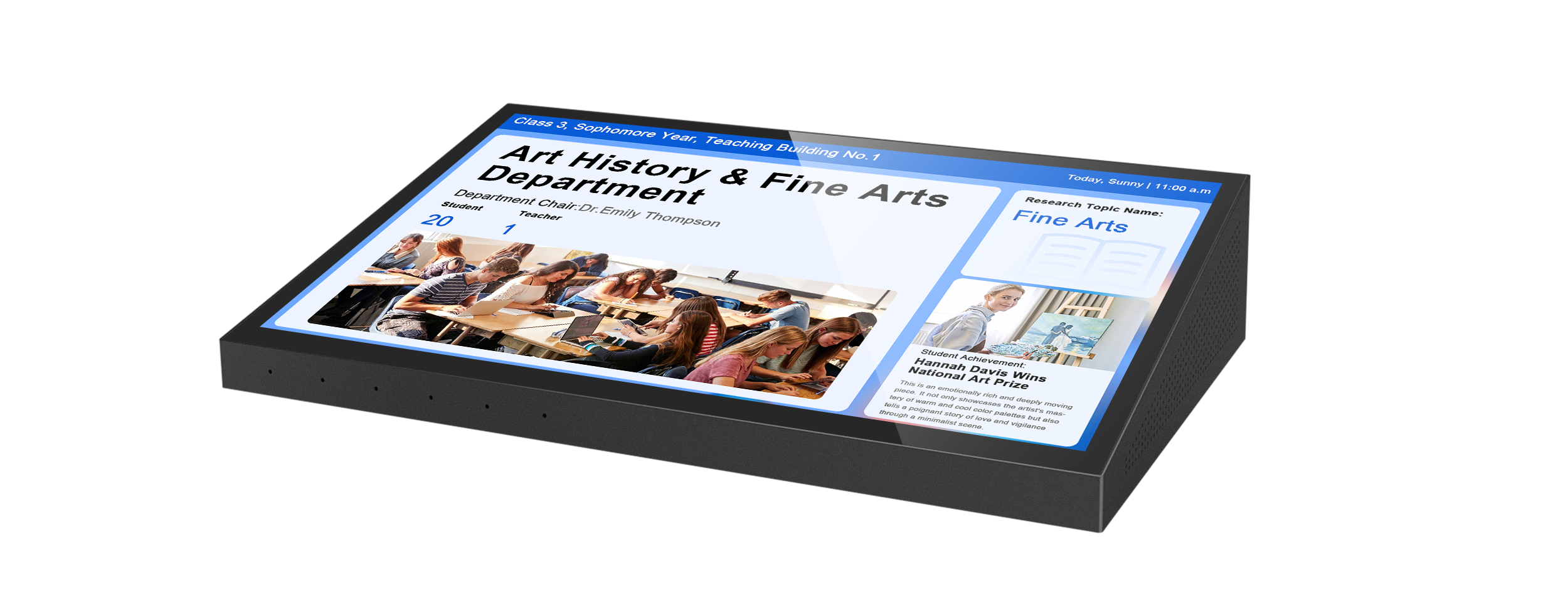

Angled Viewing with 10-Point Touch

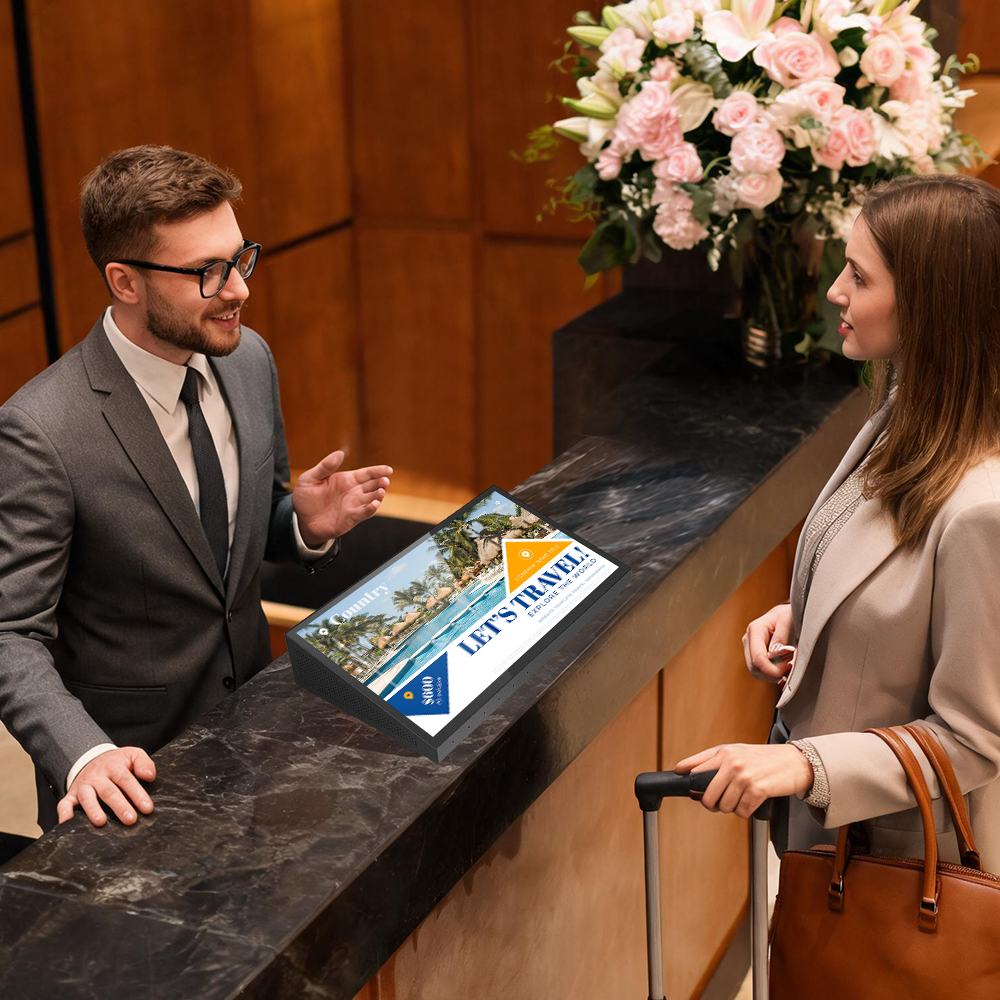

The inclined screen provides a convenient viewing and operating position on counters and desktops. Its 10-point capacitive touchscreen supports responsive navigation and simultaneous multi-touch input.

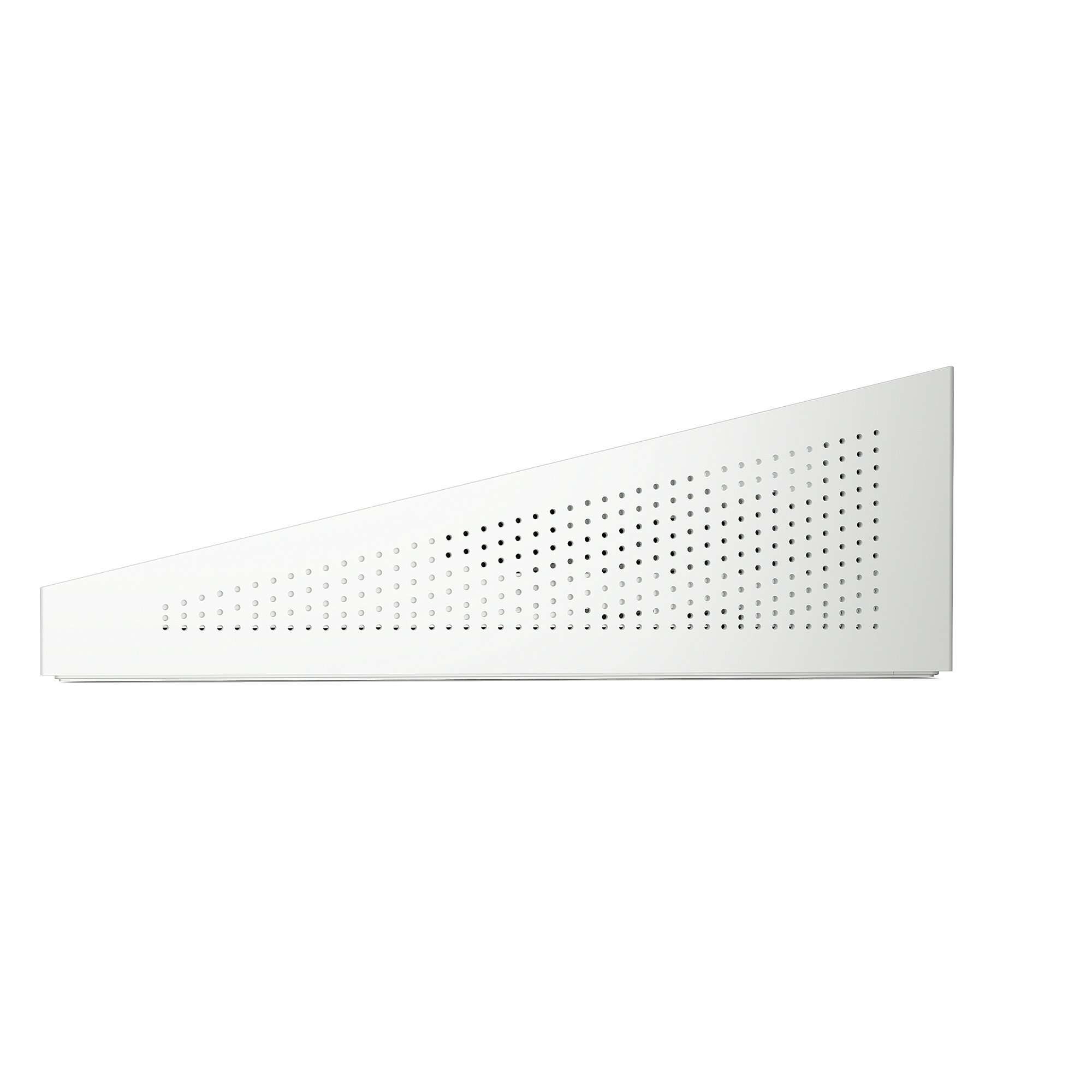

BUILT-IN SPEAKERS & QUAD MICROPHONES

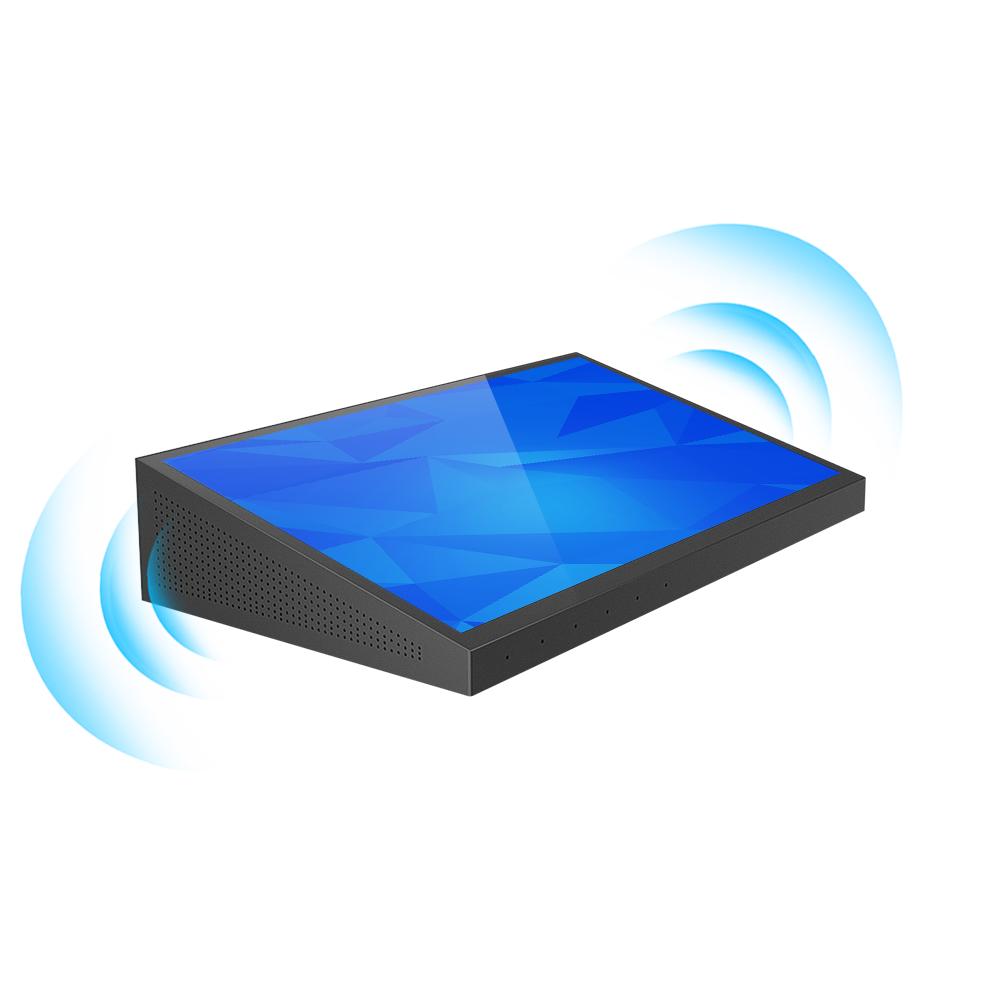

Built-In Audio for Voice Interaction
Dual 5W speakers support media playback and voice prompts, while the quad-microphone array provides noise reduction and echo cancellation for voice-based applications.
CONNECTIONS AND EXPANSION
Flexible Interfaces for System Integration

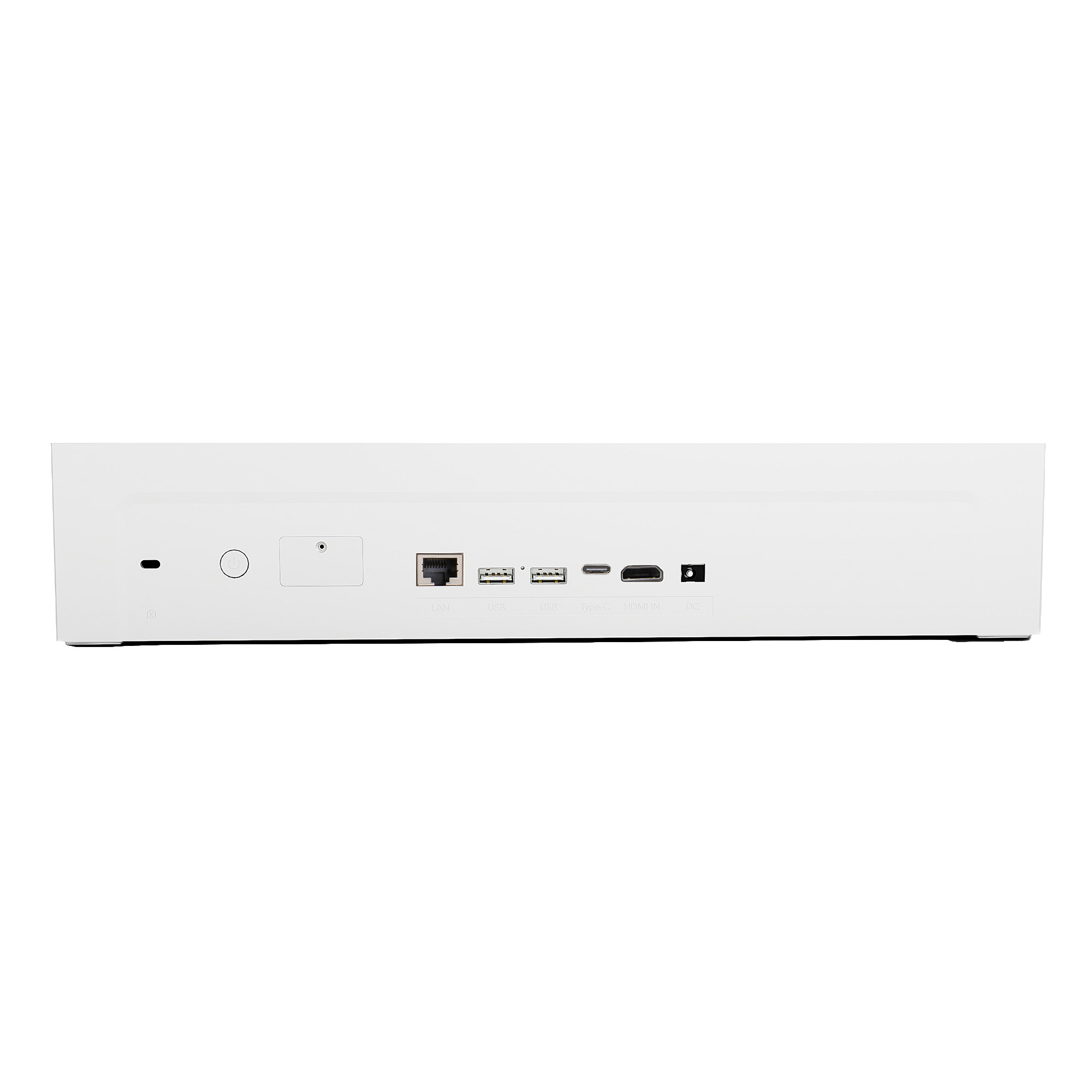

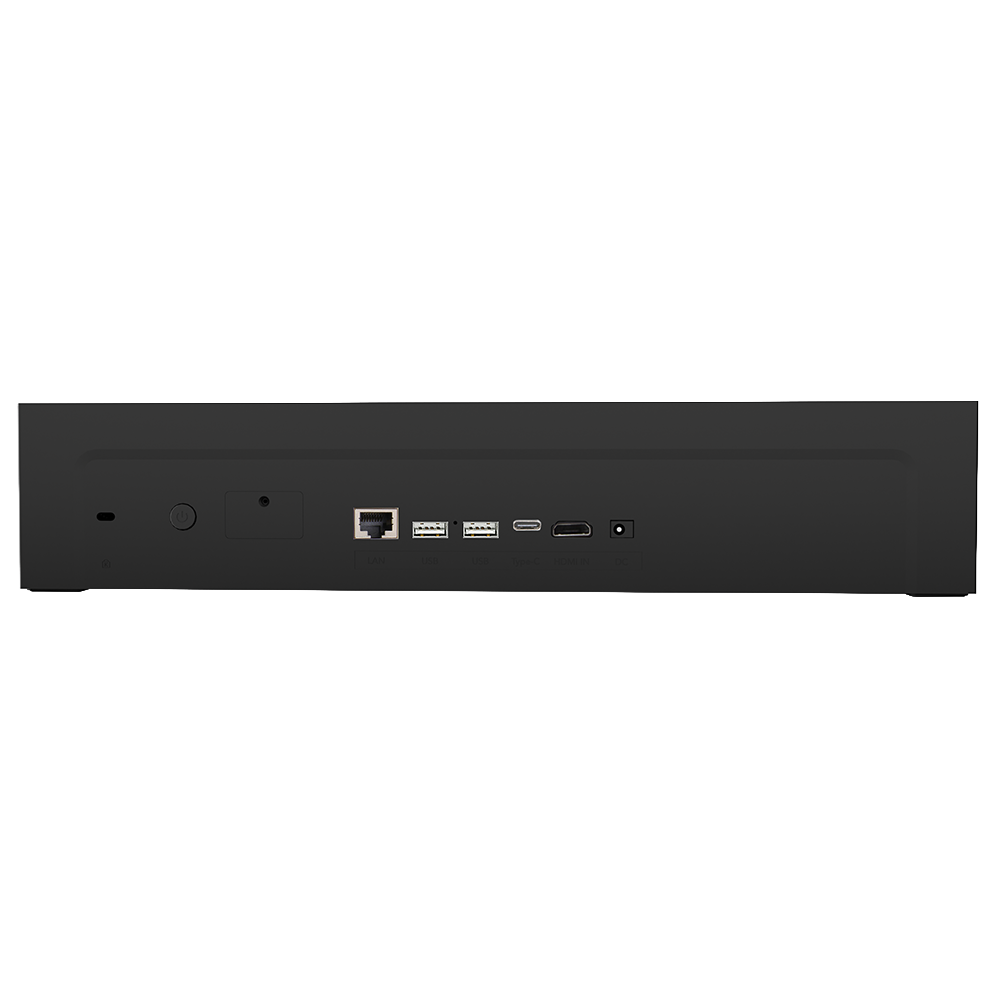

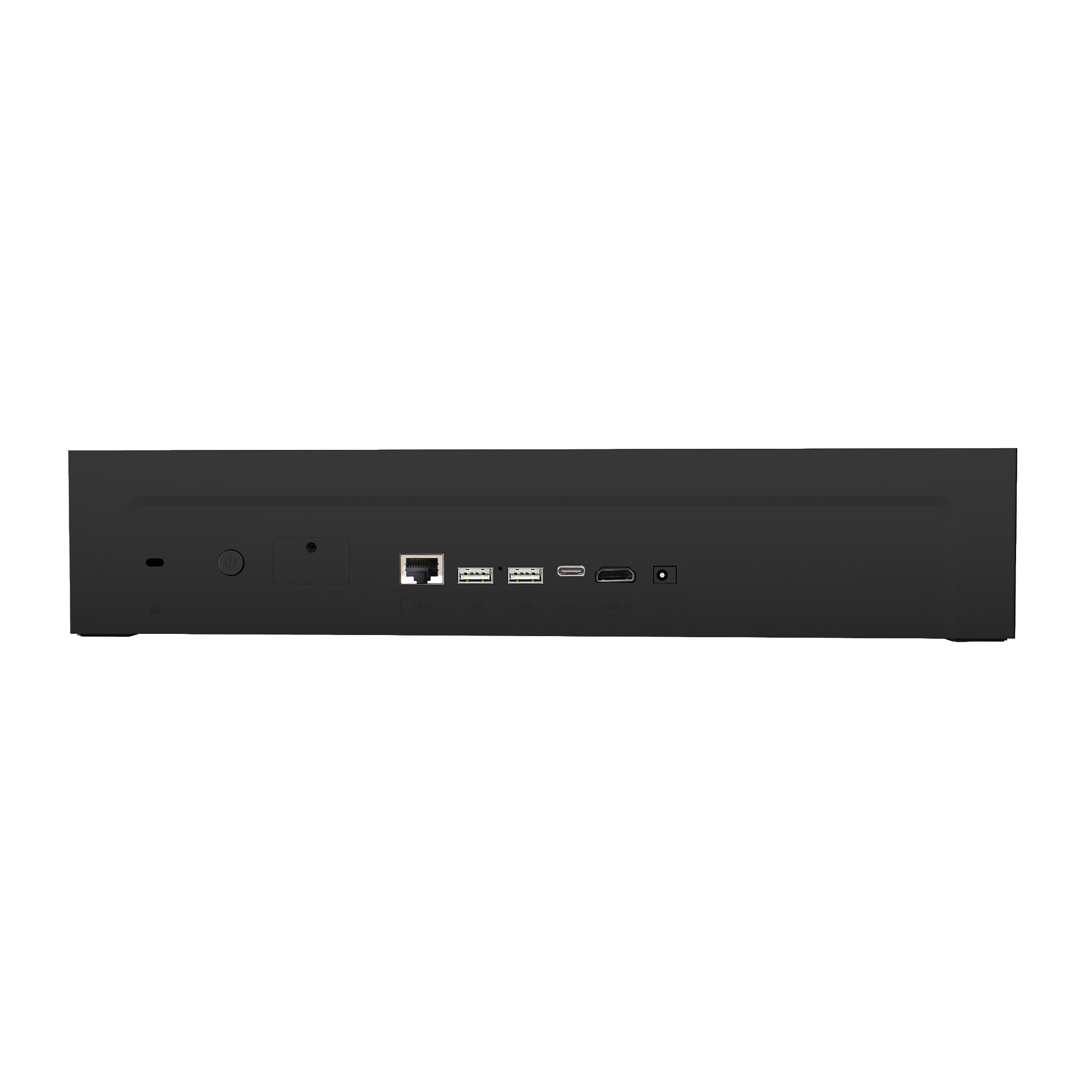

Equipped with Gigabit Ethernet, USB 3.0, USB 2.0, Type-C OTG, HDMI 2.0 input and DC 12V power input for network deployment, peripheral integration and external video input.
Explore the ELC Desktop Signage Series
Available in sizes from 8 to 15.6 inches, including landscape, portrait and dual-screen models, with integrated edge lighting available on selected designs.
Explore Now

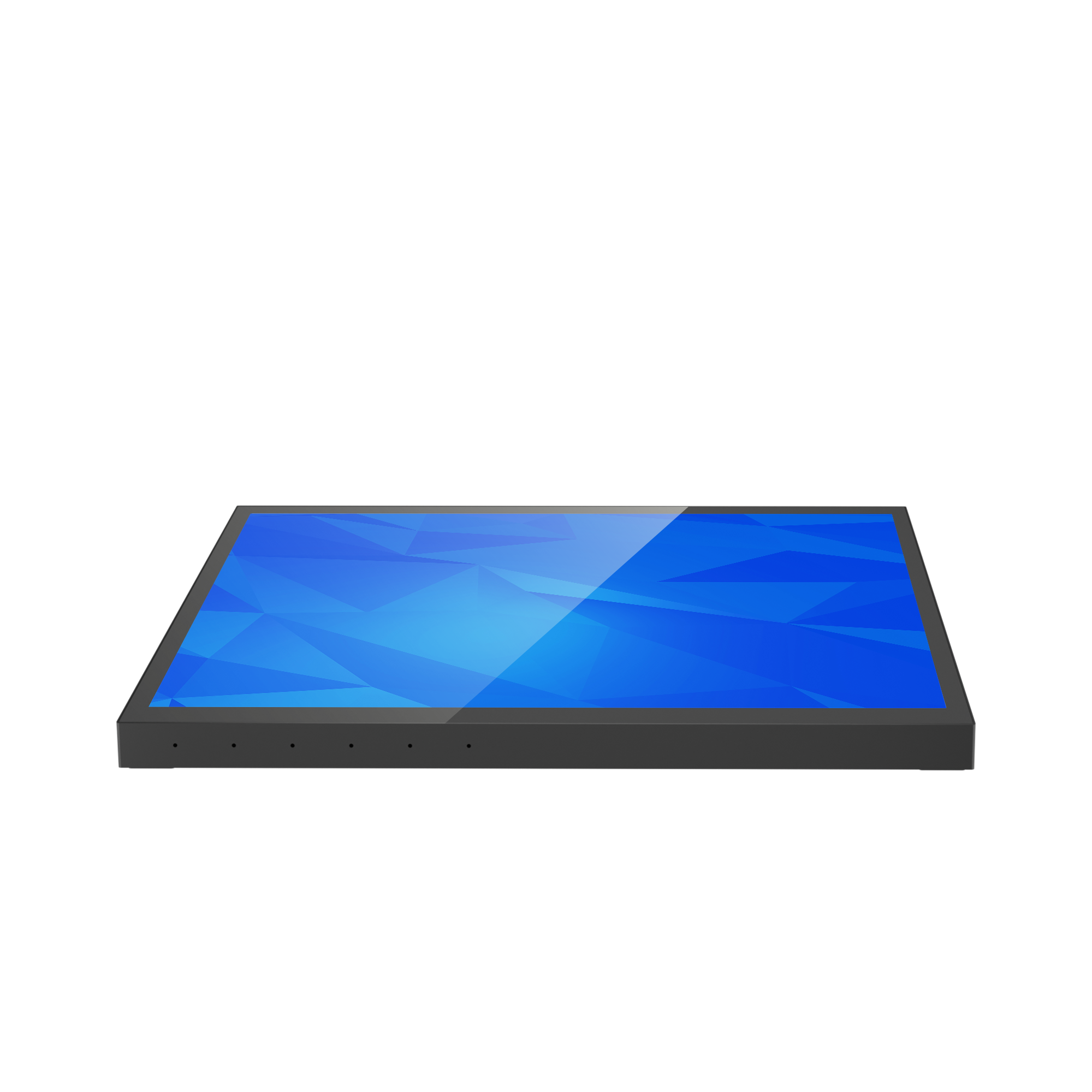

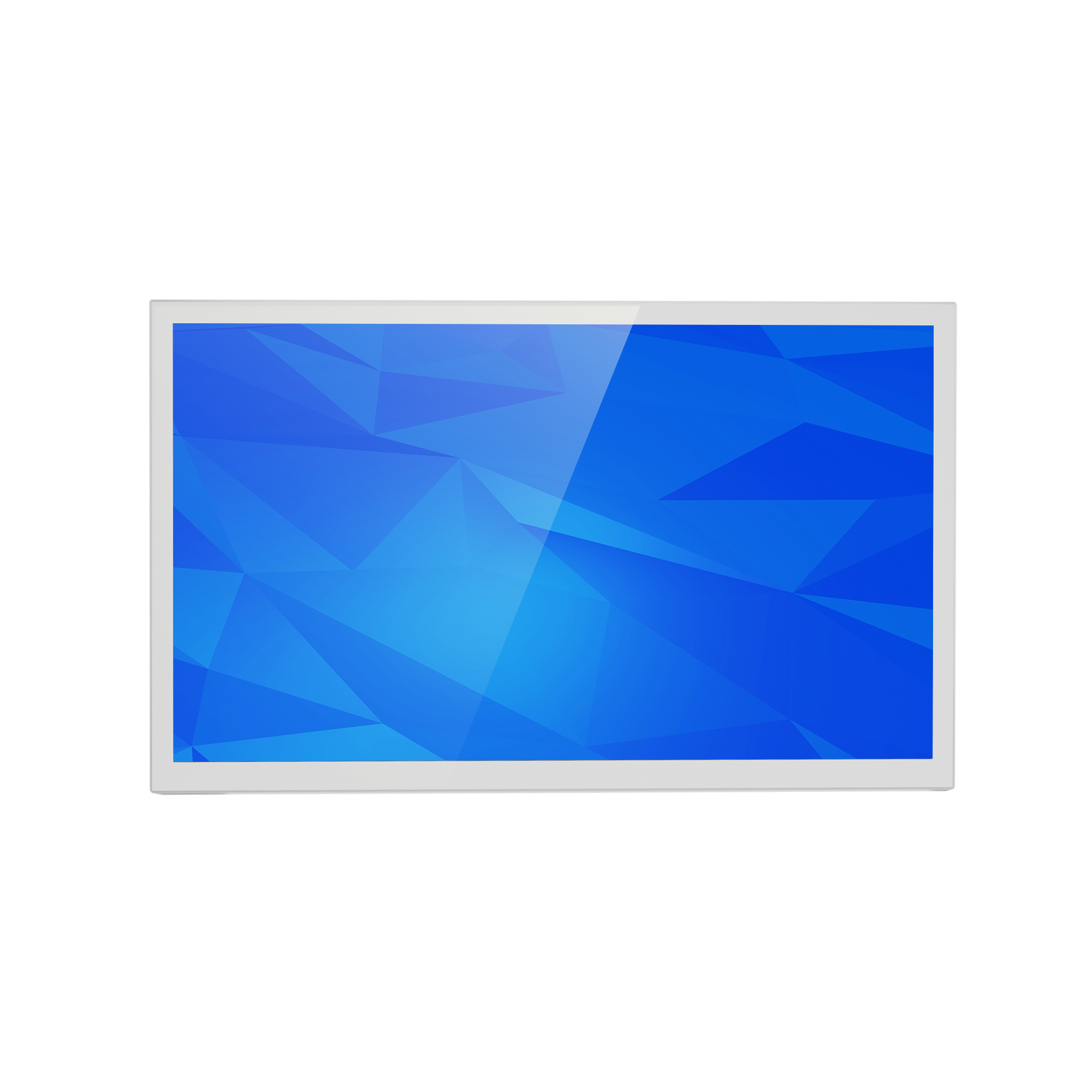

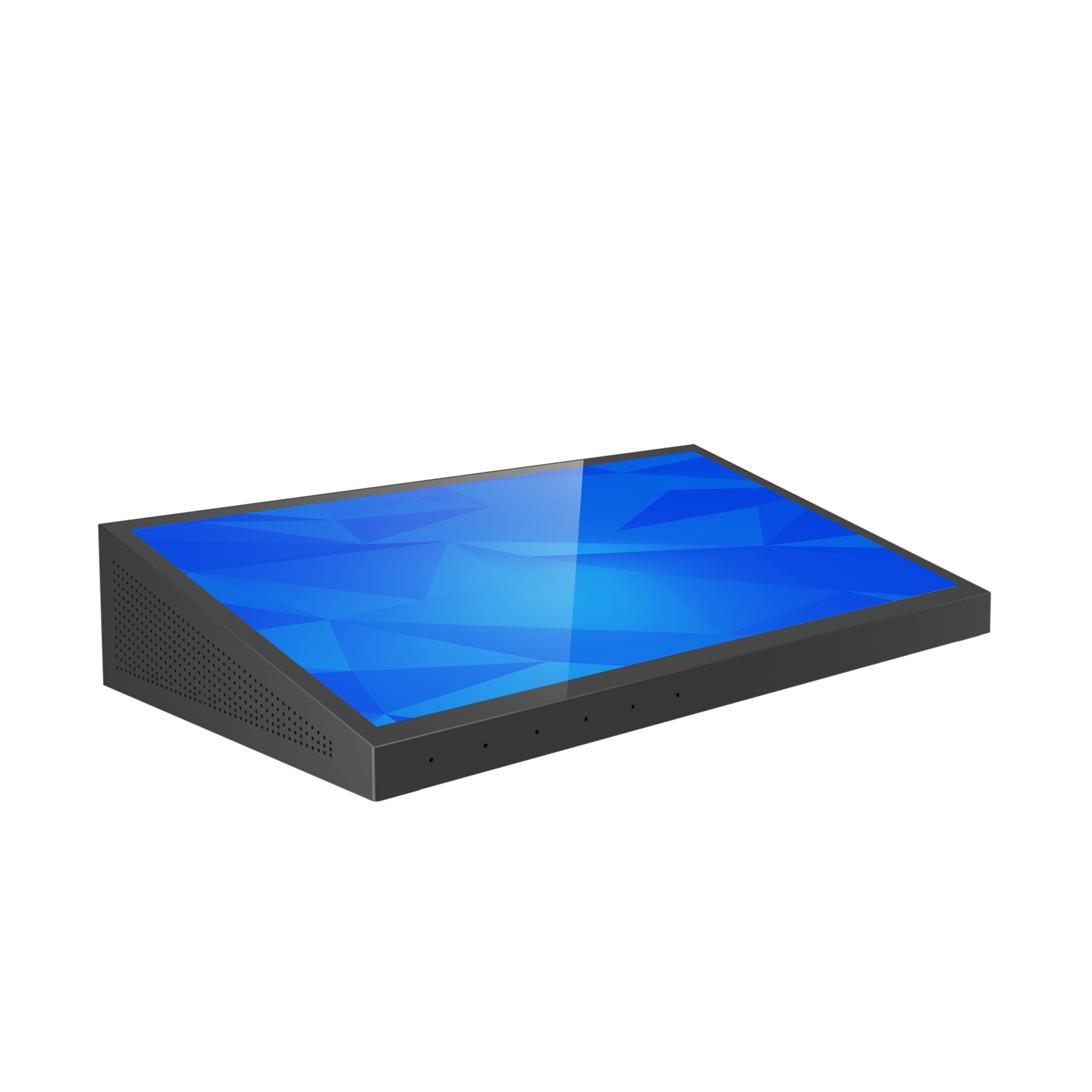

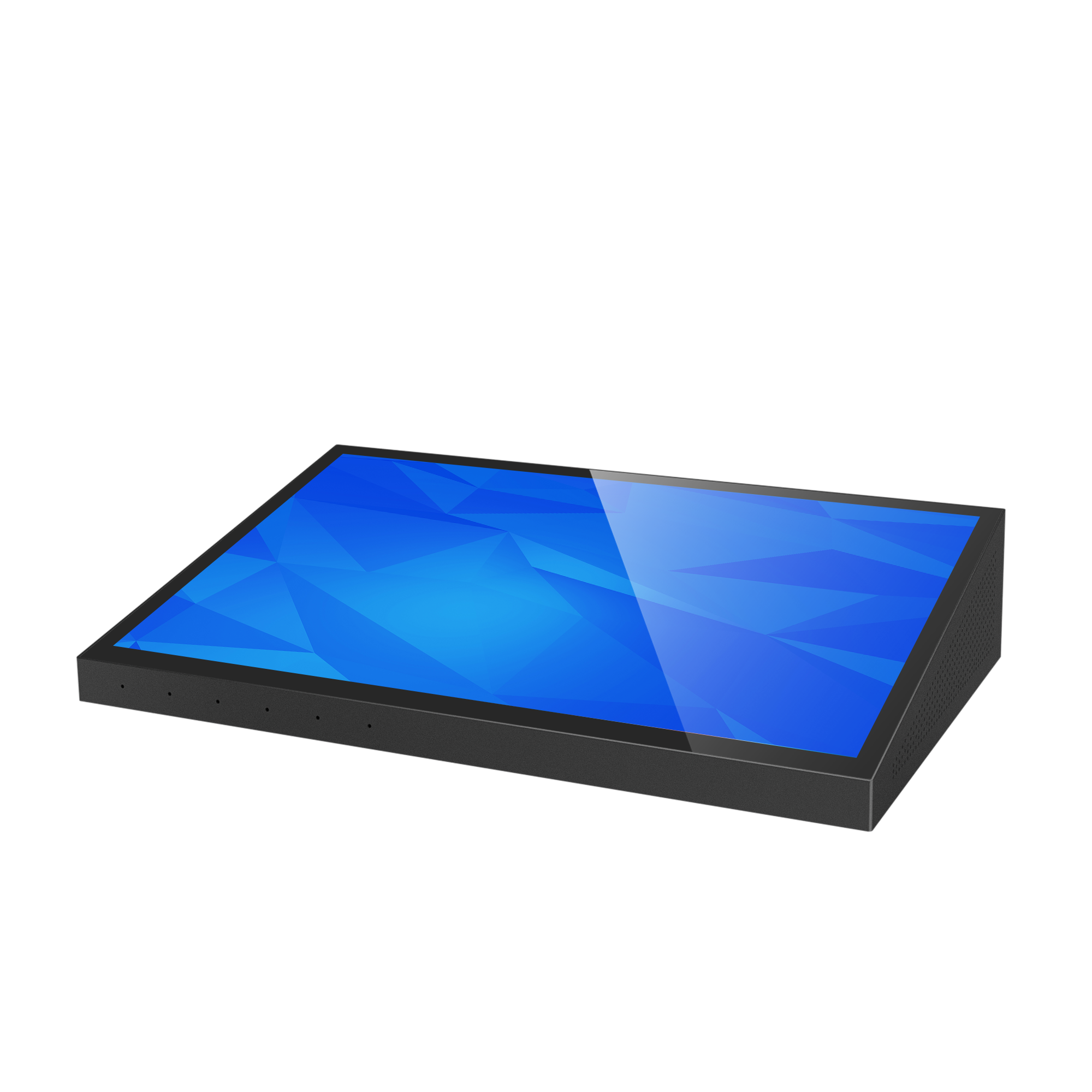

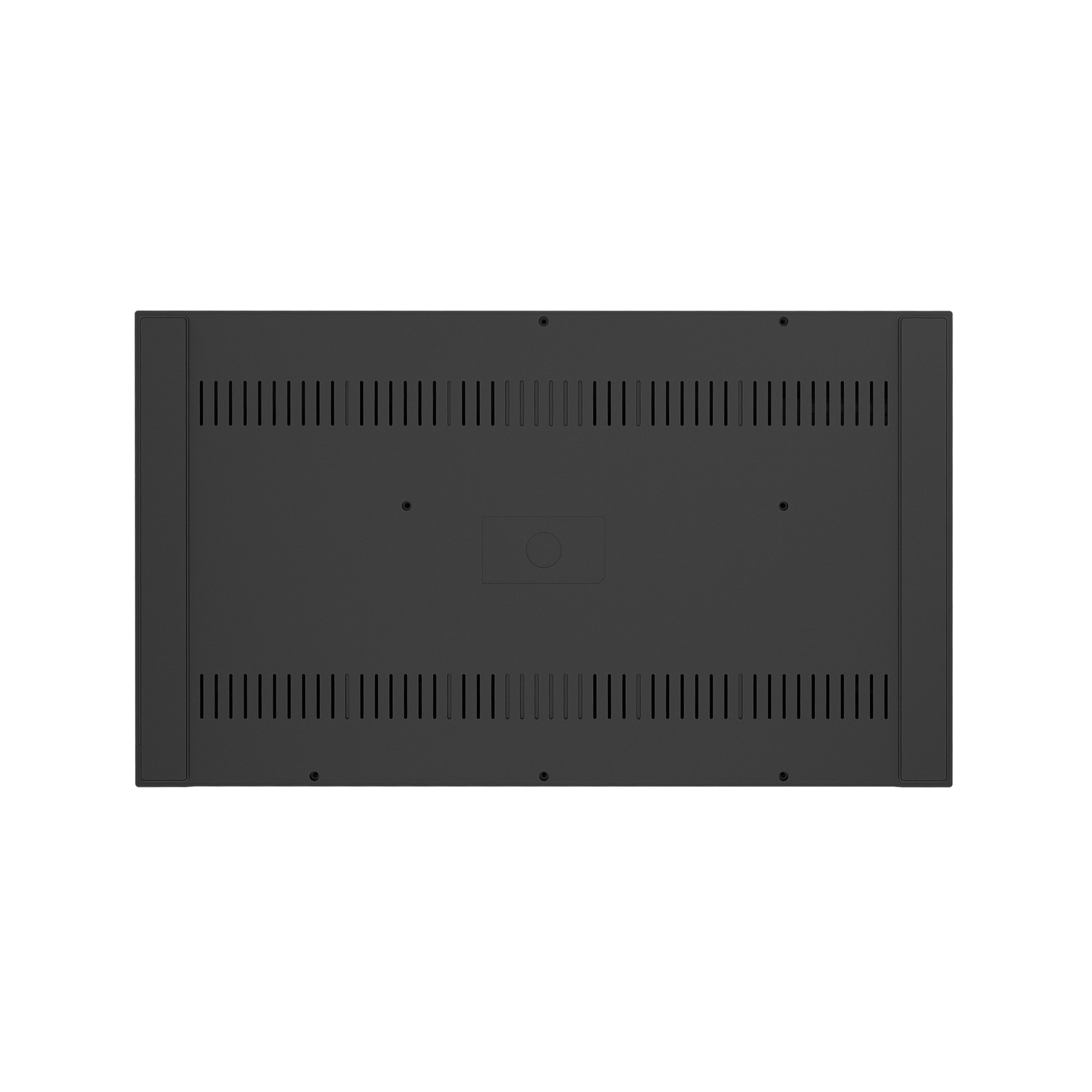

15.6" Desktop Signage
RK3576S Octa-Core Processor | 4GB RAM | 64GB Storage
- RK3576S octa-core processor with 3 TOPS NPU
- Android 14 with 4GB RAM and 64GB storage
- 15.6-inch Full HD display with 10-point capacitive touch
- Wi-Fi 6, Bluetooth 5.4 and Gigabit Ethernet
- HDMI 2.0 input, USB 3.0, USB 2.0 and Type-C OTG
WT1539T
Specifications
Display
15.6-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
45% NTSC
1000:1
300 nits
10-point
Processor
RK3576S Quad core cortex A72+Quad core cortex A53
4GB (Optional 6GB)
- 64GB (Optional 32GB/128GB)
- Android 14
Size and Weight
364.5x 211.3 x 73.3 mm (L × W × D)
Wireless
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
I/O Ports
1×USB 2.0 HOST
1×USB 3.0 HOST
1×Type-C (Only supports OTG)
1 × HDMI 2.0 Input
1 × Gigabit Ethernet Port (Optional IEEE 802.3at PoE)
DC 12V Power Input
Media Format
H.264, H.265, VP9, AV1, AVS2
H.264, H.265
JPEG
Others
Black / White
2 × 5W Speakers
Quad Microphone Array with Noise Reduction and Echo Cancellation
Optional NXP PN7160 NFC
Optional 125kHz RFID
Multi-language
CCC / FCC / CE
0℃-40℃
