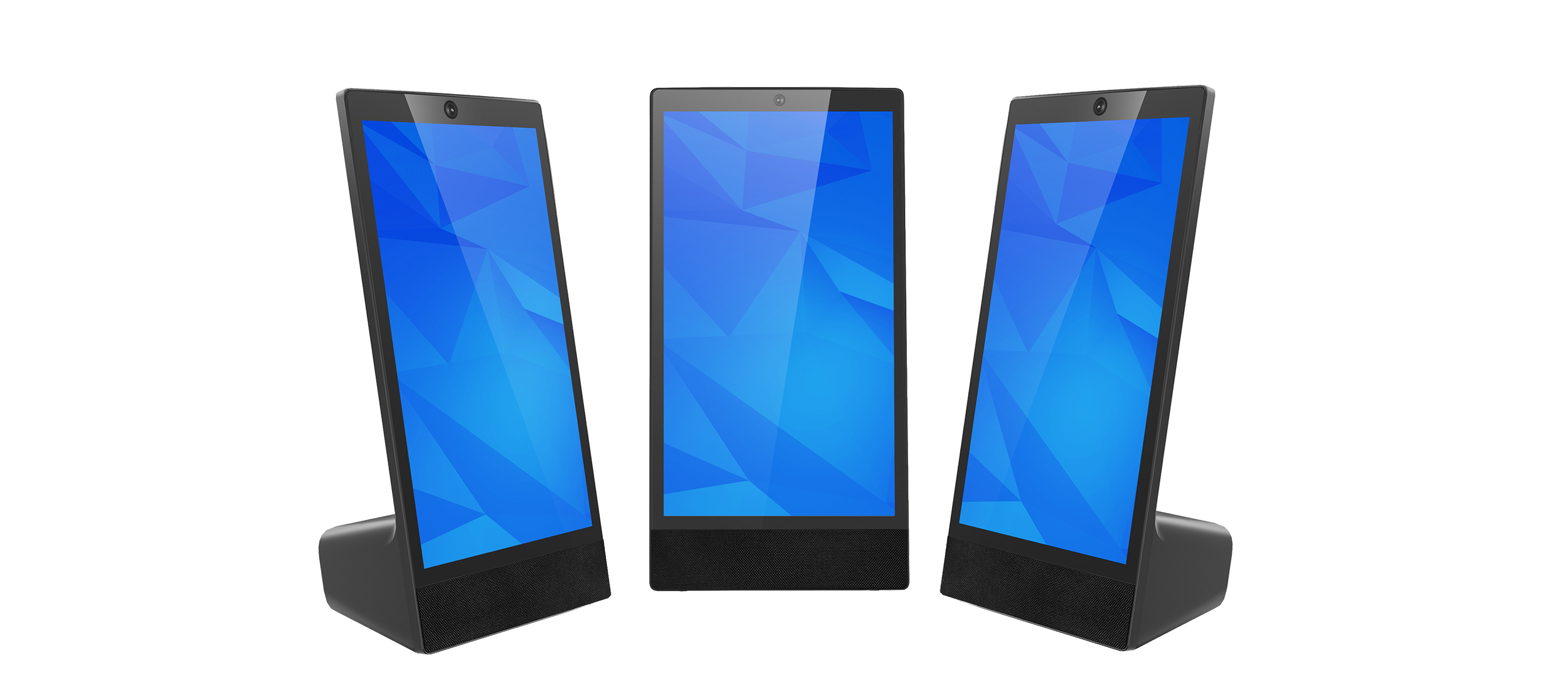

WL1589T
15.6-inch Desktop Signage
Featuring a 15.6-inch Full HD display, 10-point full-laminated capacitive touch, Android 15 and a built-in 10000mAh battery, it delivers responsive interaction and flexible desktop use for ordering, customer service, video communication and digital signage.
DISPLAY

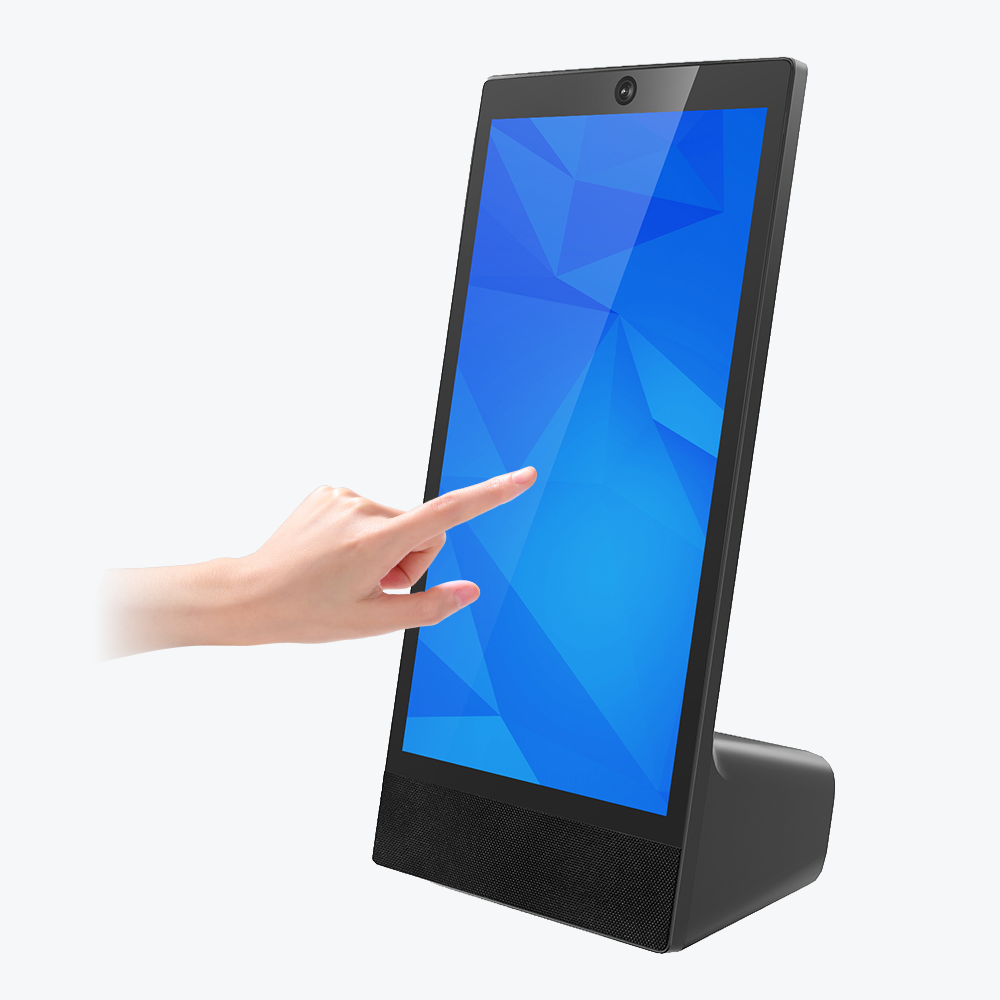

15.6-inch Full HD Multi-Touch Display
The 15.6-inch Full HD display delivers clear, detailed visuals, while full lamination and 10-point capacitive touch provide a smooth and responsive interactive experience for ordering, video communication and content browsing.
OPERATING SYSTEM
Providing A More Stable, Secure, And Smooth Display Experience.
Utilize the intelligent split-screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.
PROCESSORS
Work Faster, Work More Efficiently.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.
FULLY ADJUSTABLE SCREEN
Featured Content

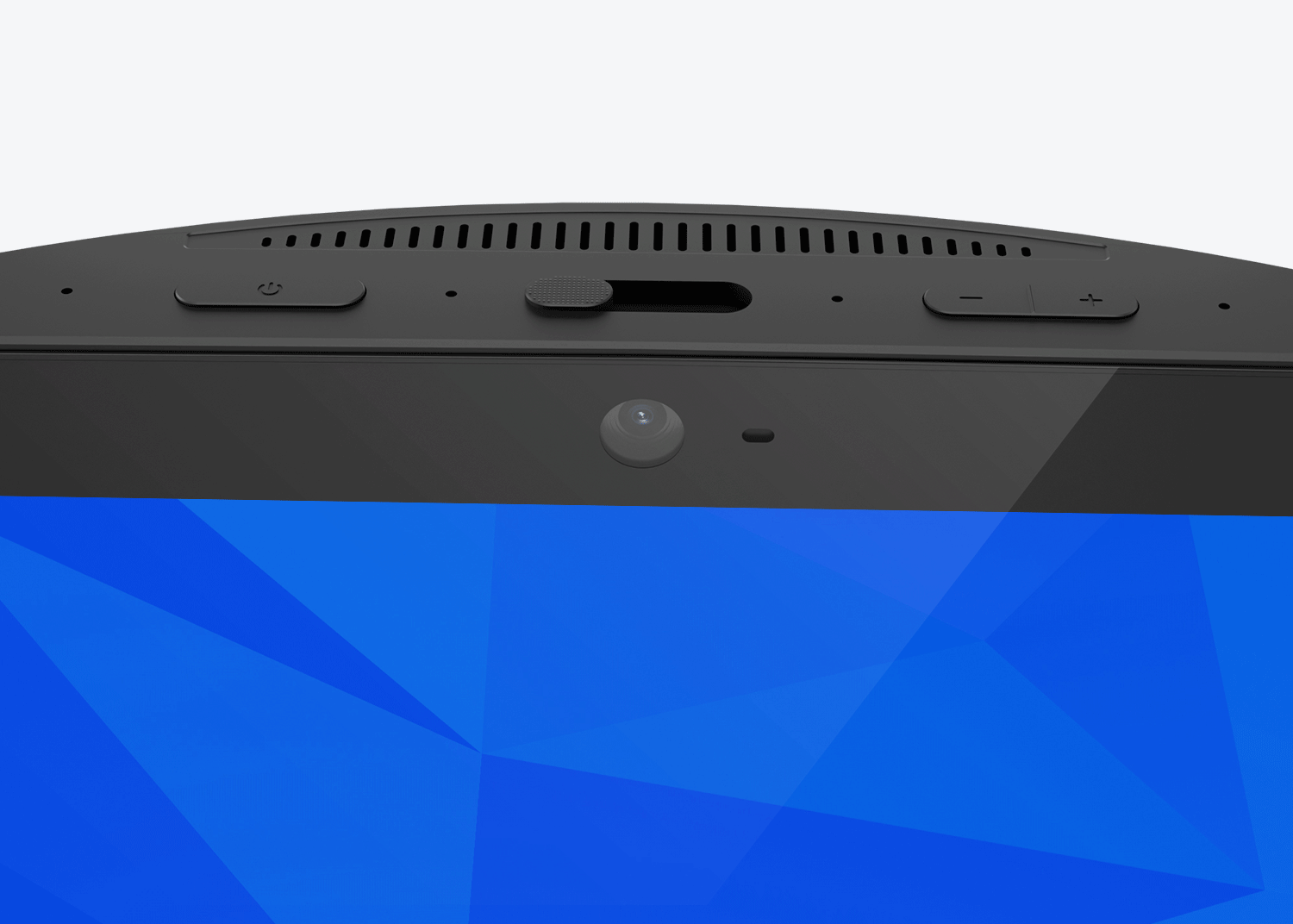

High-Resolution Video with Physical Privacy
Available with an optional 13MP or 48MP camera for detailed video calls, live streaming and interactive applications. The movable physical cover blocks the lens when not in use, giving users simple and visible privacy control.

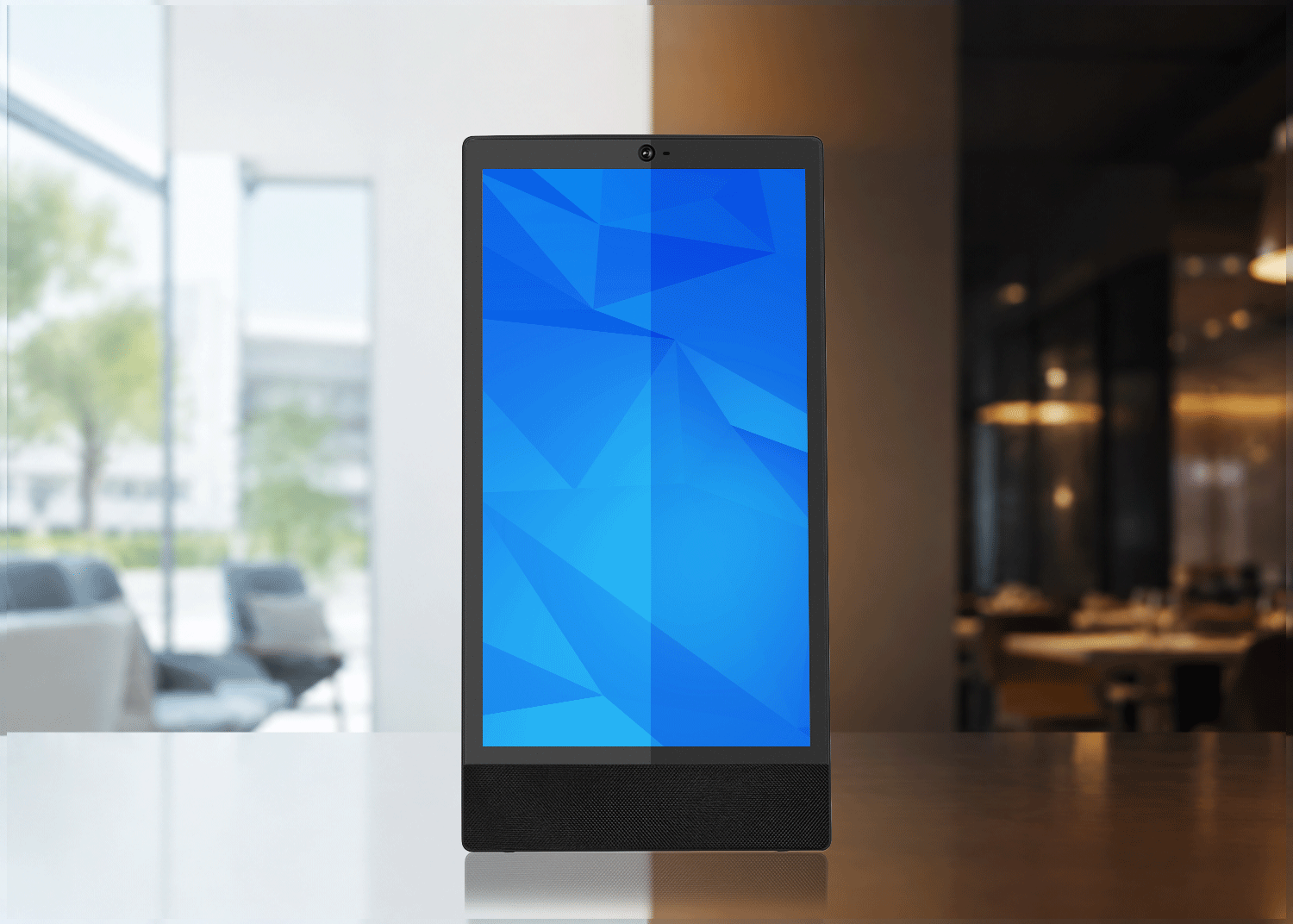

Comfortable Viewing in Changing Light
The built-in ambient light sensor detects surrounding light levels and helps optimize screen brightness for clear, comfortable viewing in different environments.

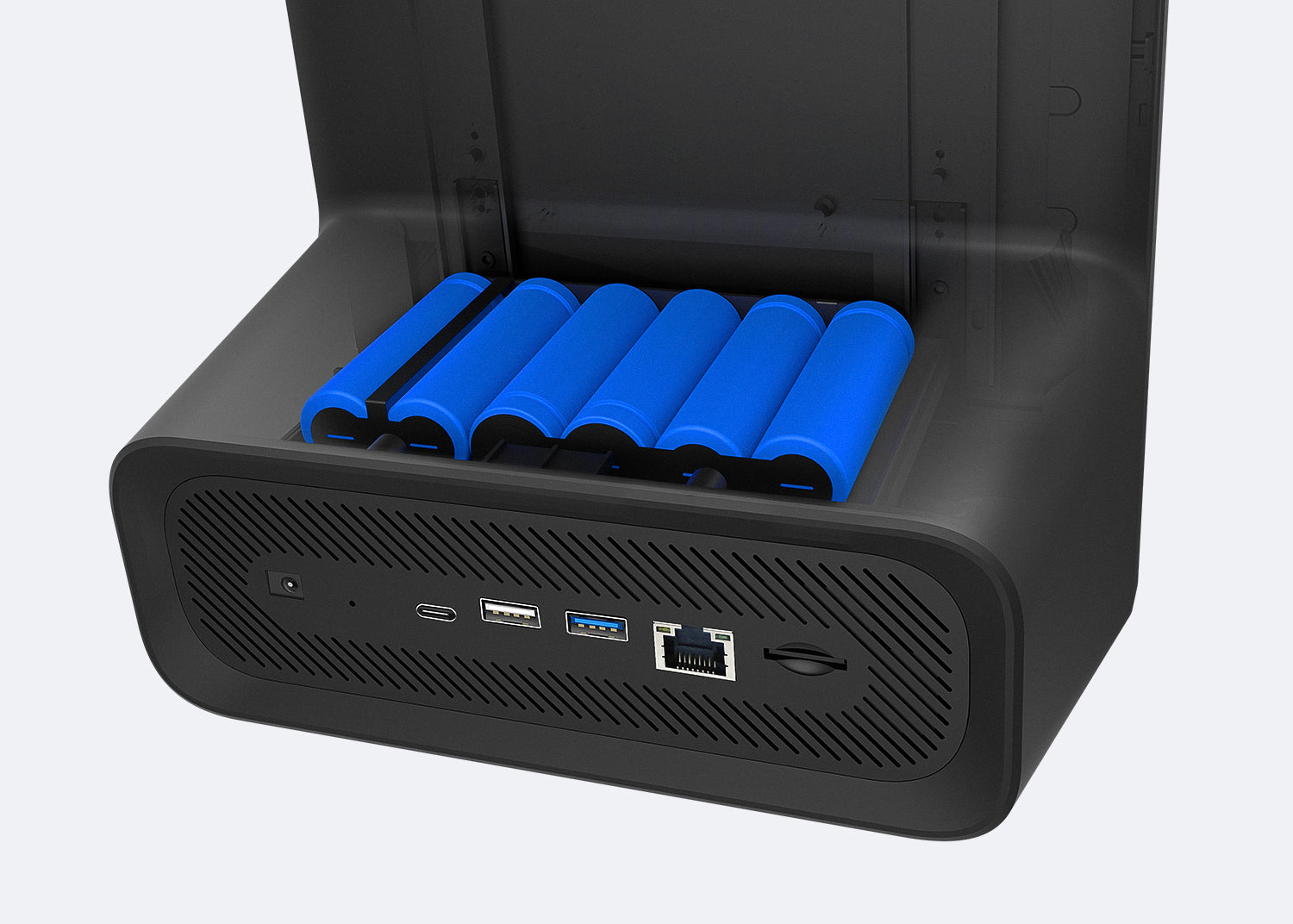

BUILT-IN BATTERY
The built-in 10000mAh battery supports cordless operation, making it easier to reposition the display or use it temporarily away from a power outlet.

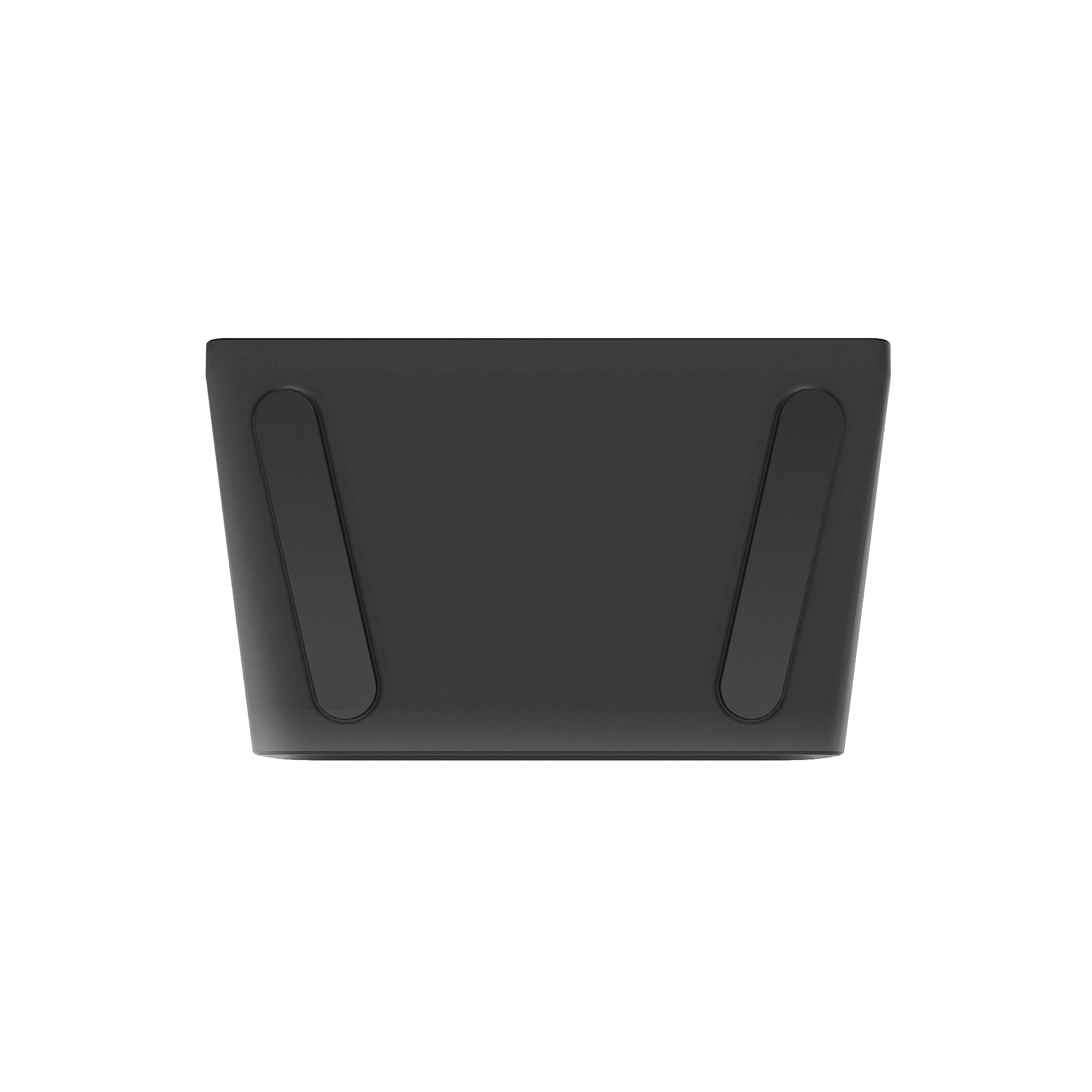

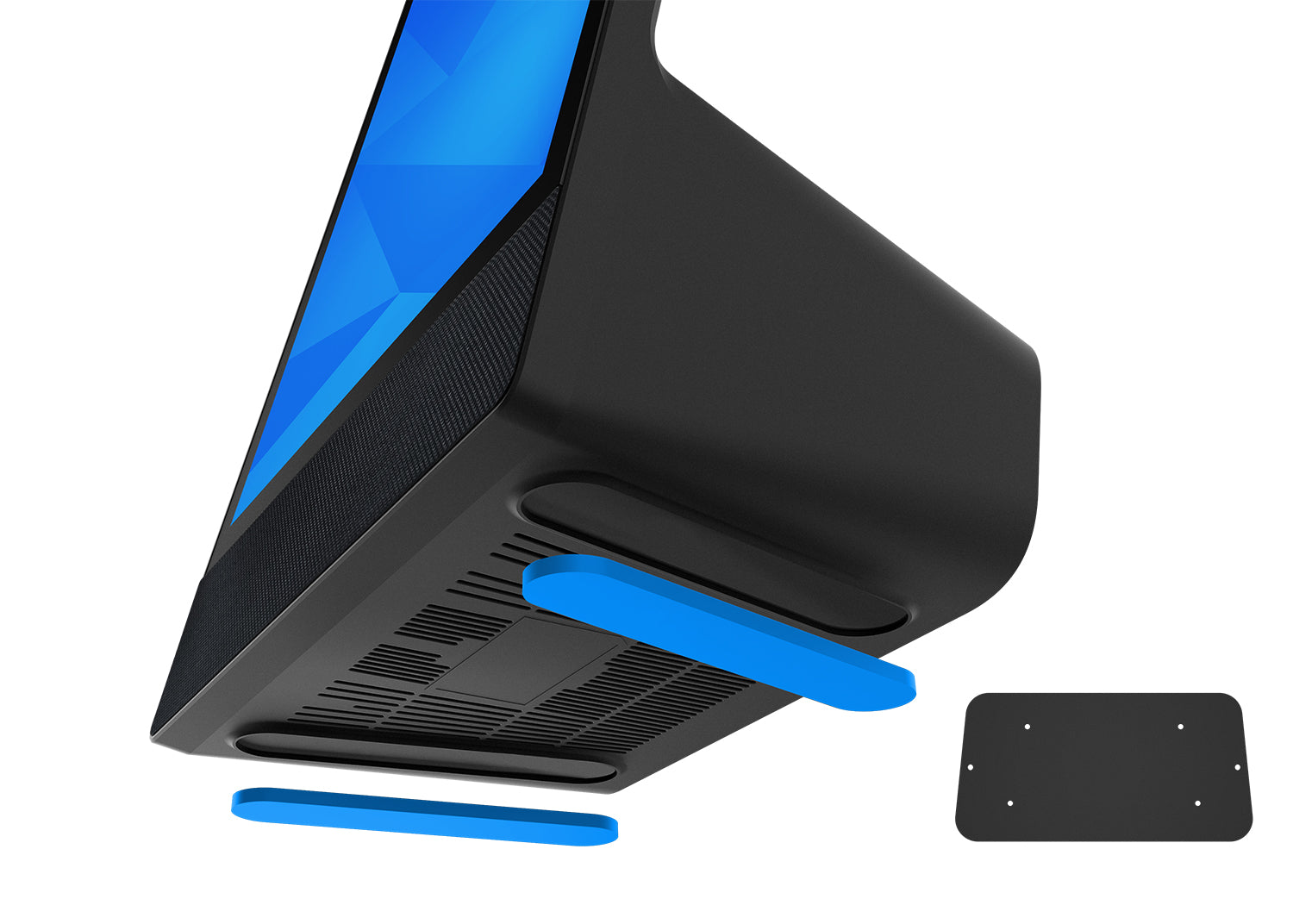

Freestanding or Secured to the Desktop
Use the non-slip latex pads for stable placement without installation, or secure the device to the desktop with the mounting plate for a fixed setup.

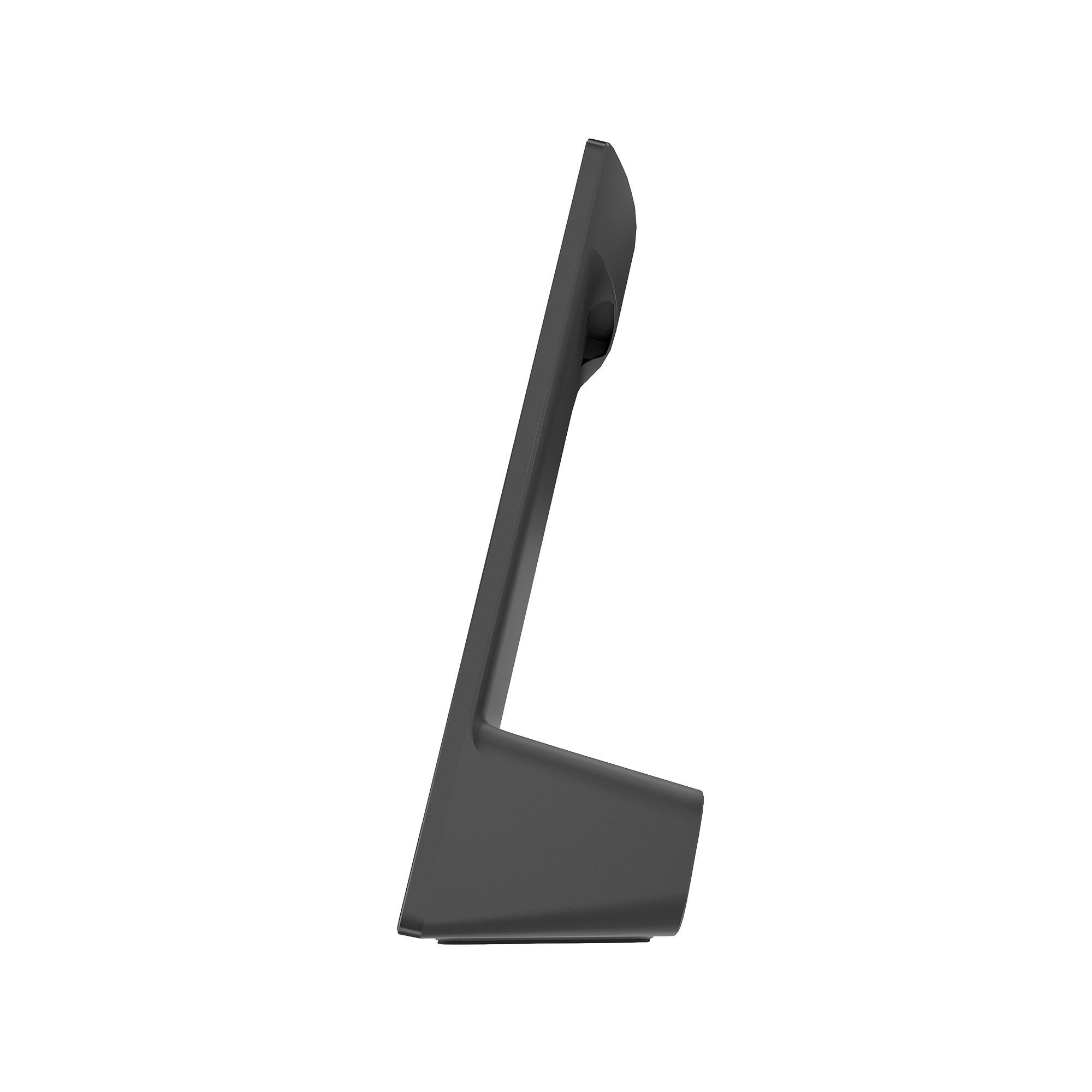

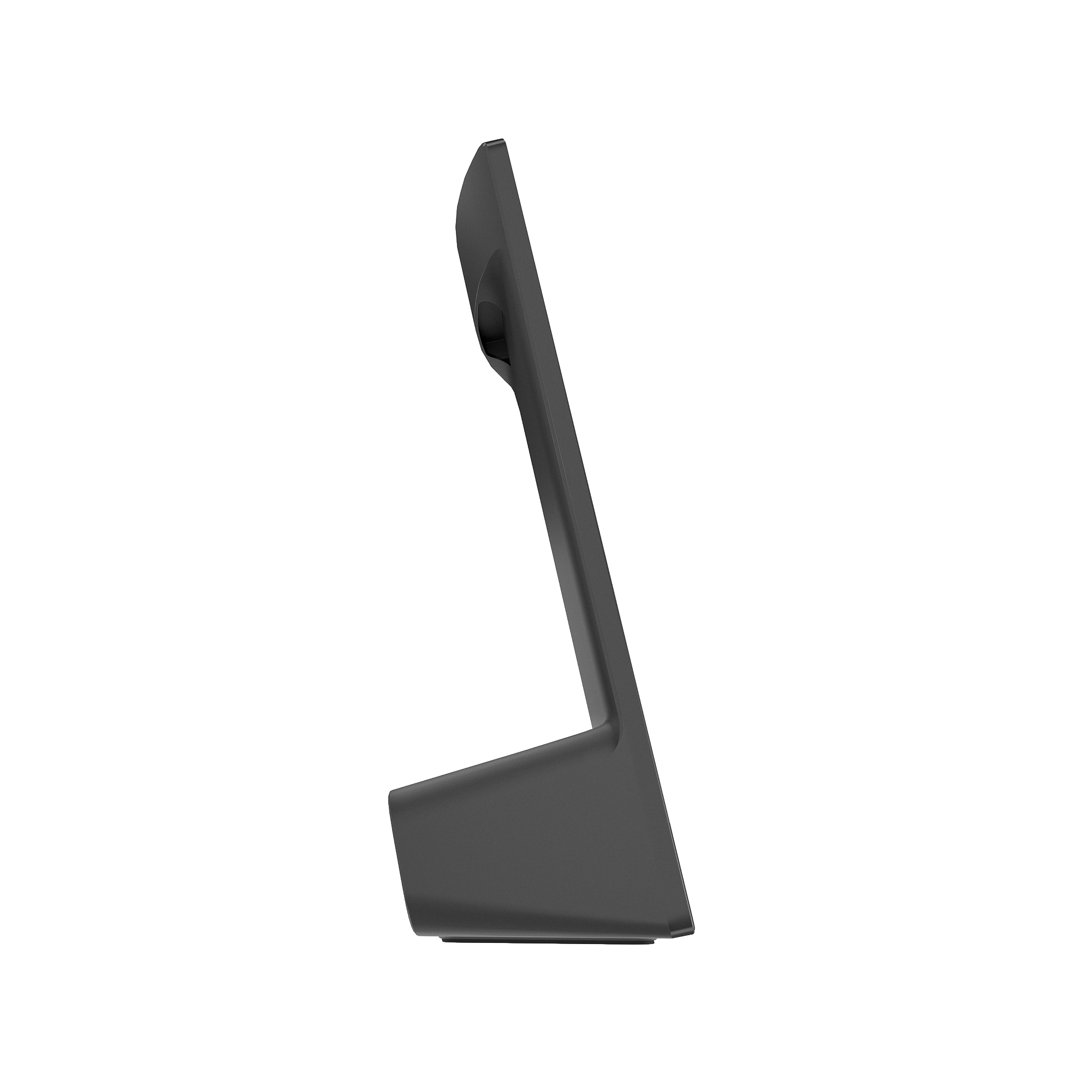

ERGONOMIC DESKTOP DESIGN
Comfortable Viewing and Interaction
The integrated desktop stand provides stable placement without requiring an external bracket. Its angled portrait display offers comfortable viewing and touch interaction for counters, service desks and other desktop applications.

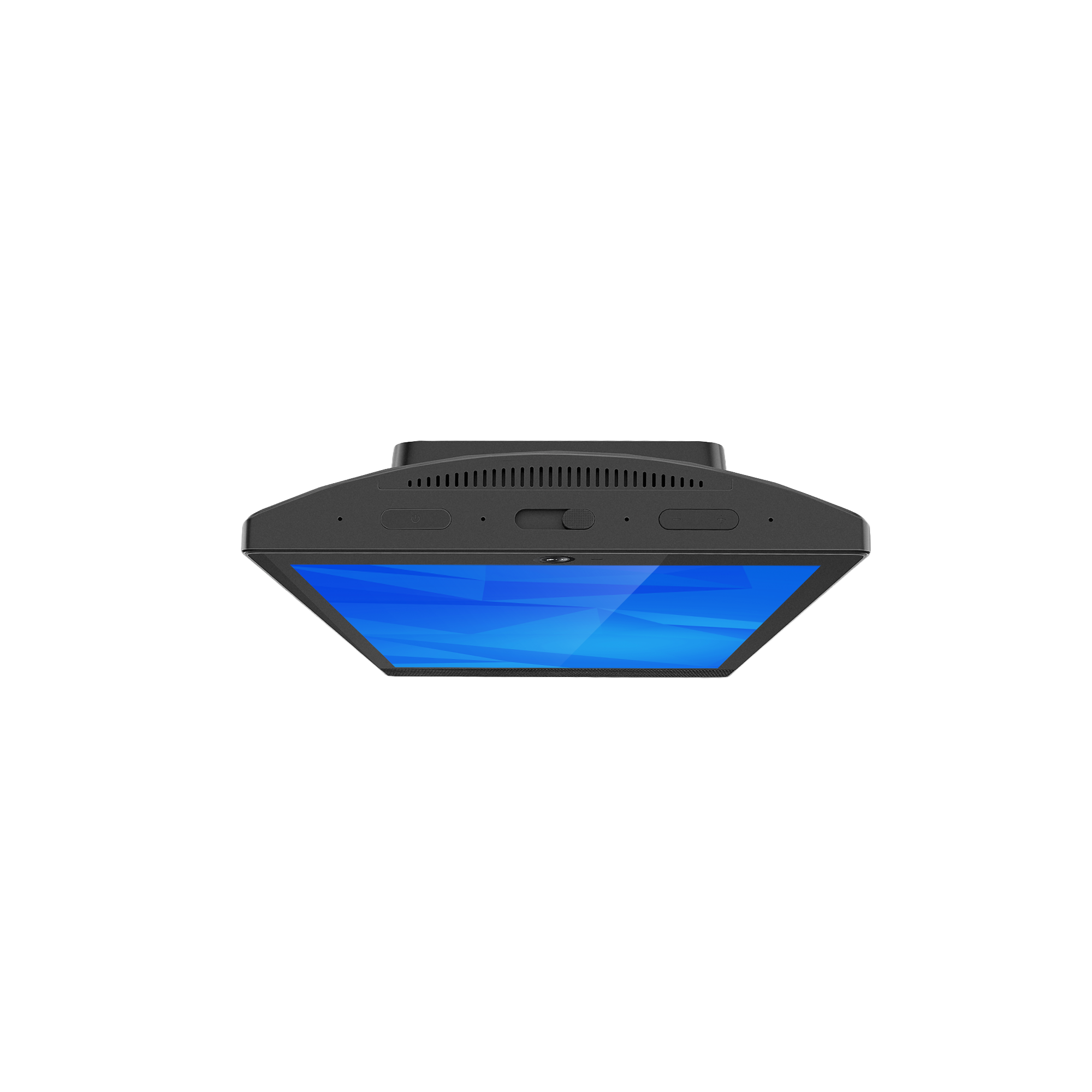

OPTIONAL CAMERA, BUILT-IN SPEAKER AND QUAD MICROPHONES
Designed for Clear Communication
A built-in 5W speaker and four microphones with noise reduction and echo cancellation deliver clearer audio for communication. Optional 13MP or 48MP camera configurations are available for video calls, live streaming and other interactive applications.

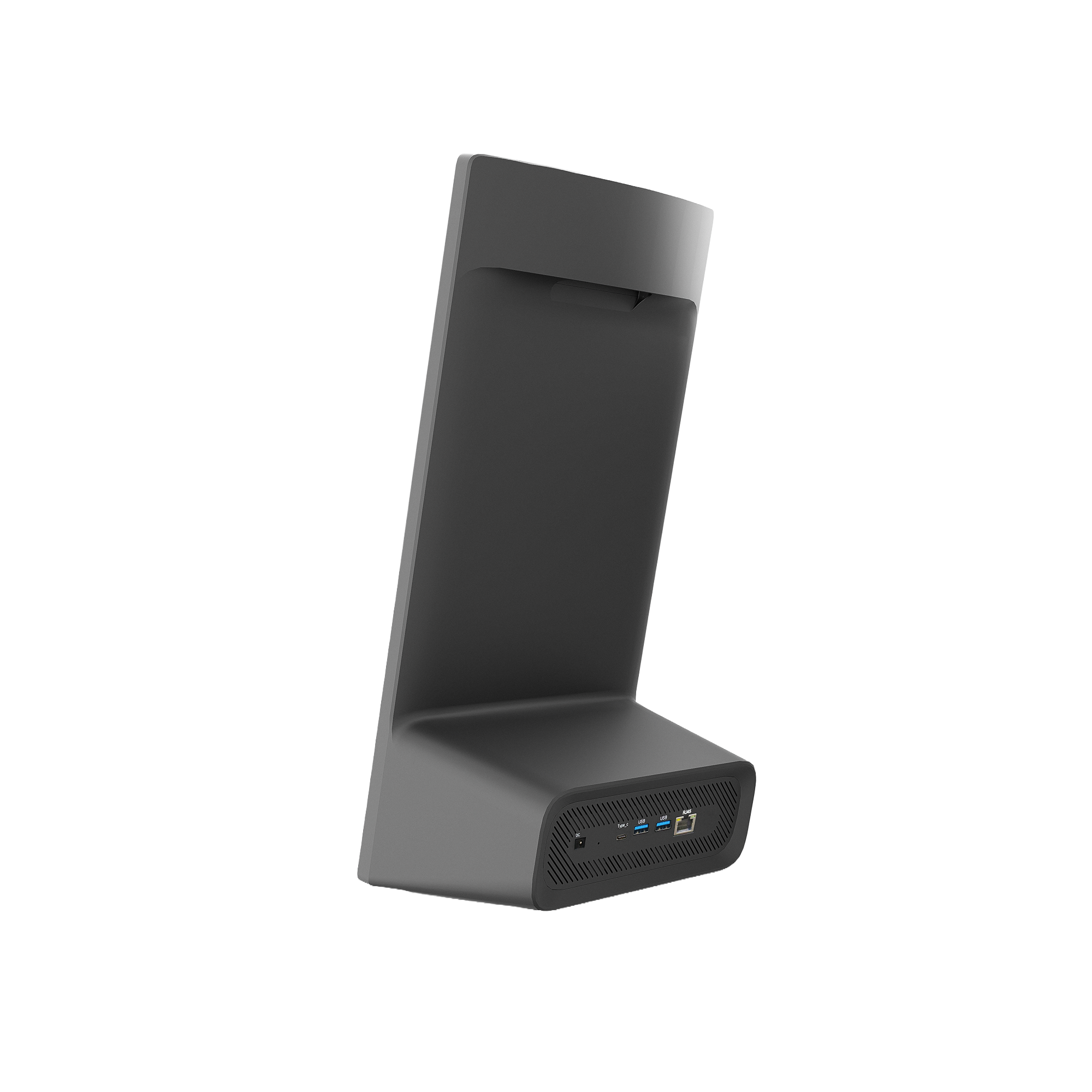

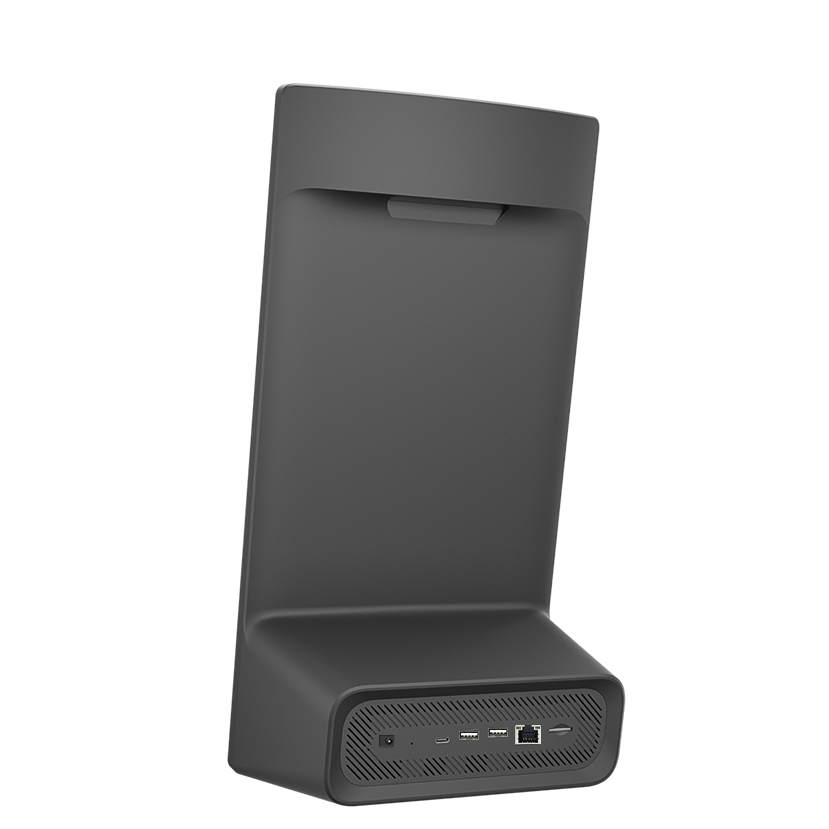

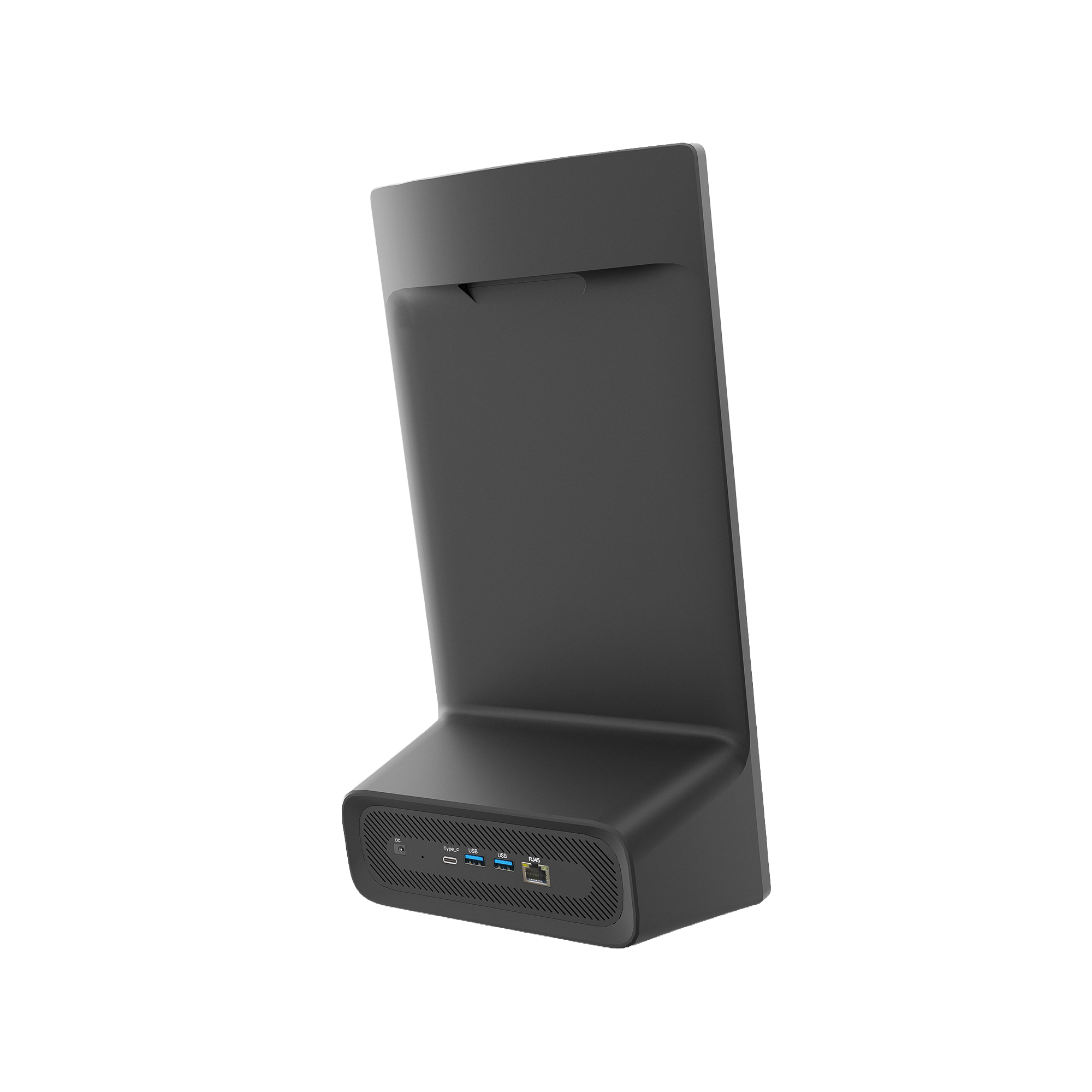

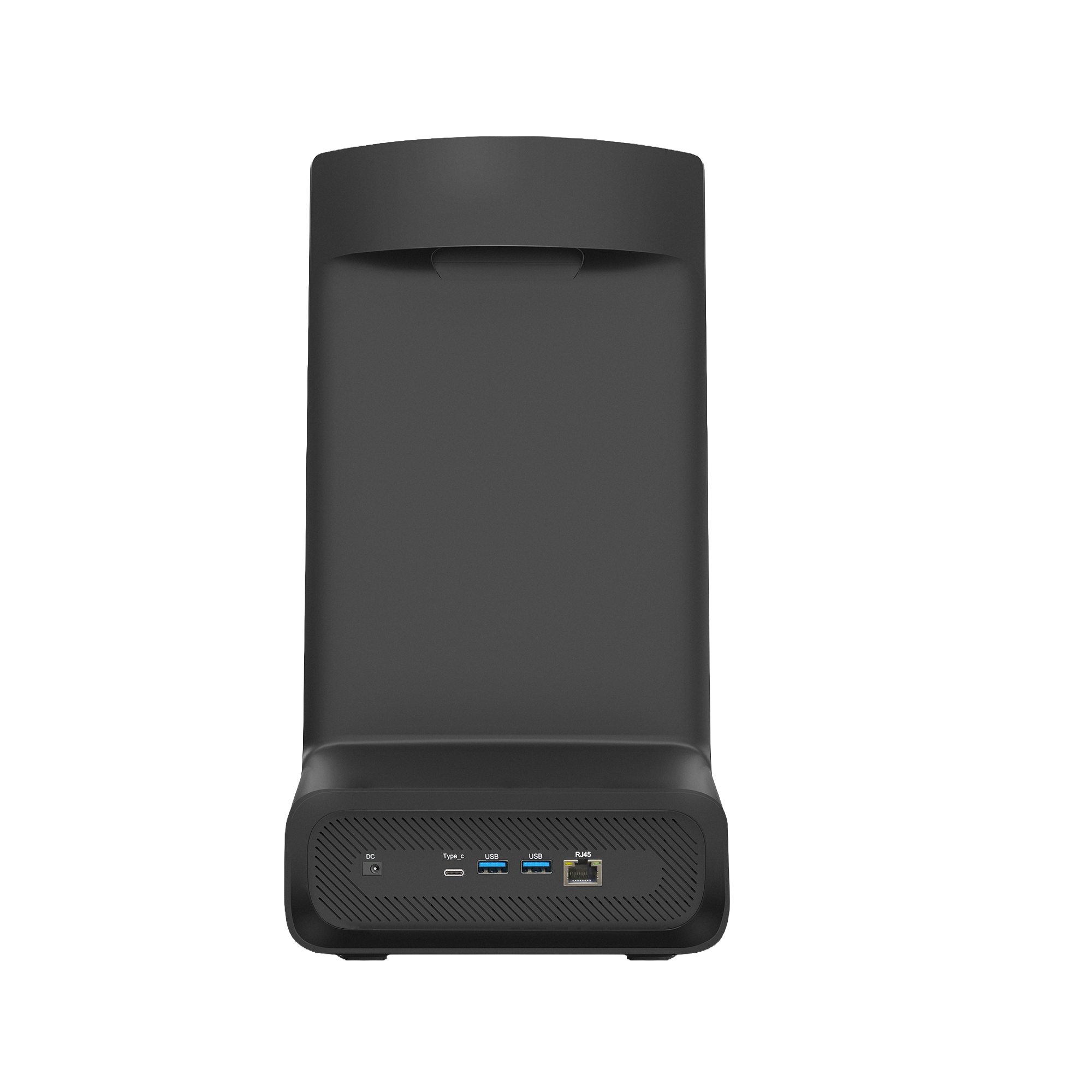

CONNECTIONS AND EXPANSION
Wired and Wireless Connectivity
Connect networks and peripherals through Gigabit Ethernet, USB 3.0, USB 2.0 and Type-C OTG. Wi-Fi 6 and Bluetooth 5.4 provide fast wireless connectivity, with an optional 4G module available for more flexible deployment.

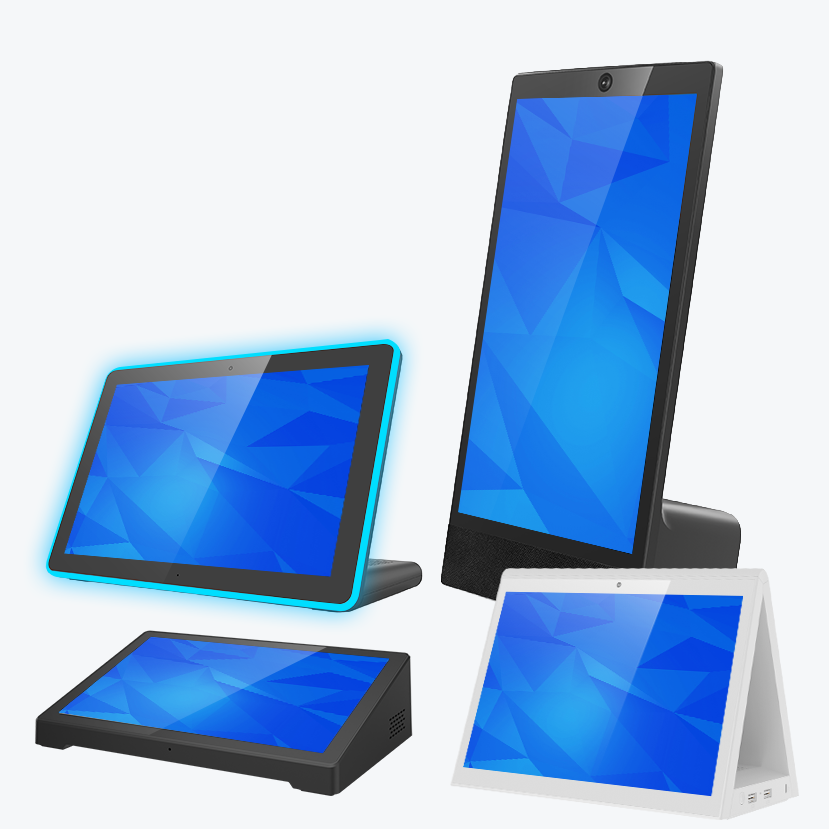

Explore More ELC Desktop Signages Now.
Available in screen sizes from 8 to 15.6 inches, including landscape, portrait and edge-lit models for different commercial applications.
Explore Now

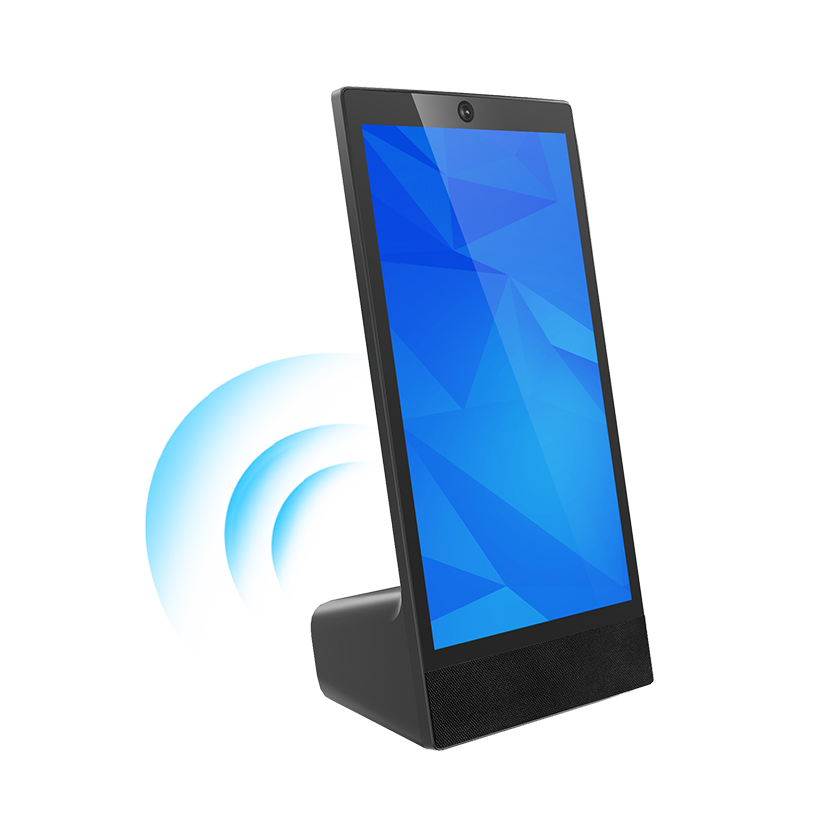

OPTIONAL NFC FUNCTION
Contactless Interaction Made Simple.
The device can be equipped with optional NFC to support compatible applications for contactless identification, data exchange, access control and payment-related workflows. Users can simply tap a compatible card or device for faster, more convenient interaction.

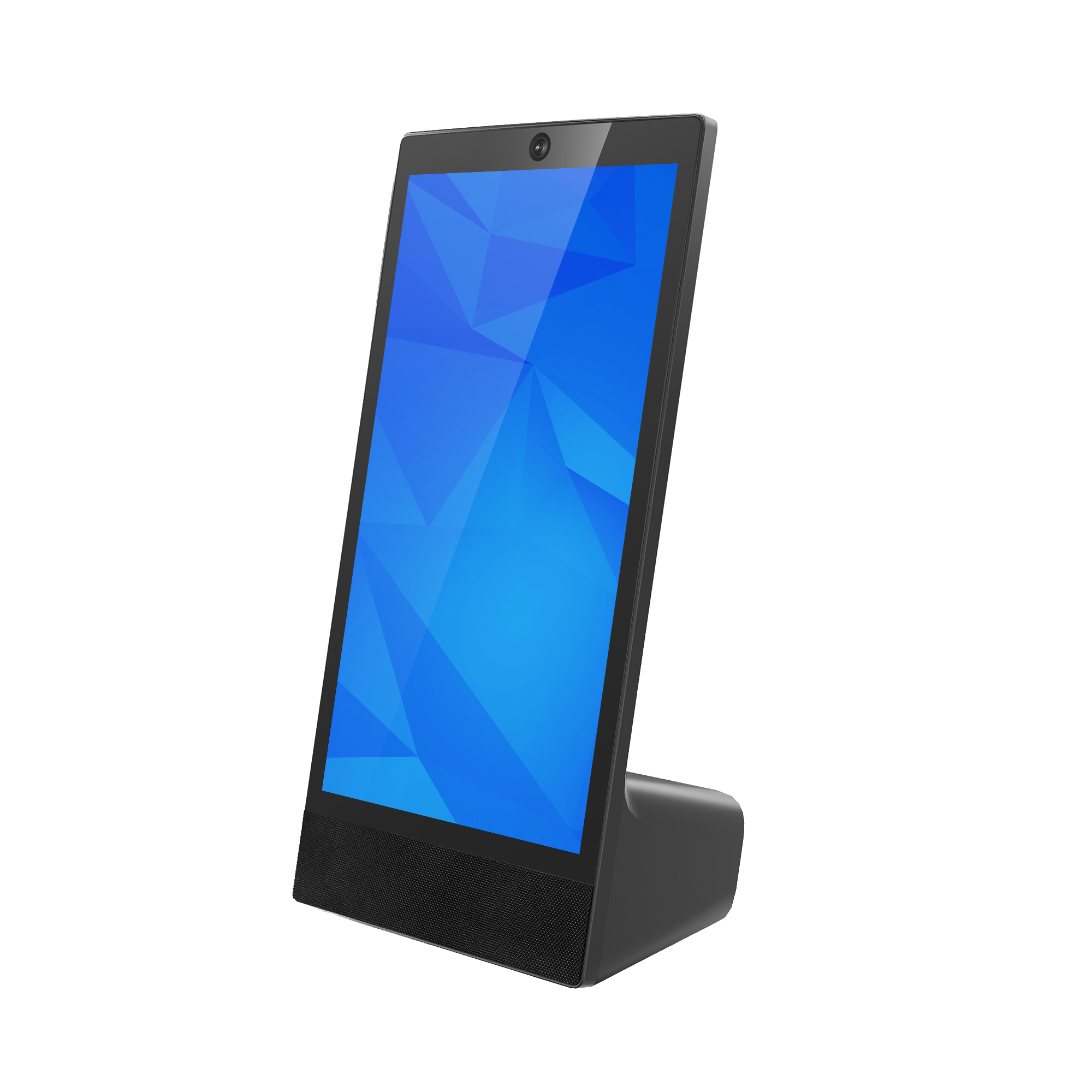

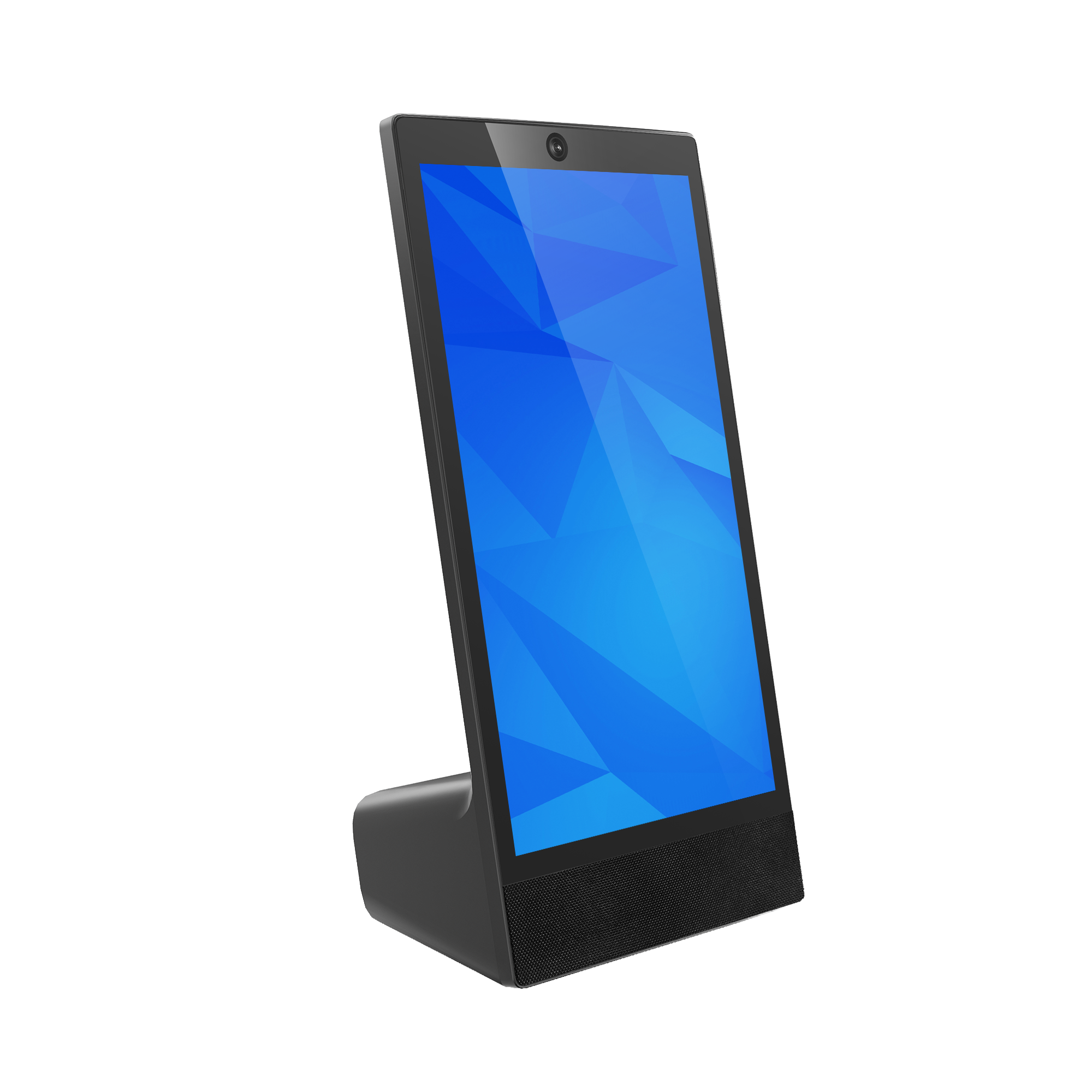

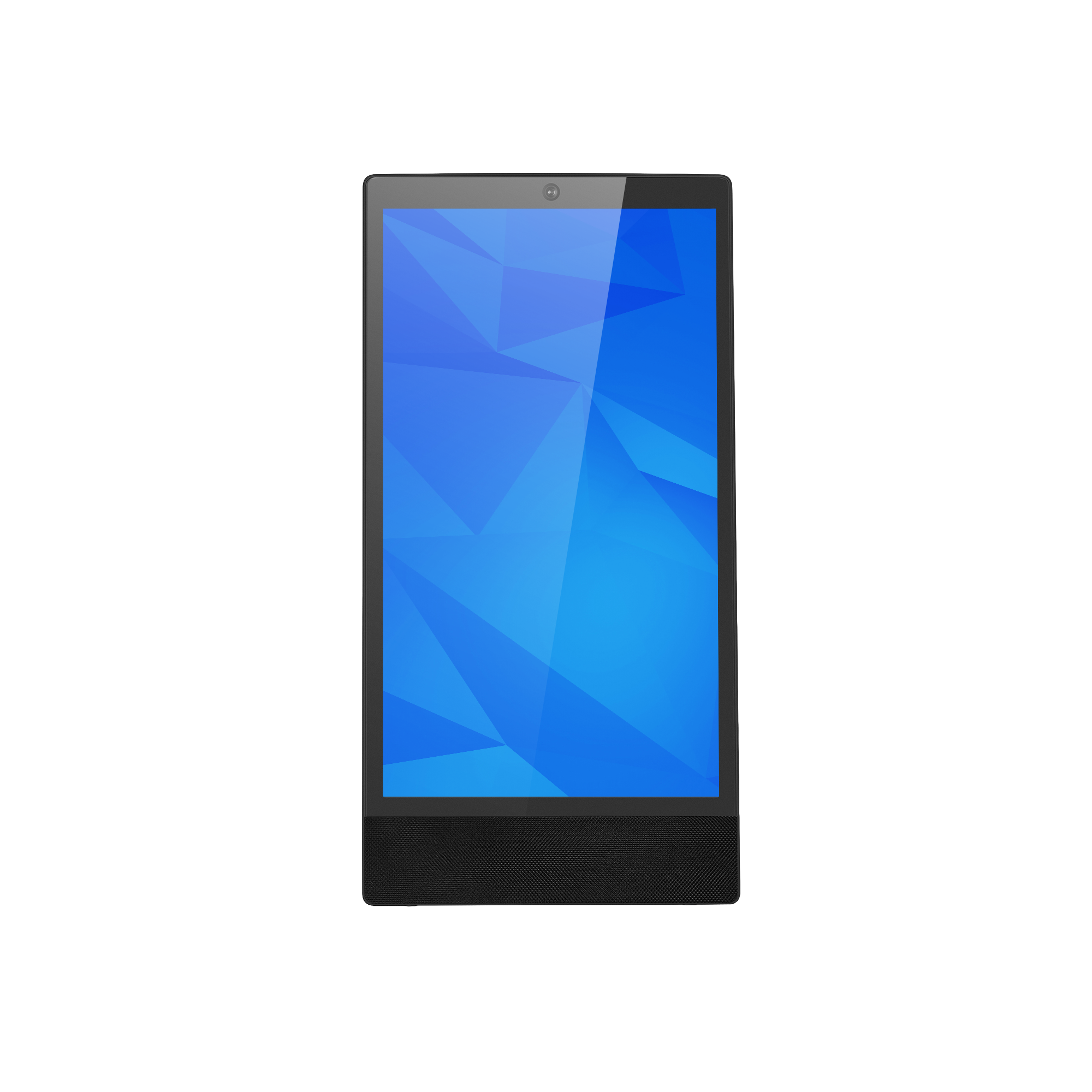

15.6" Desktop Signage
RK3576S Octa-Core Processor with 3 TOPS NPU | 4GB RAM | 64GB Storage
- 15.6-inch Full HD display with full lamination and 10-point capacitive touch
- RK3576S octa-core processor with 3 TOPS NPU
- Android 15 with 4GB RAM and 64GB storage
- Built-in 10000mAh battery for cordless operation
- Optional 13MP or 48MP camera with a physical privacy cover
WL1589T
Specifications
Display
15.6 inch (LCD)
1920 × 1080 pixels
16:9
R/L 85/85, U/D 85/85
Built-in 10000mAh Battery
1000:1
250 nits
10-point
Processor
- RK3576S Quad core cortex A72+Quad core cortex A53
- 4GB
- 64GB (Optional 32GB/128GB)
- Android 15
Size and Weight
- 436.4 x 222.9 x 131.5 mm (L × W × H)
Wireless
- IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 )
- Optional
- 10M/100M/1000M
- Bluetooth 5.4
I/O Ports
1 × USB 2.0 Host
- 1 × USB 3.0 Host
- 1 × Type-C (OTG Only)
- 1 × Gigabit Ethernet Port (10/100/1000Mbps)
- DC 12V Power Input
Media Format
- H.264, H.265, VP9, AV1, AVS2
- MP3/WMA/AAC, etc
- JPEG
Others
- Black/ White
- 4Ω 5W Box Speaker
- Quad Microphones with Noise Reduction and Echo Cancellation
- Optional
- Optional 13MP or 48MP Camera with Physical Privacy Cover
- Multi-language
- CE / FCC / CCC
- 0℃-40℃
