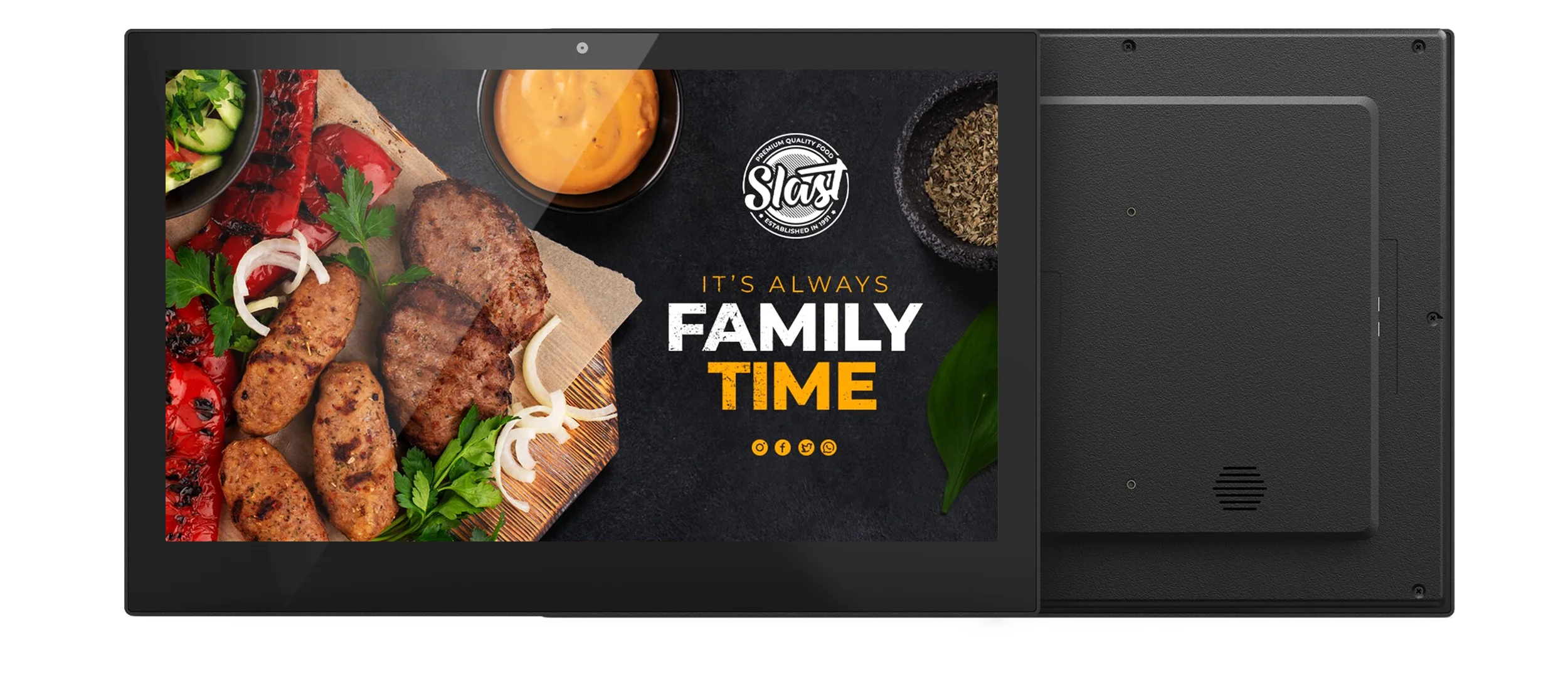

WF1412T | WF1413T | WF1416T | WF1418T

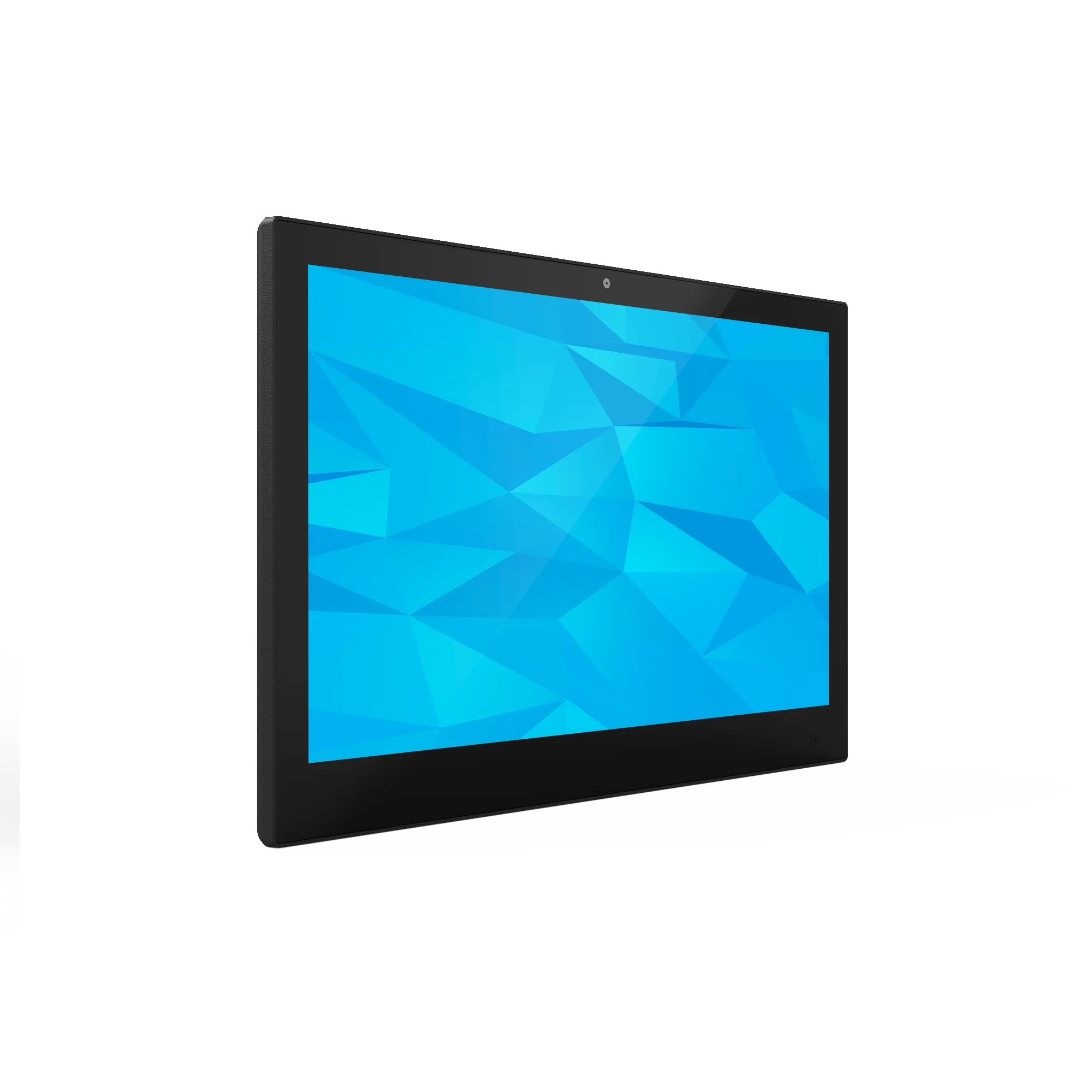

14-inch Touchscreen Signage
Features 1920*1080 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An intuitive FHD touch display lets you take full control with the tap of a finger.

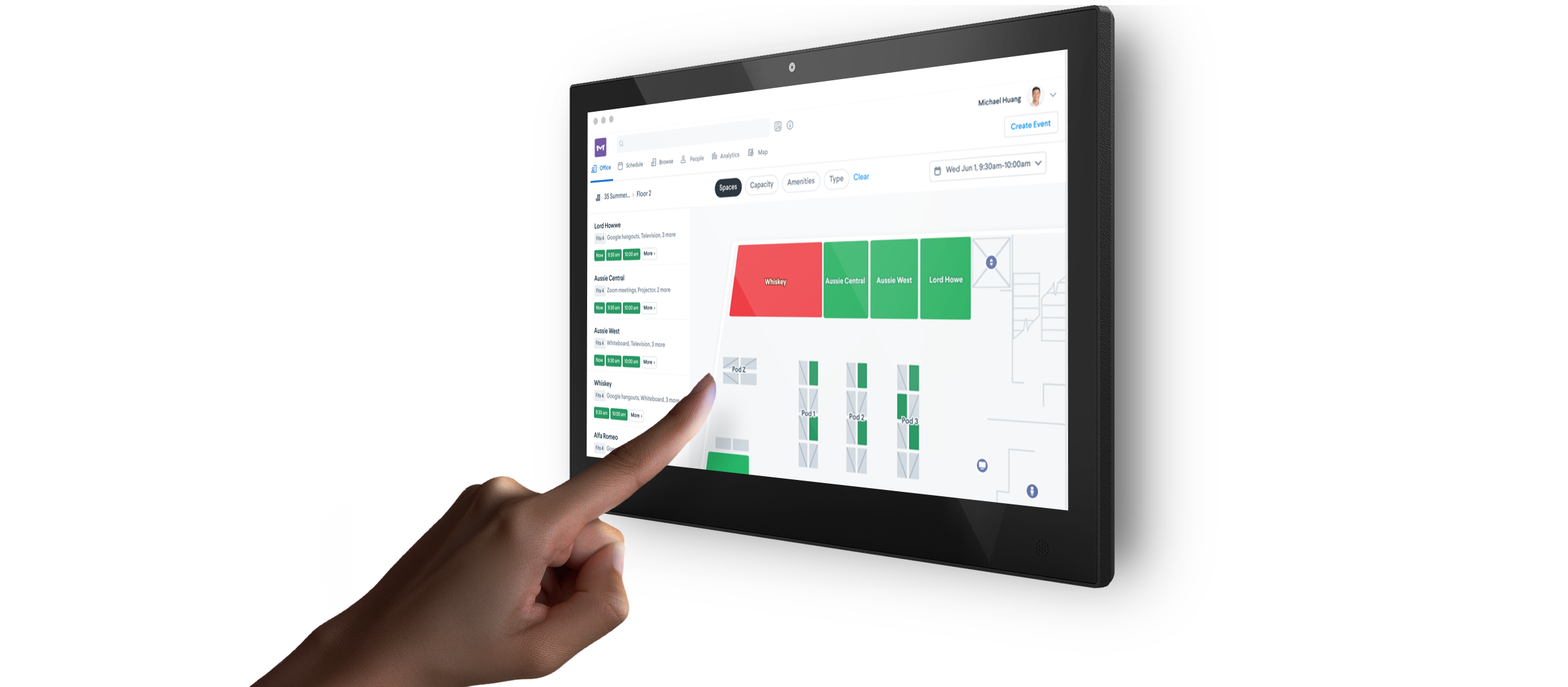

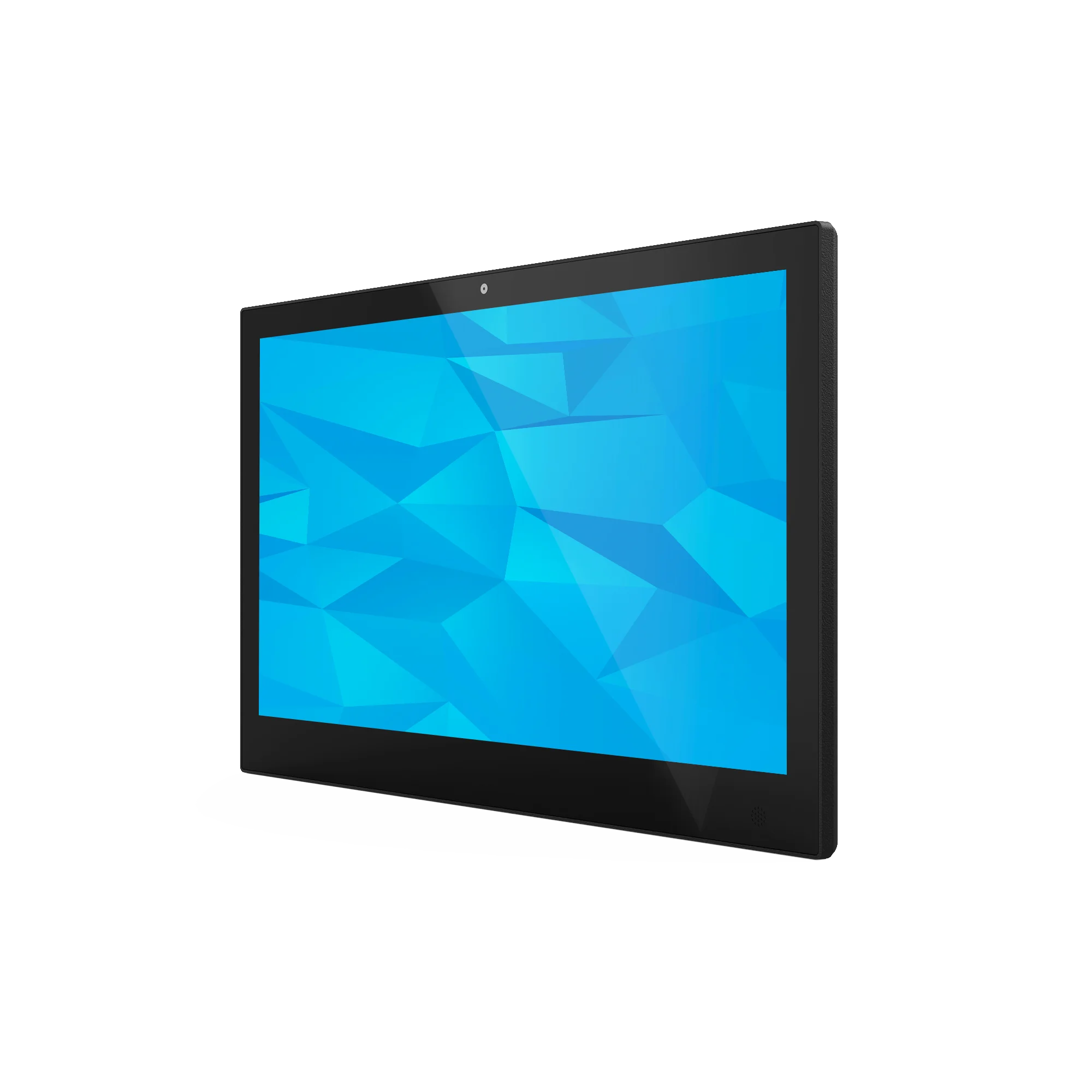

DISPLAY
14-inch HD Multi-Touch Display
The portable monitor features a 14-inch touchscreen with a full HD resolution of 1920x1080. 10-point multi-touch screen enables multiple people to use a device at once, or one person can use multiple fingers for complex inputs, which streamlines workflow and improves efficiency.
OPERATING SYSTEM
All You Can Stream and Cast.
Easily download your favorite apps on the display and enjoy with built-in dual speakers on ELC touchscreen signage. The touch screen also offers multiple ways to connect to your favorite content via HDMI, USB and RJ45 ports that let you effortless work or play.

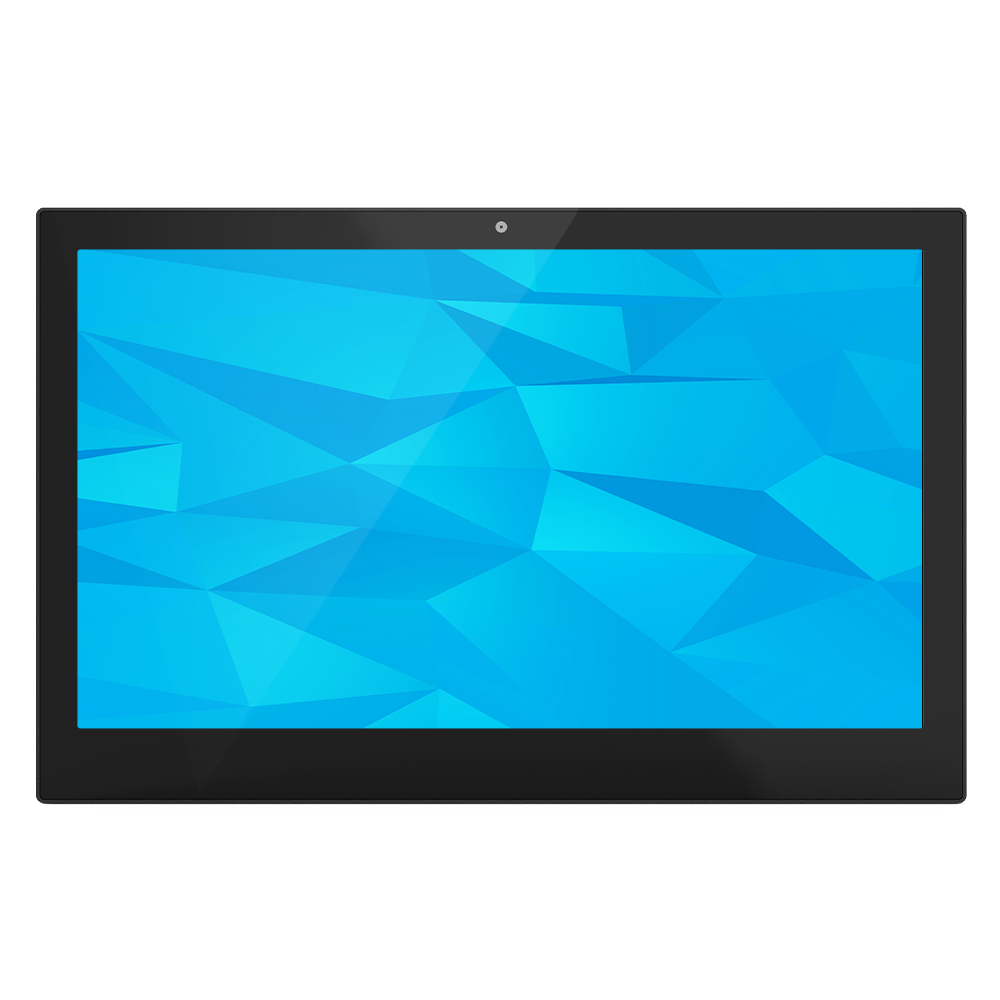

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One.
Requiring no additional setup or external hardware, making it easy to quickly initiate video calls or record videos without needing to connect extra peripherals. This also contributes to portability and space-saving benefits.

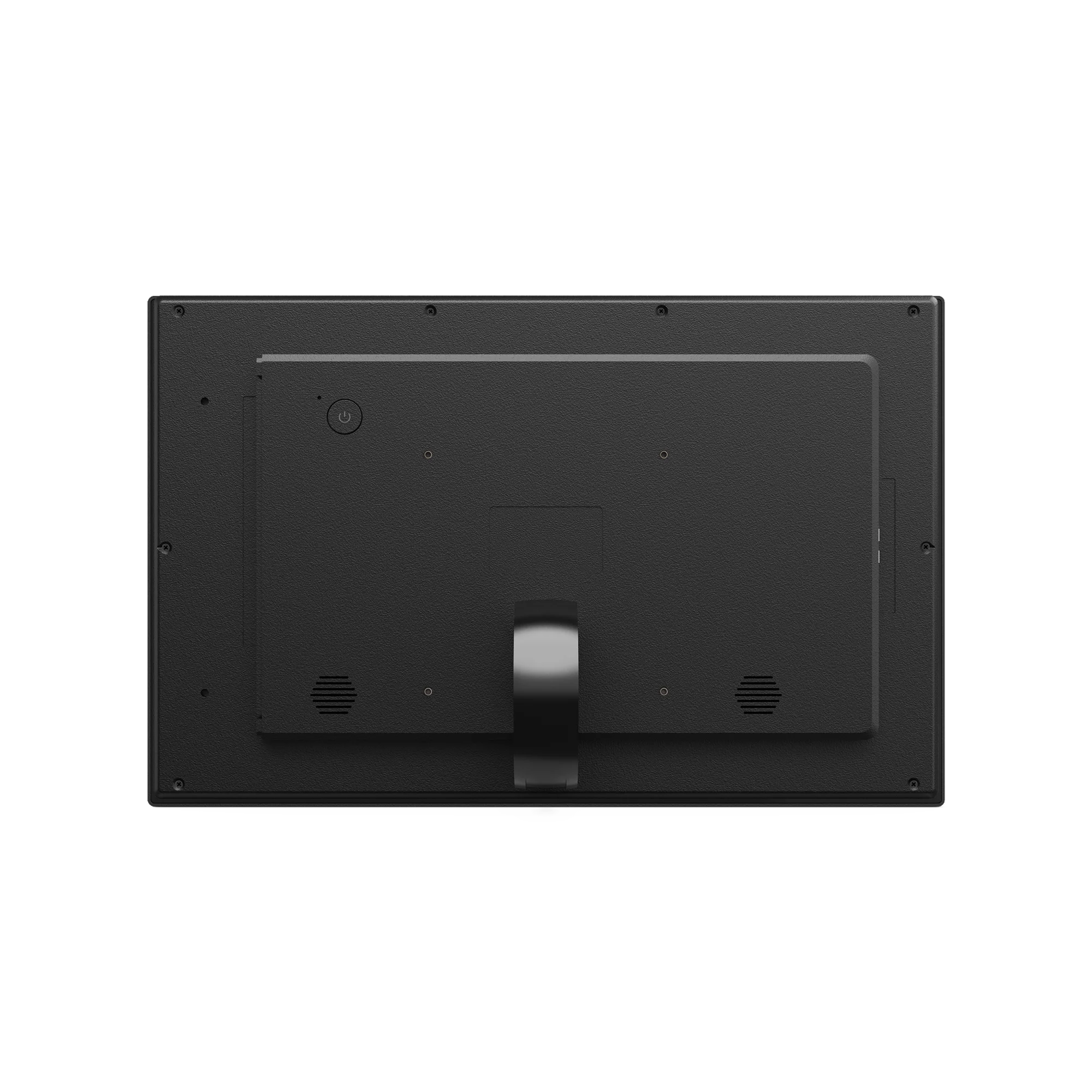

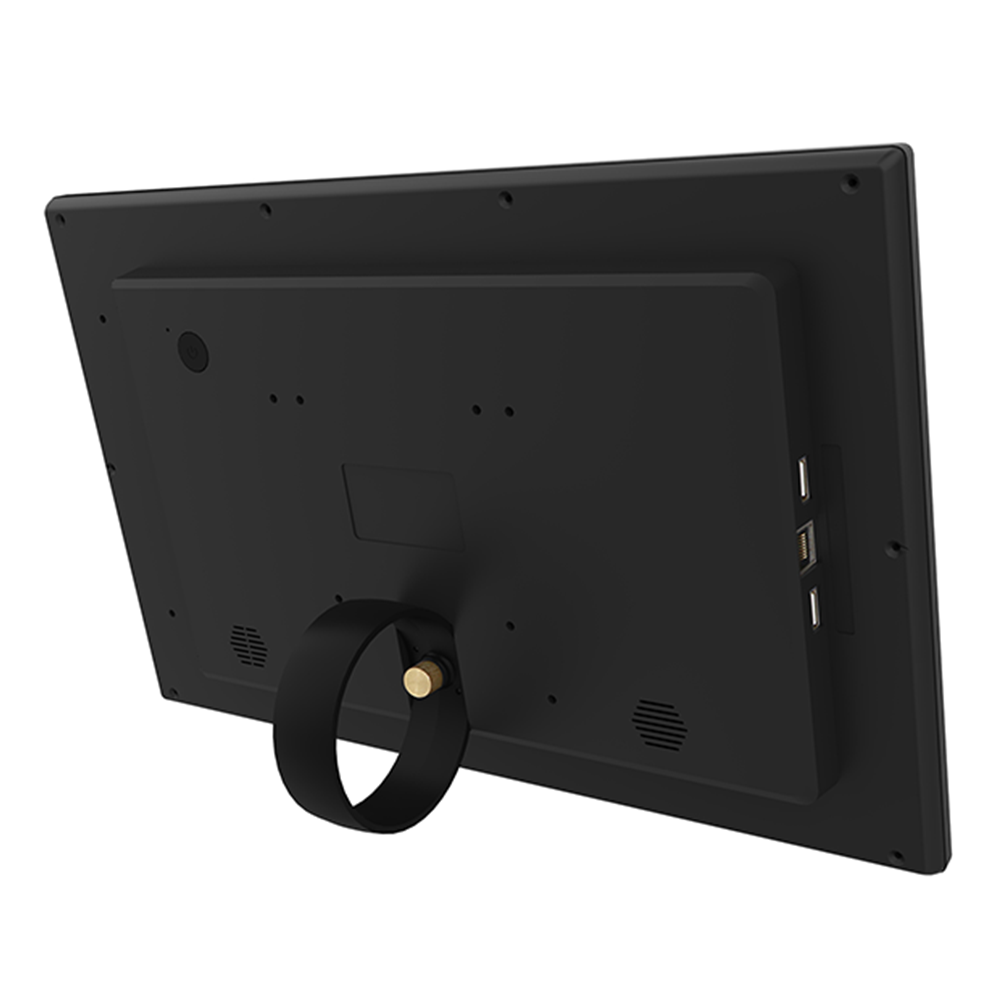

VESA 100 x 100mm
Mount Wherever Suits Your Needs.
Standard 100x100 VESA holes on the back allow you to mount the monitor to a wall bracket or arm bracket to ensure the best placement in small spaces. Elevate your productivity and embrace unrivaled convenience with this portable display.

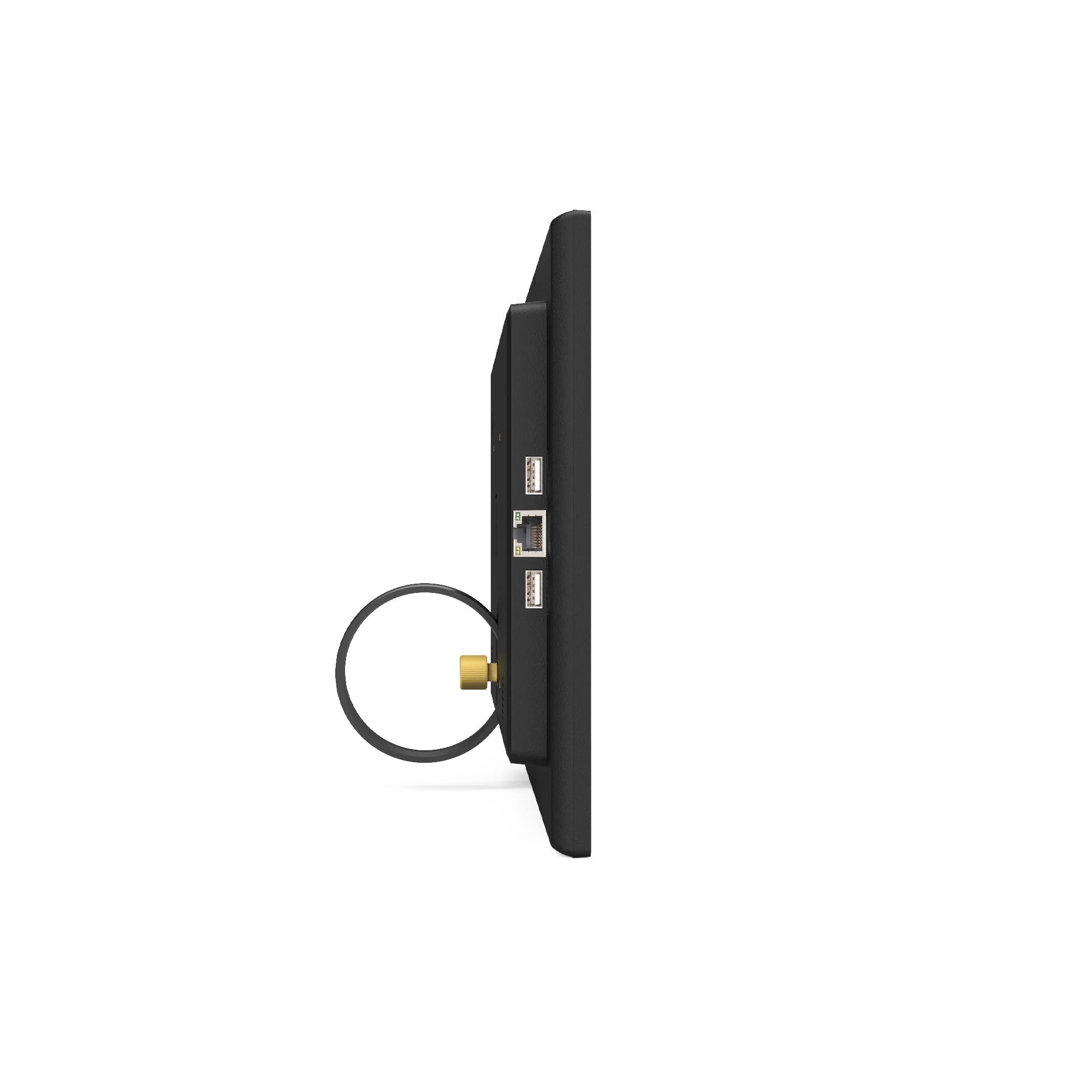

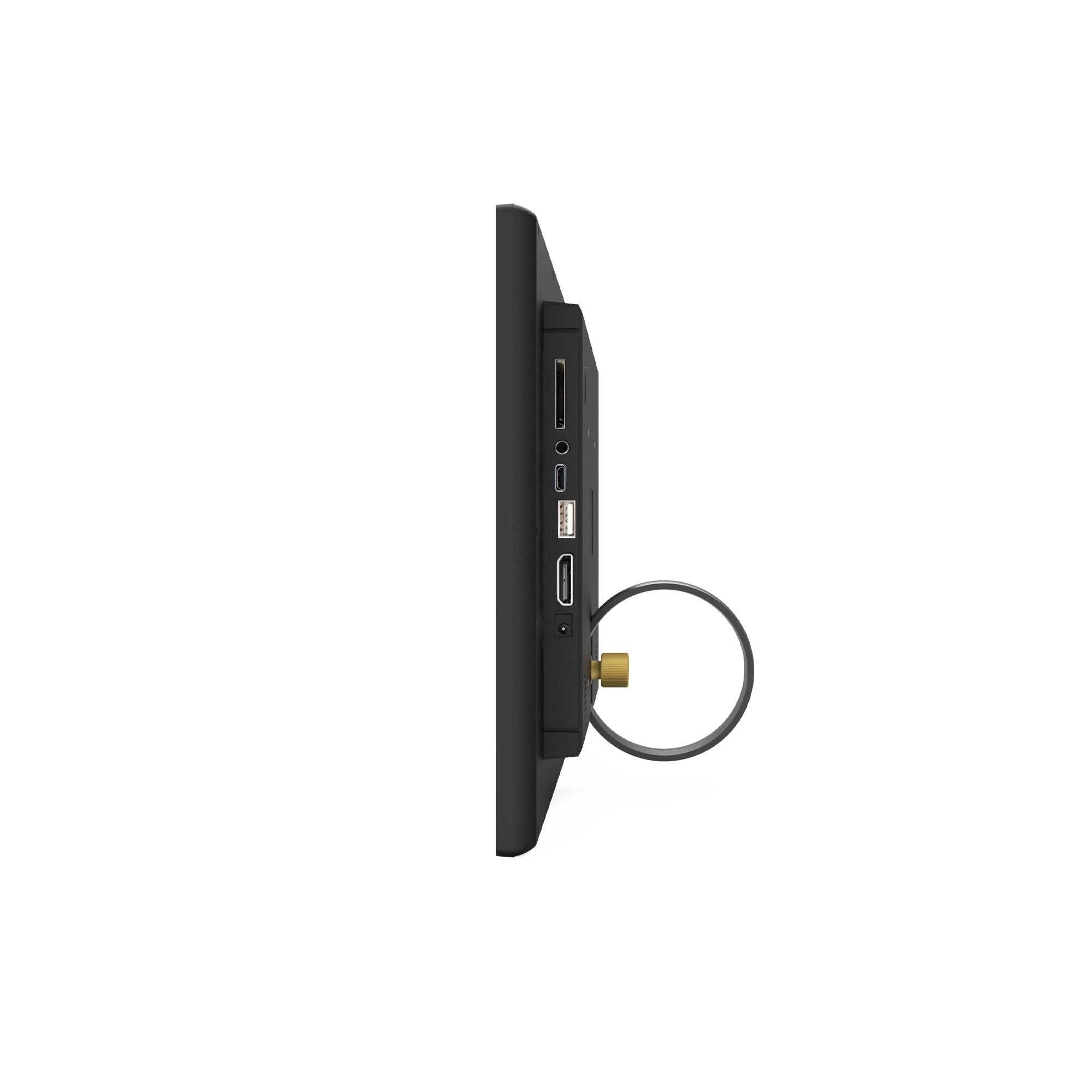

Connections and Expansion
14" Touchscreen Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WF1412T | WF1413T | WF1416T | WF1418T
Specifications
Display
14-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WF1412T: RK3288 Quad-core cortex A17
- WF1413T: RK3399 Dual-core A72+Quad-core A53
- WF1416T: RK3566 Quad-core cortex A55
- WF1418T: RK3568 Quad-core cortex A55
- WF1412T: 2GB
- WF1413T: 2GB (Optional 4GB)
- WF1416T: 2GB (Optional 4GB)
- WF1418T: 2GB (Optional 4GB)
- WF1412T: 16GB
- WF1413T: 16GB (Optional 32GB/64G)
- WF1416T: 16GB (Optional 32GB/64G)
- WF1418T: 16GB (Optional 32GB/64G)
- WF1412T: Android 5.1/6.0/8.1/10.0
- WF1413T: Android 7.1/10.0
- WF1416T: Android 11
- WF1418T: Android 11
Size and Weight
342.7 x 220 x 27.5 mm (L × W × D)
Wireless
- WF1412T: IEEE 802.11b/g/n
- WF1413T: IEEE 802.11a/b/g/n/ac
- WF1416T: IEEE 802.11b/g/n
- WF1418T: IEEE 802.11b/g/n/
Bluetooth 5.4
I/O Ports
- WF1412T: USB 2.0 Host *3
- WF1413T: USB 2.0 Host *2
- WF1416T: USB 2.0 Host *2
- WF1418T: USB 2.0 Host *2
- WF1413T: USB 3.0 Host
- WF1416T: USB 3.0 Host
- WF1418T: USB 3.0 Host
Mini USB OTG
HDMI output
DC power input
Ethernet interface, Optional POE IEEE802.3at, POE+, class 4, 25.5W
Media Format
- WF1412T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WF1413T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1416T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1418T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
- WF1412T: JPEG
- WF1413T: JPEG
- WF1416T: JPEG
- WF1418T: JPEG/PNG
Others
Black
100mm × 100mm
2W*2
Single microphone
- WF1412T: General angle 2.0MP
- WF1413T: Routine angle 2.0MP
- WF1416T: Routine angle5.0MP
- WF1418T: Routine angle5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/2A
×1
X1
