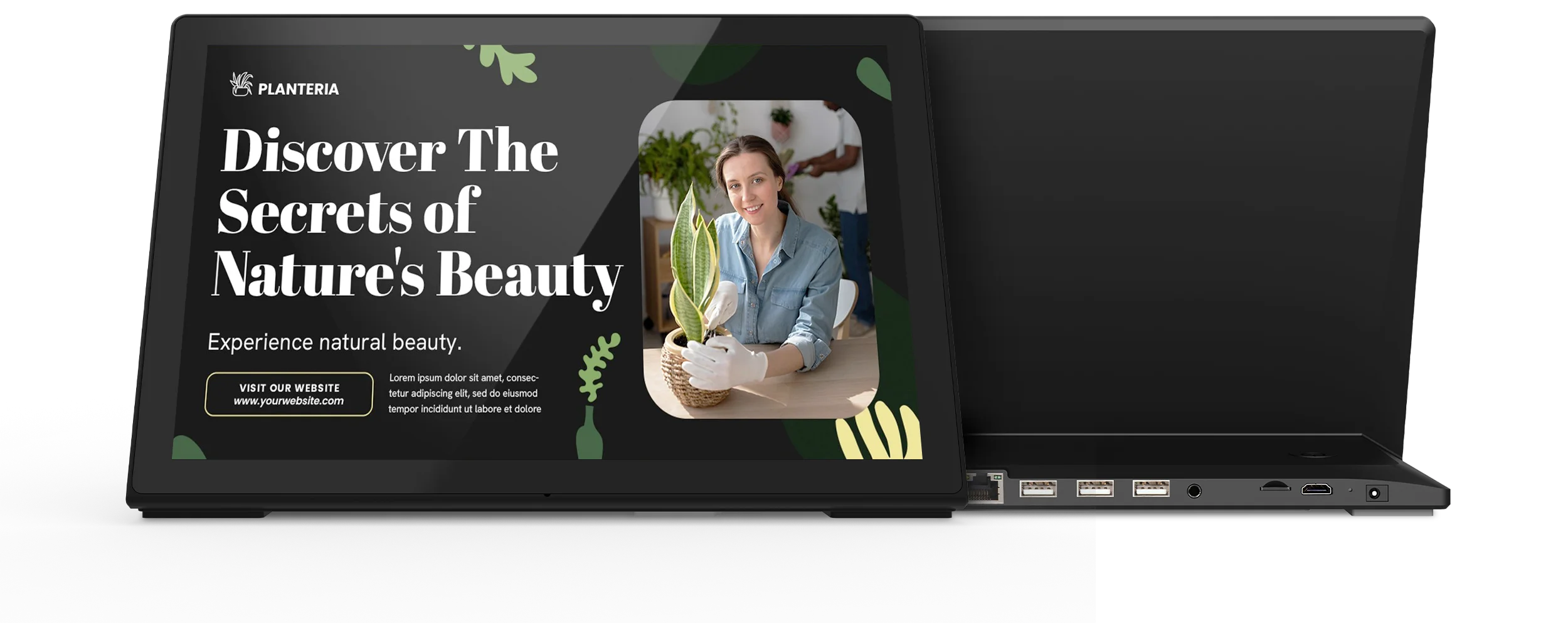

WL1312T | WL1313T | WL1316T | WL1318T
13.3-inch Desktop Signage
From retail and entertainment to corporate offices and signage, the 13.3-inch desktop signage is an excellent choice to meet the demands of continuous public use. Easy to integrate and suitable for intensive use.

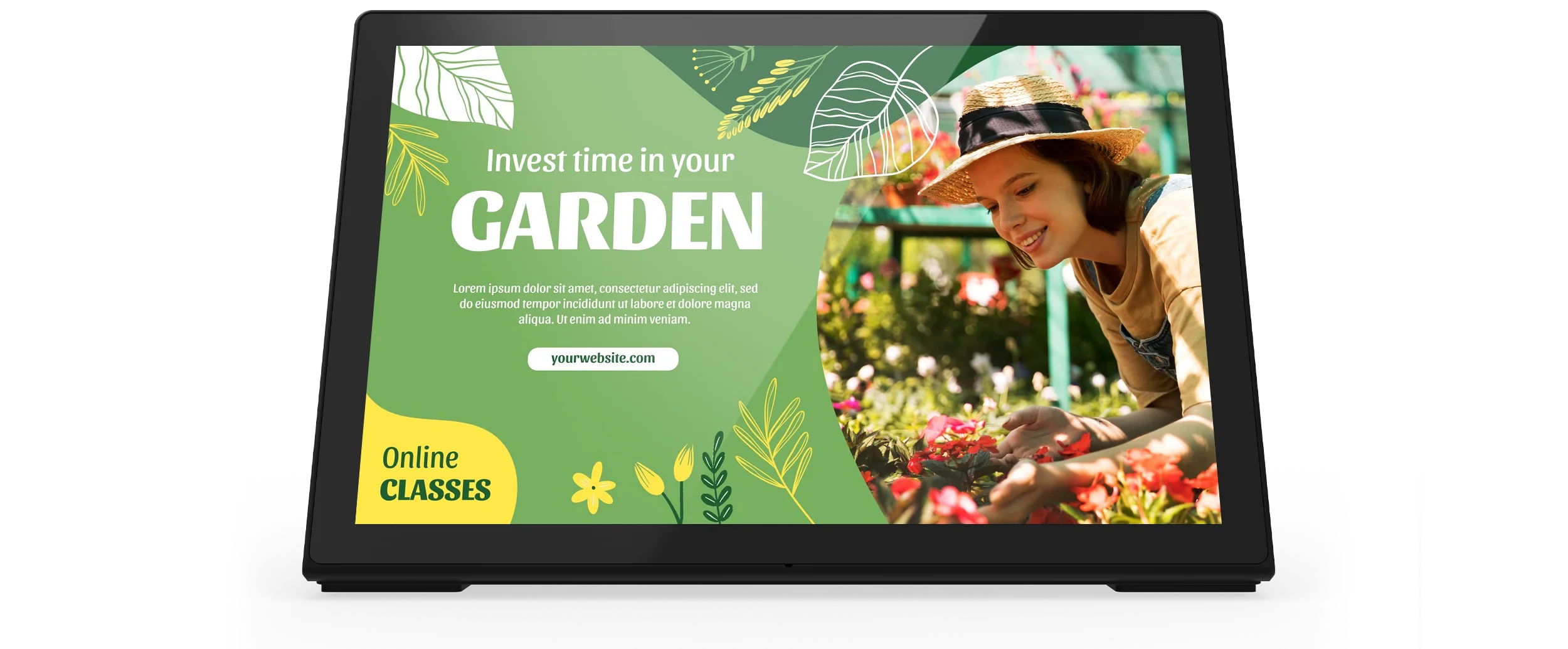

DISPLAY
13.3-inch HD Multi-Touch Display
With high-resolution displays, text appears sharper and more legible, reducing eye strain and enhancing readability. High resolution allows for clear rendering of small fonts and intricate details, making it easier to consume written content and ensuring a comfortable reading experience.
OPERATING SYSTEM
Easy Management With Android Devices.
Strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.
PROCESSORS
Work Faster, Work More Efficiently.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

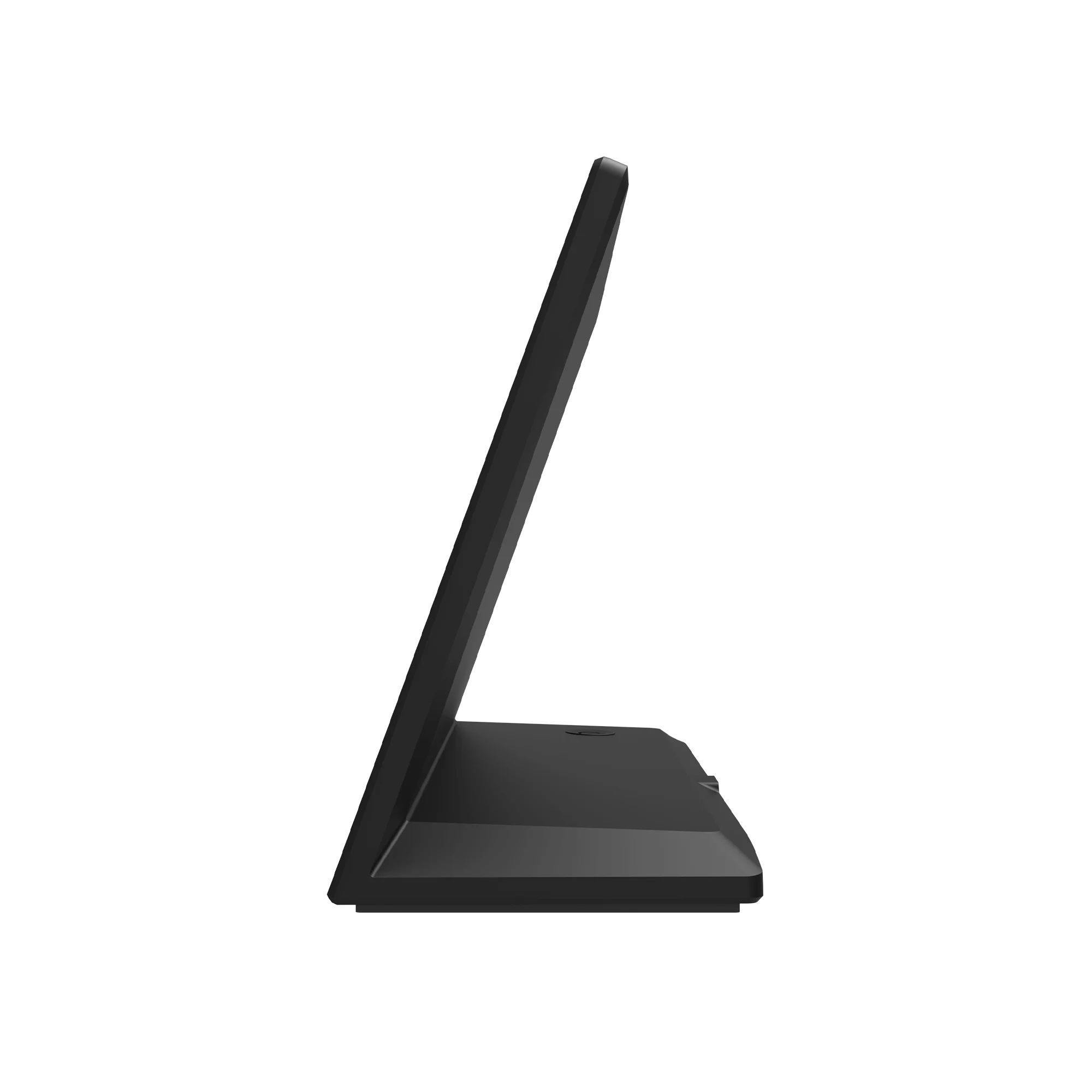

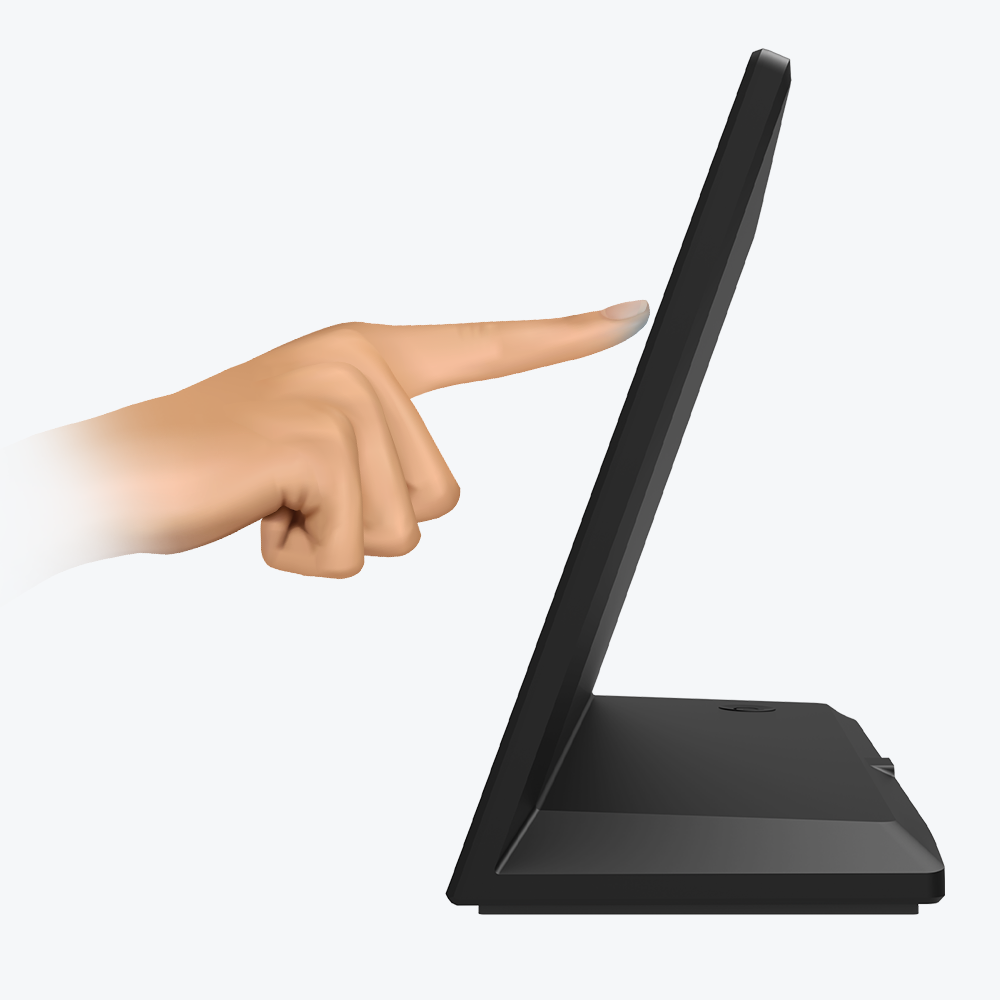

ERGONOMIC DESIGN
Ergonomic Design For Custom Comfort.

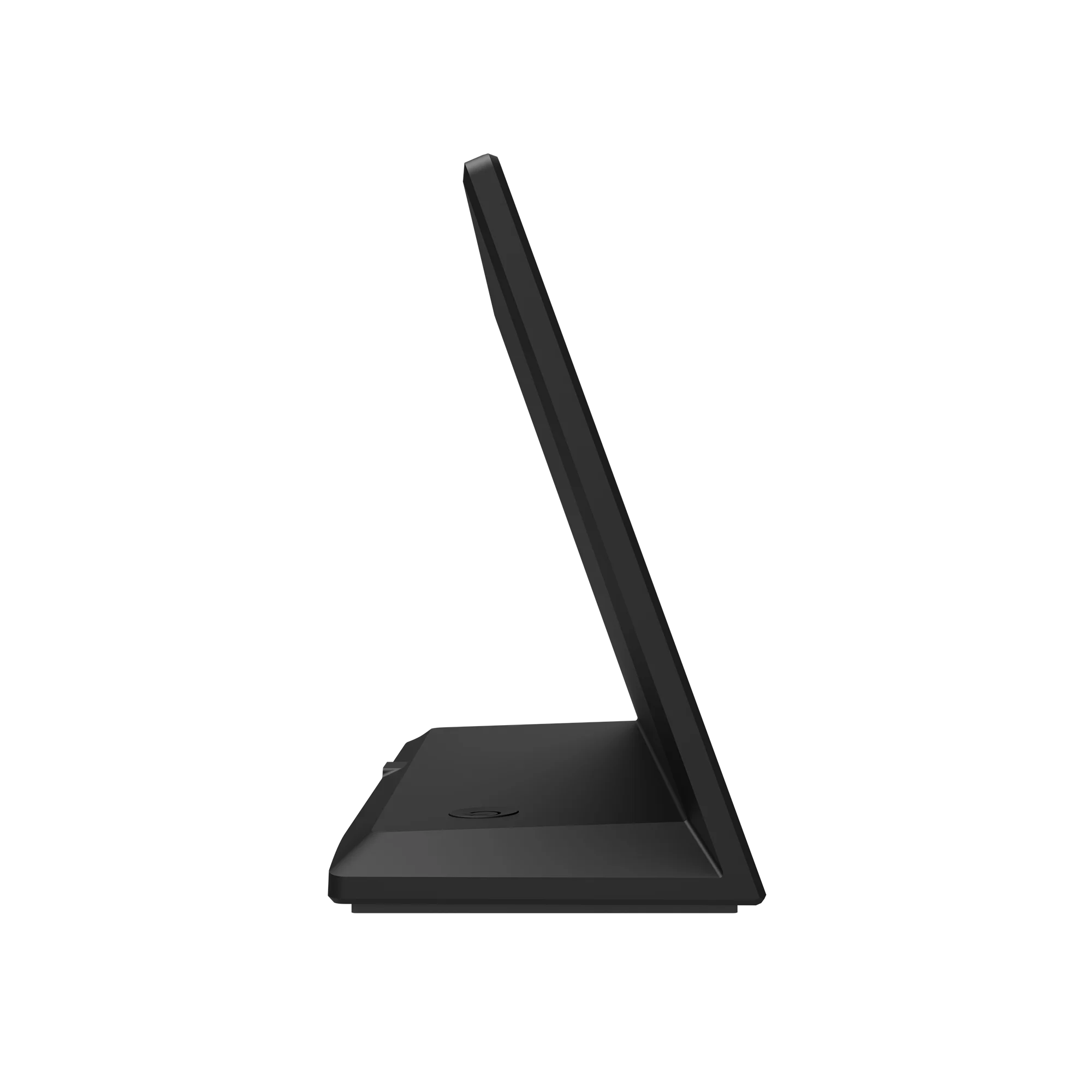

The L-shaped design makes it easy to place on a desktop without requiring external bracket and provides users a comfortable angle for use. This can reduce back strain and fatigue.

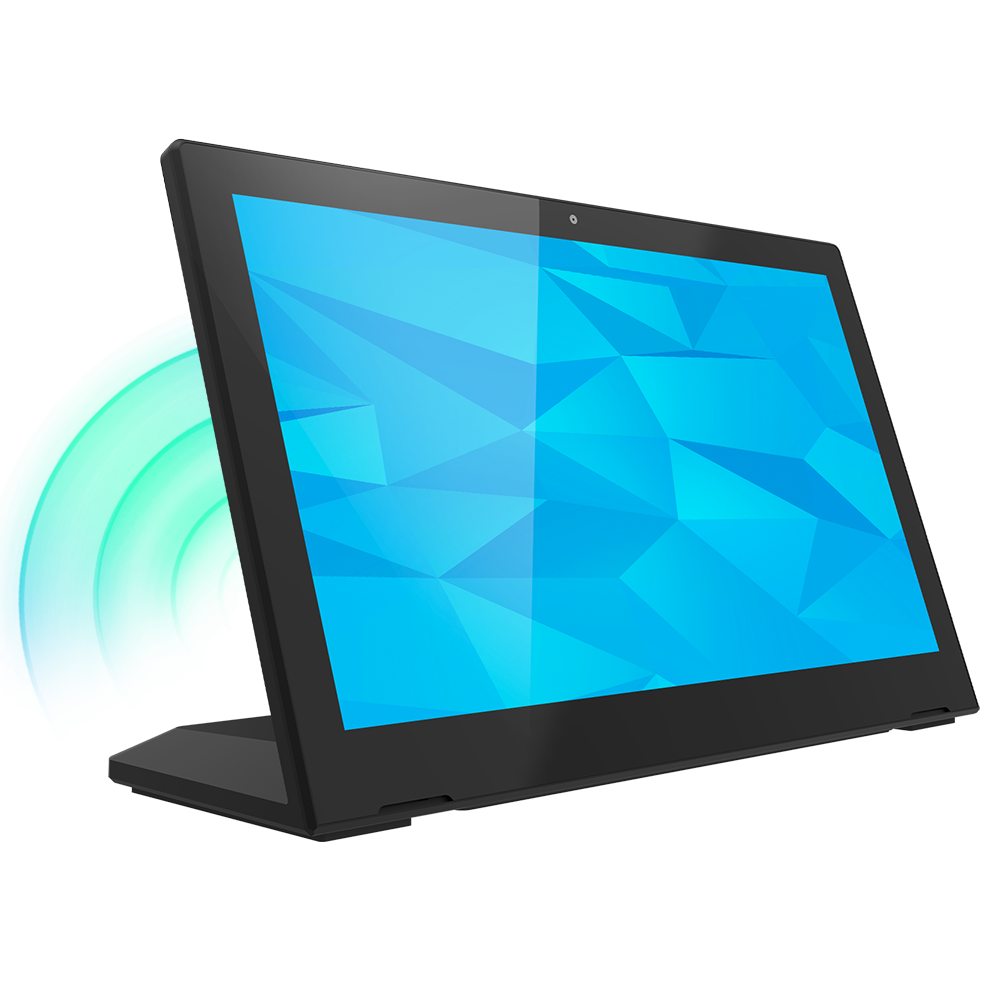

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One. Watch, Work In Style.
Integrated into the device, built-in cameras offer portability and ease of use, allowing for video conferencing on the go. With a built-in camera, you don't need to allocate extra desk space or deal with cable clutter. Dual speakers also deliver a superior listening experience.

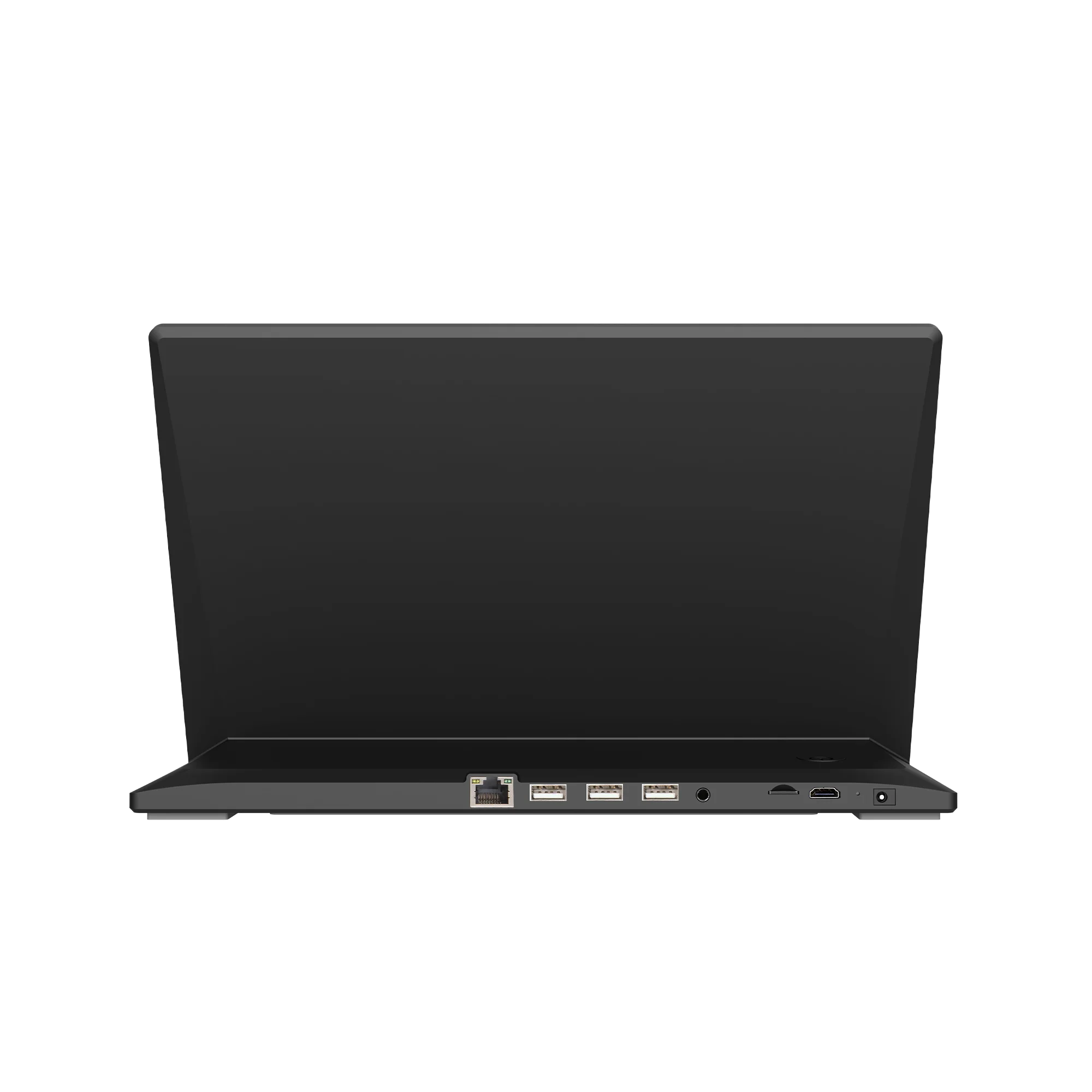

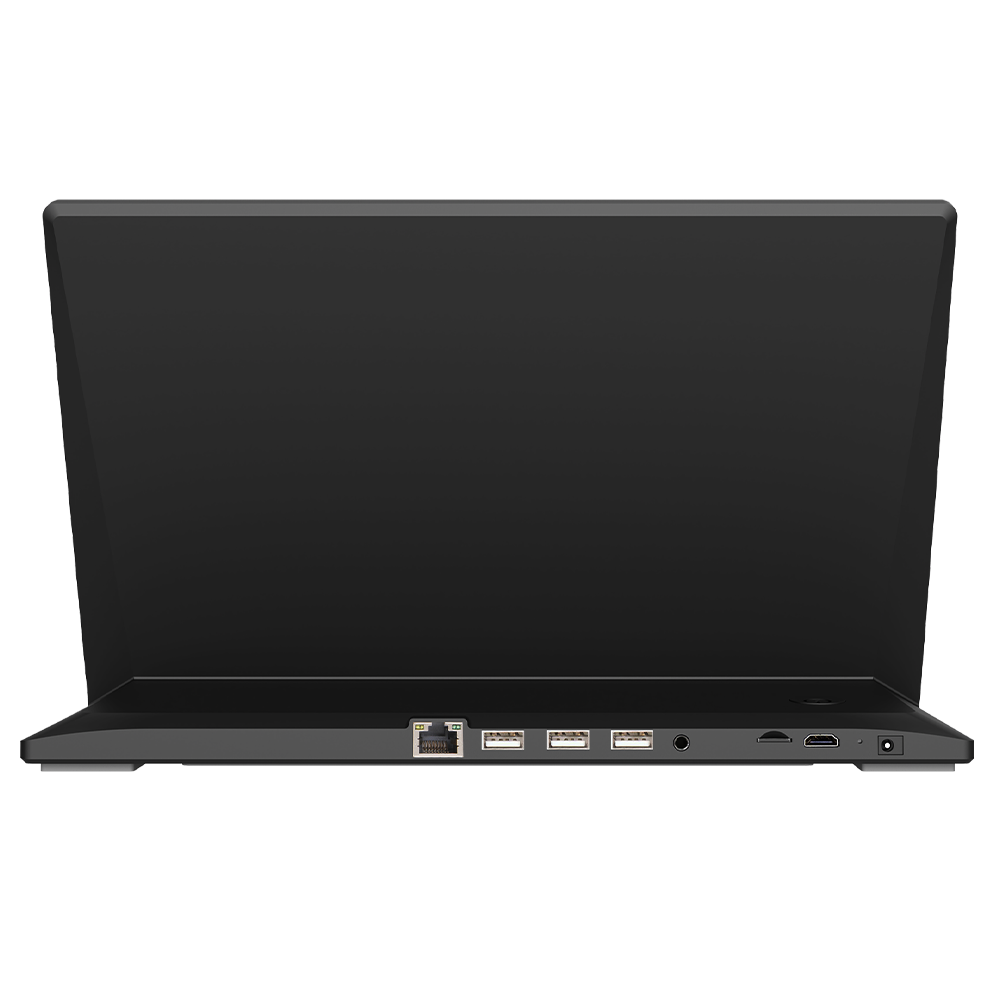

CONNECTIONS AND EXPANSION
Multiple connections for your devices.
Faster, easier access to your work tools, and multiple ports enable convenient connectivity with no need for adapters.
Explore More ELC Desktop Signages Now.
Screen sizes from 8-inch to 17.3-inch, horizontal or vertical.
Explore Now

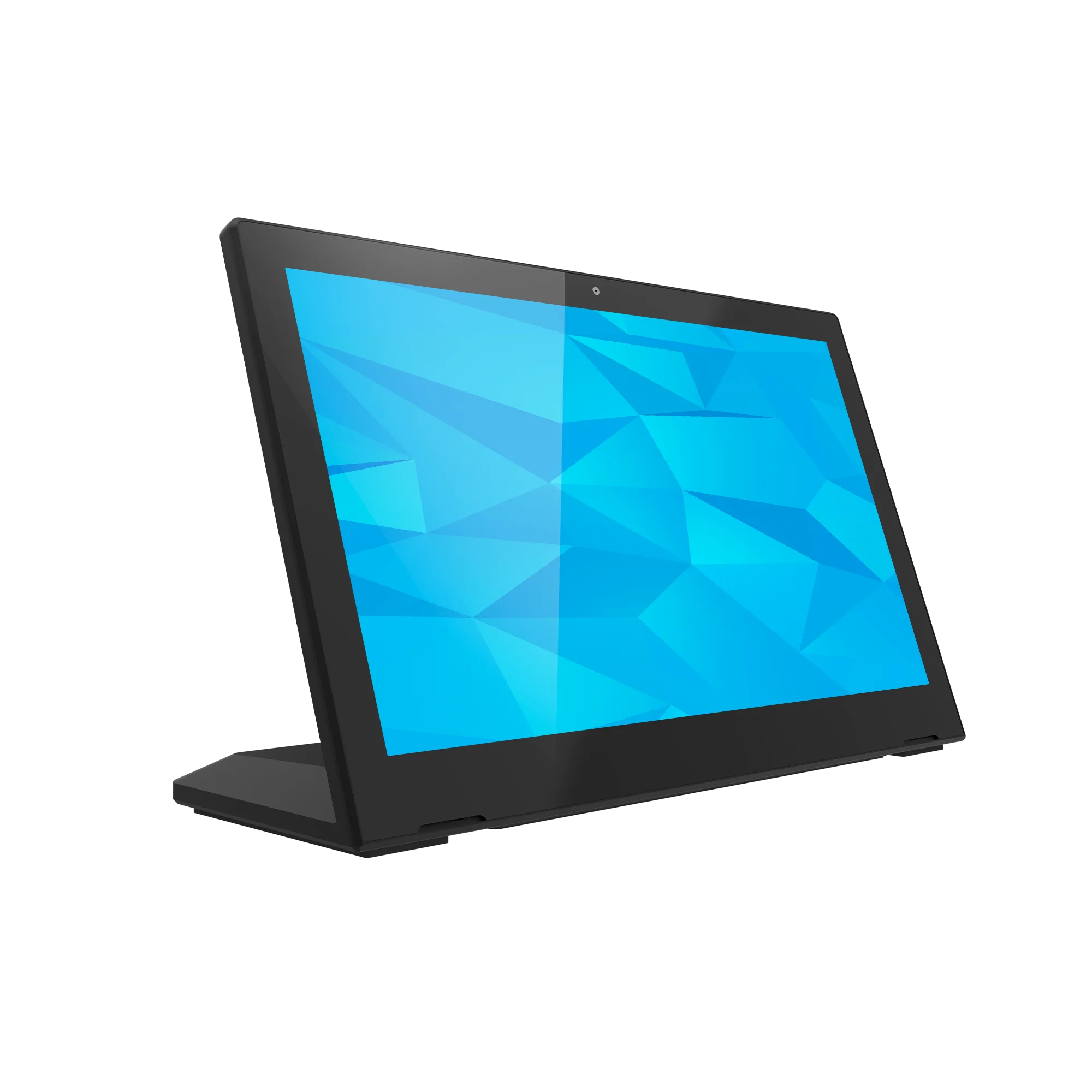

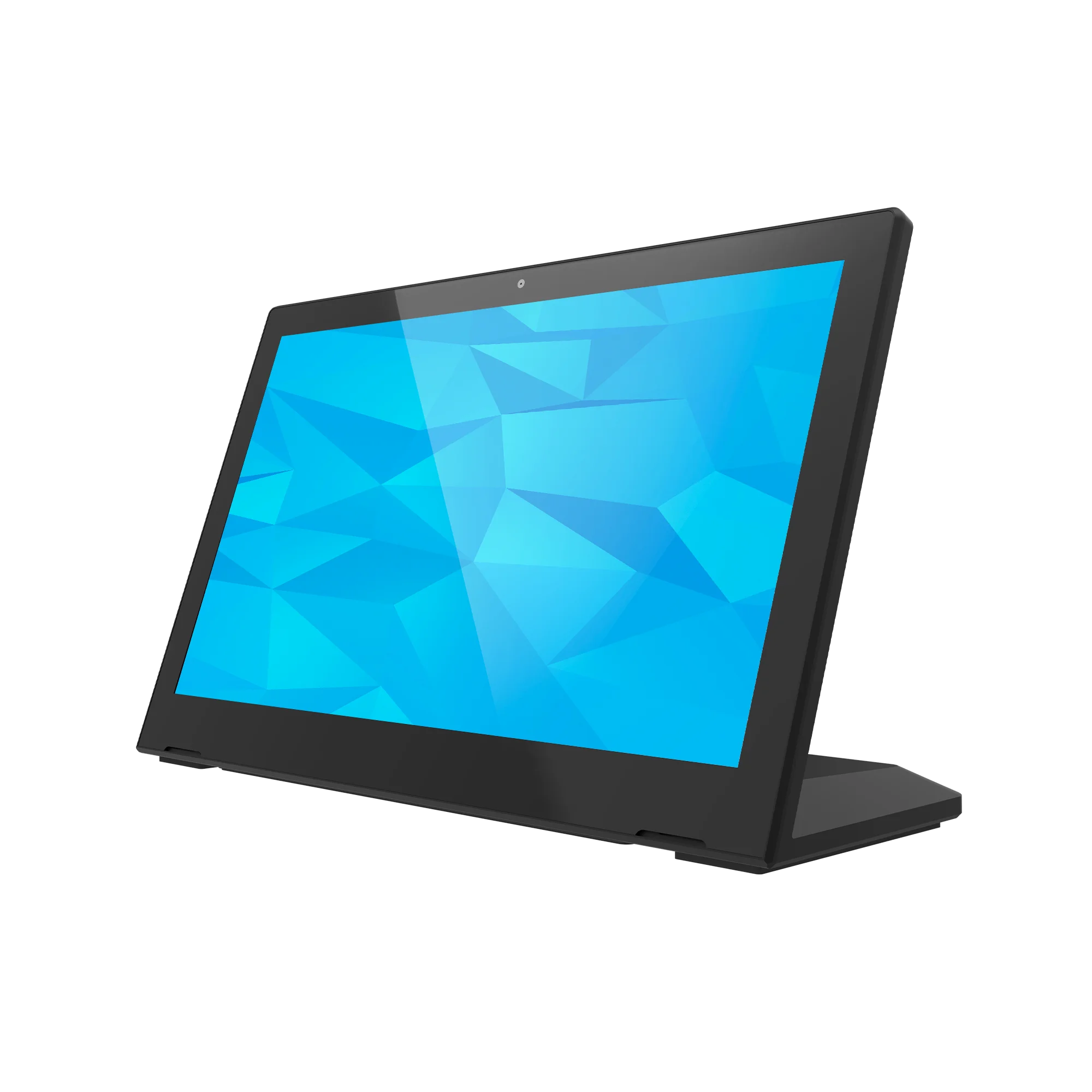

13.3" Desktop Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WL1312T | WL1313T | WL1316T | WL1318T
Specifications
Display
13.3-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WL1312T: RK3288 Quad-core cortex A17
- WL1313T: RK3399 Dual-core A72+Quad-core A53
- WL1316T: RK3566 Quad-core cortex A55
- WL1318T: RK3568 Quad-core cortex A55
- WL1312T: 2GB
- WL1313T: 2GB (Optional 4GB)
- WL1316T: 2GB (Optional 4GB)
- WL1318T: 2GB (Optional 4GB)
- WL1312T: 16GB
- WL1313T: 16GB (Optional 32GB)
- WL1316T: 16GB (Optional 32GB)
- WL1318T: 16GB (Optional 32GB)
- WL1312T: Android 8.1/10.0
- WL1313T: Android 7.1/10.0
- WL1316T: Android 11
- WL1318T: Android 11
Size and Weight
349.2 x 226.6 x 112.26 mm (L × W × D)
Power and Battery
Optional 4500mAh
Wireless
- WL1312T: IEEE 802.11b/g/n
- WL1313T: IEEE 802.11a/b/g/n/ac
- WL1316T: IEEE 802.11b/g/n
- WL1318T: IEEE 802.11b/g/n/a/ac
Bluetooth 4.2
I/O Ports
- WL1312T: USB 2.0 Host
- WL1313T: USB 3.0 Host
- WL1316T: USB 3.0 Host
- WL1318T: USB 3.0 Host
- WL1312T: USB for serial (RS232 format)
- WL1313T: USB for serial (RS232 format)
- WL1316T: USB for serial (TTL format)
- WL1318T: USB for serial (TTL format)
HDMI output, support 4K
DC power input
Media Format
- WL1312T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WL1313T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WL1316T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WL1318T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
- WL1312T: JPEG
- WL1313T: JPEG/PNG
- WL1316T: JPEG
- WL1318T: JPEG
Others
Normally black
1W*2
Single microphone
Optional, NFC 13.56MHz，ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Routine angle 5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/2A
×1
