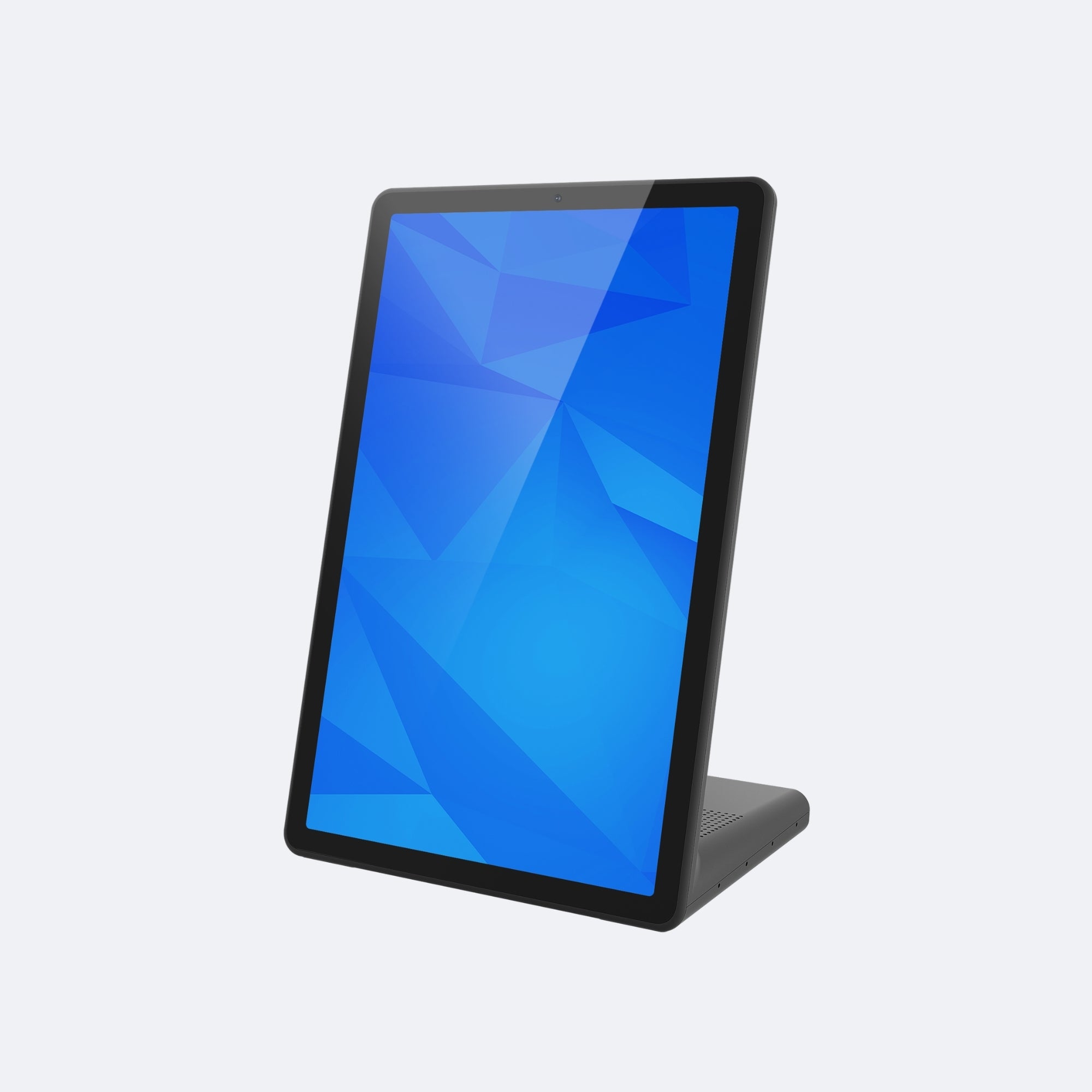

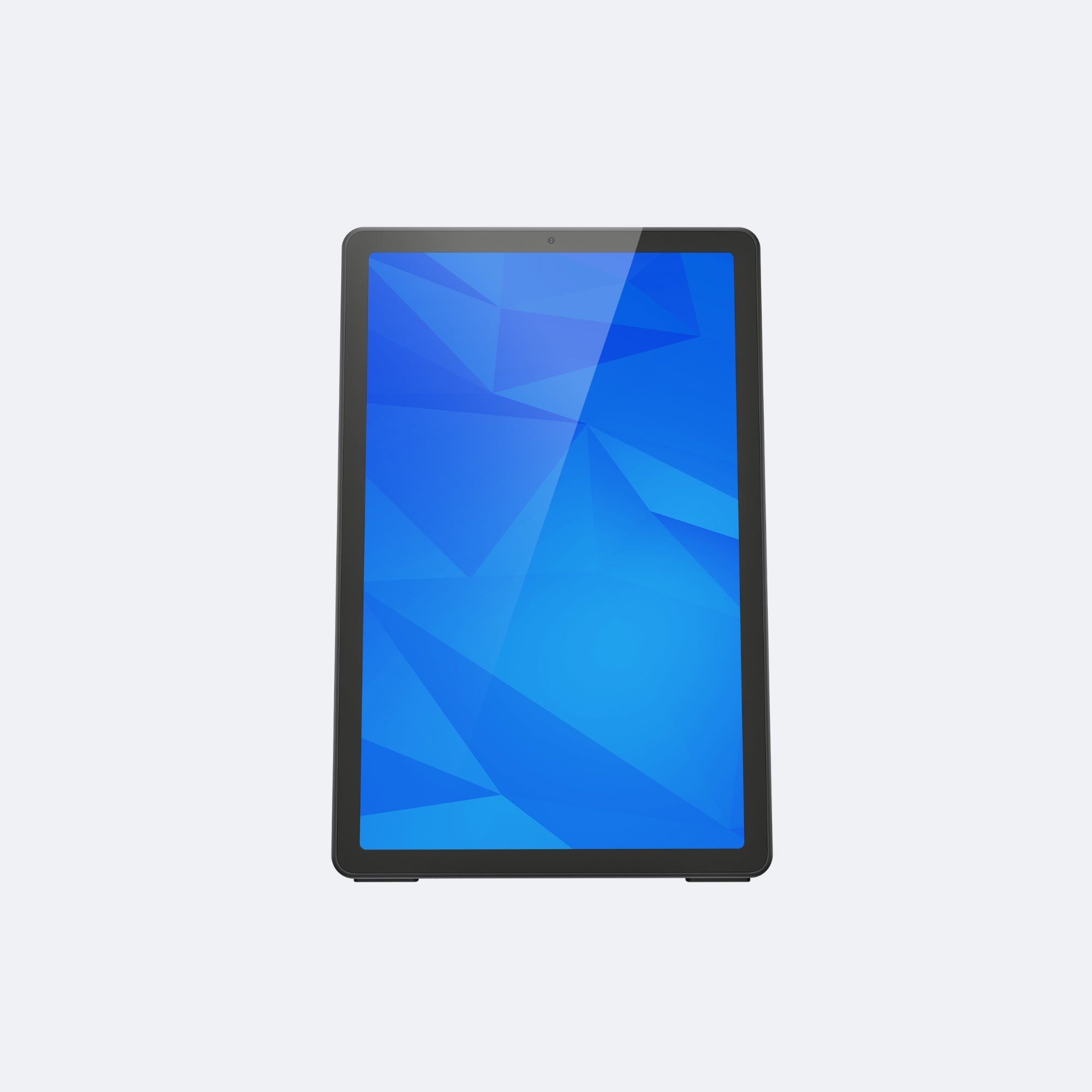

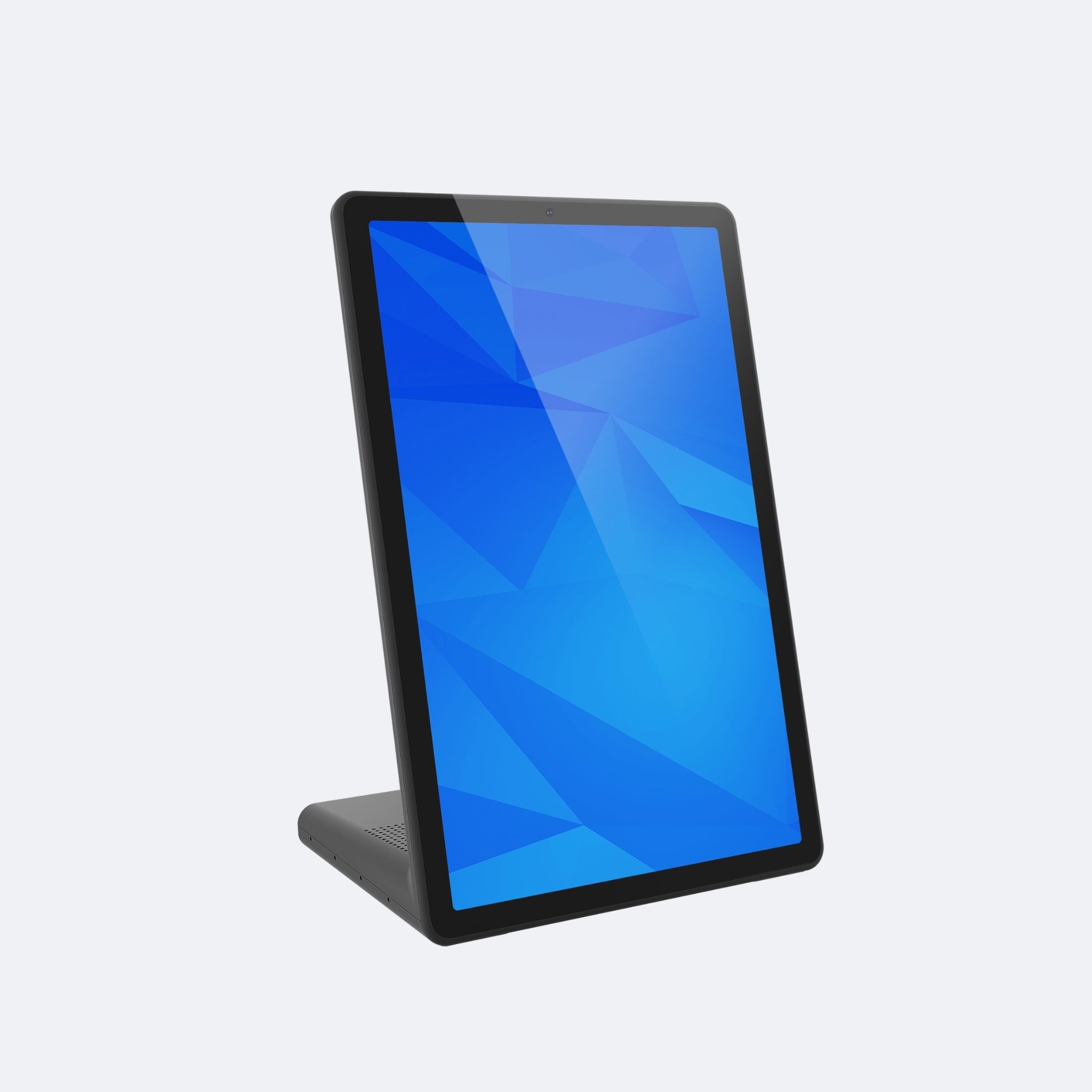

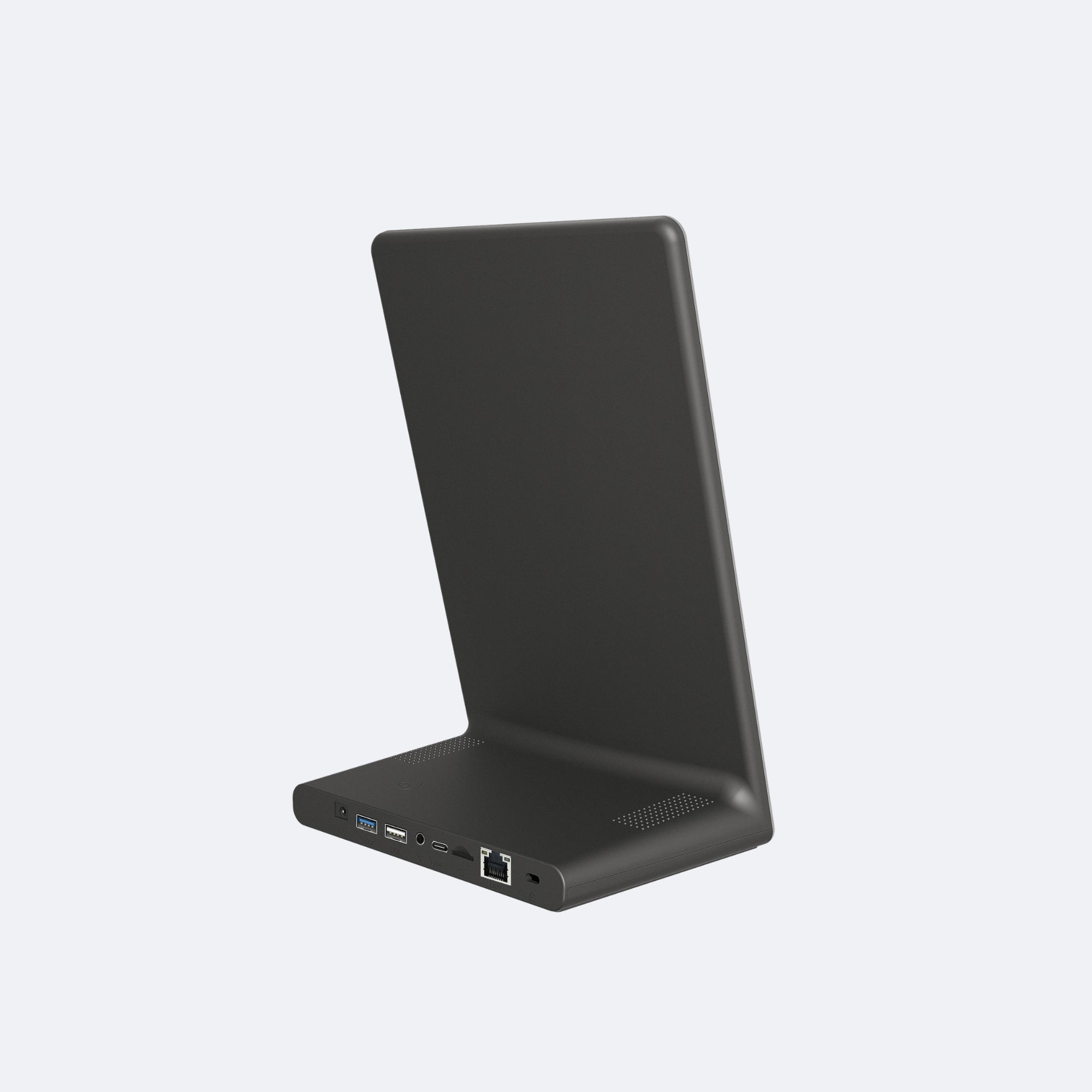

10.95” Desktop Signage

10.95” L-Type Android Digital Signage.
Android System 14.
Brightness 280 nits.
Backlight lifetime 30000h.
10-Point Capacitive touch.
WIFI IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6).
Black & White Frame Available.
Support NFC.
Certificates CE/FCC.

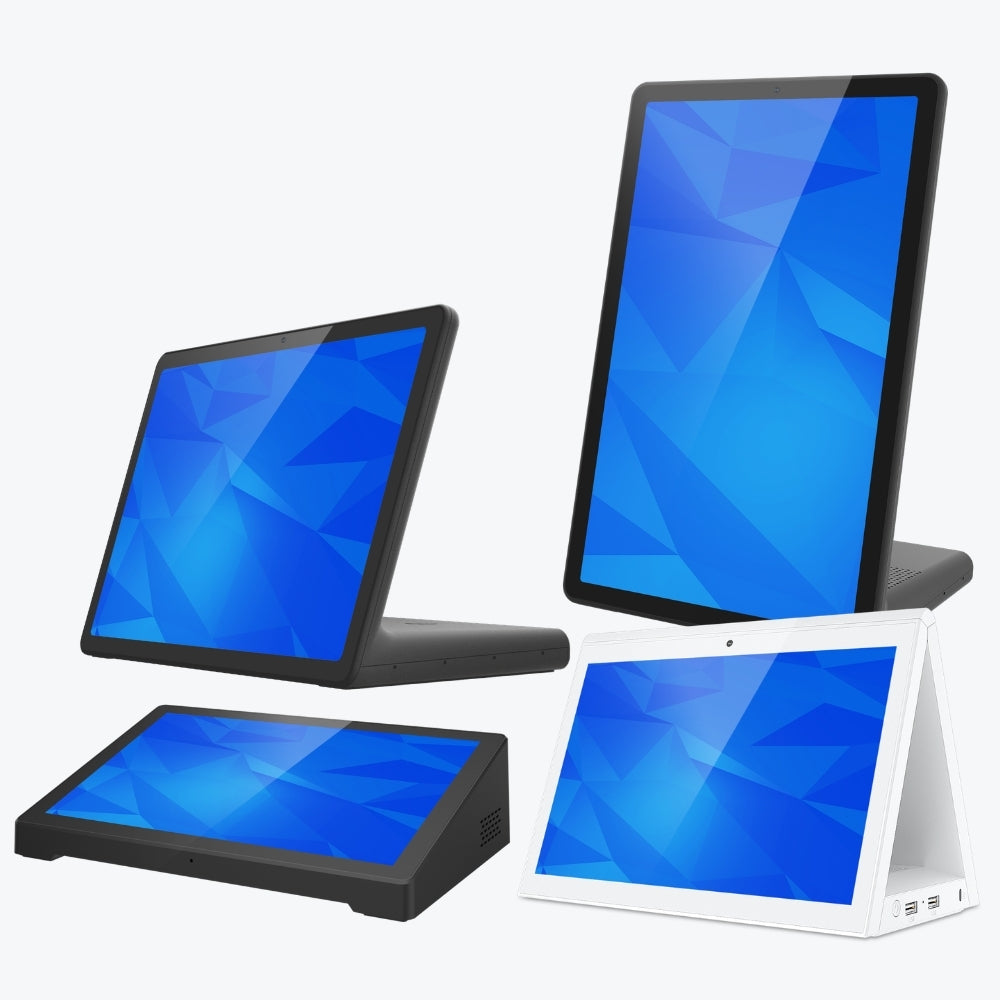

Desktop Signages from 8" to 15.6".

WL1109TV

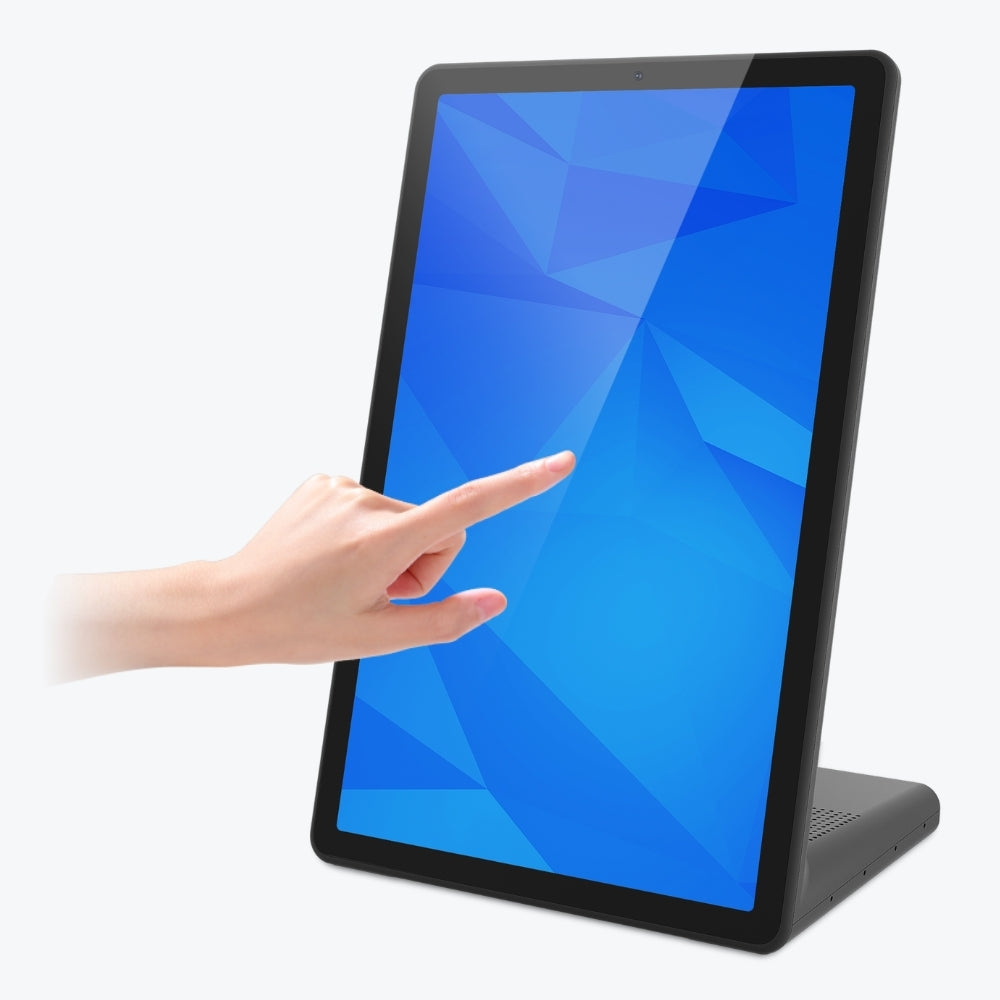

10.95-inch Multi-Touch Display

The 10.95-inch display delivers clear, detailed visuals, while full lamination and 10-point capacitive touch provide a smooth and responsive interactive experience for ordering, video communication and content browsing.

Screen Size

10.95-Inch LCD Display

Resolution

1920 × 1200

Aspect Ratio

16 : 10

Touchscreen

10-Point Capacitive Touch

OPERATING SYSTEM

Providing A More Stable, Secure, And Smooth Display Experience.

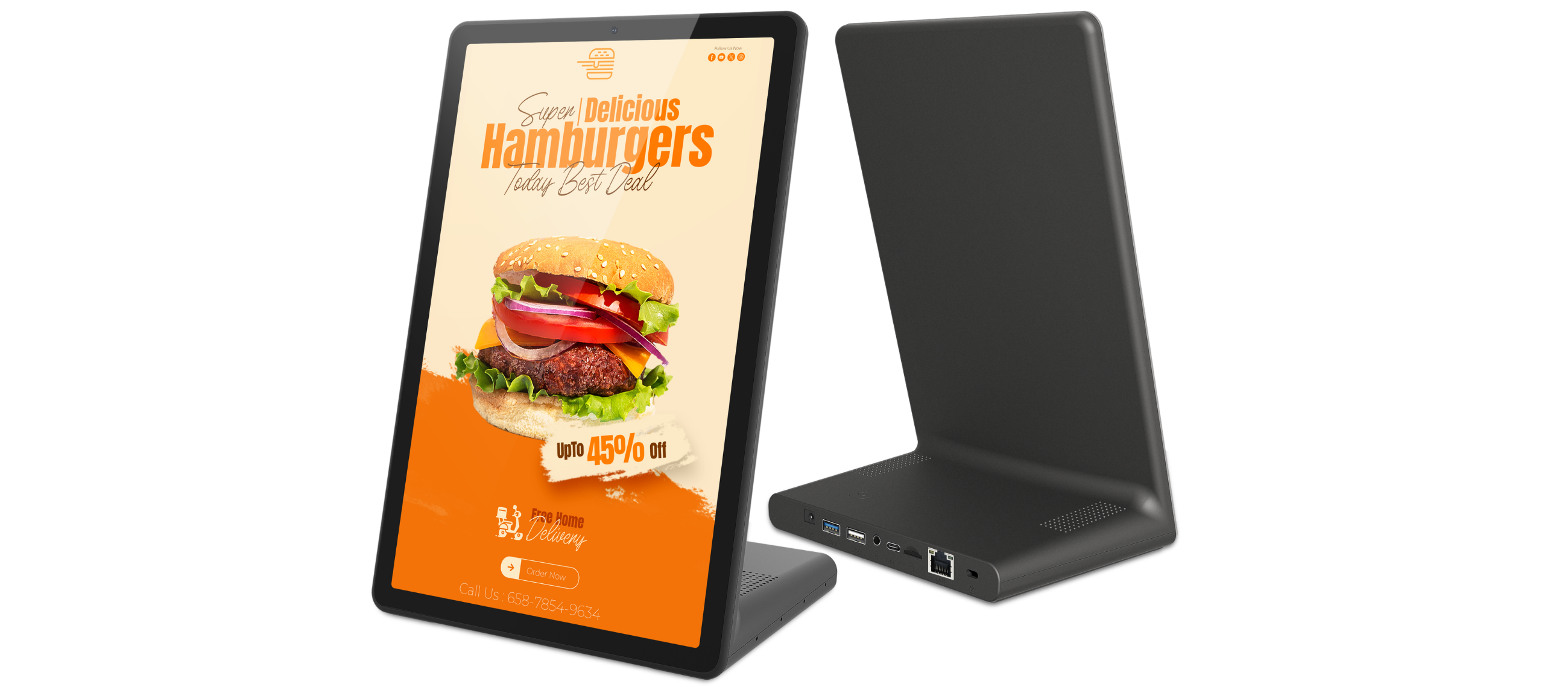

Utilize the intelligent split-screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.

PROCESSORS

Work Faster, Work More Efficiently.

We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

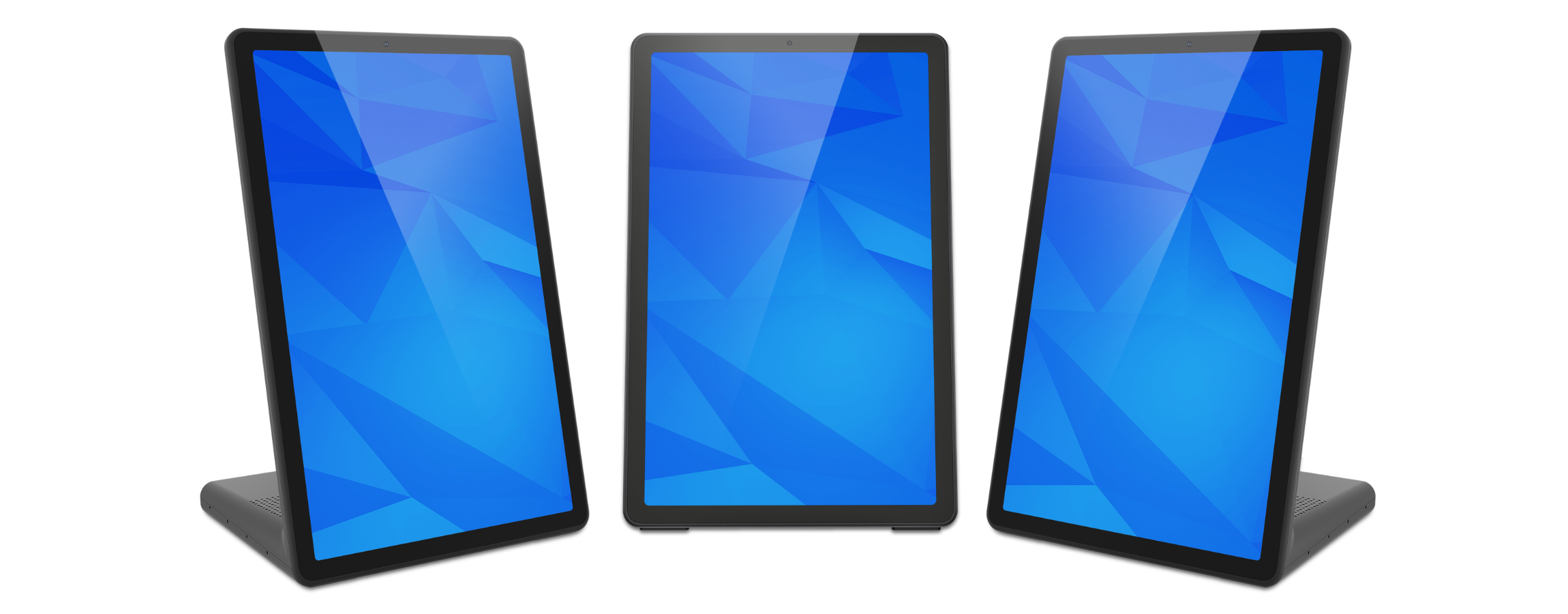

FULLY ADJUSTABLE SCREEN

Featured Content

Built-In 5MP Camera for Video Interaction

The integrated 5MP camera provides clear video capture for video calls, remote assistance and other interactive applications.

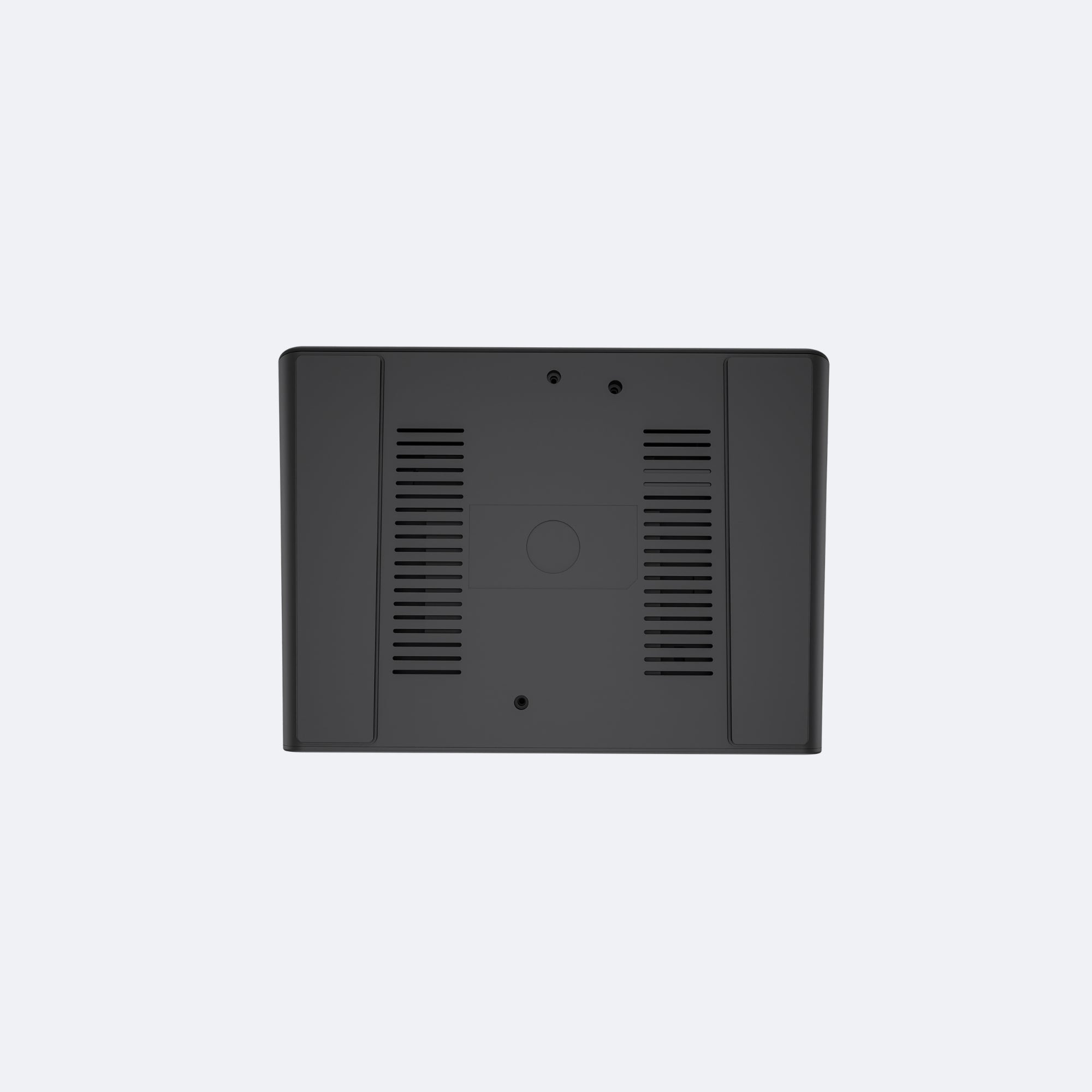

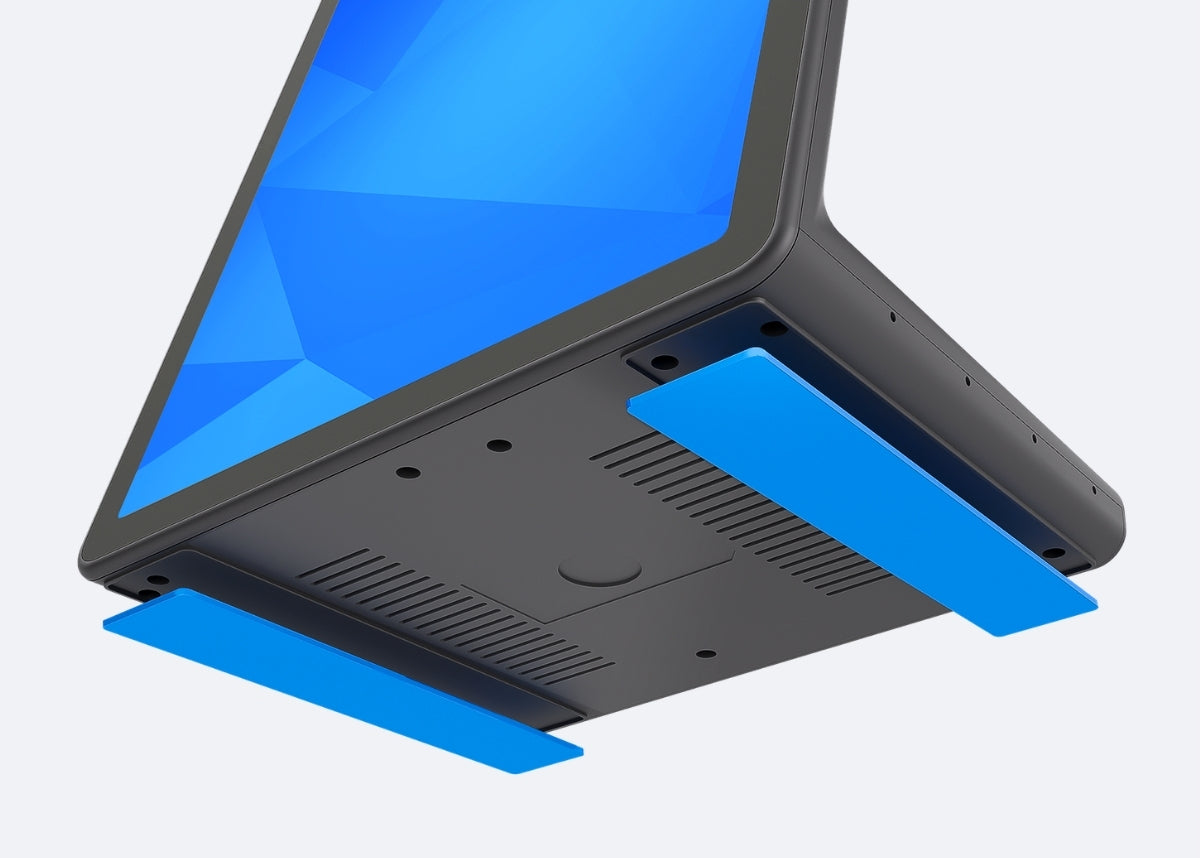

Freestanding or Secured to the Desktop

Use the non-slip latex pads for stable placement without installation, or secure the device to the desktop with the mounting plate for a fixed setup.

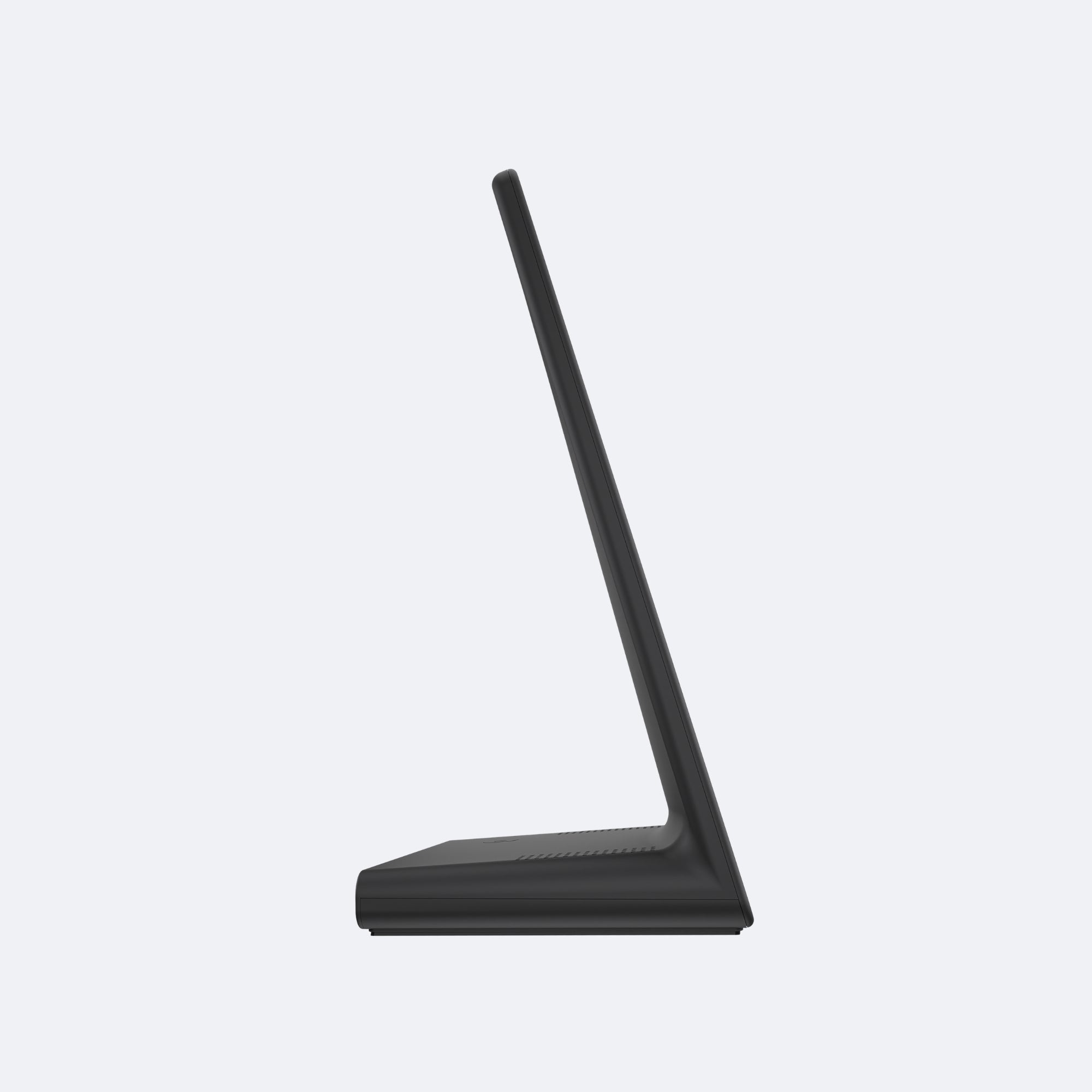

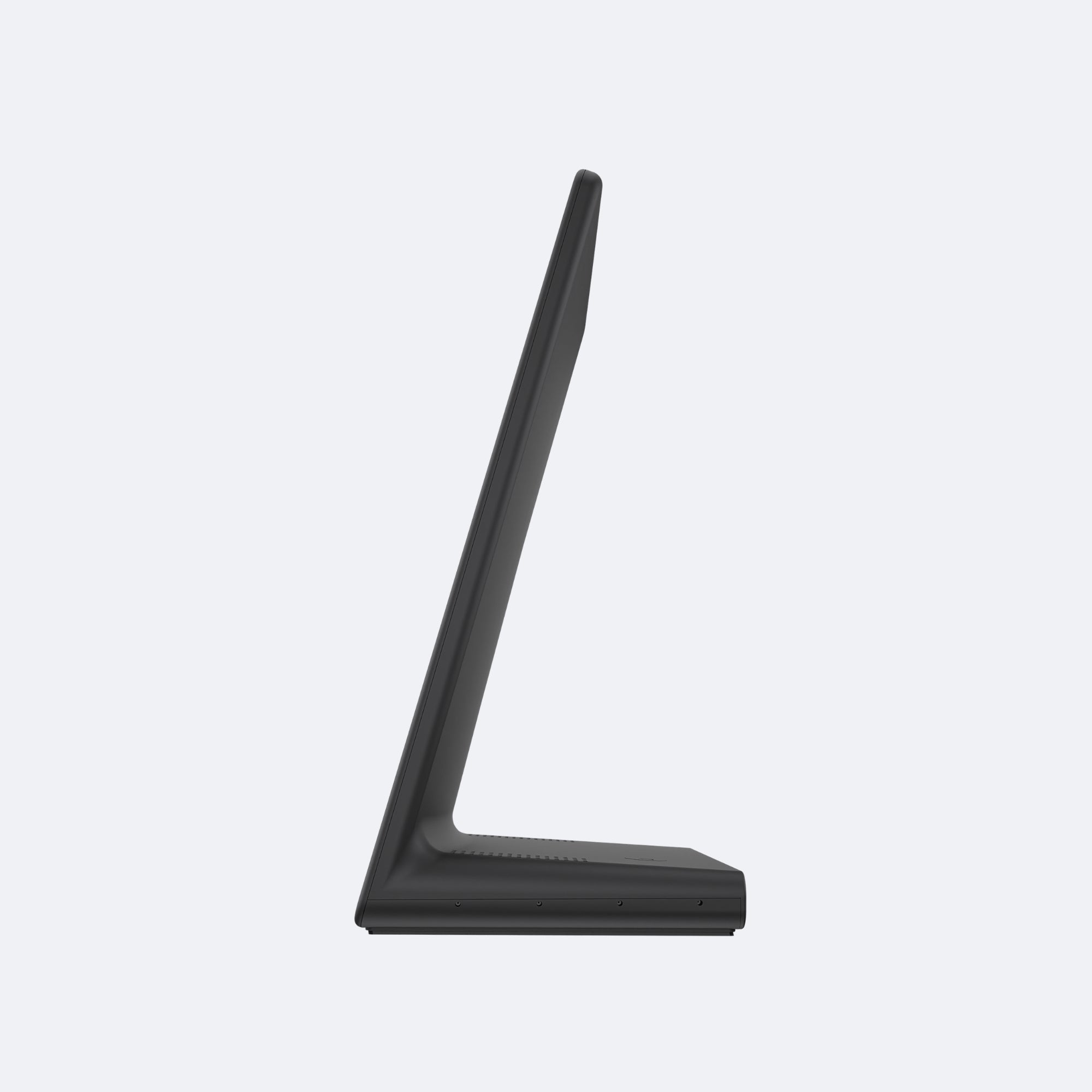

ERGONOMIC DESKTOP DESIGN

Comfortable Viewing and Interaction

The integrated desktop stand provides stable placement without requiring an external bracket. Its angled portrait display offers comfortable viewing and touch interaction for counters, service desks and other desktop applications.

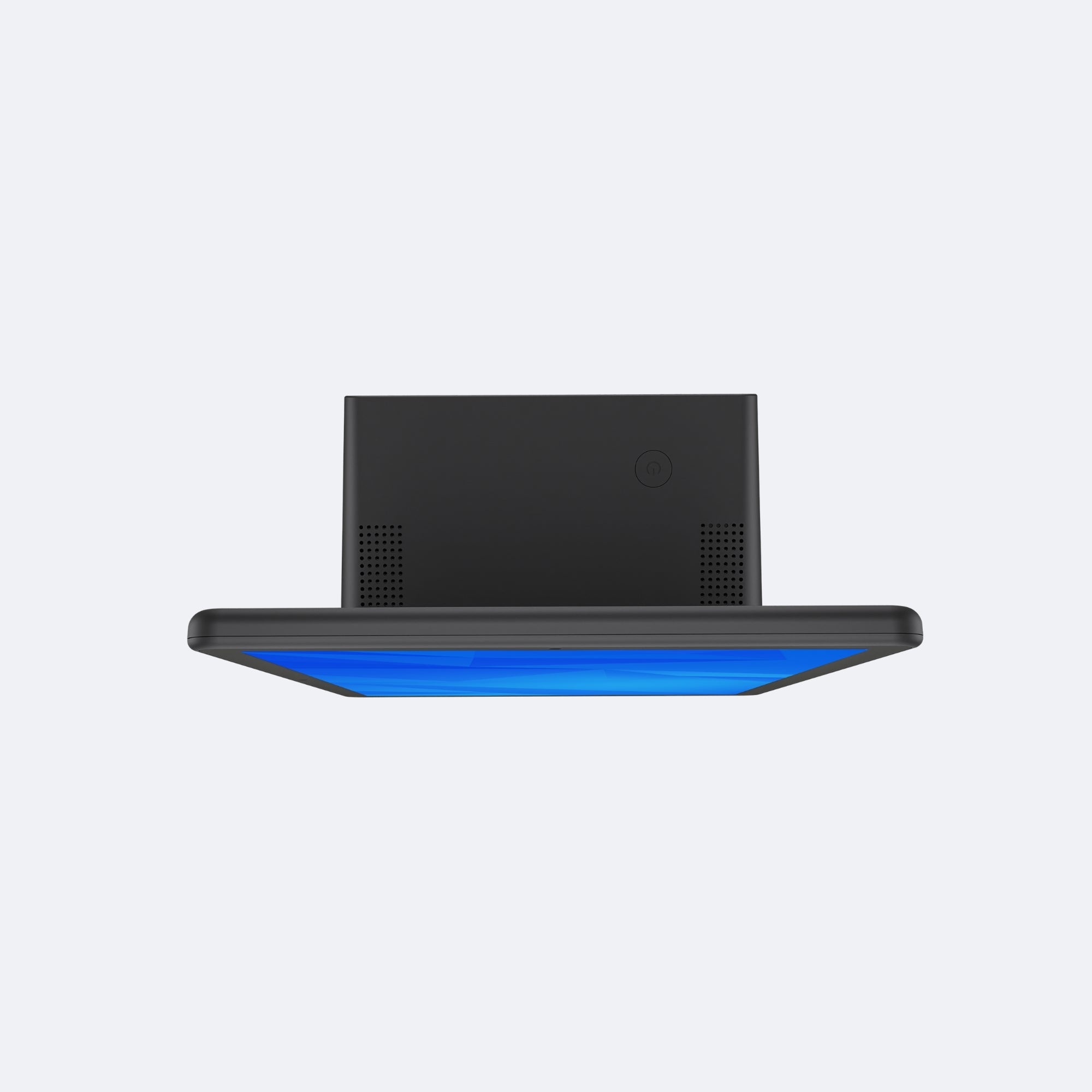

5MP CAMERA & INTEGRATED AUDIO

Designed for Clear Communication

A built-in 5MP camera, dual 2W speakers, and four microphones with noise reduction and echo cancellation support clearer two-way communication for video calls, remote assistance, and other interactive applications.

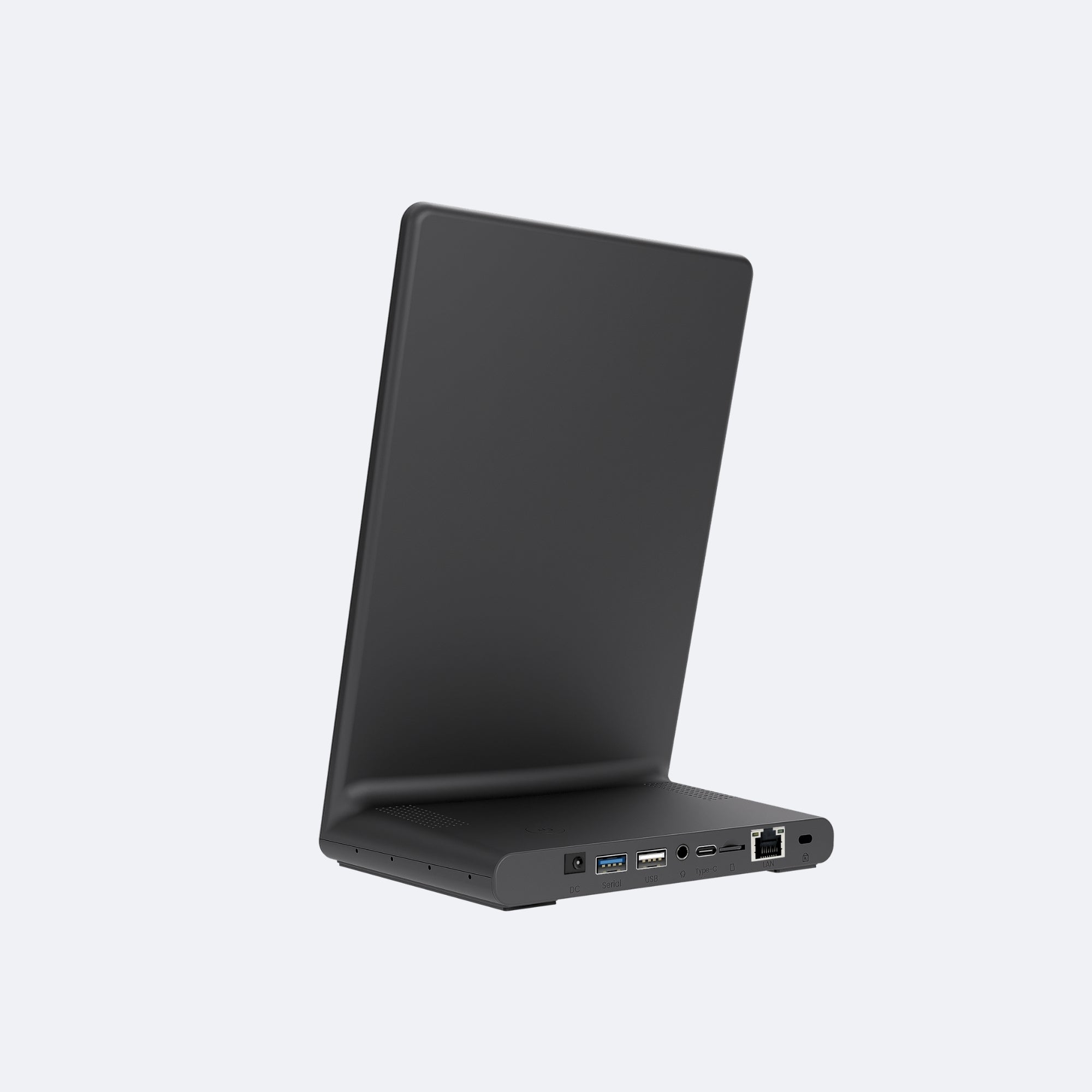

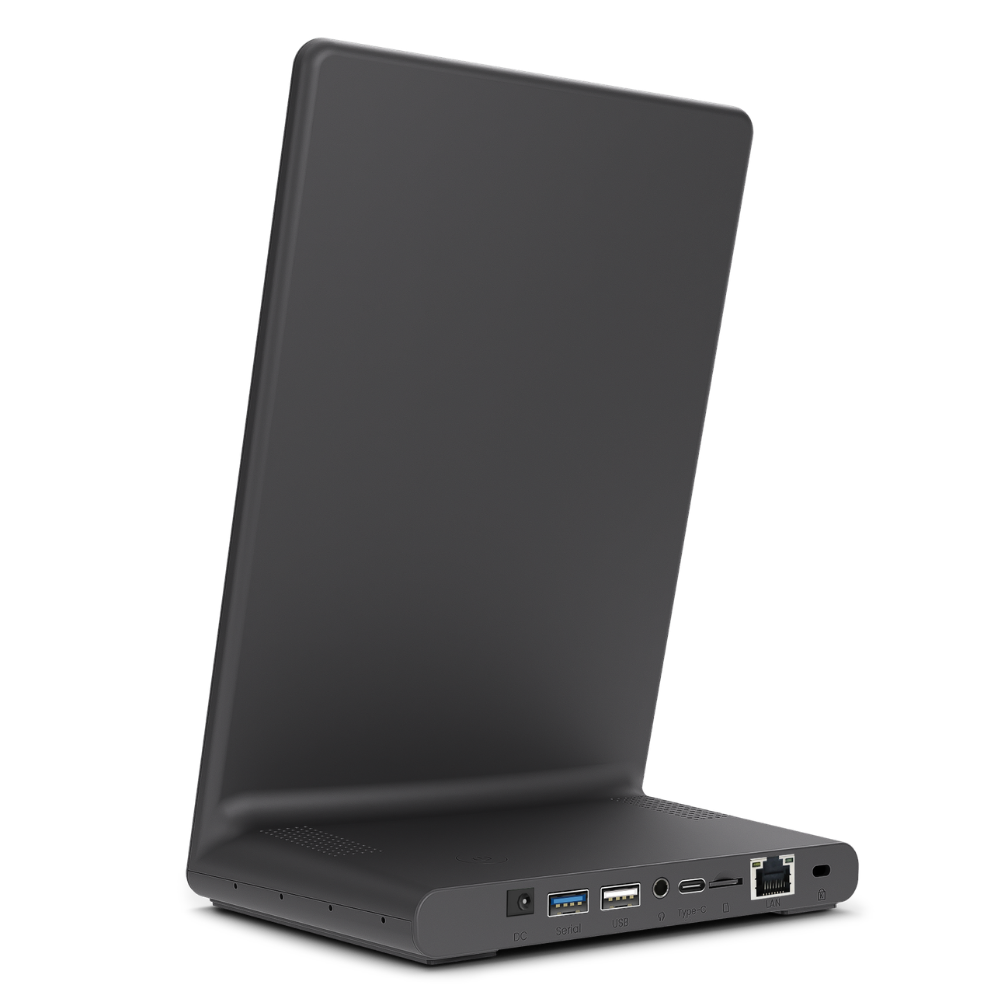

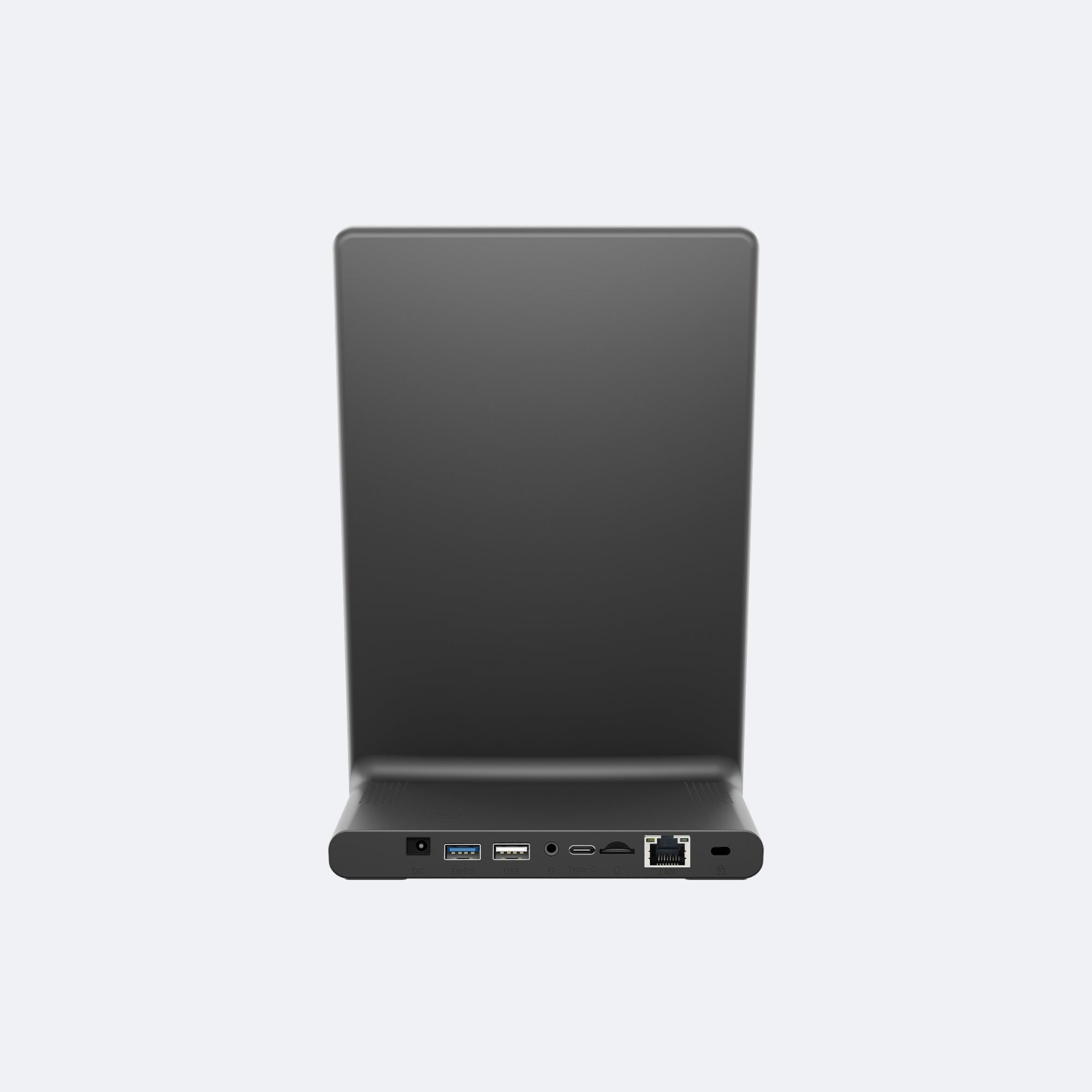

CONNECTIONS AND EXPANSION

Wired and Wireless Connectivity

Connect networks and peripherals via Gigabit Ethernet, USB 3.0 Host, Serial USB (TTL level), and Type‑C (OTG only). Wi‑Fi 6 and Bluetooth 5.4 deliver reliable wireless connectivity. Optional NXP PN7160 NFC and 125kHz RFID cater to diverse project deployments.

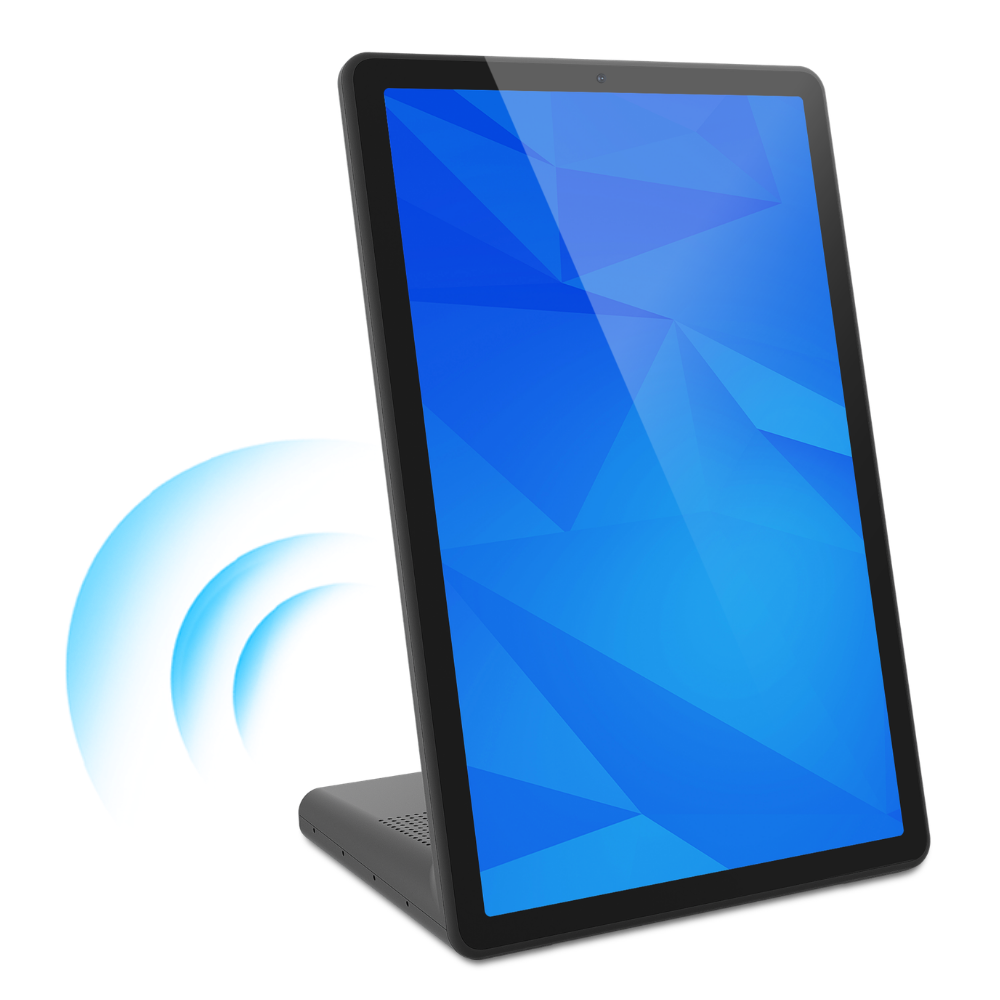

OPTIONAL NFC FUNCTION

Flexible Contactless Integration

Optional NXP PN7160 NFC supports contactless card and tag reading for access control, check-in, user identification and data exchange. Compatibility with ISO/IEC 14443 A/B, ISO/IEC 15693, MIFARE and FeliCa simplifies integration with a range of NFC-based systems.
