WA1032T | WA1036T | WA1038T | WA1039T

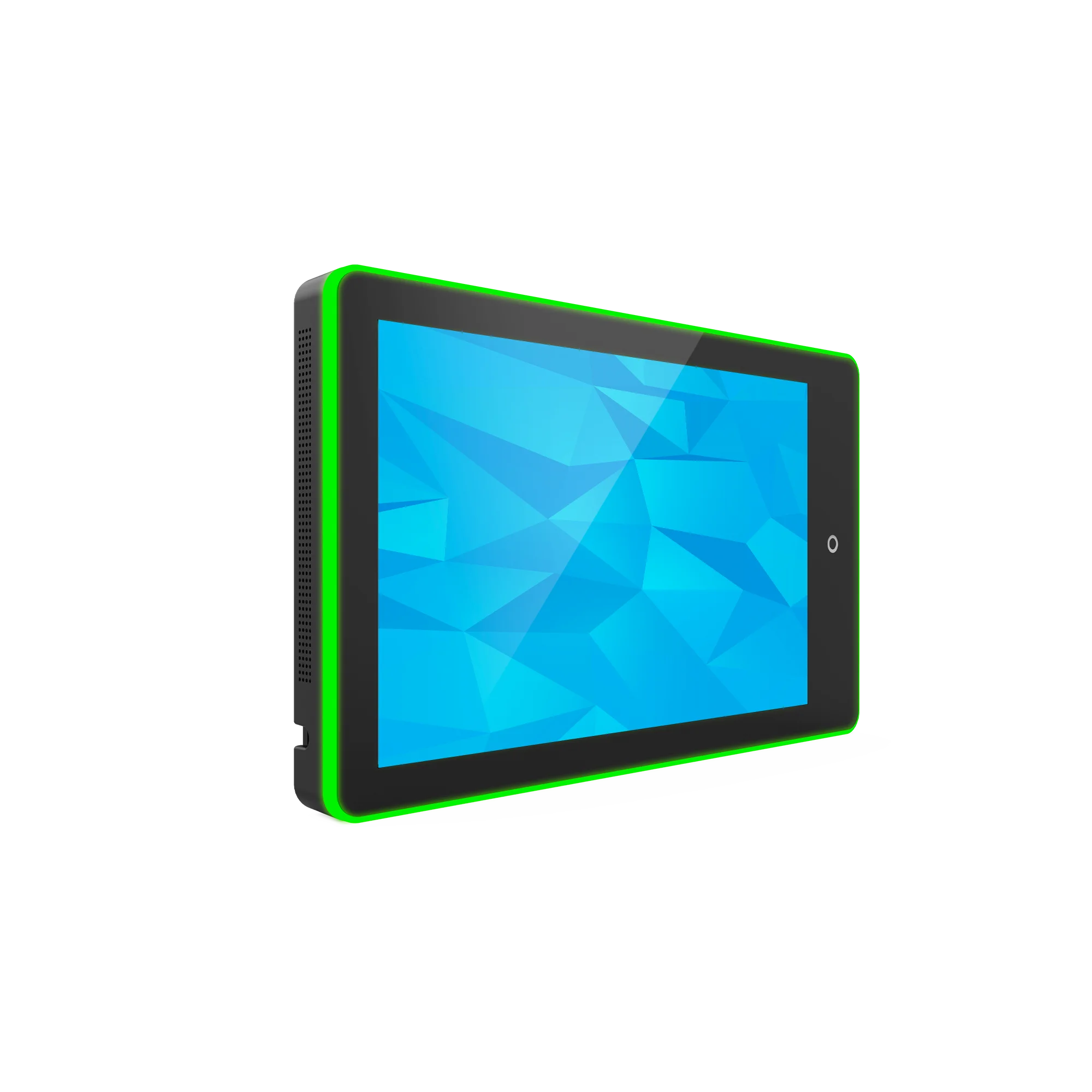

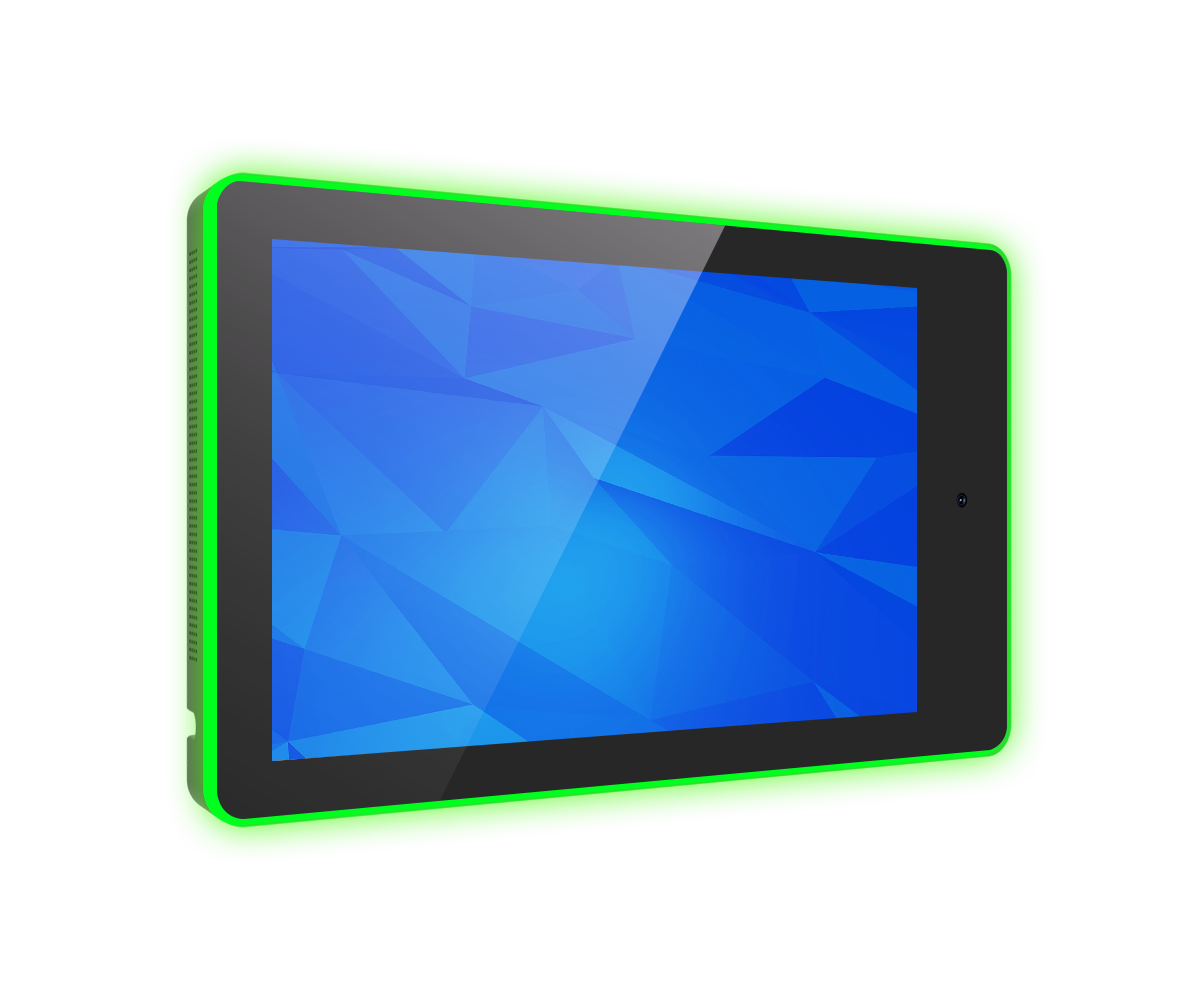

10.1" Edge-Light Tablet

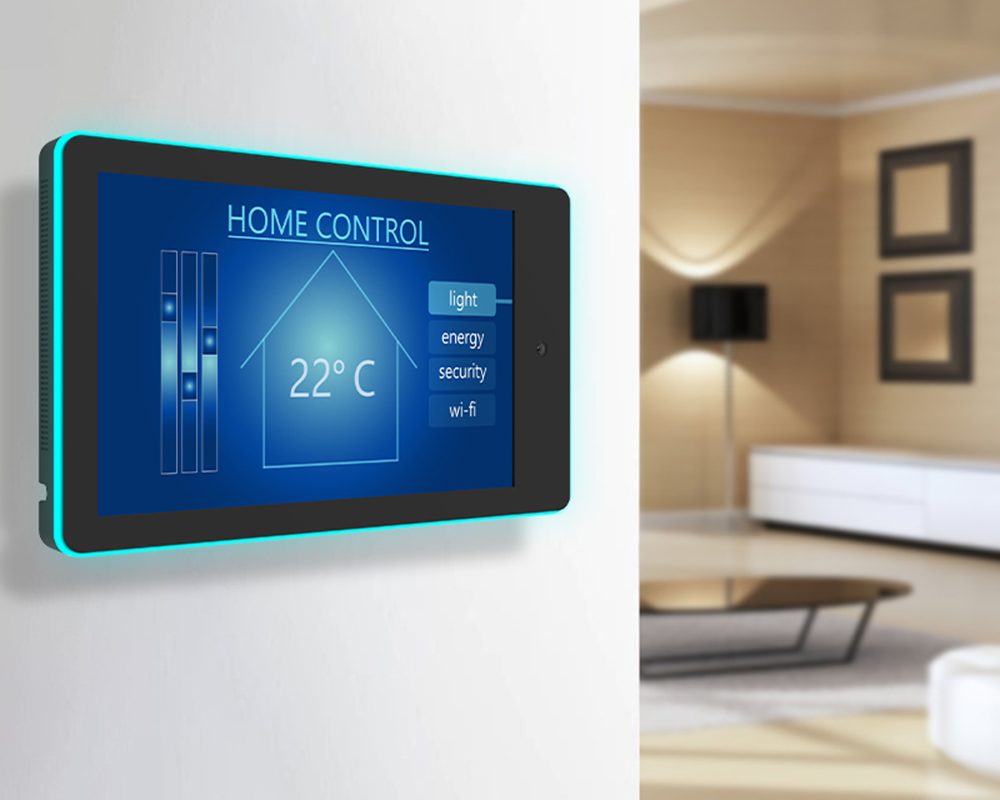

Designed for meeting rooms, reception areas, retail displays and interactive signage, these 10.1-inch Android tablets combine responsive touch control with RGB edge lighting for clear status indication and engaging commercial interaction.
DISPLAY
10.1-Inch HD Touchscreen

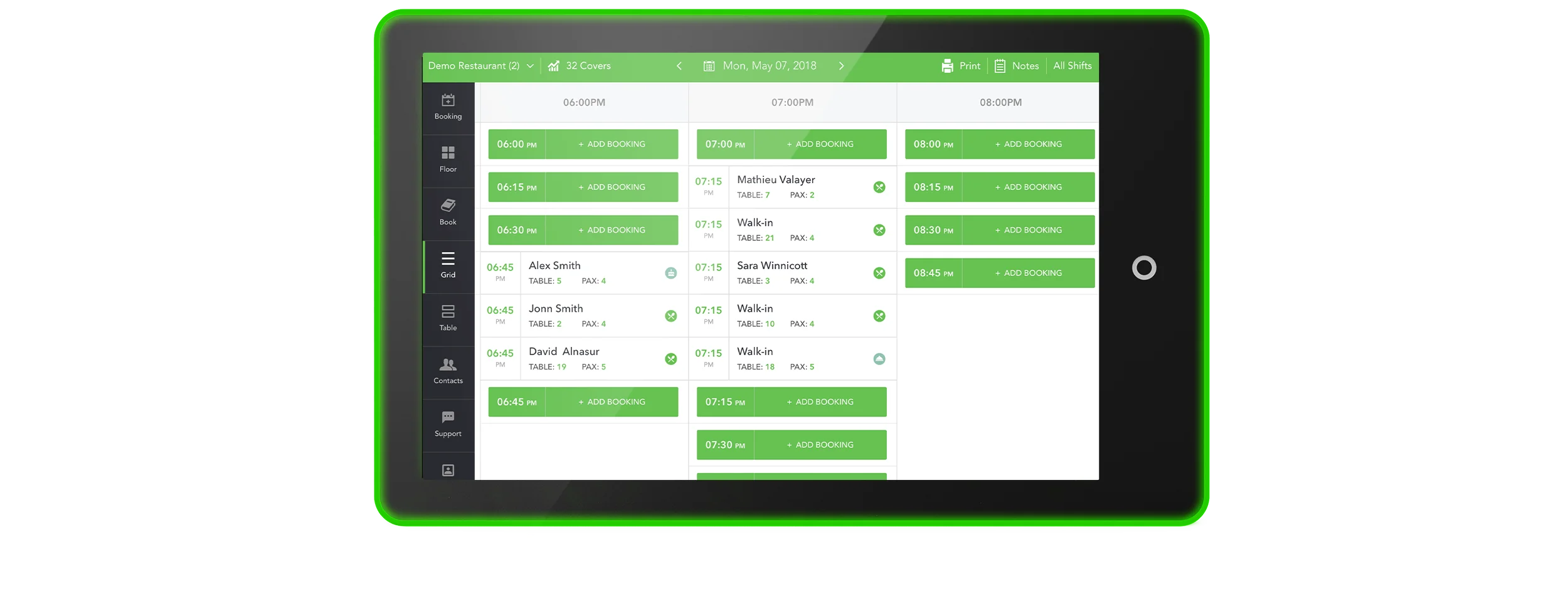

The 10.1-inch display features 10-point capacitive touch, providing responsive and accurate control for room booking, schedule viewing and meeting check-in.

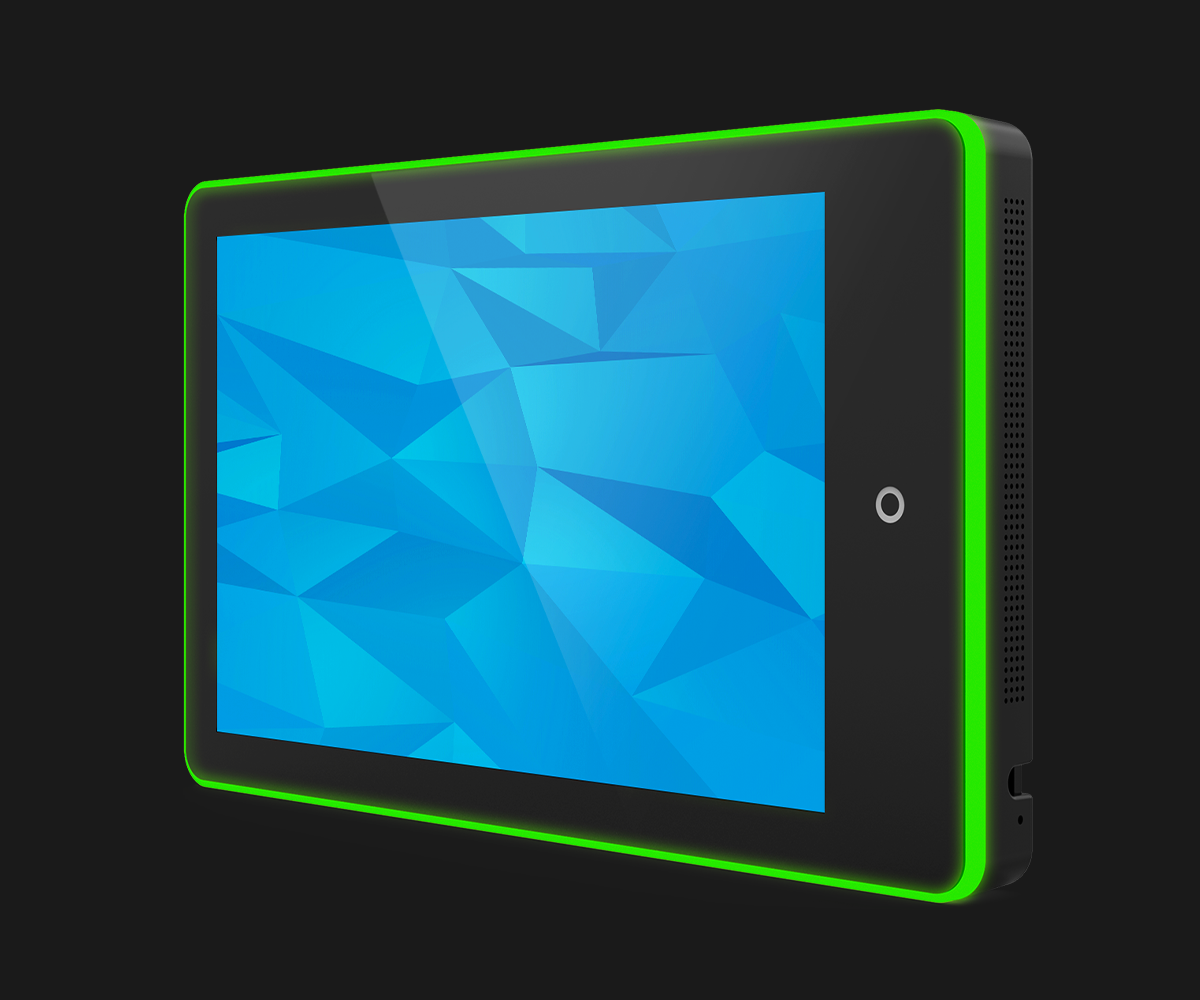

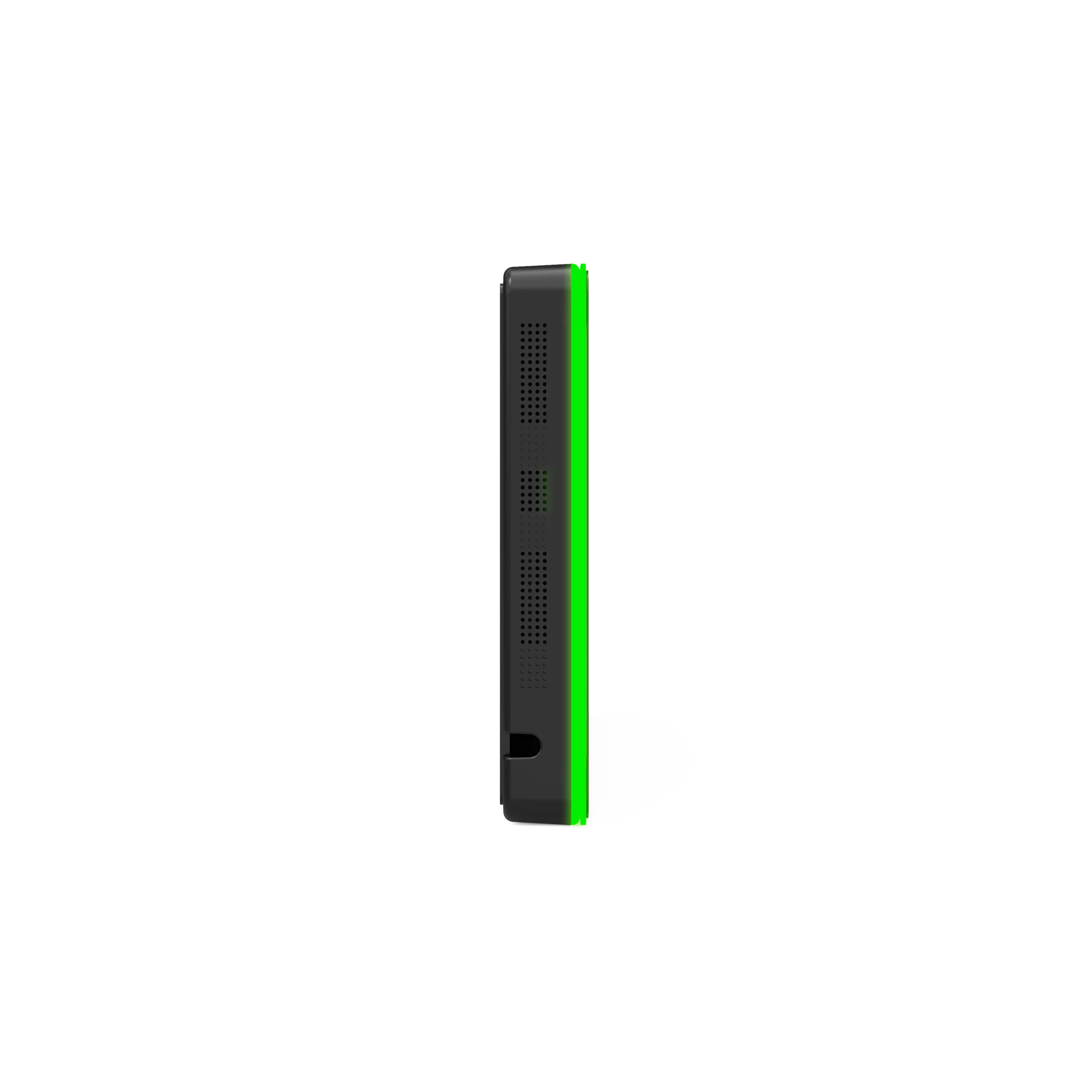

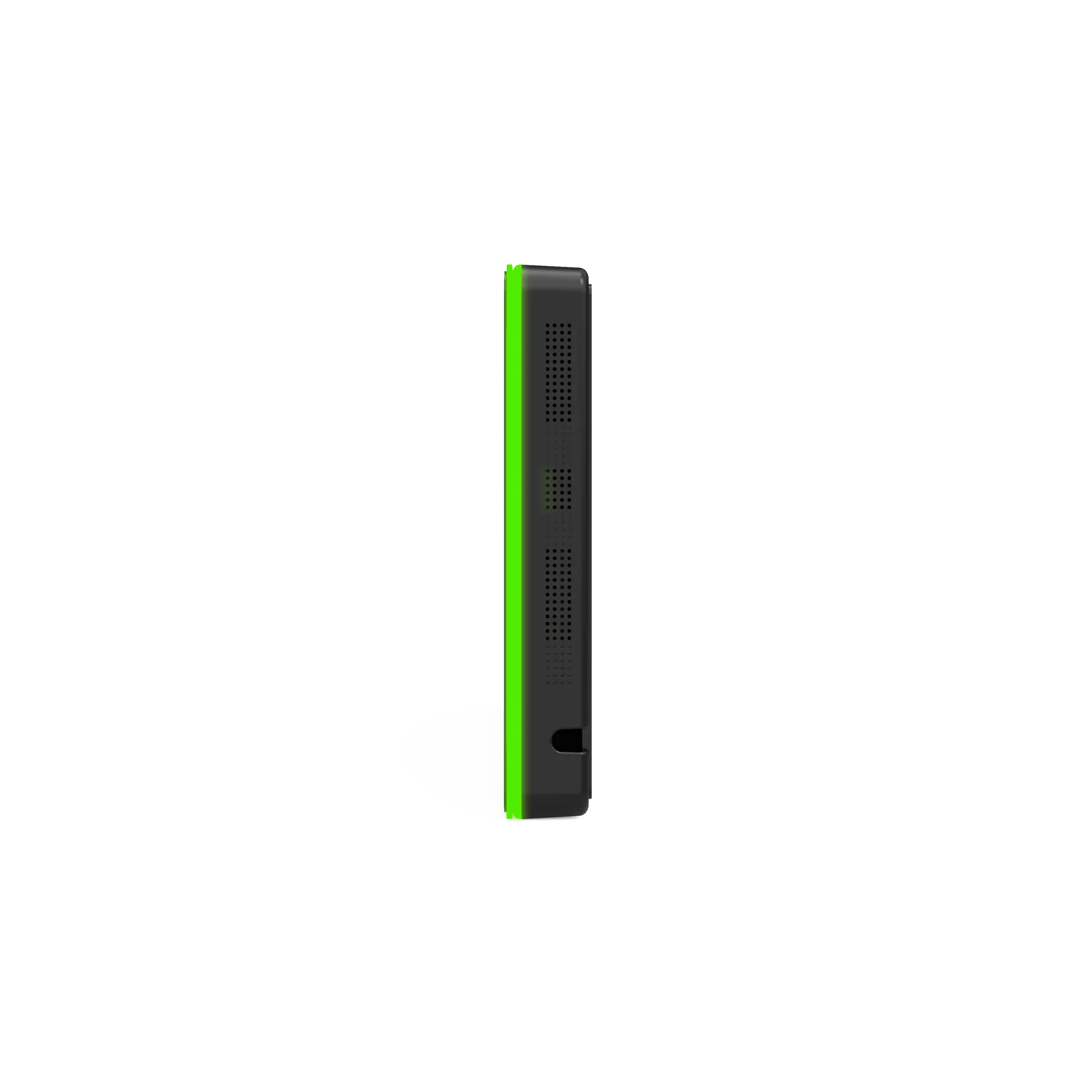

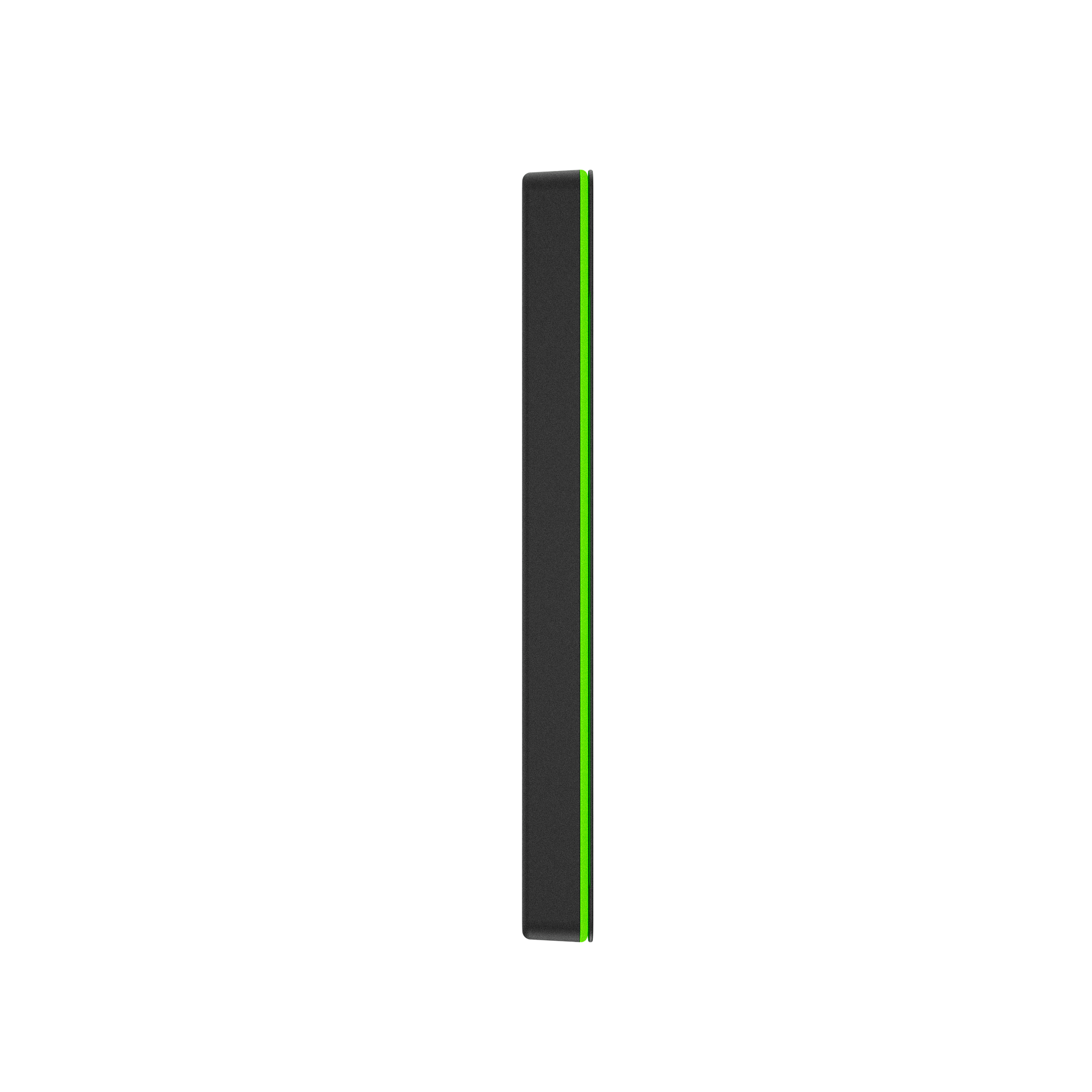

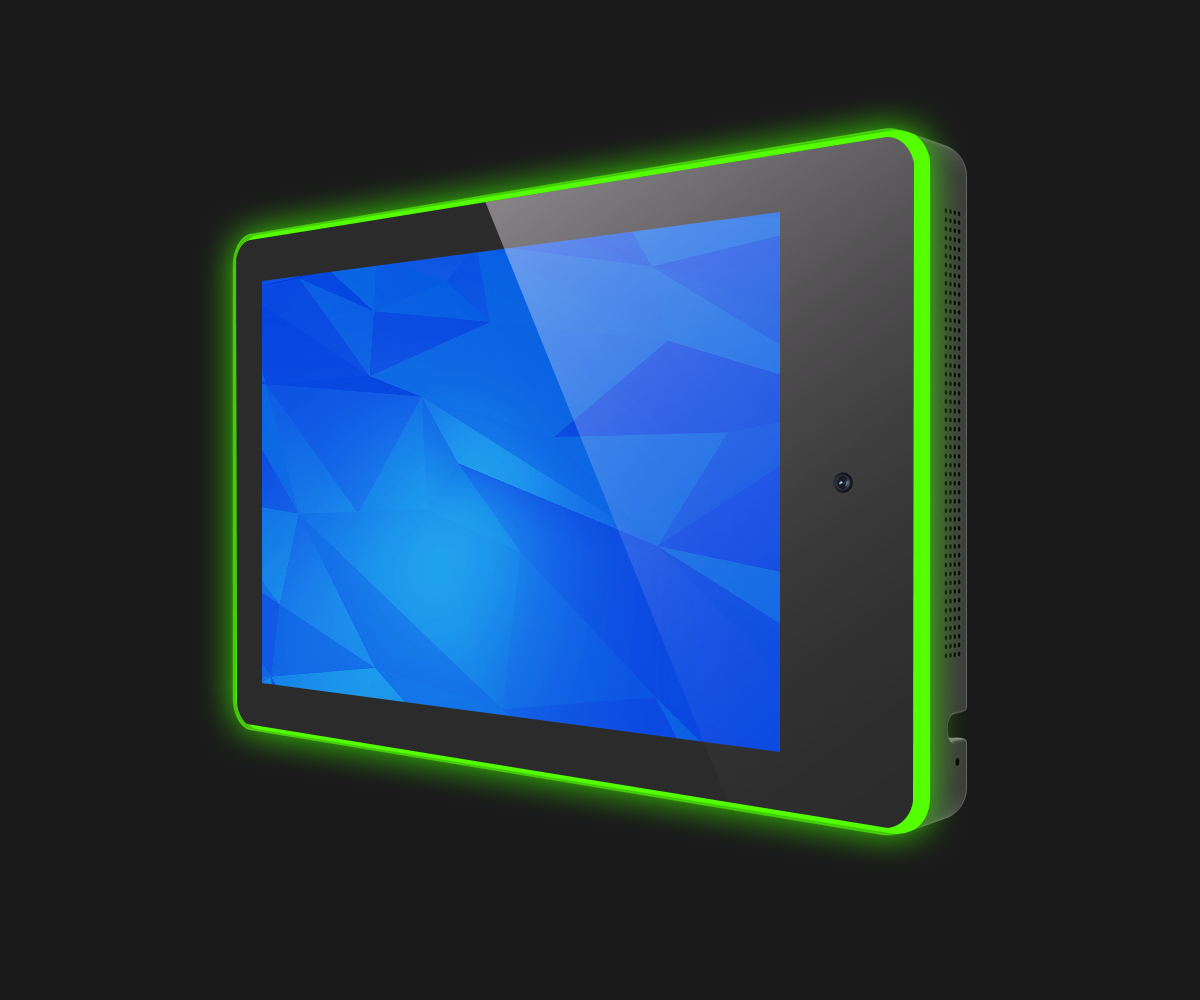

RGB EDGE LIGHTING

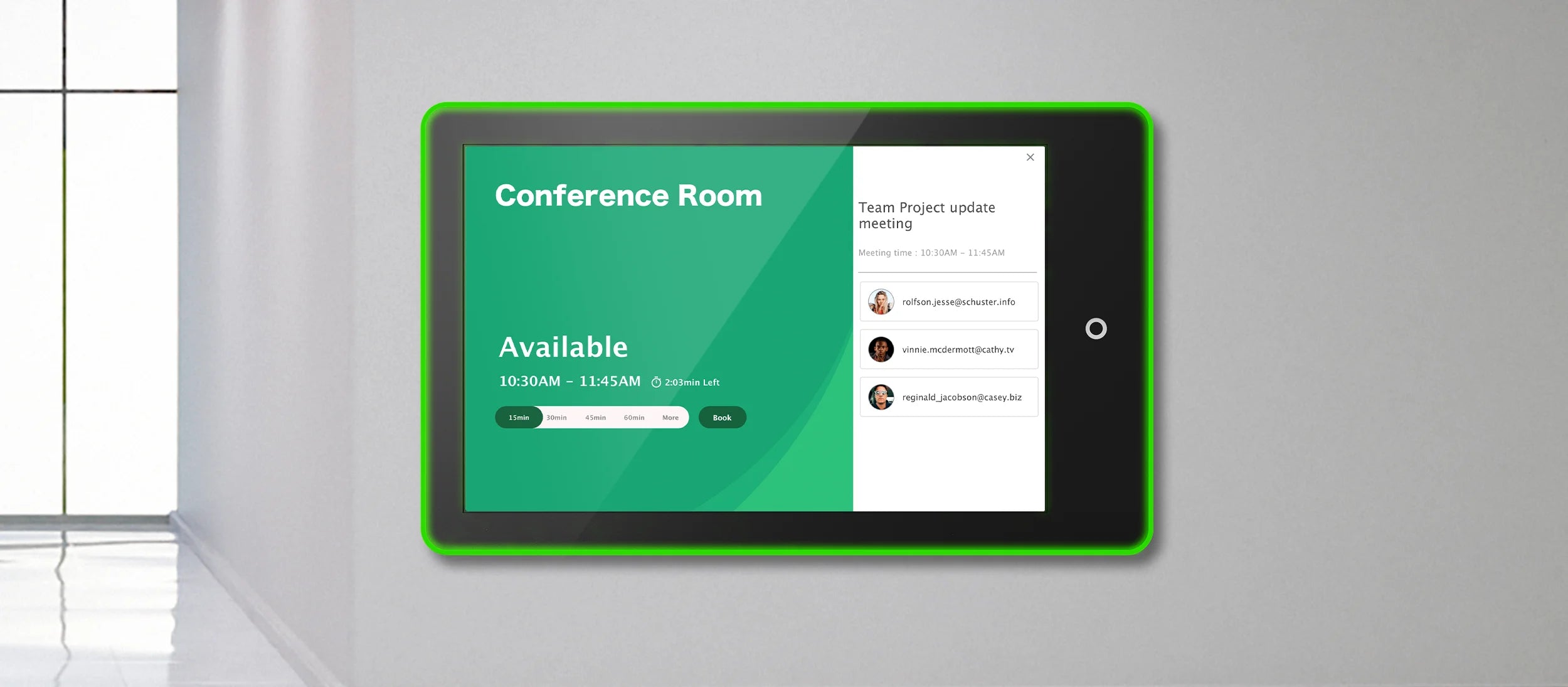

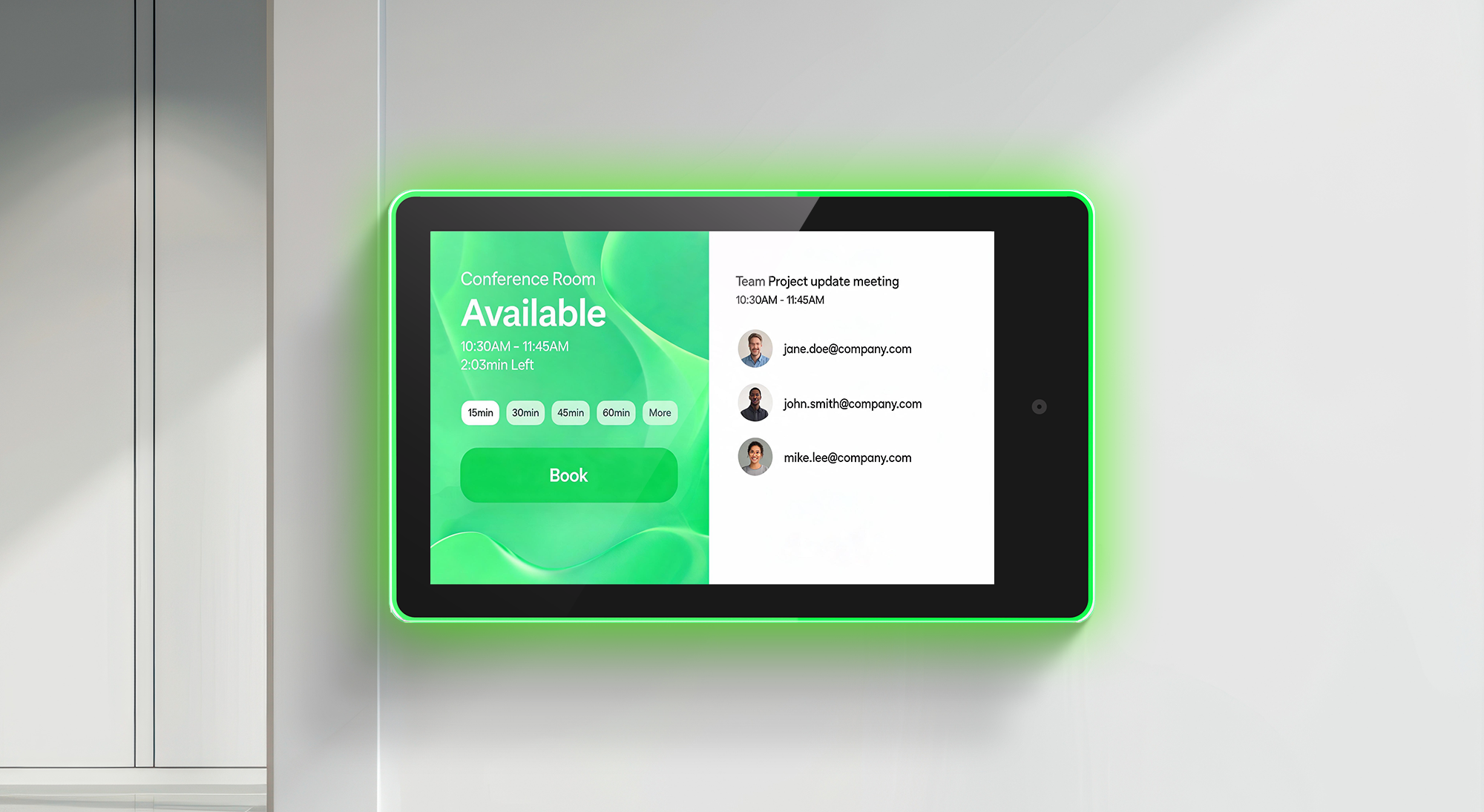

Show Room Status at a Glance

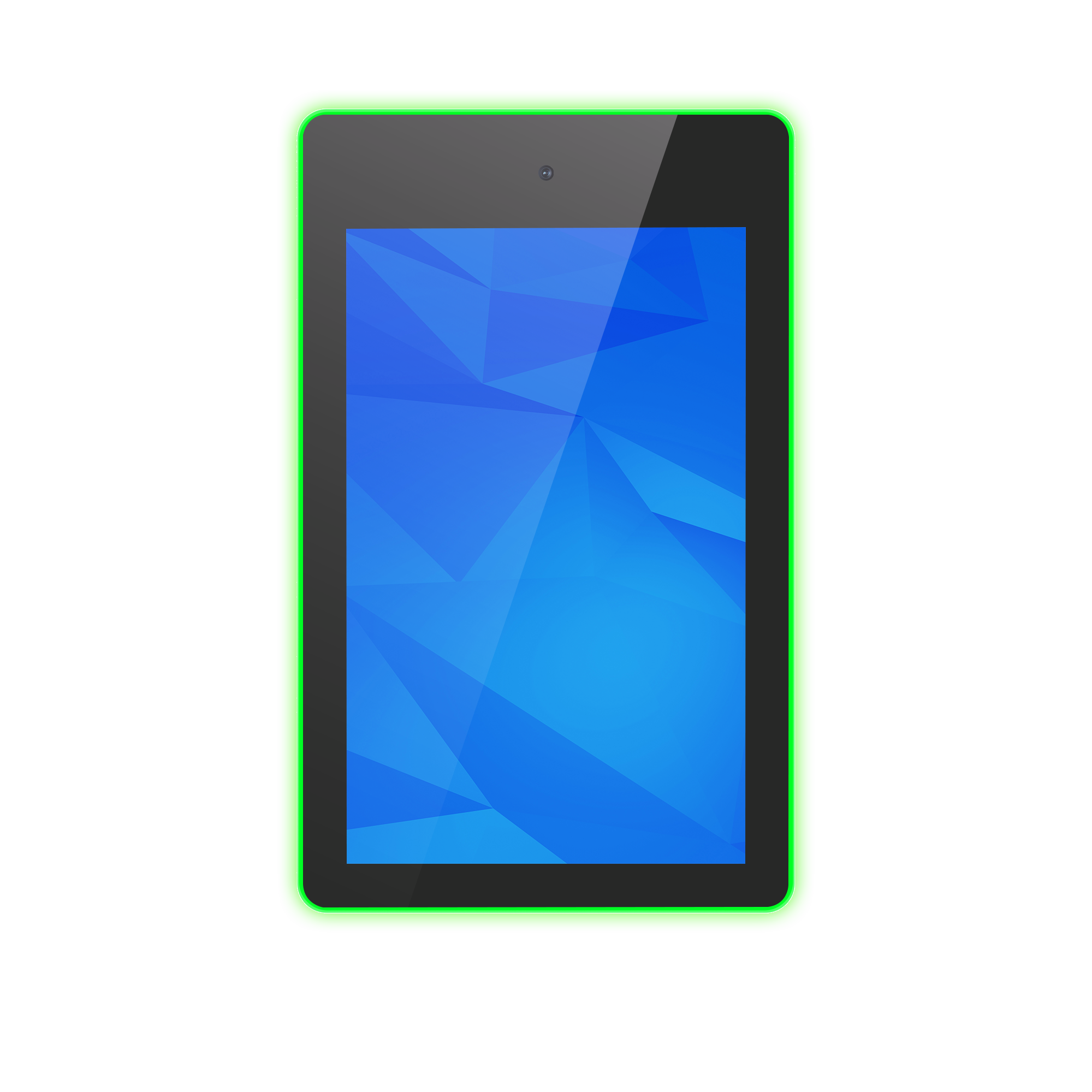

Customize the RGB edge lighting to reflect room availability. Use green for available, red for occupied, or other colors for different booking states.
4 INSTALLATION METHODS
Mount It the Way You Like.

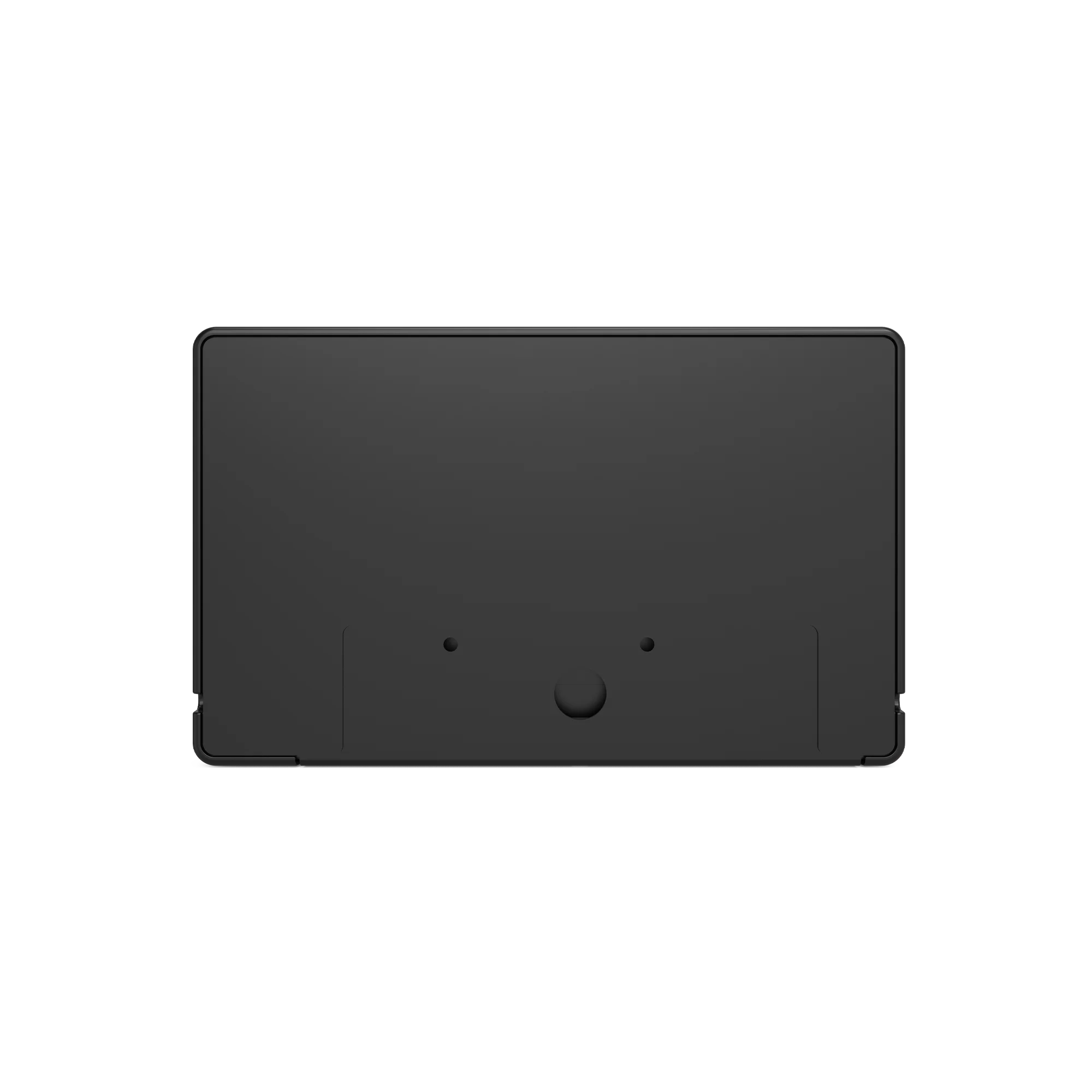

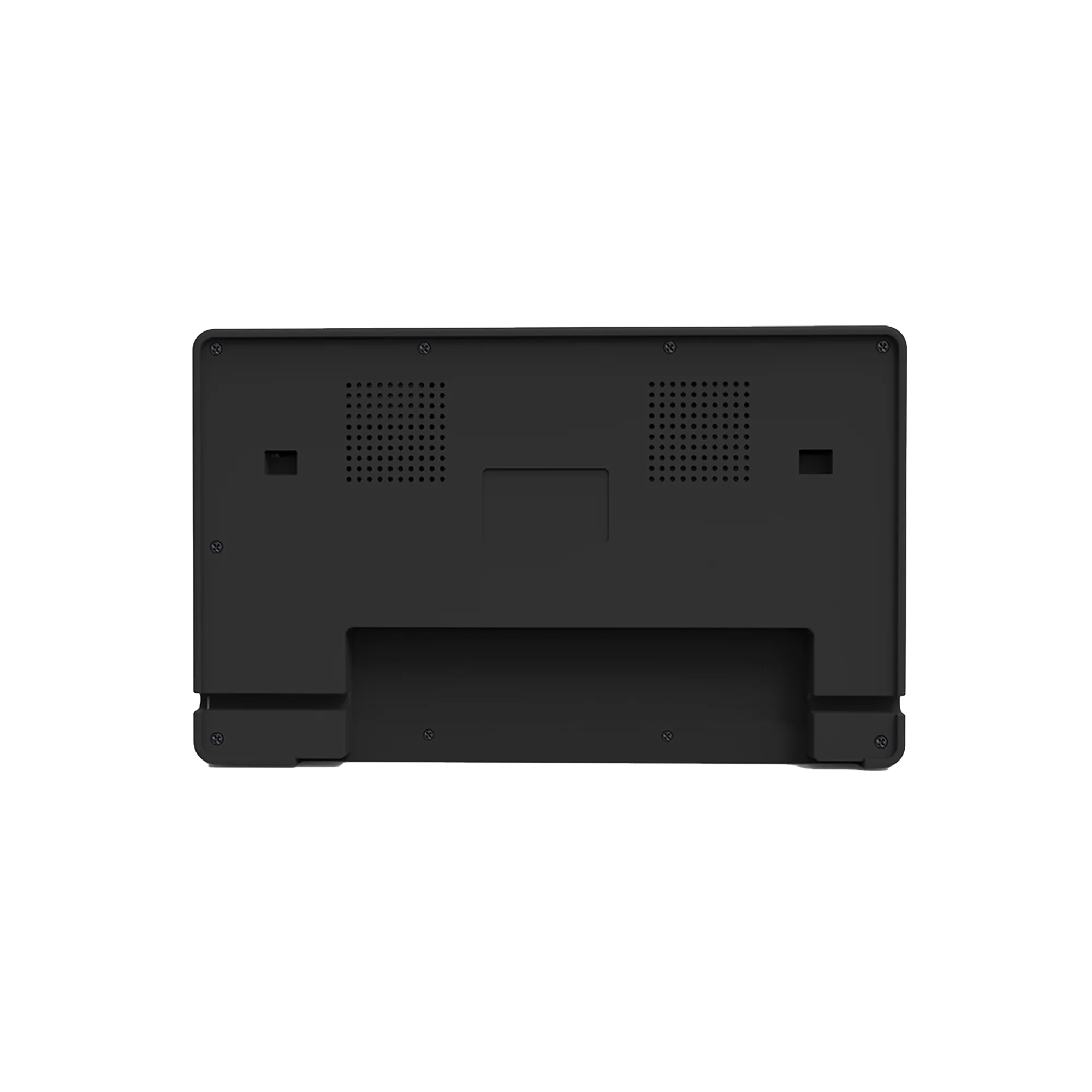

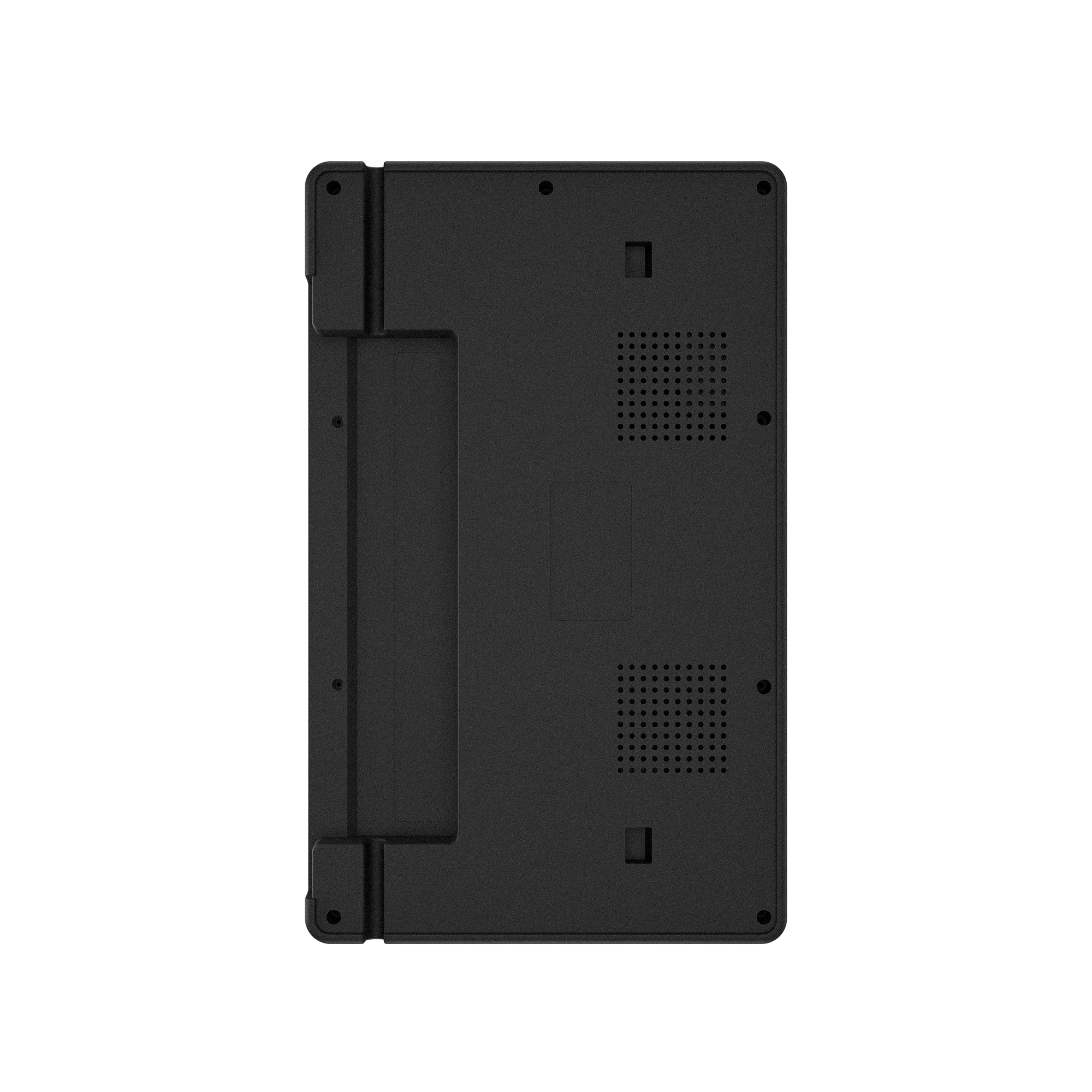

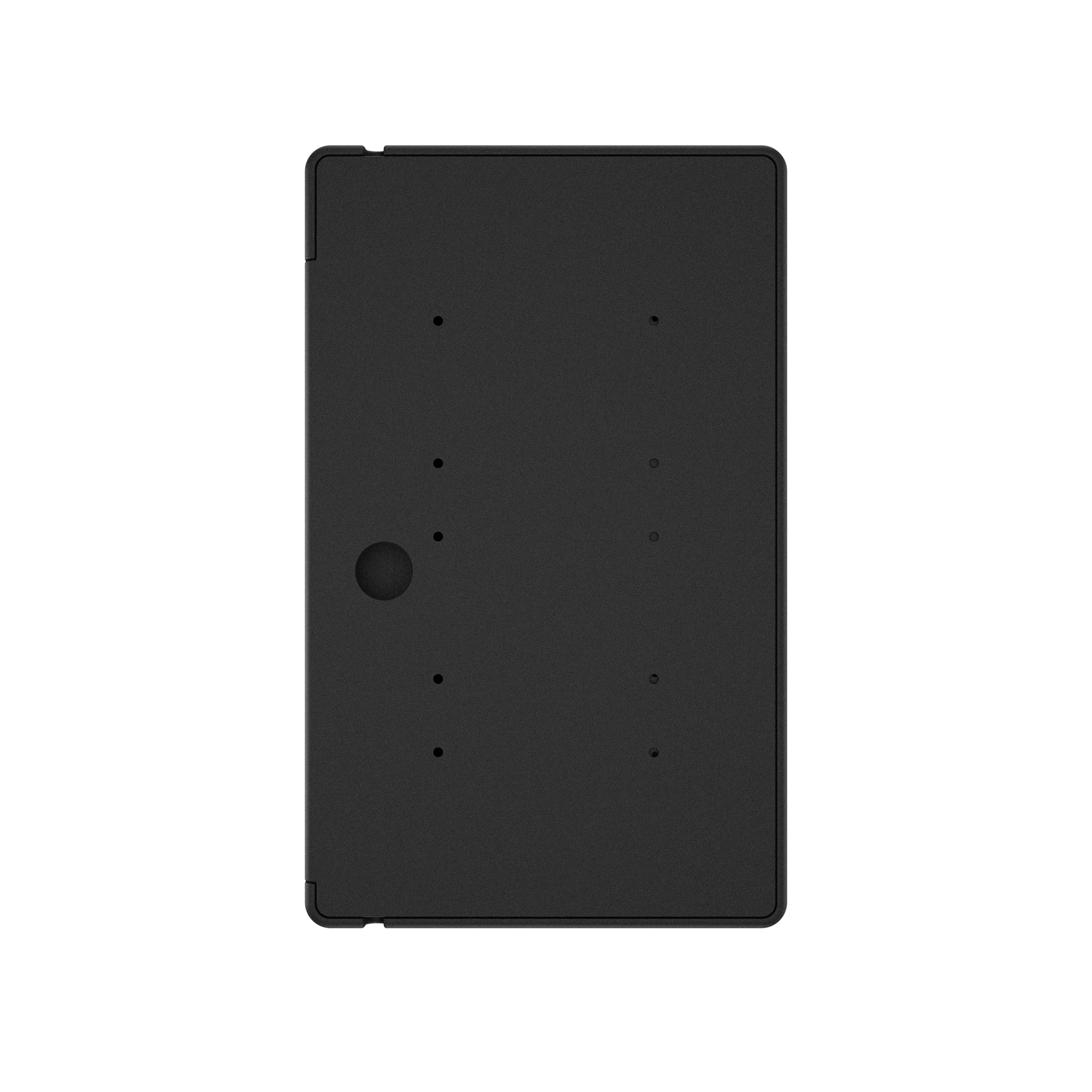

Mounting points on the back support flexible installation for different meeting room layouts. Mount the tablet on a wall, place it on an optional desktop or floor stand, or secure it to a flat surface with 3M adhesive tape.
Wall Mount
Desk Stand
Floor Stand
Mount with 3M Tape

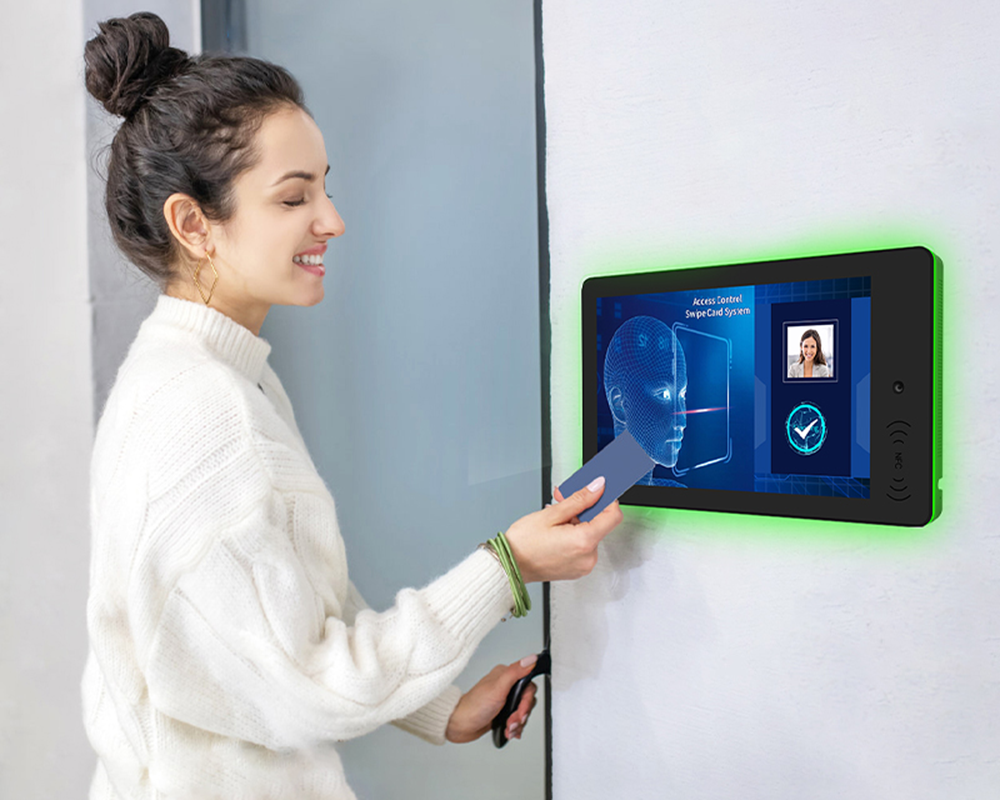

OPTIONAL NFC
Fast and Secure Check-In

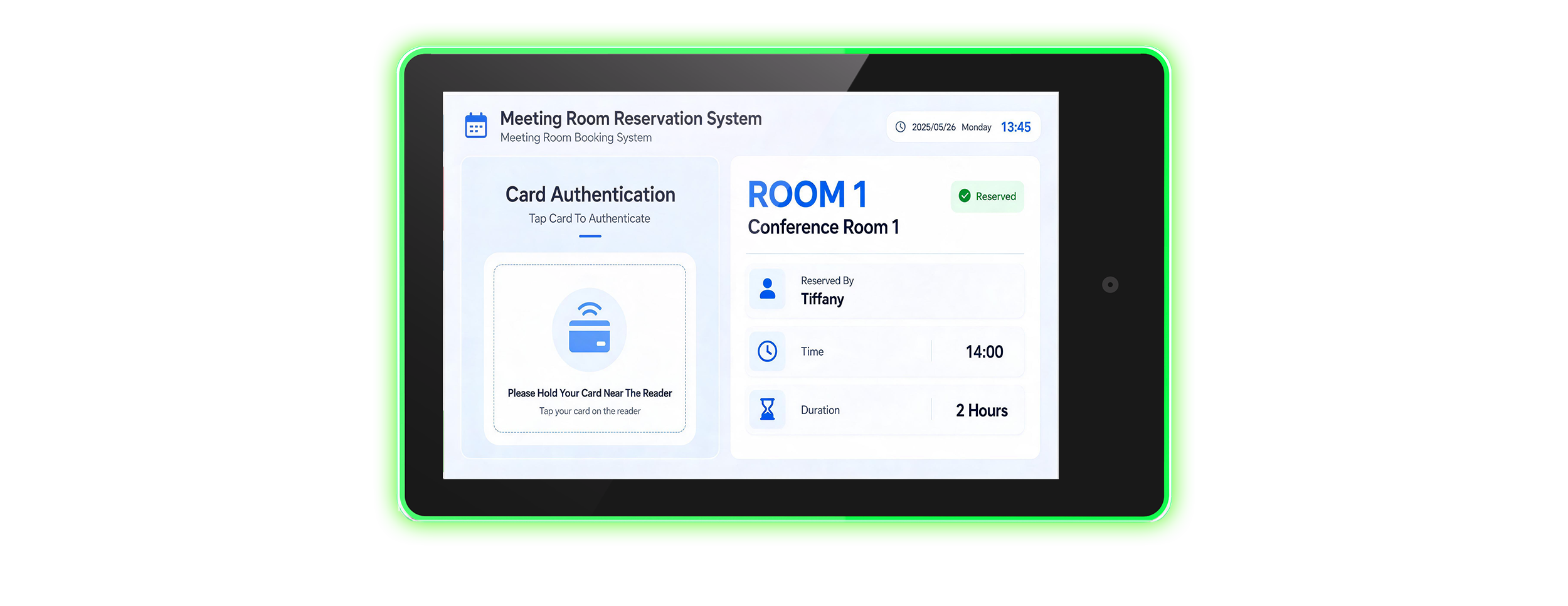

The tablet can be optionally equipped with NFC for contactless meeting check-in and employee identification. With compatible software, users can simply tap an NFC card or enabled device for faster access and attendance management.
PORFORMANCE
Choose the Processor You Need.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.
OPERATING SYSTEM
Easy Management With Android Devices.
Easily personalize devices to suit your needs. Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.

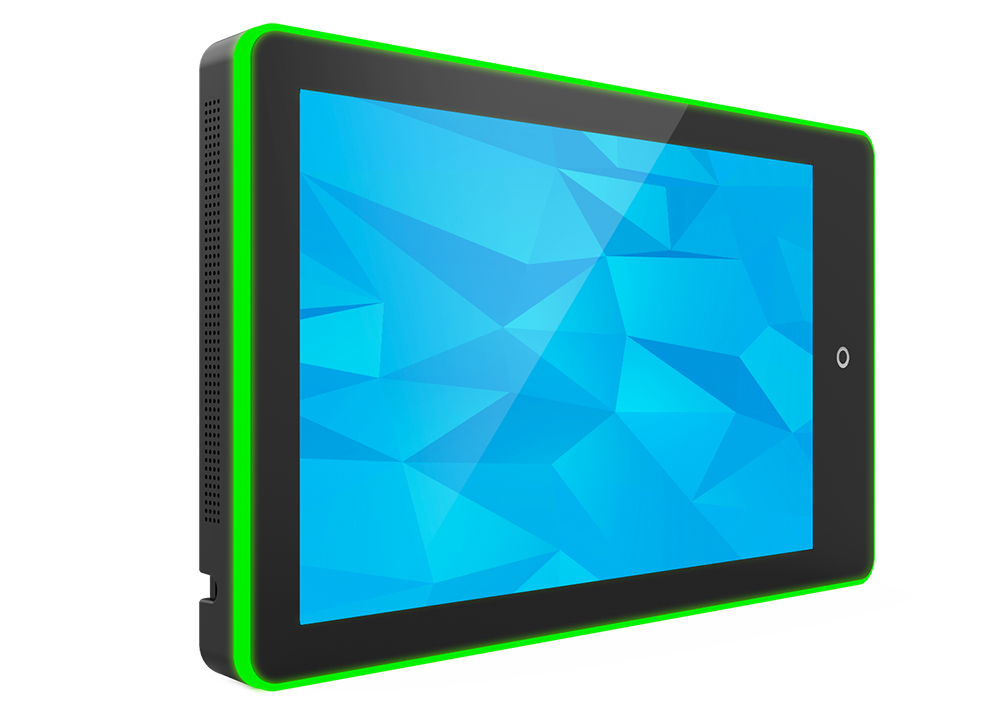

BUILT-IN CAMERA, DUAL SPEAKERS AND MICROPHONE
Integrated Audio and Video

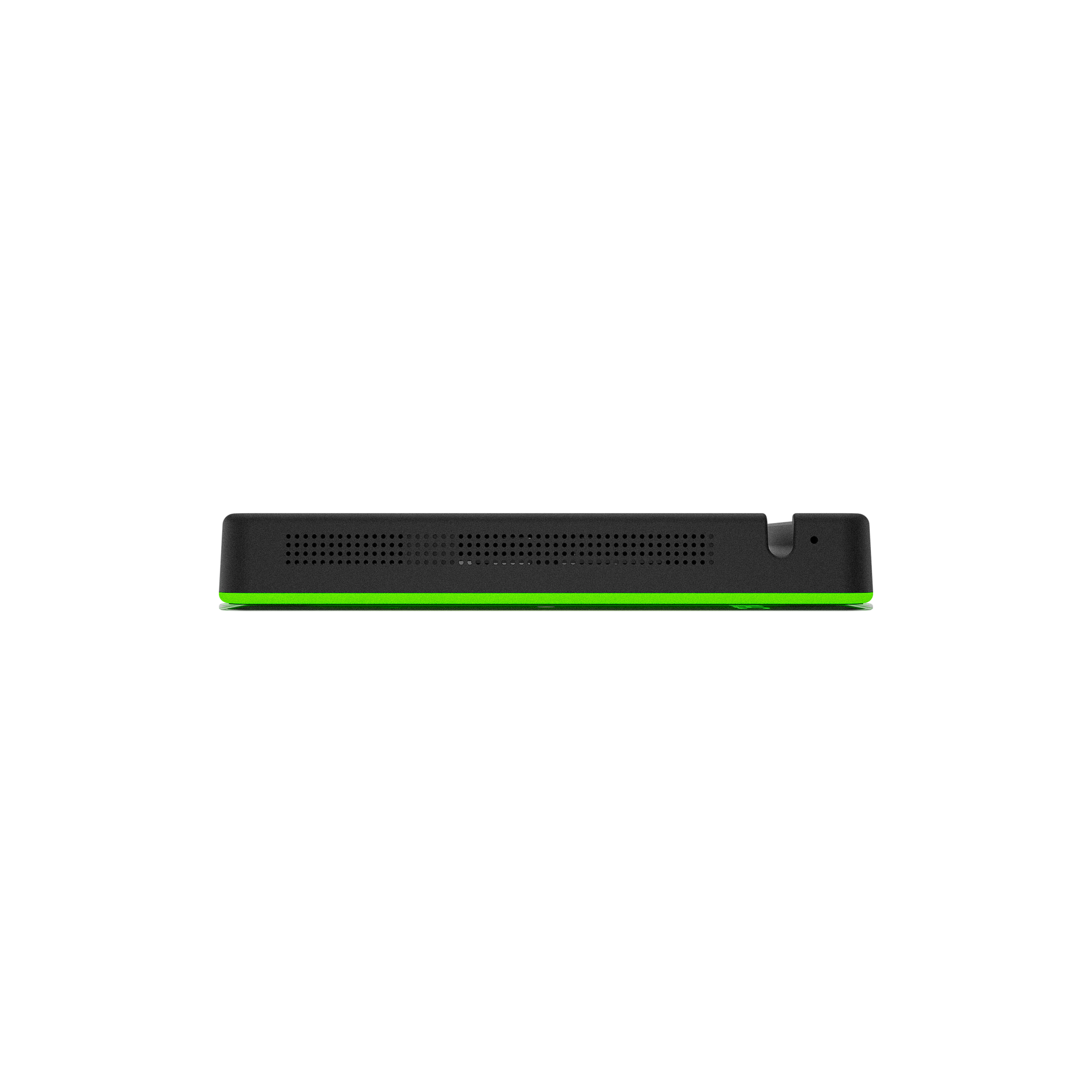

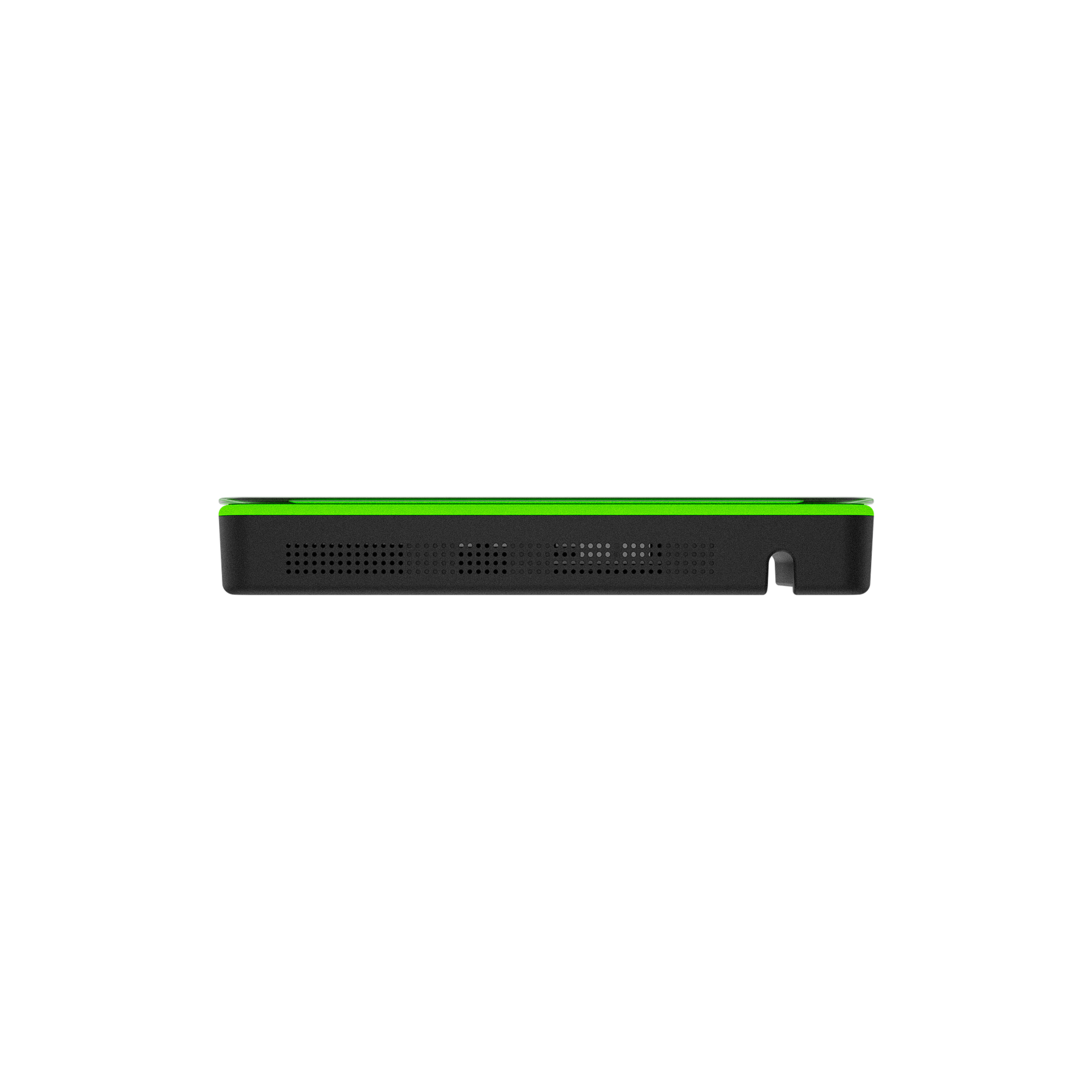

The built-in 2MP wide-angle camera, dual 2W speakers and microphone provide essential audio and video support for meeting check-in, remote communication and other compatible applications.

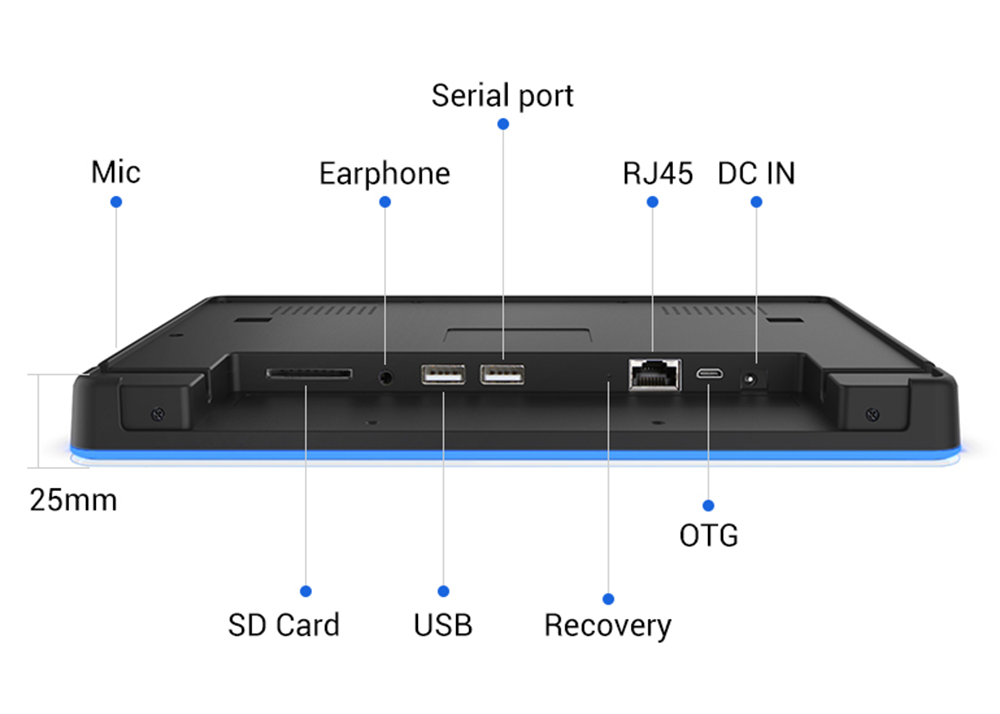

CONNECTIONS AND EXPANSION
Flexible System Integration

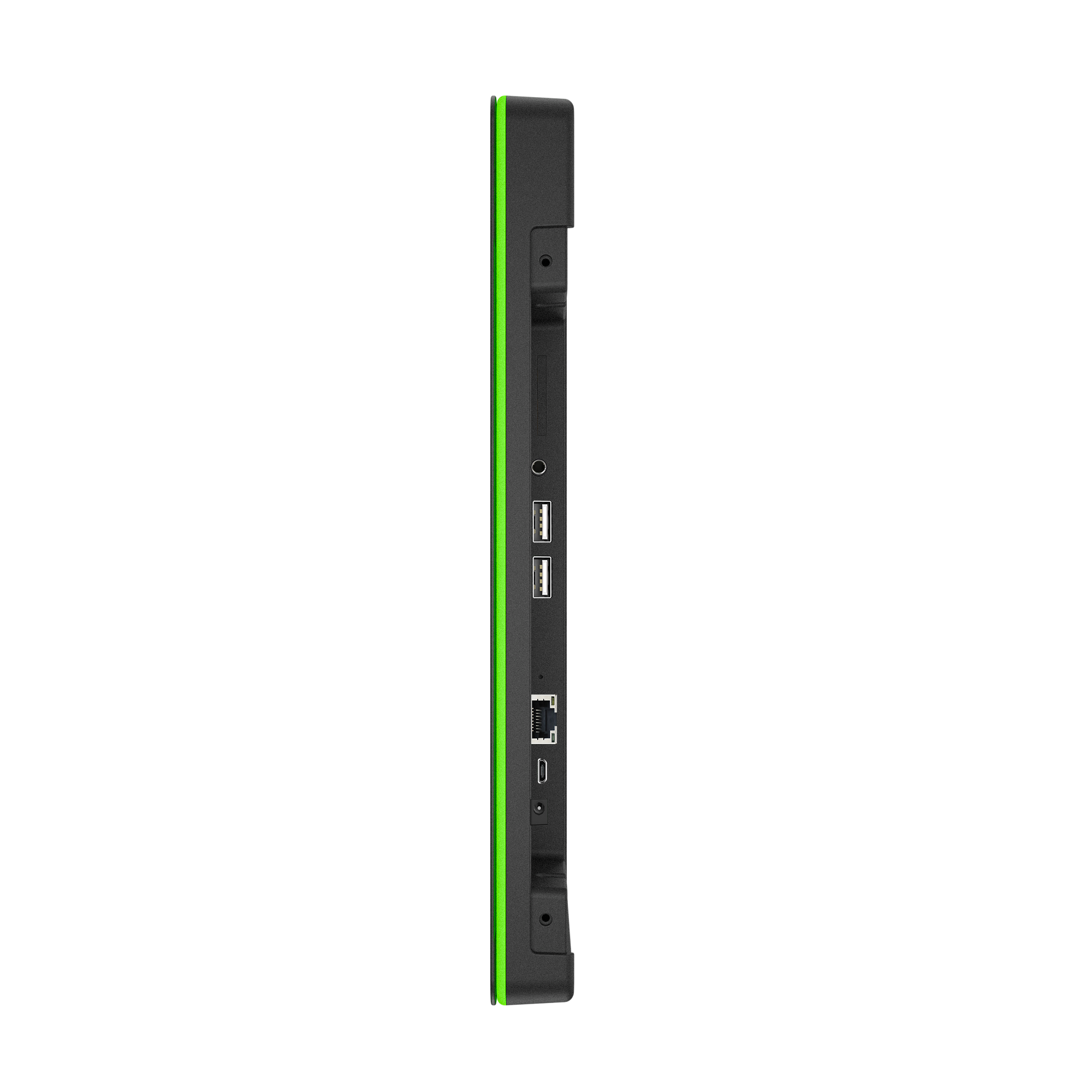

Equipped with Gigabit Ethernet and standard PoE, USB ports, Type-C OTG, SD card expansion and audio connectivity, the tablet supports flexible integration into meeting room systems.

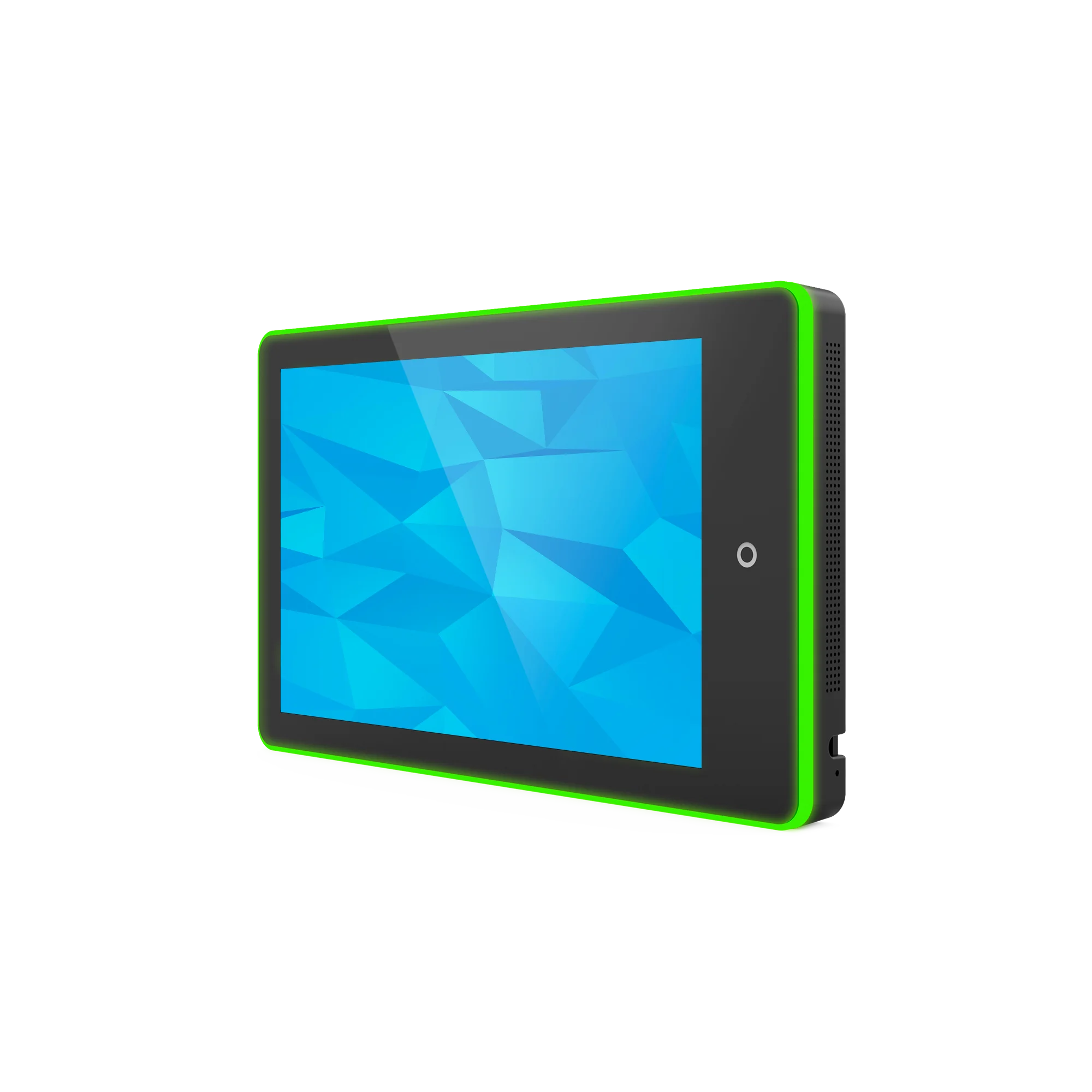

10.1" Edge-Light Tablet
RK3576S Quad-Core Cortex-A72 + Quad-Core Cortex-A53 | 4GB RAM | 32GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
WA1032T | WA1036T | WA1038T | WA1039T
Specifications
Display
10.1-inch (LCD)
1280 x 800 pixels
16:10
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WA1032T: RK3288 Quad-core cortex A17
- WA1036T: RK3566 Quad-core cortex A55
- WA1038T: RK3568 Quad-core cortex A55
- WA1039T: RK3576S Quad core cortex A72+Quad core cortex A53
- WA1032T: 2GB
- WA1036T: 2GB (Optional 4GB)
- WA1038T: 2GB (Optional 4GB)
- WA1039T: 4GB (Optional 8GB)
- WA1032T: 16GB
- WA1036T: 16GB (Optional 32GB/64GB)
- WA1038T: 16GB (Optional 32GB/64GB)
- WA1039T: 32GB (Optional 64GB)
- WA1032T: Android 5.1/ 8.1/10.0
- WA1036T: Android 11
- WA1038T: Android 11
- WA1039T: Android 14
Size and Weight
275.36 x 25 x 170.36 mm (L × W × H)
Wireless
- WA1032T: IEEE 802.11a/b/g/n/ac
- WA1036T: IEEE 802.11a/b/g/n
- WA1038T: IEEE 802.11b/g/n
- WA1039T: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
I/O Ports
- WA1032T: USB Host
- WA1036T: USB Host
- WA1038T: USB 3.0 Host
- WA1039T: USB 3.0 host
- WA1032T: USB for serial (RS 232 Level), Optional for USB Host
- WA1036T: USB for serial (TTL Level), Optional USB Host
- WA1038T: USB for serial (TTL Level), Optional USB Host
- WA1039T: USB for serial ( TTL Level ) ,Optional USB Host
WA1039T: 1 × USB Type-C (OTG Only)
1 × SD Card Slot (Supports Up to 128GB)
DC 12V Input
Media Format
- WA1032T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WA1036T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WA1038T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WA1039T: H.264, H.265, VP9, AV1, AVS2, etc.
MP3/WMA/AAC, etc
JPEG
Others
Black / White
204.5 mm
2 × 2W, 8Ω
Single microphone
Optional, NXP PN7160, ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443A/B, ISO/IEC 15693, MIFARE Classic, MIFARE Ultralight, MIFARE DESFire EV1/EV2, Sony FeliCa
2MP Wide-Angle Camera
Multi-language
CCC / CE / FCC
0℃-40℃
