WT1012T | WT1013T | WT1016T | WT1017T | WT1018T
10.1-inch Desktop Signage
Features 1280*800 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. The touch screen is highly responsive and accurate that allows you to easily navigate and interact with content, helping you work faster and more efficiently than ever before. It is ideal for multiple uses, such as hotel reception and conference.
DISPLAY

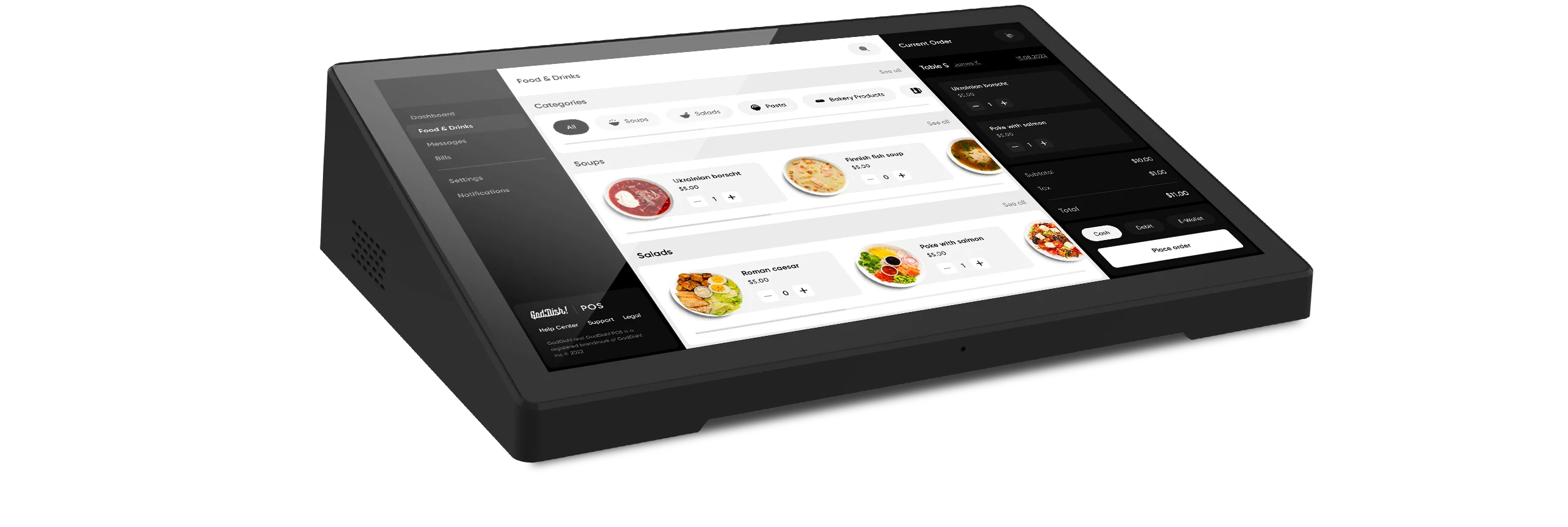

10.1-inch HD Multi-Touch Display
The 1280 x 800 resolution display provides high quality image reproduction for viewing. The desktop signage has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.
OPERATING SYSTEM
Easy Management With Android Devices.
Easily personalize devices to suit your preferences and style. Also, Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.
PROCESSORS
Work Faster, Work More Efficiently.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

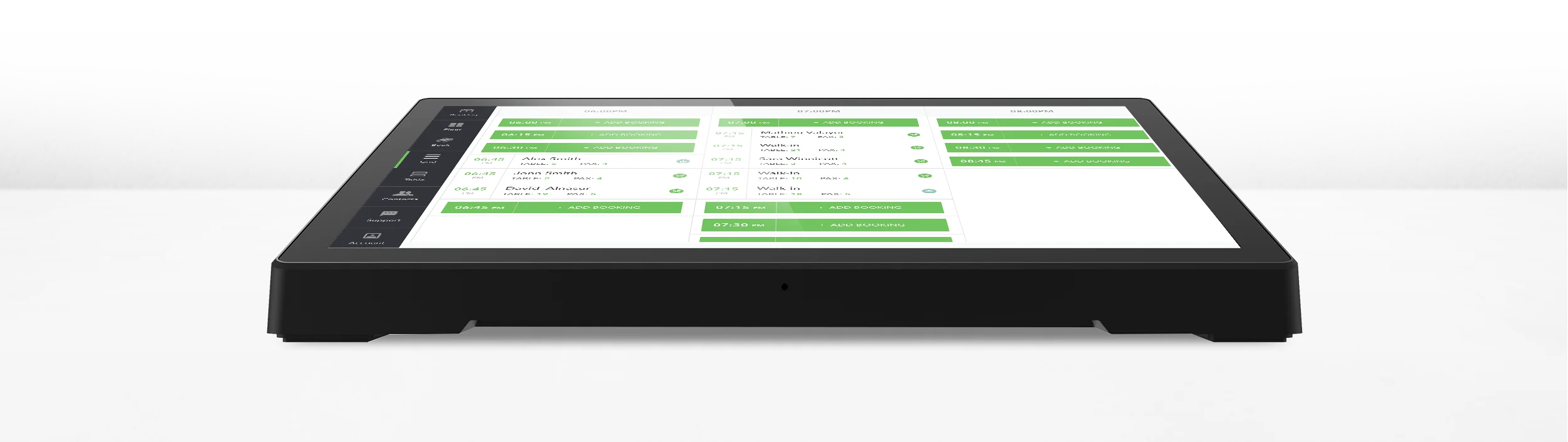

ERGONOMIC DESIGN
Elevates Viewing Comfort.

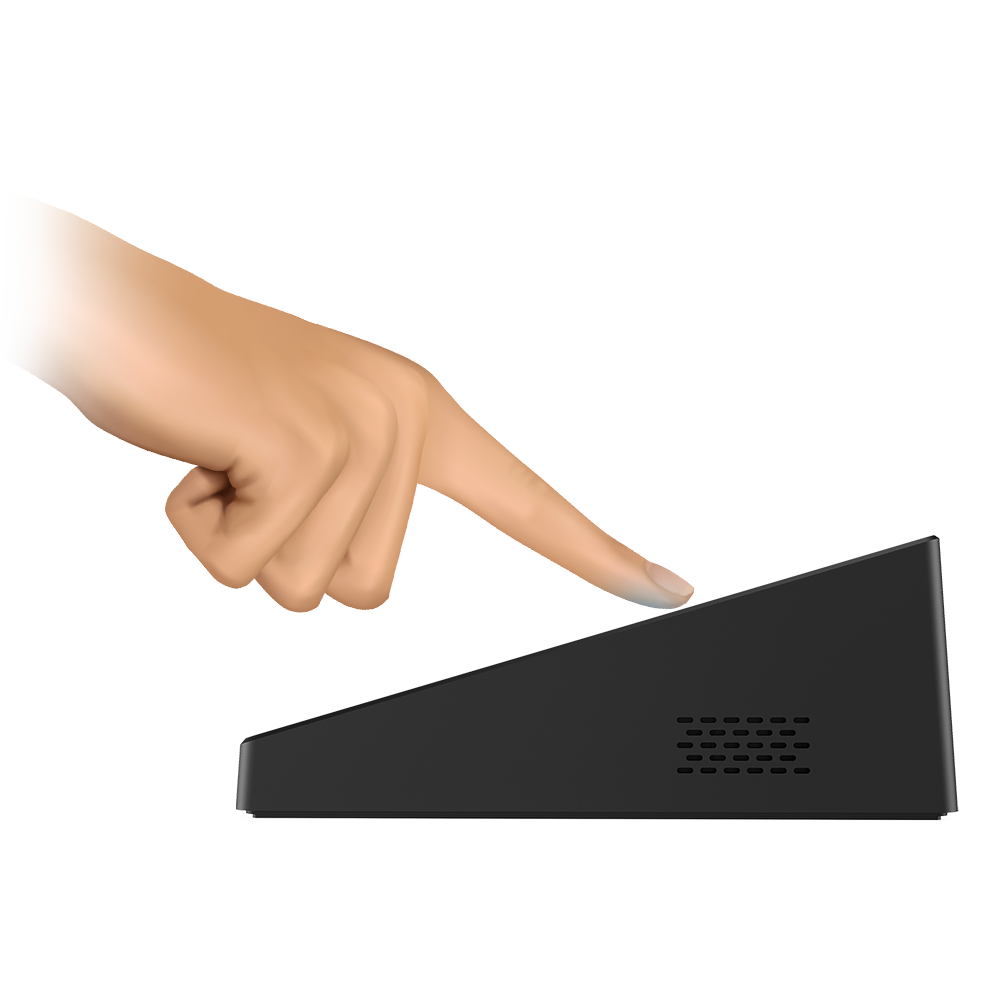

The angle between the monitor and the desktop is 16.5°. Taking your using experience to the next level. This not only makes it easier to view, but also helps to reduce the strain on your neck and eyes.

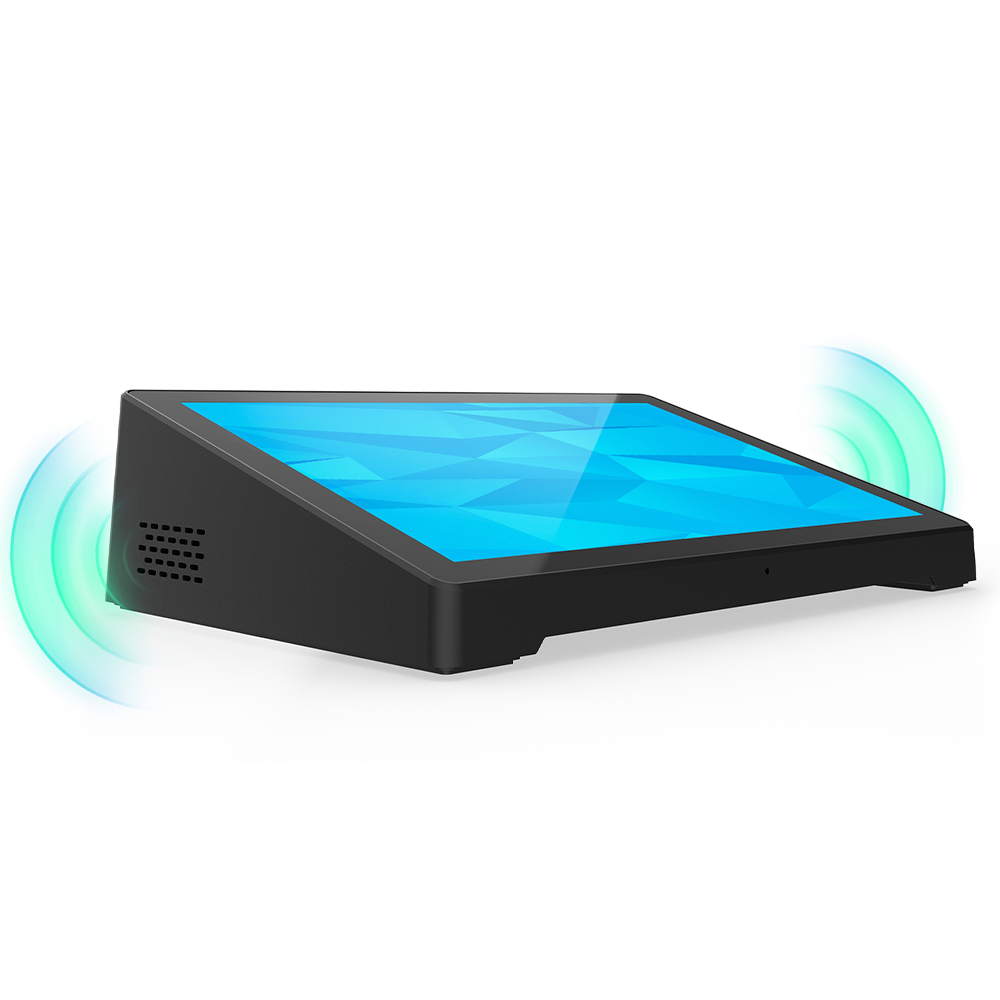

BUILT-IN SPEAKERS AND MIC
All In One. Ideal For Multiple Uses.
Integrated into a device, there is no need to connect external devices, just turn on devices and start using the camera, speakers, and mic.

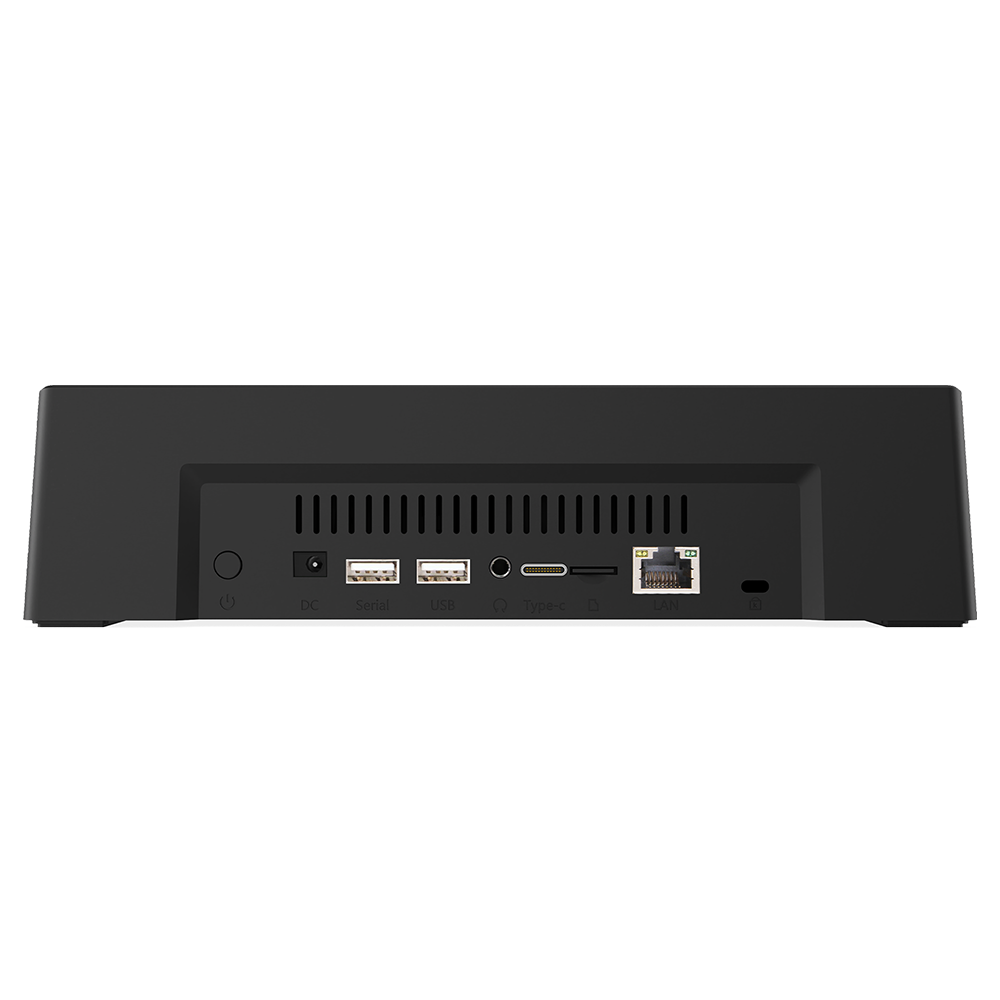

CONNECTIONS AND EXPANSION
Easy Connectivity.

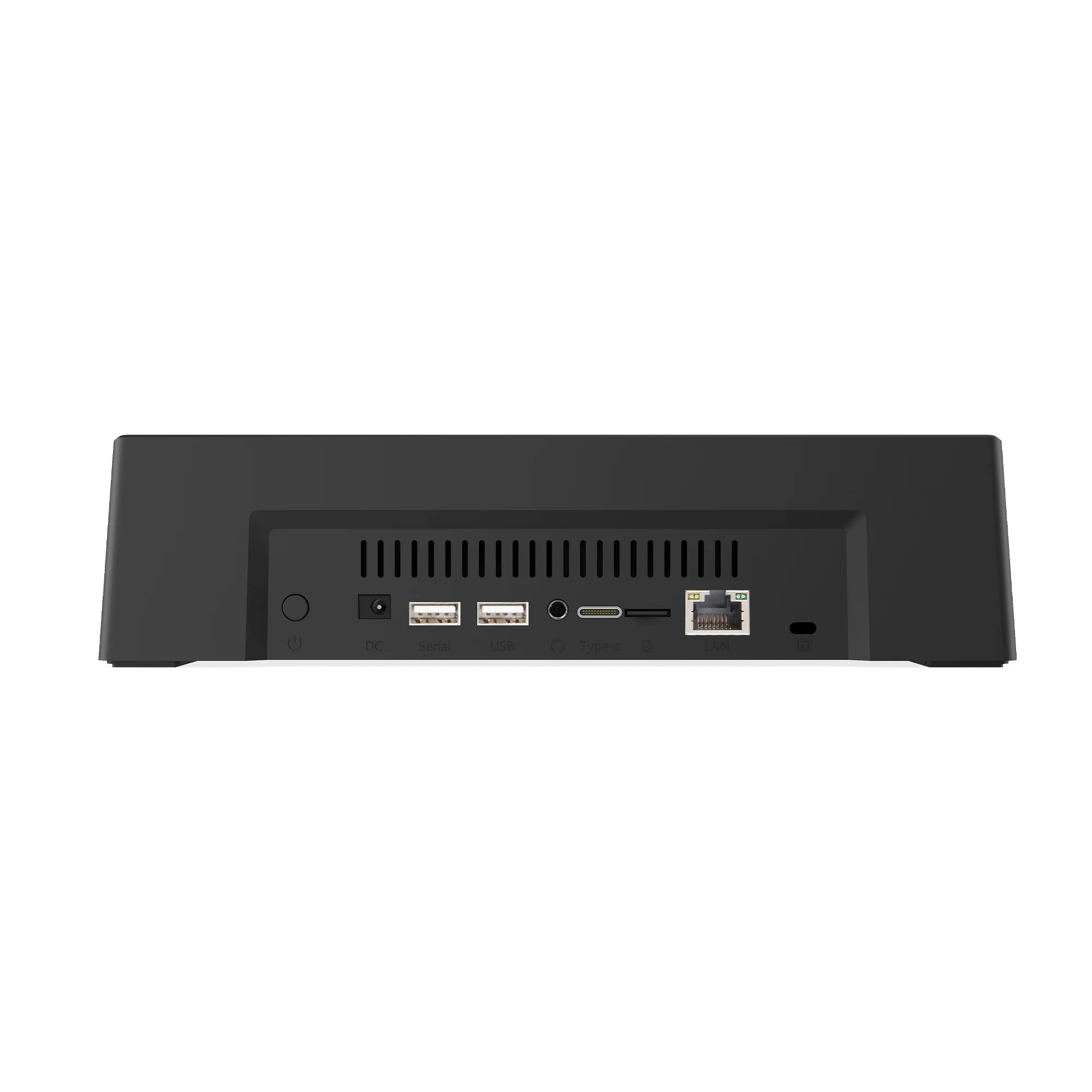

This 10.1-inch touchscreen signage equipped with rich interfaces to customize devices, HDMI, USB-A port, 3.5mm audio out and RJ45 ethernet port.
Explore More ELC Desktop Signages Now.
Screen sizes from 8-inch to 17.3-inch, horizontal or vertical.
Explore Now
10.1" Desktop Signage
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK 3128 Quad-core cortex A7 | 1GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
WT1012T | WT1013T | WT1016T | WT1017T | WT1018T
Specifications
Display
10.1-inch (LCD)
1280 x 800 pixels
16:10
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WT1012T: RK3288 Quad-core cortex A17
- WT1013T: RK3399 Dual-core A72+Quad-core A53
- WT1016T: RK3566 Quad-core cortex A55
- WT1017T: RK3128 Quad-core cortex A7
- WT1018T: RK3568 Quad-core cortex A55
- WT1012T: 2GB
- WT1013T: 2GB (Optional 4GB)
- WT1016T: 2GB (Optional 4GB)
- WT1017T: 1GB
- WT1018T: 2GB (Optional 4GB)
- WT1012T: 16GB
- WT1013T: 16GB (Optional 32GB/64GB)
- WT1016T: 16GB (Optional 32GB/64GB)
- WT1017T: 16GB
- WT1018T: 16GB (Optional 32GB/64GB)
- WT1012T: Android 8.1/10.0
- WT1013T: Android 7.1/10.0
- WT1016T: Android 11
- WT1017T: Android 6.0
- WT1018T: Android 11
Size and Weight
236.1 x 156.8 x 63.3mm (L × W × H)
Wireless
IEEE 802.11b/g/n
Bluetooth 4.2
I/O Ports
- WT1012T: USB 2.0 Host
- WT1013T: USB 3.0 Host
- WT1016T: USB 3.0 Host
- WT1017T: USB 2.0 Host
- WT1018T: USB Host
- WT1012T: USB for serial (TTL format), Optional USB Host
- WT1013T: USB for serial (TTL format), Optional USB Host
- WT1016T: USB for serial (TTL format), Optional USB Host
- WT1017T: USB for serial (TTL format)
- WT1012T: USB OTG only
- WT1013T: Support full function
- WT1016T: USB OTG only
- WT1017T: USB OTG only
TF, support up to 64GB
3.5mm earphone output
Ethernet interface, (POE function optional, IEEE802.3at, POE+, class 4, 25.5W)
DC power input
Media Format
- WT1012T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WT1013T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WT1016T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WT1017T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc.,support up to 1080p
- WT1018T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
JPEG
Others
Black
2W*2
Single microphone
Optional, 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/1.5A
×1
