WL1012T | WL1013T | WL1016T | WL1017T | WL1018T

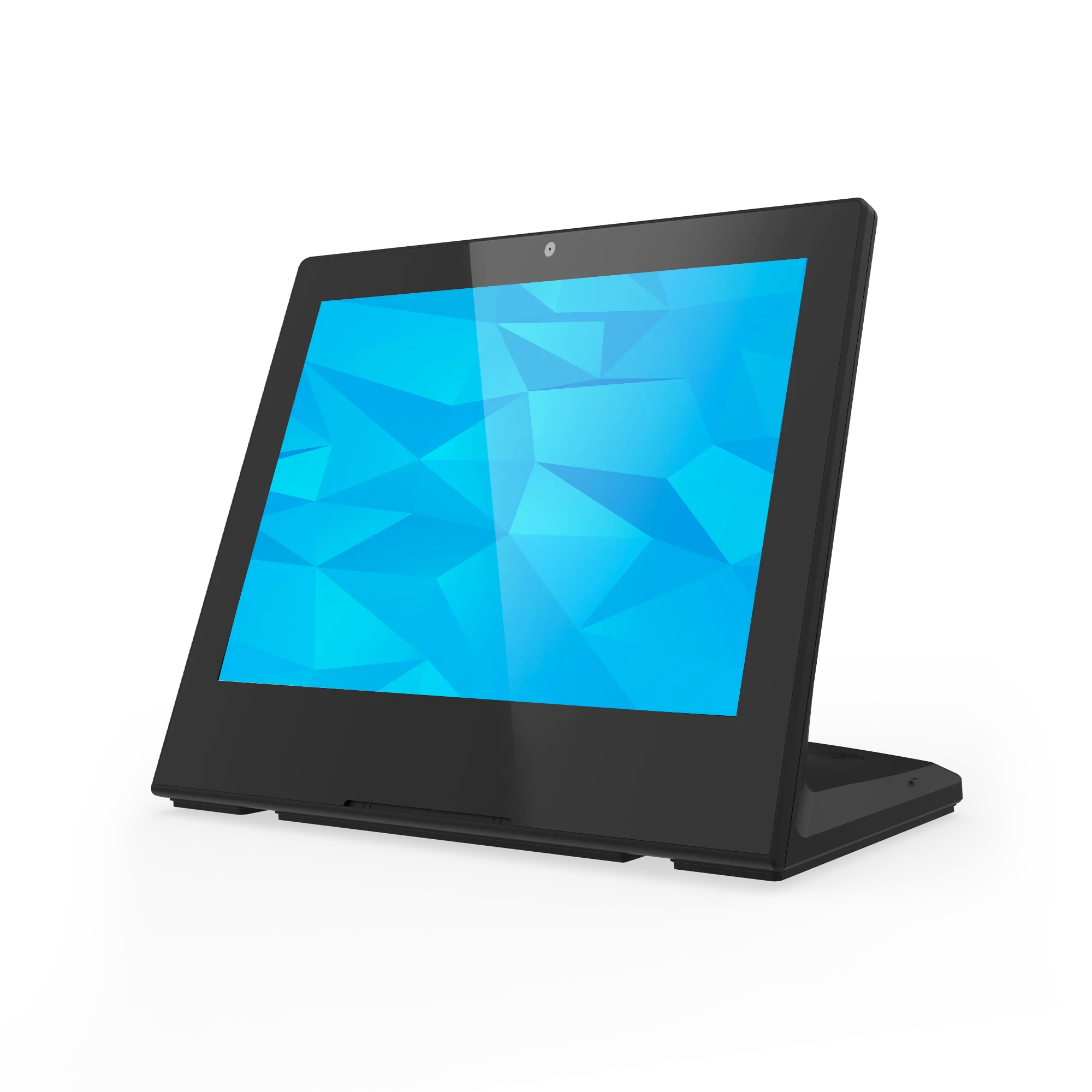

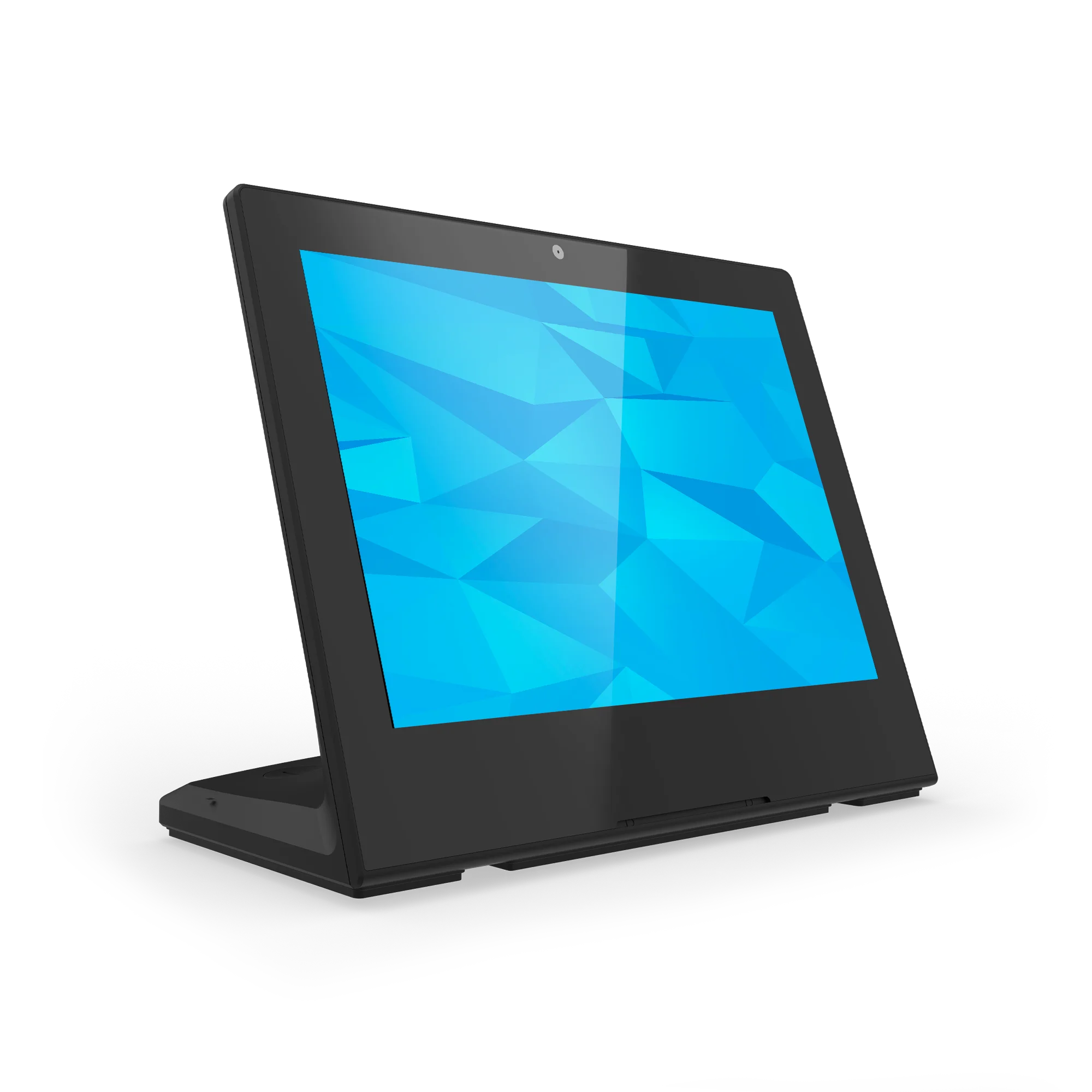

10.1-inch Desktop Signage

Featuring 1280*800 HD resolution, this signage is perfect for diversified scenarios, such as promotional ads display, sweeping code payment, etc.

Order Now

DISPLAY

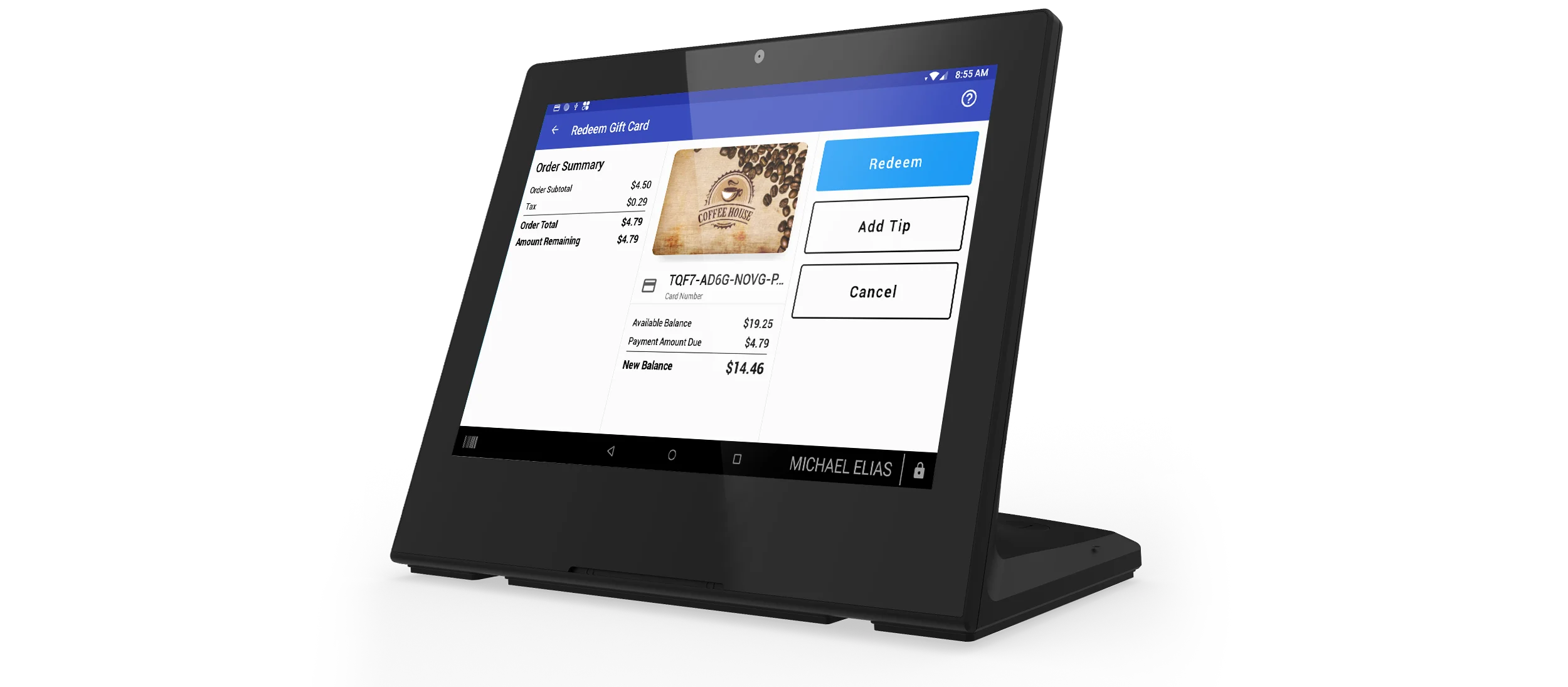

10.1-inch HD Multi-Touch Display

The 10.1-inch screen, featuring 1280x800 resolution, provides extremely accurate operation and supports gestures like swiping, zooming, pinching.

Screen Size

10.1-Inch HD Display

Resolution

1280 × 800

Aspect Ratio

16 : 10

Touchscreen

5-Point Multi-Touch

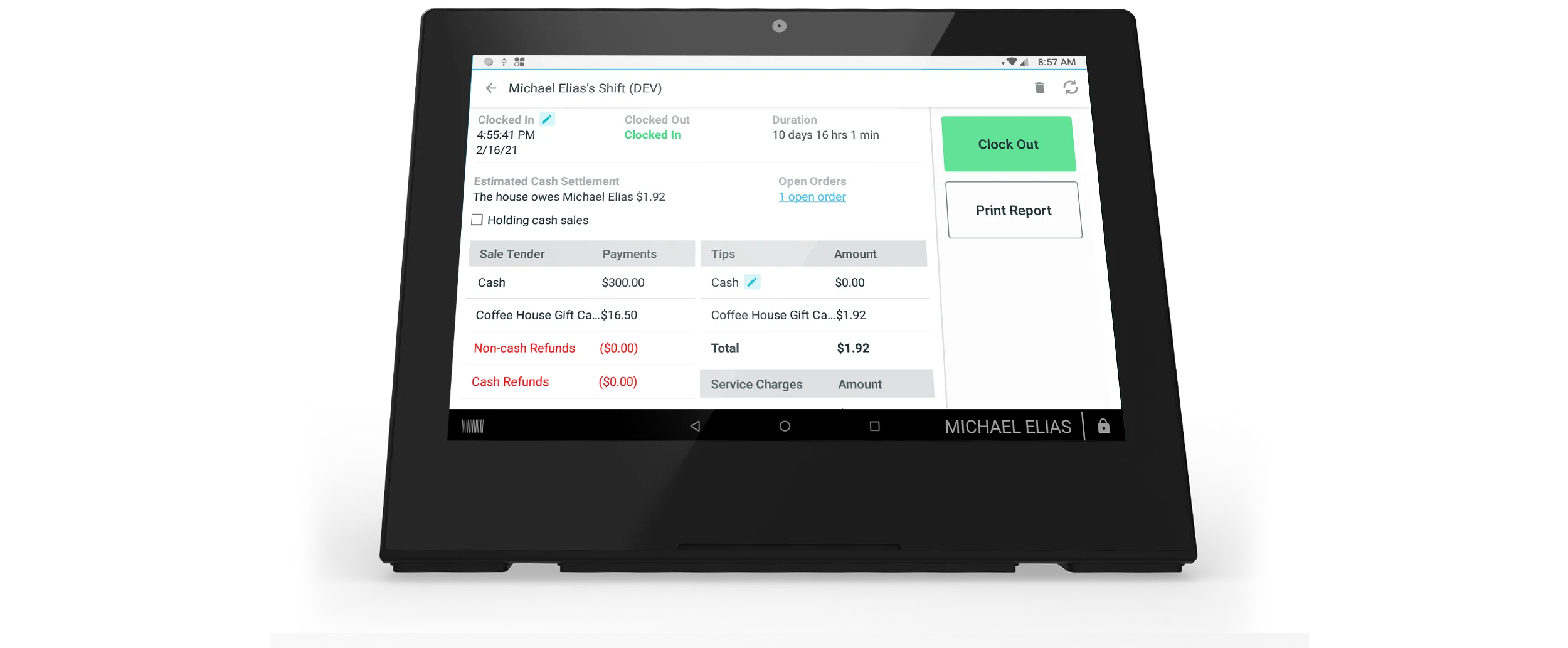

OPERATING SYSTEM

Make Management Much Easier.

Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time. You can easily personalize devices to suit your preferences and style.

PROCESSORS

Work Faster,  Work More Efficiently.

We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.

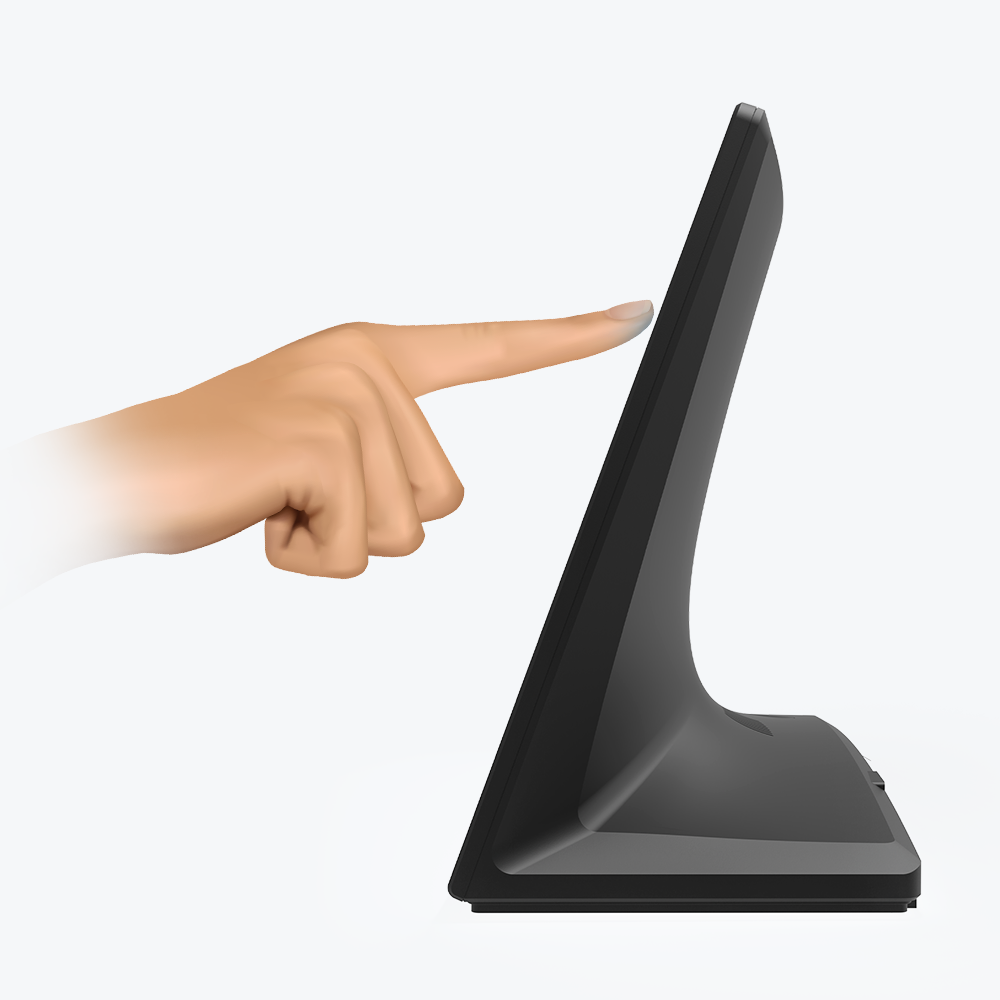

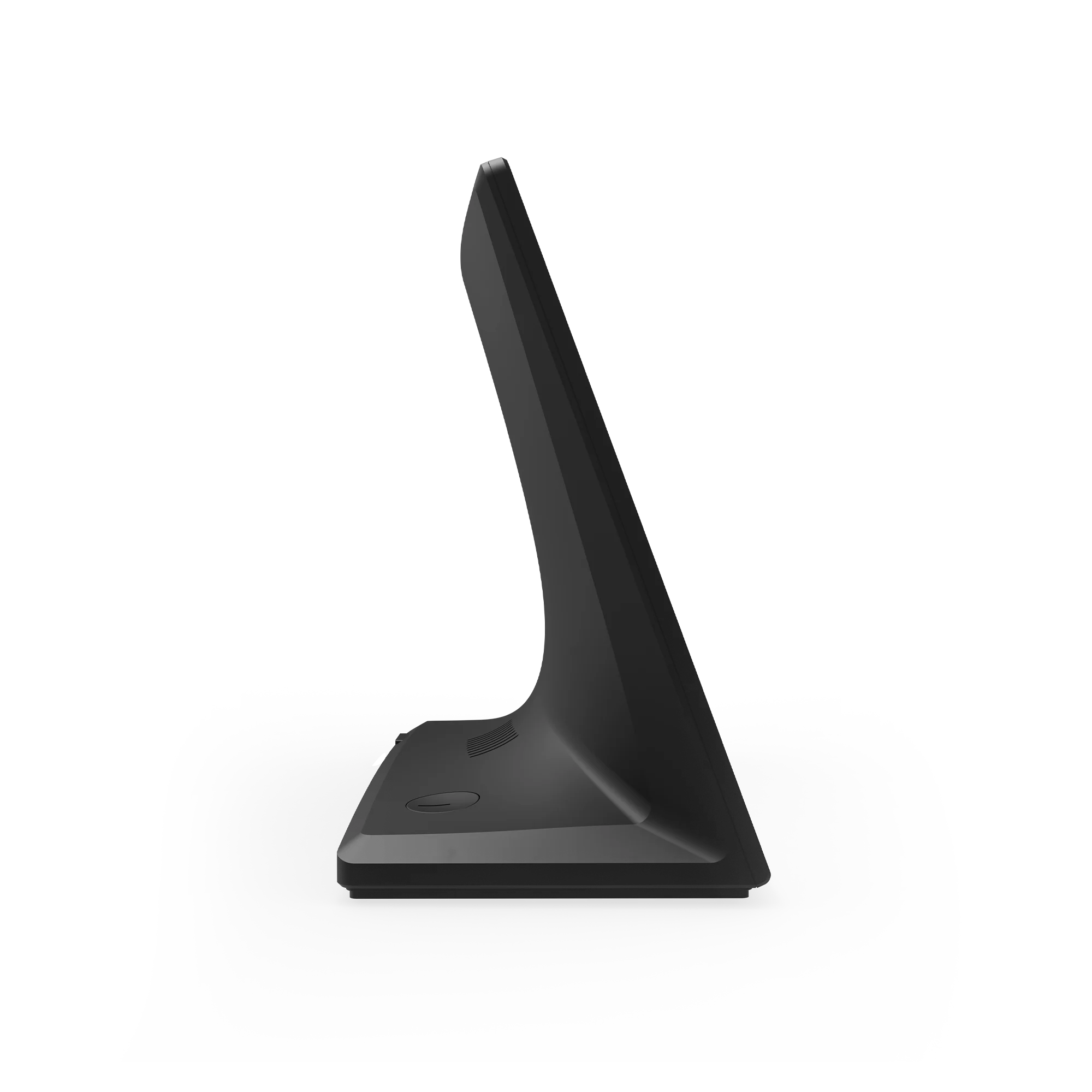

ERGONOMIC DESIGN

Elevates Your Using Experience.

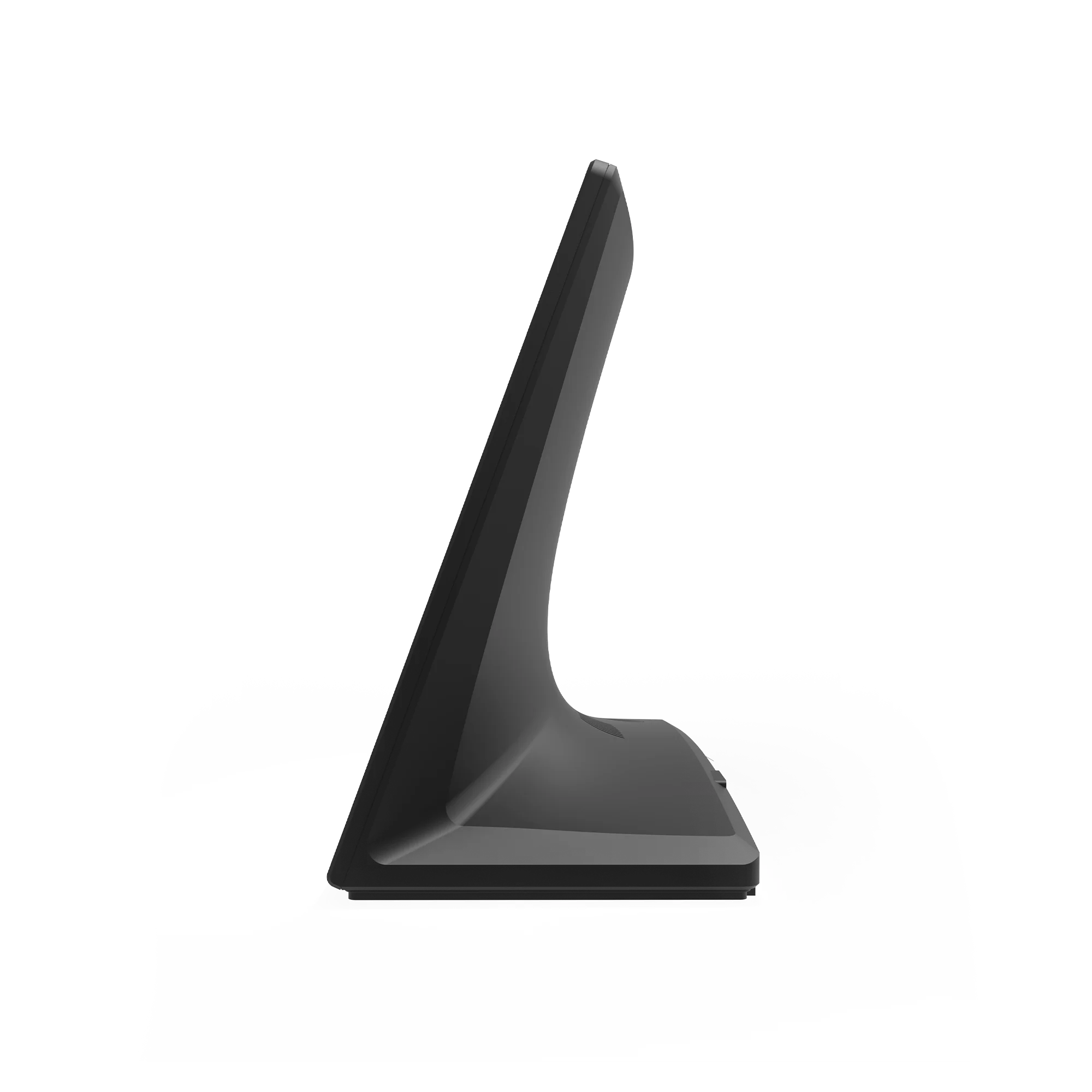

The L-shaped design makes it easy to place on a desktop without requiring external bracket and provides users a comfortable angle for use.

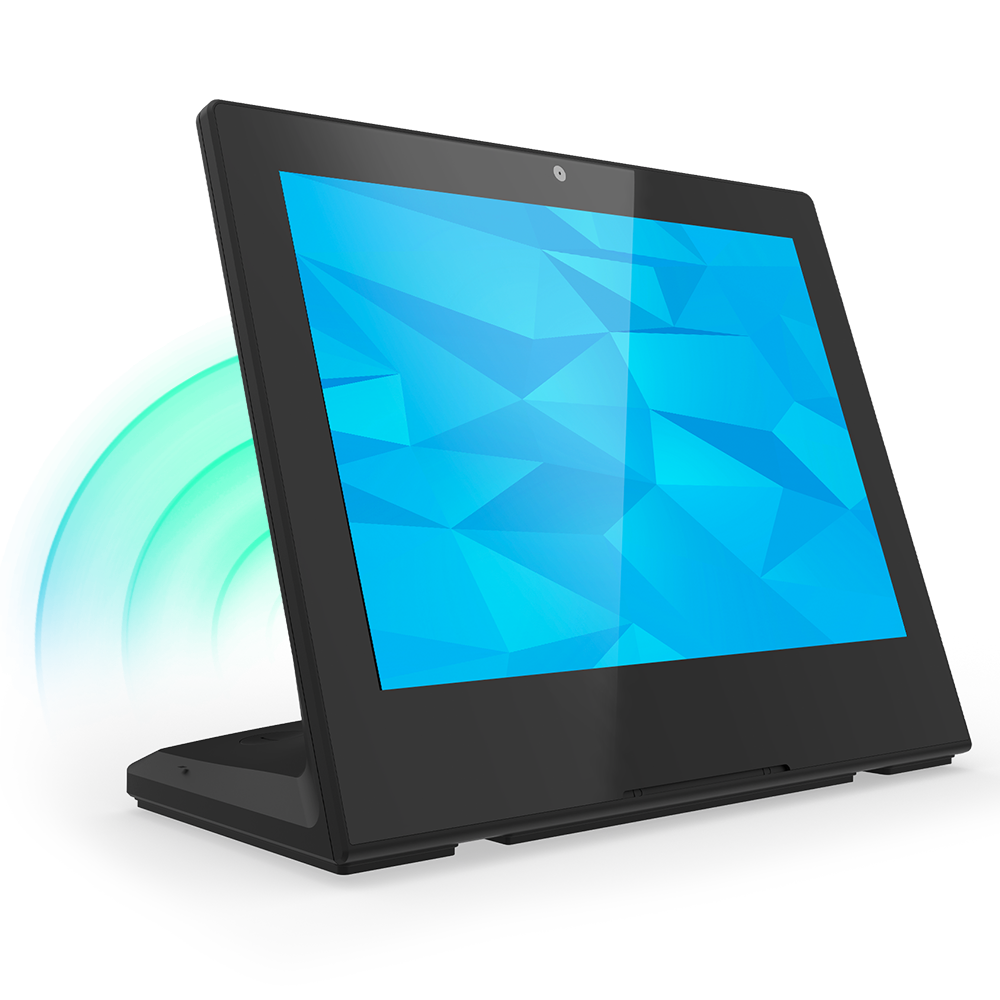

BUILT-IN CAMERA, SPEAKERS AND MIC

All In One. Ideal For On-the-go Use.

Integrated into a device, there is no need to connect external devices, just turn on your device and start using the camera, speakers, and mic.

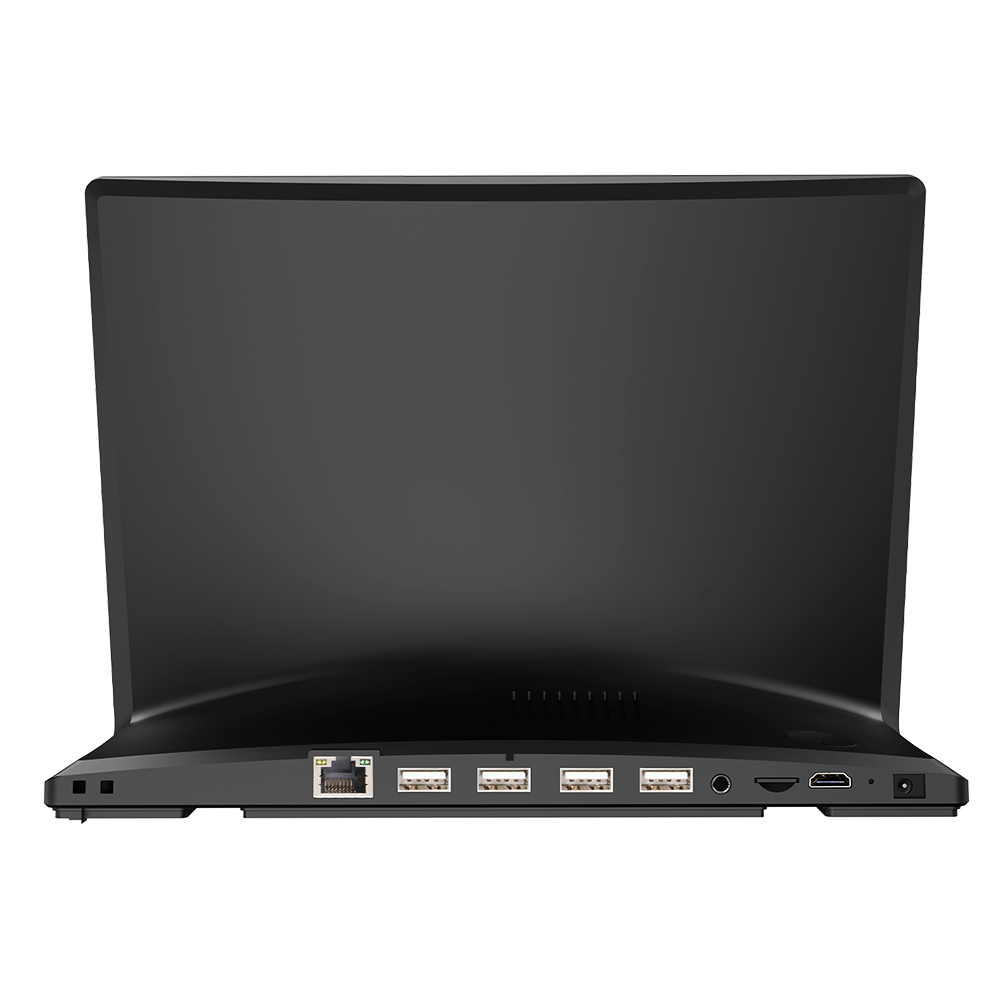

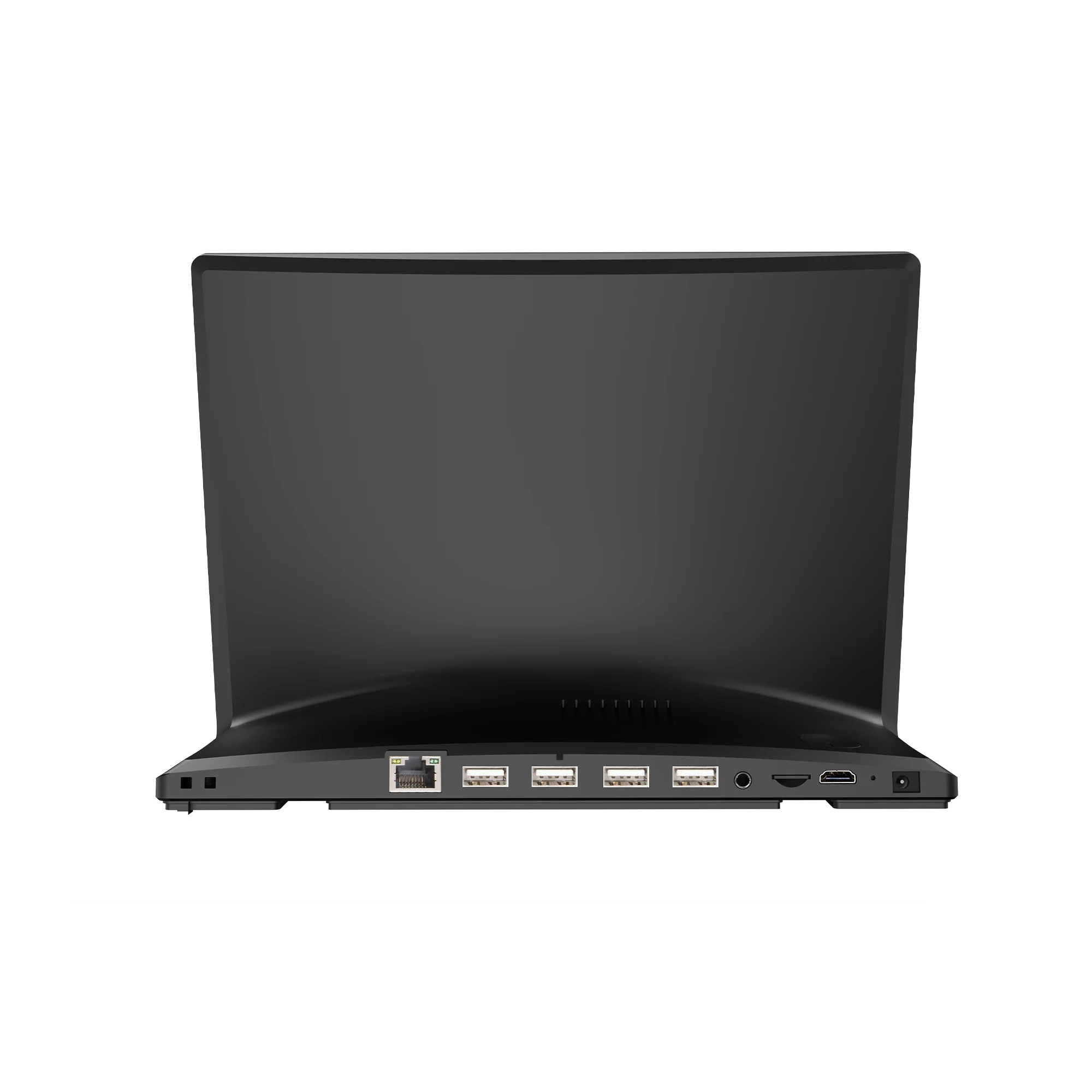

CONNECTIONS AND EXPANSION

Flexible Connectivity.

Faster, easier access to your work tools, and multiple ports enable convenient connectivity with no need for adapters.

Explore More ELC Desktop Signages Now.

Screen sizes from 8-inch to 17.3-inch, horizontal or vertical.

Explore Now
10.1" Desktop Signage
10.1" Desktop Signage
10.1" Desktop Signage
10.1" Desktop Signage
10.1" Desktop Signage
10.1" Desktop Signage
WL1012T | WL1013T | WL1016T | WL1017T | WL1018T

10.1" Desktop Signage

SKU: WL1012T

RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM

SKU: WL1013T

RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM

SKU: WL1016T

RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM

SKU: WL1017T

RK 3128 Quad-core cortex A7 | 1GB RAM | 16GB ROM

SKU: WL1018T

RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM

Order Now

WL1012T | WL1013T | WL1016T | WL1017T | WL1018T

Specifications

Display

Diagonal Size

10.1-inch (LCD)

Resolution

1280 x 800 pixels

Aspect Ratio

16:10

Viewing Angle

R/L 85/85, U/D 85/85

Display Mode

Normally black

Contrast Ratio

800:1

Luminance

250 nits

Number of Points

5-point

Processor

CPU
  • WL1012T: RK3288 Quad-core cortex A17
  • WL1013T: RK3399 Dual-core A72+Quad-core A53
  • WL1016T: RK3566 Quad-core cortex A55
  • WL1017T: RK3128 Quad-core cortex A7
  • WL1018T: RK3568 Quad-core cortex A55
RAM
  • WL1012T: 2GB
  • WL1013T: 2GB (Optional 4GB)
  • WL1016T: 2GB (Optional 4GB)
  • WL1017T: 1GB
  • WL1018T: 2GB (Optional 4GB)
ROM
  • WL1012T: 16GB
  • WL1013T: 16GB (Optional 32GB)
  • WL1016T: 16GB (Optional 32GB)
  • WL1017T: 16GB
  • WL1018T: 16GB (Optional 32GB)
Operating System
  • WL1012T: Android 8.1/10.0
  • WL1013T: Android7.1/10.0
  • WL1016T: Android 11
  • WL1017T: Android 6.0
  • WL1018T: Android 11

Size and Weight

Dimensions

256.58 x 185.76 x 108.2mm (L × W × D)

Power and Battery

Battery Capacity
  • WL1012T: Optional 4500mAh
  • WL1013T: Optional 4500mAh
  • WL1016T: Optional 4500mAh
  • WL1018T: Optional 4500mAh

Wireless

WiFi
  • WL1012T: IEEE 802.11b/g/n
  • WL1013T: IEEE 802.11a/b/g/n/ac
  • WL1016T: IEEE 802.11b/g/n
  • WL1017T: IEEE 802.11b/g/n
  • WL1018T: IEEE 802.11b/g/n
Bluetooth

Bluetooth 4.2

I/O Ports

USB
  • WL1012T: USB 2.0 Host*2
  • WL1013T: USB 2.0 Host
  • WL1016T: USB 2.0 Host
  • WL1017T: USB Host*2
  • WL1018T: USB 2.0 Host
USB
  • WL1013T: USB 3.0 host
  • WL1016T: USB 3.0 host
  • WL1018T: USB 3.0 Host
USB
  • WL1012T: USB for serial (RS232 Level)
  • WL1013T: USB for serial (RS232 format)
  • WL1016T: USB for serial (TTL format)
  • WL1017T: USB for serial (RS232 Level)
  • WL1018T: USB for serial (TTL Level)
Card Slot

TF, support up to 64GB

Power Port

DC power input

Media Format

Video Format
  • WL1012T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
  • WL1013T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
  • WL1016T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
  • WL1017T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 1080p
  • WL1018T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
Audio Format

MP3/WMA/AAC, etc

  • WL1012T: JPEG/PNG
  • WL1013T: JPEG
  • WL1016T: JPEG
  • WL1017T: JPEG
  • WL1018T: JPEG/PNG

Others

Color

White/black

Speaker

1W*2

Microphone

Single microphone

NFC

Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica

Camera
  • WL1012T: Routine angle 2.0MP
  • WL1013T: Routine angle 5.0MP
  • WL1016T: Standard routine angle 5.0MP , Optional wide angle 2.0MP
  • WL1017T: Routine angle 2.0MP
  • WL1018T: Standard routine angle 5.0MP
Language

Multi-language

Certificates

CE/FCC

Operating Temperature

0℃-40℃

In The Box

Adapter

12V/1.5A

User Manual

×1
