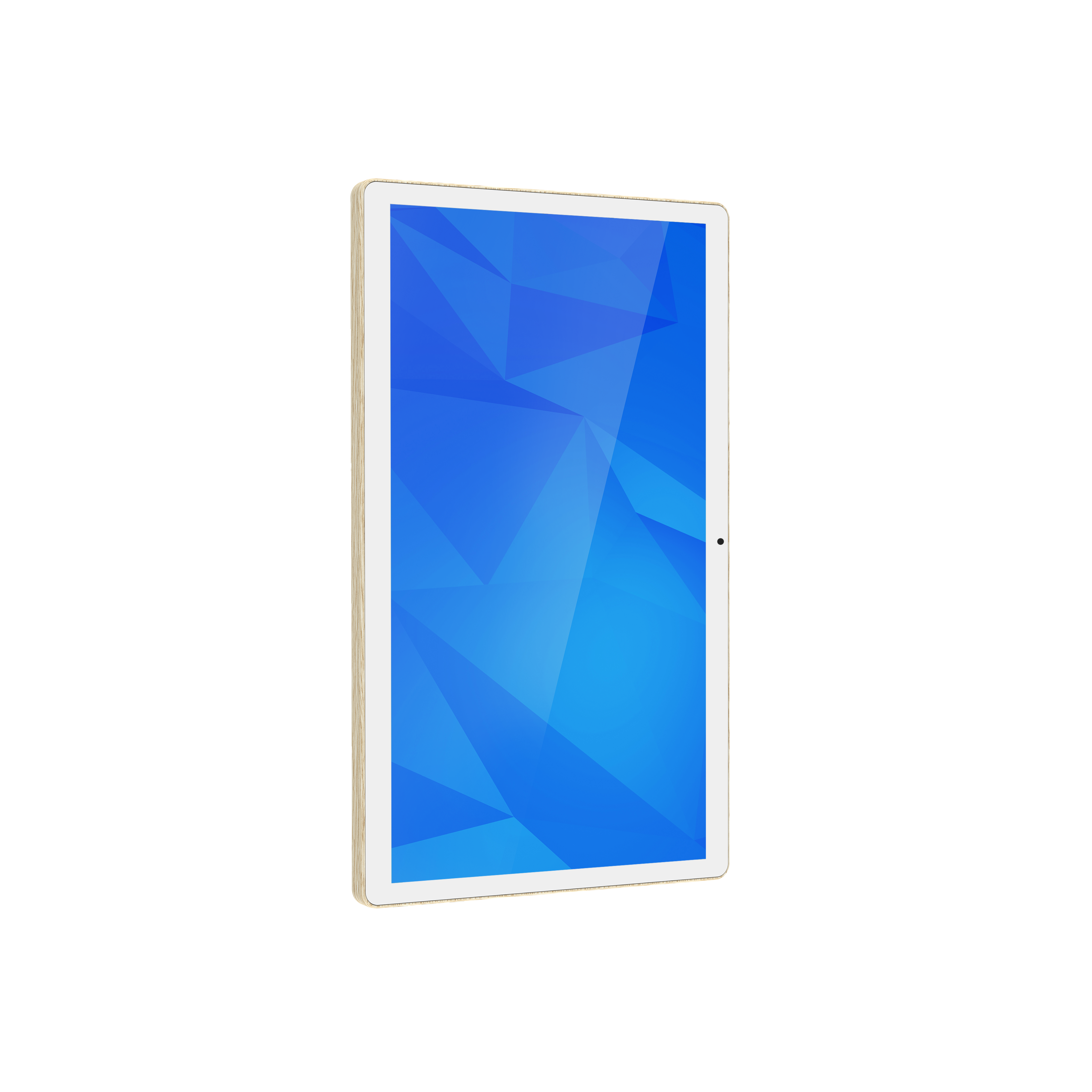

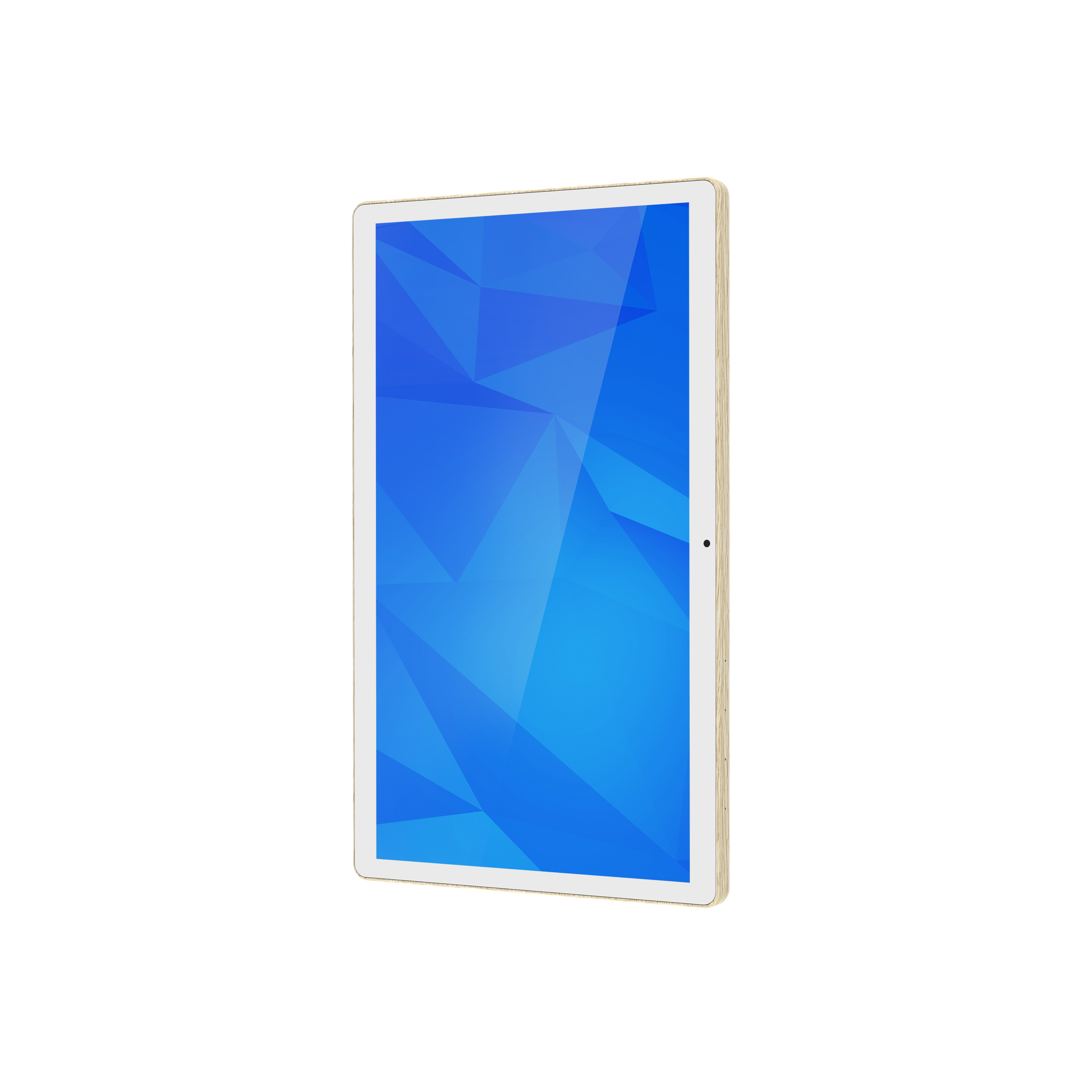

WF1589T
15.6" Digital Calendar
Featuring 1920*1080 HD resolution, this digital calendar is perfect for managing all your work, study, and entertainment schedule. Controlling the calendar is as easy as touching the screen, making it simple for everyone to interact with the content.
DISPLAY
15.6-inch HD Touchscreen
The touchscreen delivers outstanding image quality and vibrant colors. The WF1589T digital calendar has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.
WIFI 6E WITH MU-MIMO TECHNOLOGY
Faster And Smoother.
MU-MIMO is able to create multiple connections to the same device simultaneously, which improves network efficiency. Instant sharing and calendar updates enables you to stay connected with family and keep everyone on the same page. ELC digital calendar enhances your using experience by making streaming smoother, download faster, and response time shorter.
OPERATING SYSTEM
Personalize Your Devices With Ease.

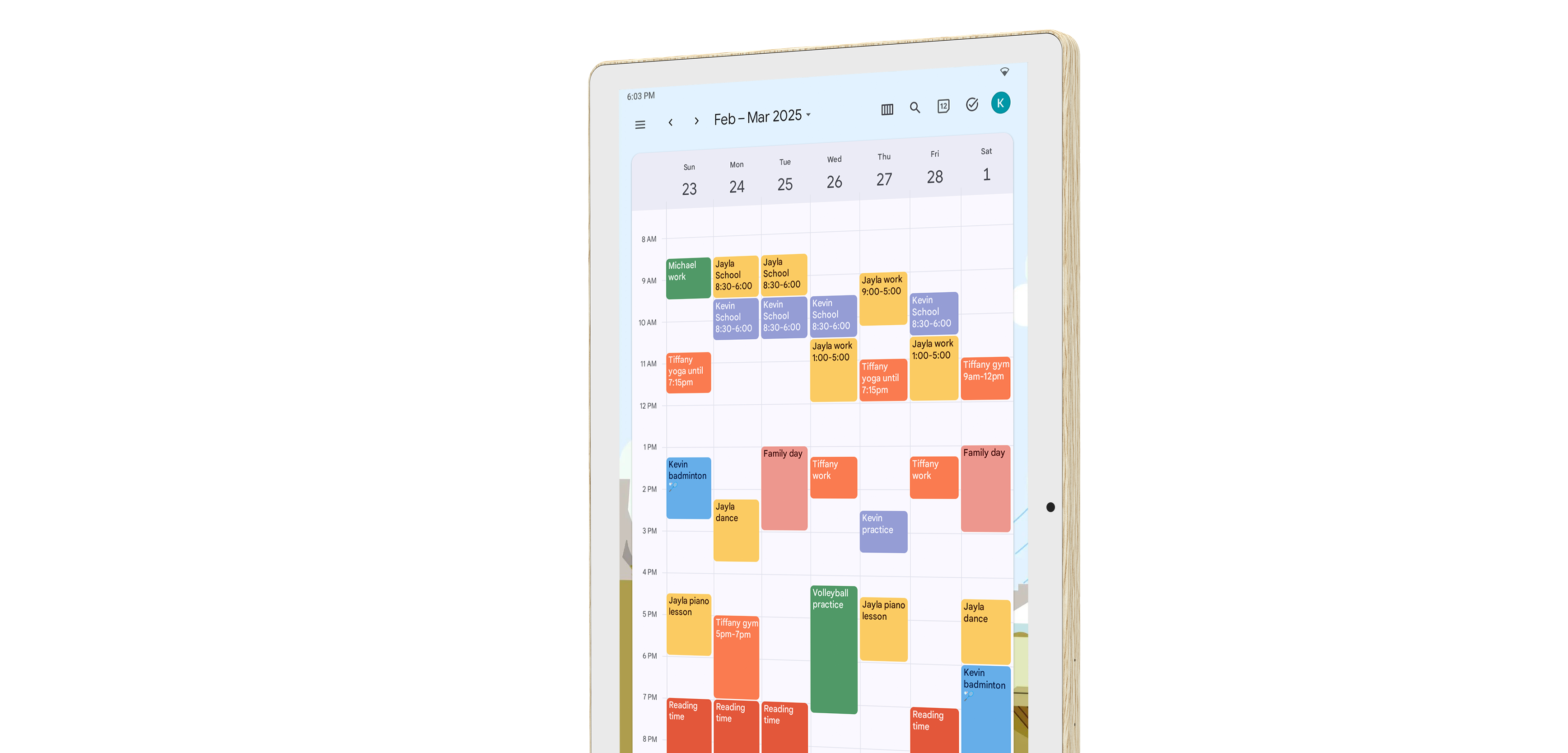

Easily personalize devices to suit your preferences and style. Effortlessly manage your schedules, reminders, and events with real-time updates on the large screen.

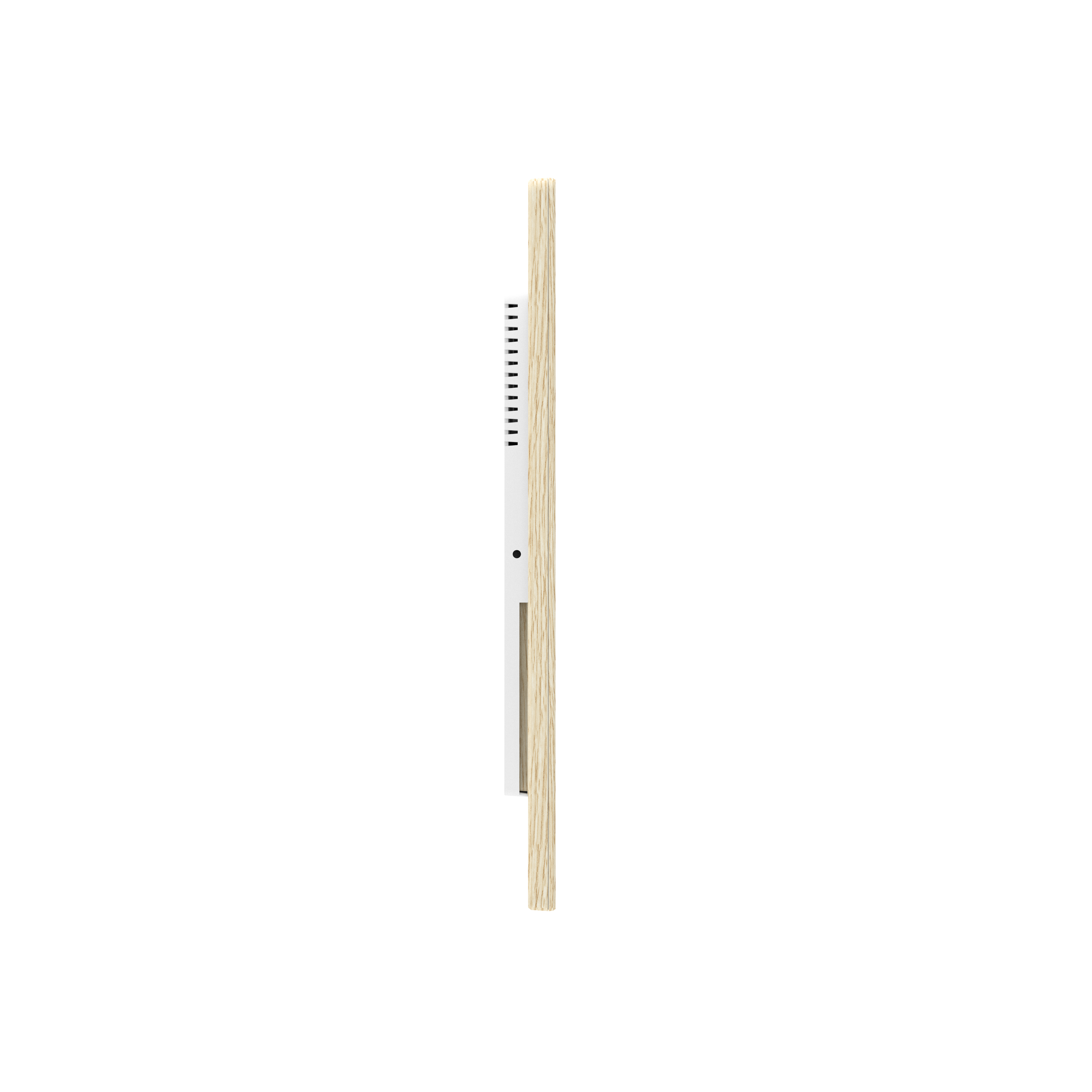

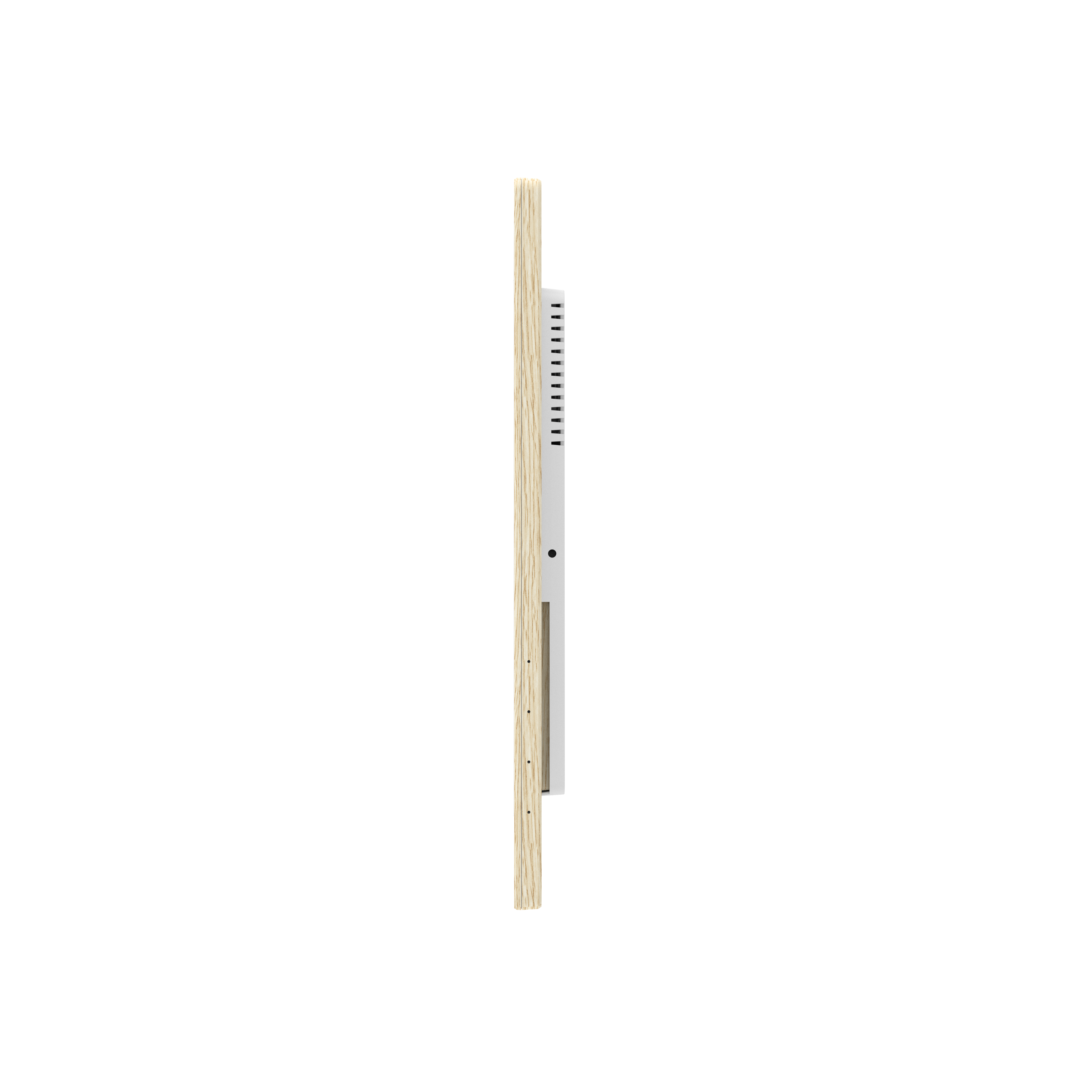

3 FRAMES TO CHOOSE FROM
Blend In With Any Home Decor.
The digital calendar can blend in with any decoration and looks gorgeous at home or office, ensures perfect display at any angle for the ideal viewing experience.

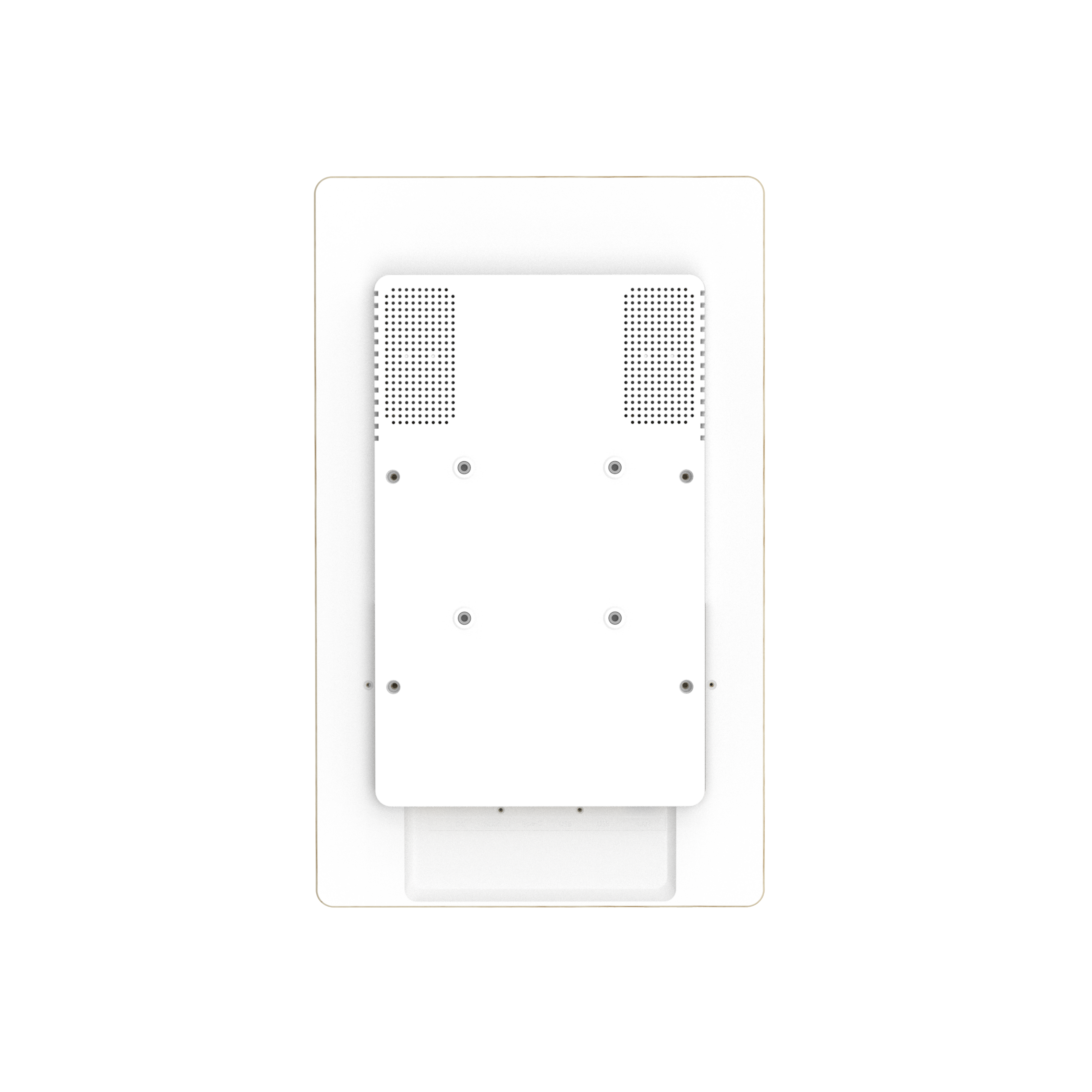

VESA 75 x 75mm / 100×100mm VESA
Mount Wherever Suits Your Needs.
Standard 75x75 / 100×100 VESA holes on the back allow you to mount the monitor to a wall bracket or arm bracket to ensure the best placement in small spaces. Elevate your productivity and embrace unrivaled convenience with this portable display.
PORFORMANCE
Complete Your Tasks Faster.
With Rockchip RK3588S2 Quad core cortex A55+Quad core cortex A76 Processor, 4GB RAM and 32GB ROM, the Digital Calendar can complete tasks more quickly, resulting in a better experience.
15.6" Digital Calendar
RK3588S2 Quad core cortex A55+Quad core cortex A76 | 4GB RAM | 32GB ROM
RK3588S2 Quad core cortex A55+Quad core cortex A76 | 4GB RAM | 32GB ROM
RK3588S2 Quad core cortex A55+Quad core cortex A76 | 4GB RAM | 32GB ROM
RK3588S2 Quad core cortex A55+Quad core cortex A76 | 4GB RAM | 32GB ROM
WF1589T | WF2189T | WF2489T | WF3289T
Specifications
Display
- 15.6-inch
- 21.5-inch
- 23.8-inch
- 32-inch
1920 x 1080 pixels
16:9
16.7M Colors
- WF1589T: 45% NTSC
- WF2189T: 72% NTSC
- WF2489T: 72% NTSC
- WF3289T: 72% NTSC
- WF1589T: R/L 85/85, U/D 85/85
- WF2189T: R/L 89/89, U/D 89/89
- WF2489T: R/L 89/89, U/D 89/89
- WF3289T: R/L 89/89, U/D 89/89
Normally black
- WF1589T: 1000:1
- WF2189T: 3000:1
- WF2489T: 1000:1
- WF3289T: 1000:1
- WF1589T: 30ms
- WF2189T: 7ms
- WF2489T: 9ms
- WF3289T: 8ms
Eled
WF1589T: 300 nits
WF2189T: 250 nits
WF2489T: 300 nits
WF3289T: 300 nits
Capactive touch screen
10-point
I2C
Processor
RK3588S2 Quad core cortex A55+Quad core cortex A76
4GB
32GB
Android 13
Size and Weight
- WF1589T: 370 × 227.9 × 23.7 mm (L × W × D)
- WF2189T: 507 × 305.5 × 32.2 mm (L × W × D)
- WF2489T: 526.6 × 336.8 × 34 mm (L × W × D)
- WF3289T: 735.6 × 436.2 × 36.5 mm (L × W × D)
Wireless
IEEE 802.11b/g/n/a/ac/ax (wifi 6) with Mu-MIMO standard
Bluetooth 5.3
10M/100M/1000M
I/O Ports
Value
USB 2.0 Host
USB 3.0 Host
Full Function (Except for charging function)
Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, 3840*2160, etc
DC power input
Media Format
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, AV1, etc., support up to 4K
MP3/WMA/AAC/WAV/OGG, etc
JPEG/PNG/GIF,etc
Others
Black/White/Wood
- WF1589T: 75mm × 75mm
- WF2189T: 75mm × 75mm
- WF2489T: 100mm × 100mm
- WF3289T: 100mm × 100mm
Power/Vol+/Vol-
- WF1589T: 4Ω 3W*2
- WF2189T: 4Ω 5W*2
- WF2489T: 4Ω 5W*2
- WF3289T: 4Ω 5W*2
Optional, 13.56MHz, ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards
Multi-language
CCC/CE/FCC, Google EDLA
Optional (IEEE802.3at, up to 30W)
0℃-40℃
-20℃-60℃
20-80%RH
10-95%RH
In The Box
WF1589T: 12V/2A
WF2189T: 12V/3A
WF2489T: 12V/4A
WF3289T: 12V/5A
Length: 1.5m
×1
