WA1382T | WA1383T | WA1386T | WA1388T | WA1385T
13.3" Edge-Light Tablet
Featuring 1920*1080 HD resolution, this tablet is perfect for all your work, study, and entertainment needs. Controlling the tablet is as easy as touching the screen, making it simple for everyone to interact with the content.
DISPLAY
13.3-inch HD Touchscreen
The 13.3-inch HD Multi-touch screen features a 1920x1080 pixel resolution for an high-definition visual experience. A 10-point multi-touch screen can recognize and respond to ten simultaneous points of contact. This allows you to easily zoom, flick, rotate, swipe, drag, pinch, press, double tap or use other gestures with up to ten fingers on the screen at the same time.

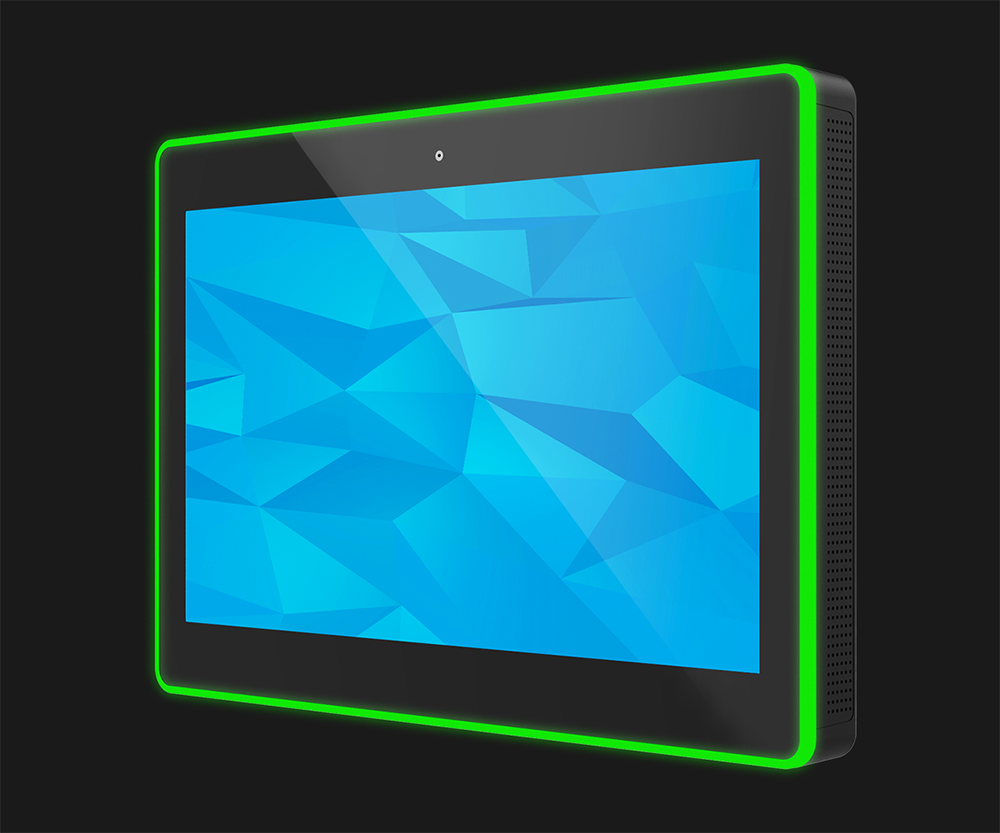

RGB EDGE LIGHTS
Highlight The Status With Lights.
Flexibly personalize the light to match your needs. For example, use a red or green LED light to indicate whether the conference room is available.
4 INSTALLATION METHODS
Mount It the Way You Like.

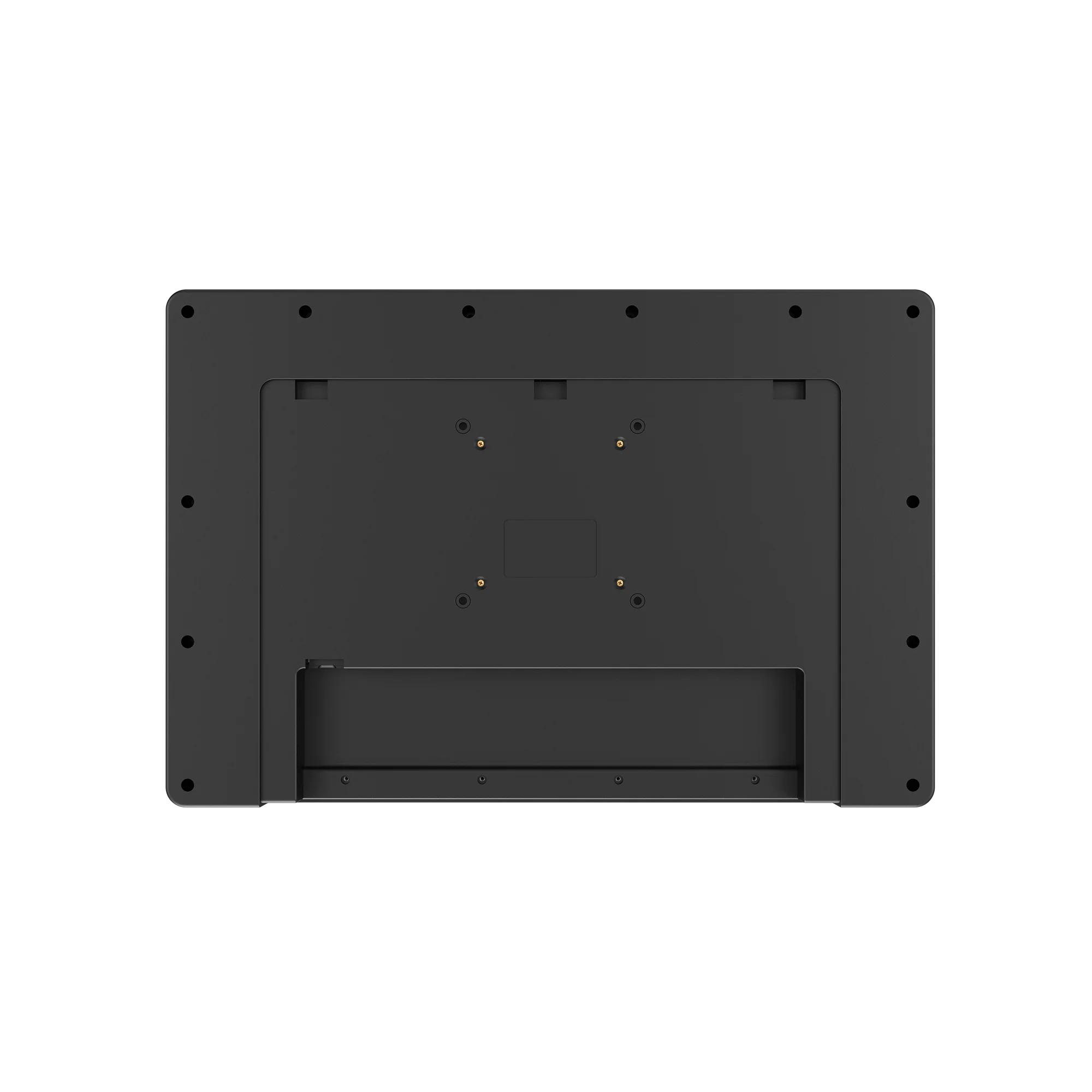

With the VESA attachment interface on the back of tablets, it allows installation of displays into a broad range of applications while positioning screens for increased flexibility and ergonomic benefit. Also, you can place it wherever you like with desk stand, floor stand or mount it with 3M tape.

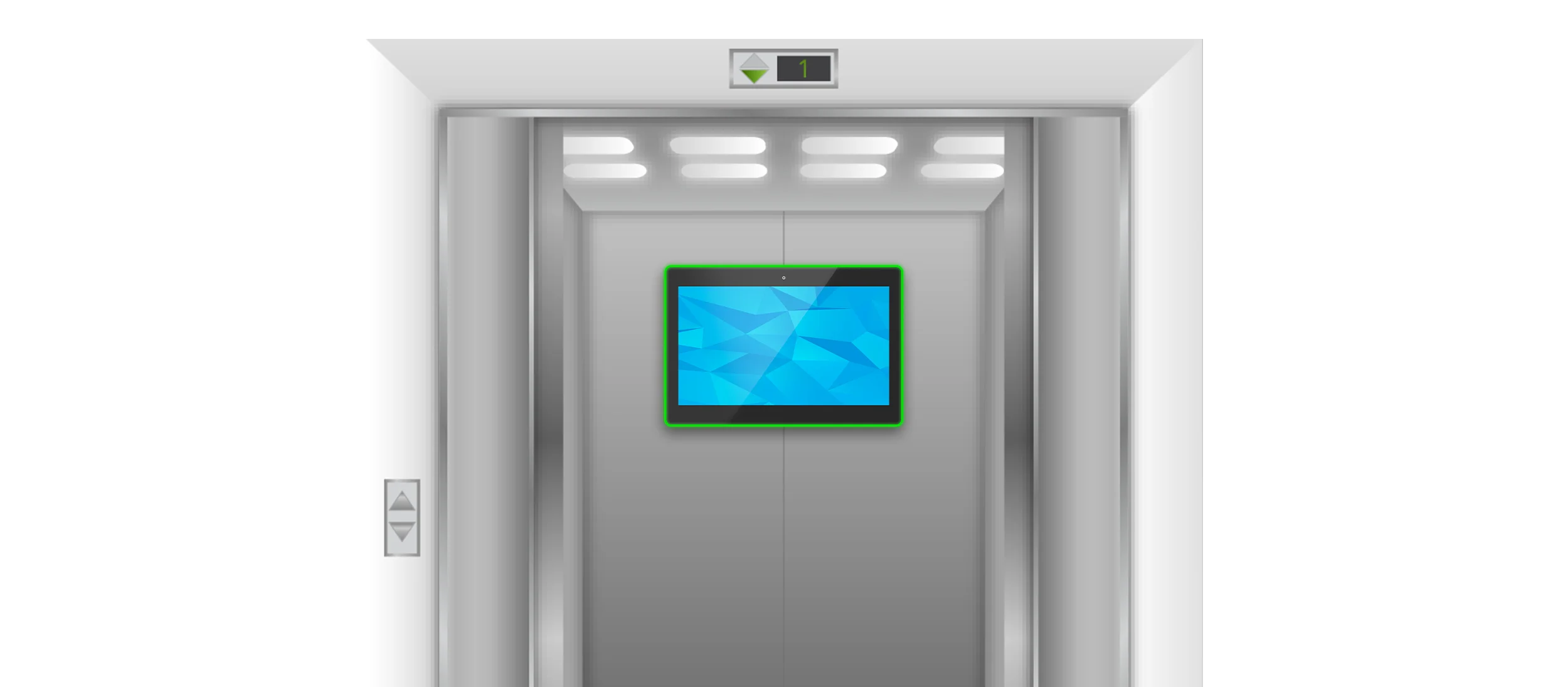

Wall Mount
Desk Stand
Floor Stand
Mount with 3M Tape
OPTIONAL NFC FUNCTION
Fast And Secure.
This tablet is optional equipped with NFC technology, providing a convenient and secure experience for payment, data transfer and access control. Simply tap or wave of devices to connect, eliminating tedious steps.
PORFORMANCE
Choose the Processor You Need.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.
OPERATING SYSTEM
Easy Management With Android Devices.
Easily personalize devices to suit your preferences and style. Also, Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.

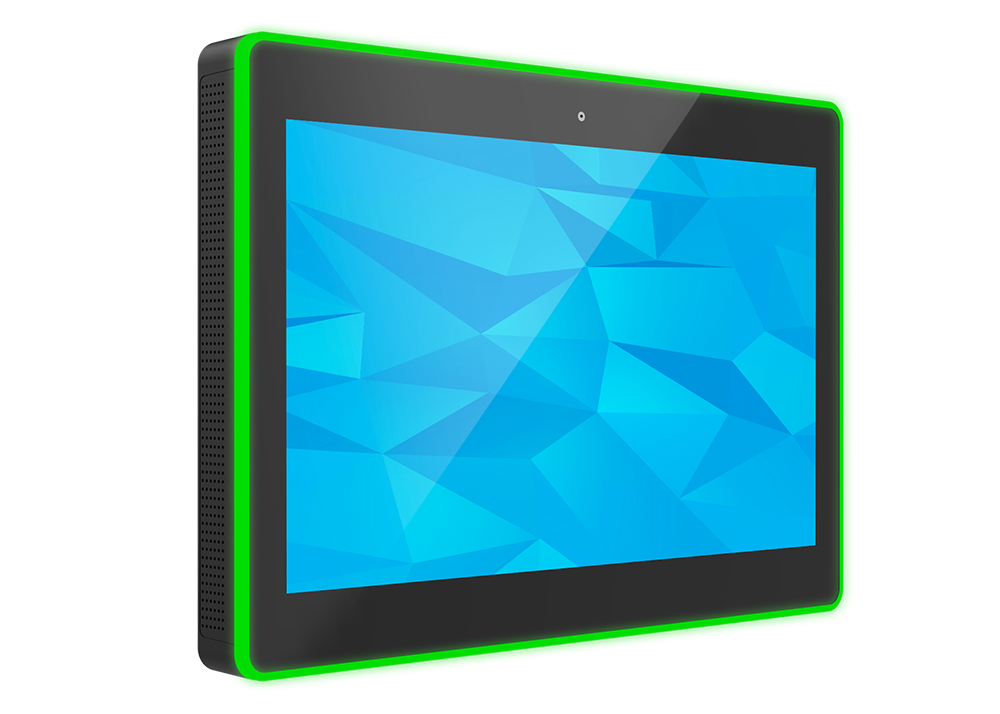

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One. Work In Style.
With built-in speakers and mic, ELC edge-light tablet frees up space and making it a good choice for conference rooms, TV rooms, gathering spaces, and other rooms. Dual speakers create a more immersive stereo sound with a sense of directionality and space.

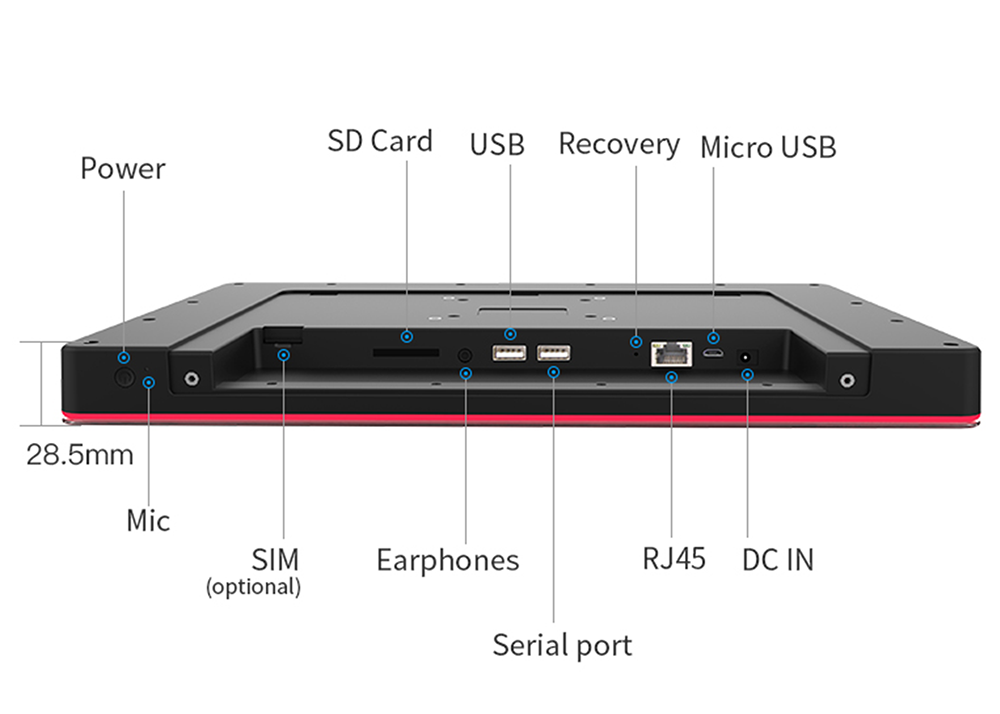

CONNECTIONS AND EXPANSION
Easy Connectivity.
Faster, easier access to your work tools, and multiple ports enable convenient connectivity with no need for adapters.
13.3" Edge-Light Tablet
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3588S Quad-core cortex A55+Quad-core cortex A76 | 4GB RAM | 32GB ROM
WA1382T | WA1383T | WA1386T | WA1388T | WA1385T
Specifications
Display
13.3-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WA1382T: RK3288 Quad-core cortex A17
- WA1383T: RK3399 Dual-core A72+Quad-core A53
- WA1386T: RK3566 Quad-core cortex A55
- WA1388T: RK3568 Quad-core cortex A55
- WA1385T: RK3588S Quad-core cortex A55+Quad-core cortex A76
- WA1382T: 2GB
- WA1383T: 2GB (Optional 4GB)
- WA1386T: 2GB (Optional 4GB)
- WA1388T: 2GB (Optional 4GB)
- WA1385T: 4GB (Optional 8GB)
- WA1382T: 16GB
- WA1383T: 16GB (Optional 32GB/64GB)
- WA1386T: 16GB (Optional 32GB/64GB)
- WA1388T: 16GB (Optional 32GB/64GB)
- WA1385T: 32GB (Optional 64GB)
- WA1382T: Android 8.1/10.0
- WA1383T: Android 7.1/9.0/10.0
- WA1386T: Android 11
- WA1388T: Android 11
- WA1385T: Android 12
Size and Weight
333 x 225 x 28.5 mm (L × W × D)
Wireless
- WA1382T: IEEE 802.11b/g/n/a/ac
- WA1383T: IEEE 802.11 a/b/g/n/ac
- WA1386T: IEEE 802.11b/g/n/a/ac
- WA1388T: IEEE 802.11b/g/n/a/ac
- WA1385T: IEEE 802.11a/b/g/n/ac/ax (WiFi6)
- WA1382T: Bluetooth 4.2
- WA1383T: Bluetooth 4.2
- WA1386T: Bluetooth 4.2
- WA1388T: Bluetooth 4.2
- WA1385T: Bluetooth 5.2
I/O Ports
USB Host
WA1385T: Full Function (Except for charging function)
SD card, Max support to 64GB
4G Flow card
DC power input
Media Format
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
JPEG
Others
Black
75mm × 75mm
3W*2
Single microphone
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Routine angle 5.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/2A
×1
