WA1332T | WA1333T | WA1336T | WA1338T | WA1335T

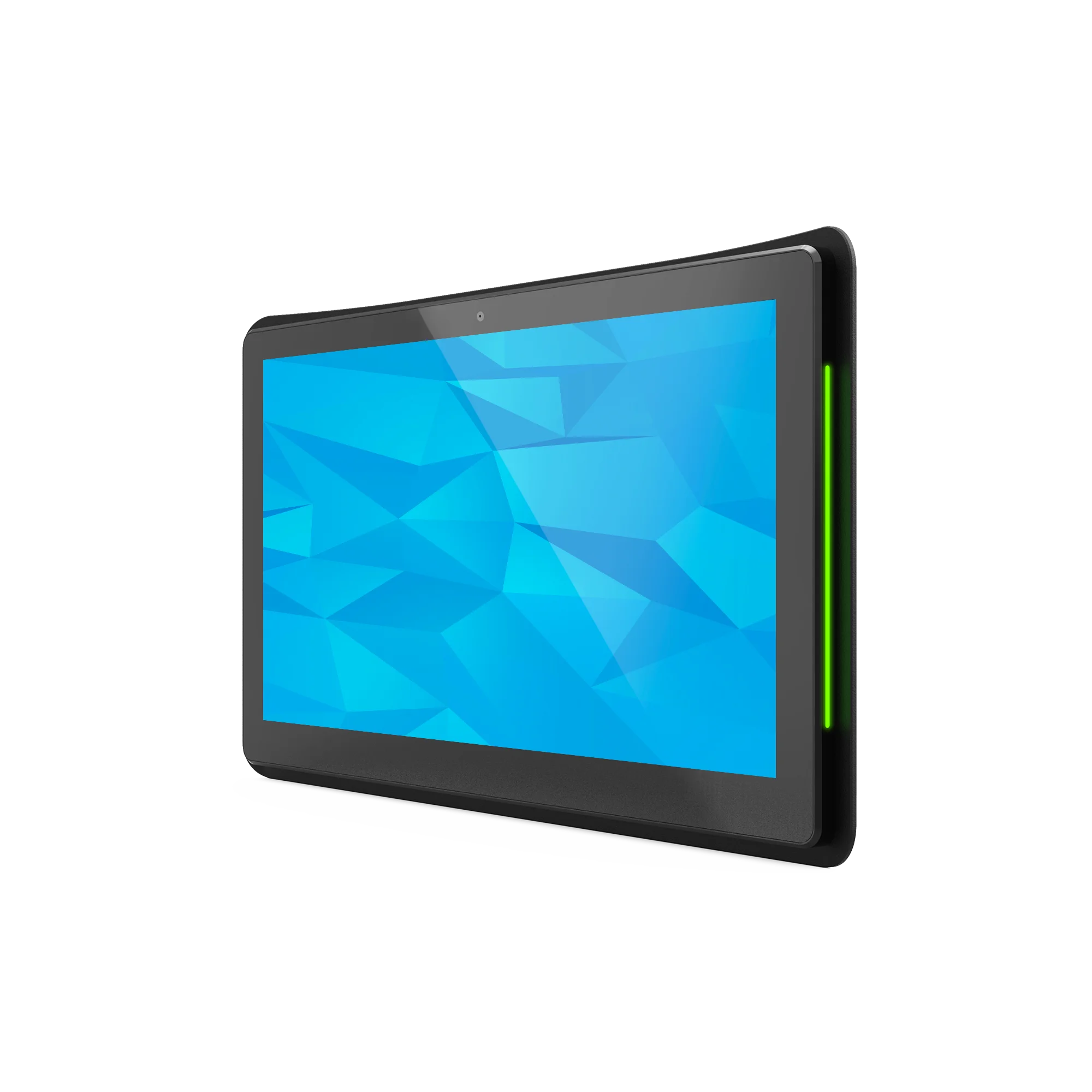

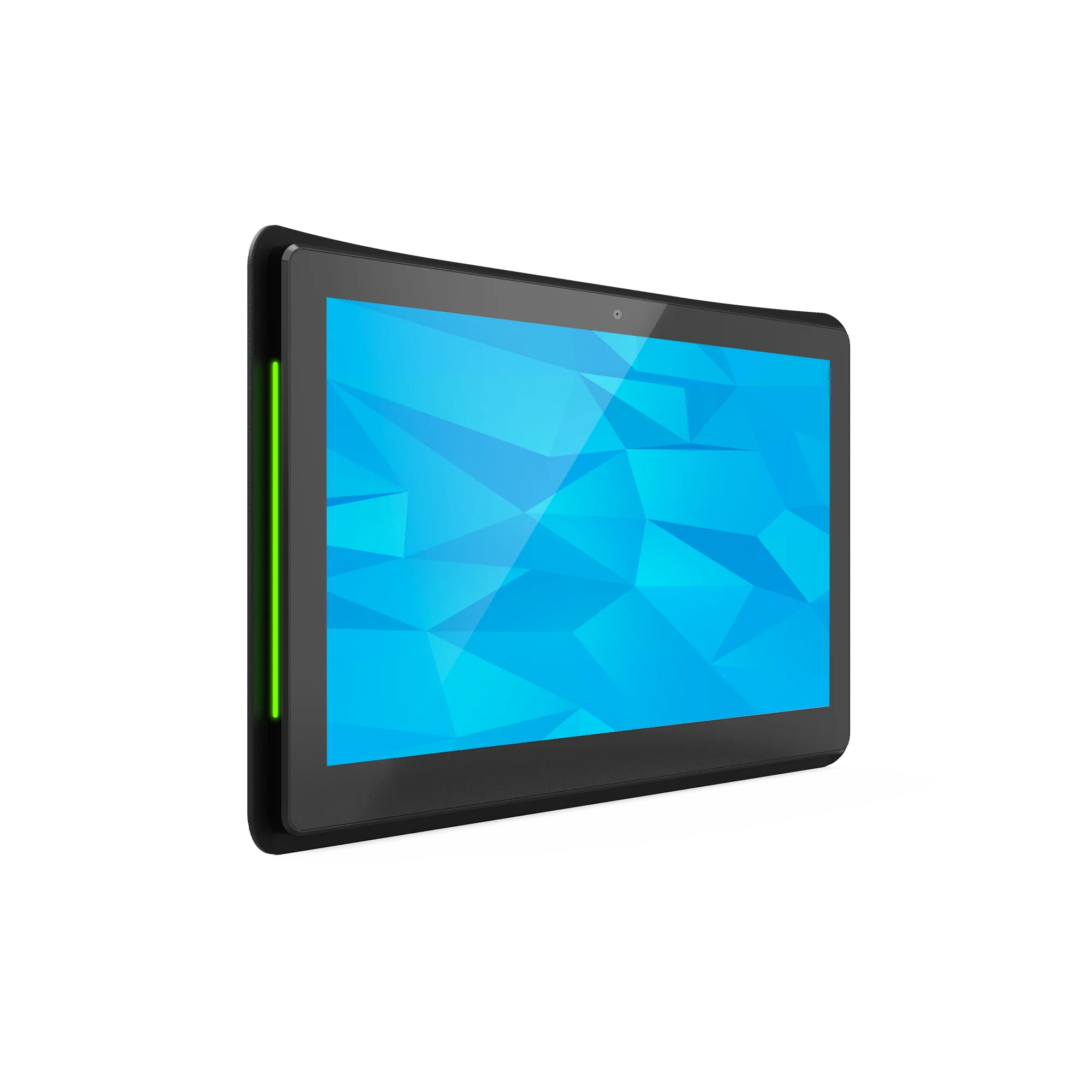

13.3" Edge-Light Tablet

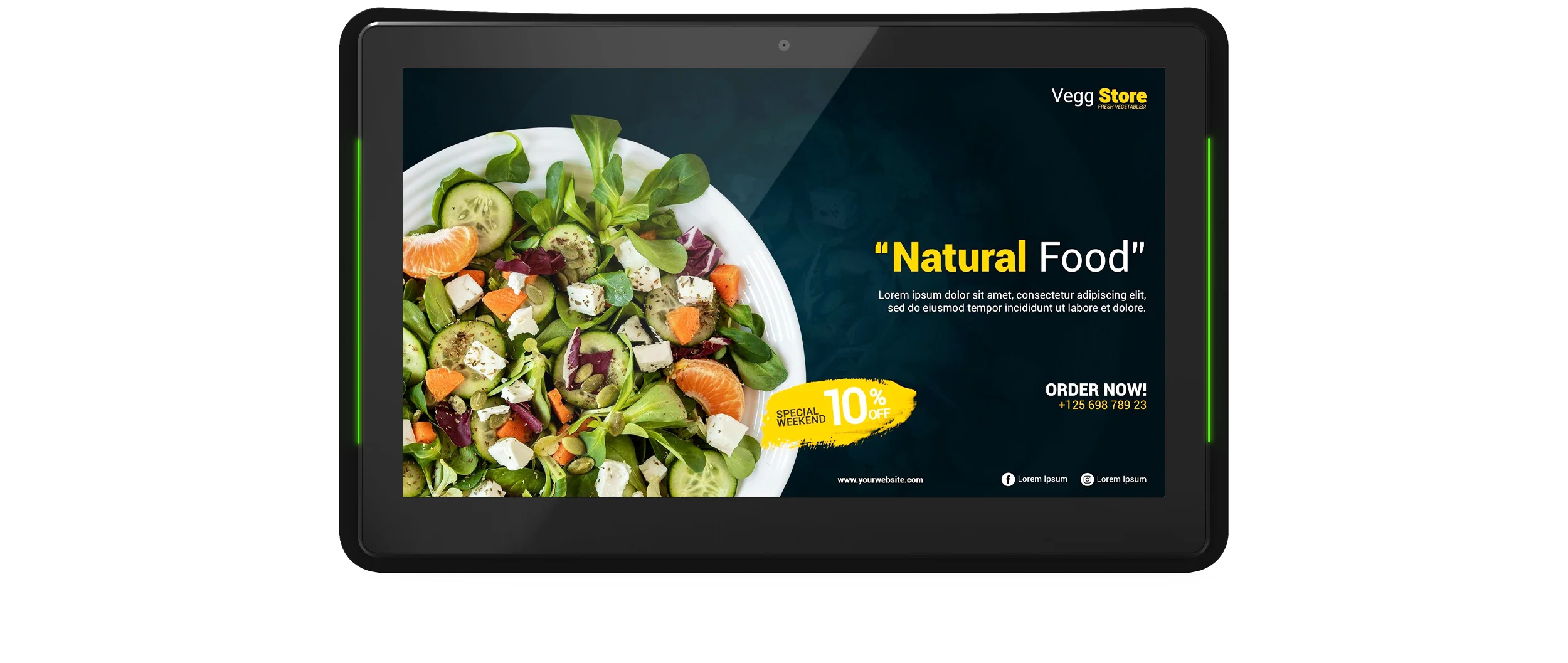

From retail and entertainment to corporate offices and signage, the 13.3-inch edge-light tablet is an excellent choice to meet the demands of continuous public use. Easy to integrate and suitable for office work, advertising and information sharing.
DISPLAY
13.3-inch HD Touchscreen
The portable tablet features a 10.1-inch touchscreen with a HD resolution of 1920x1080. It provides 10-point sensitive touch and fast response capabilities.

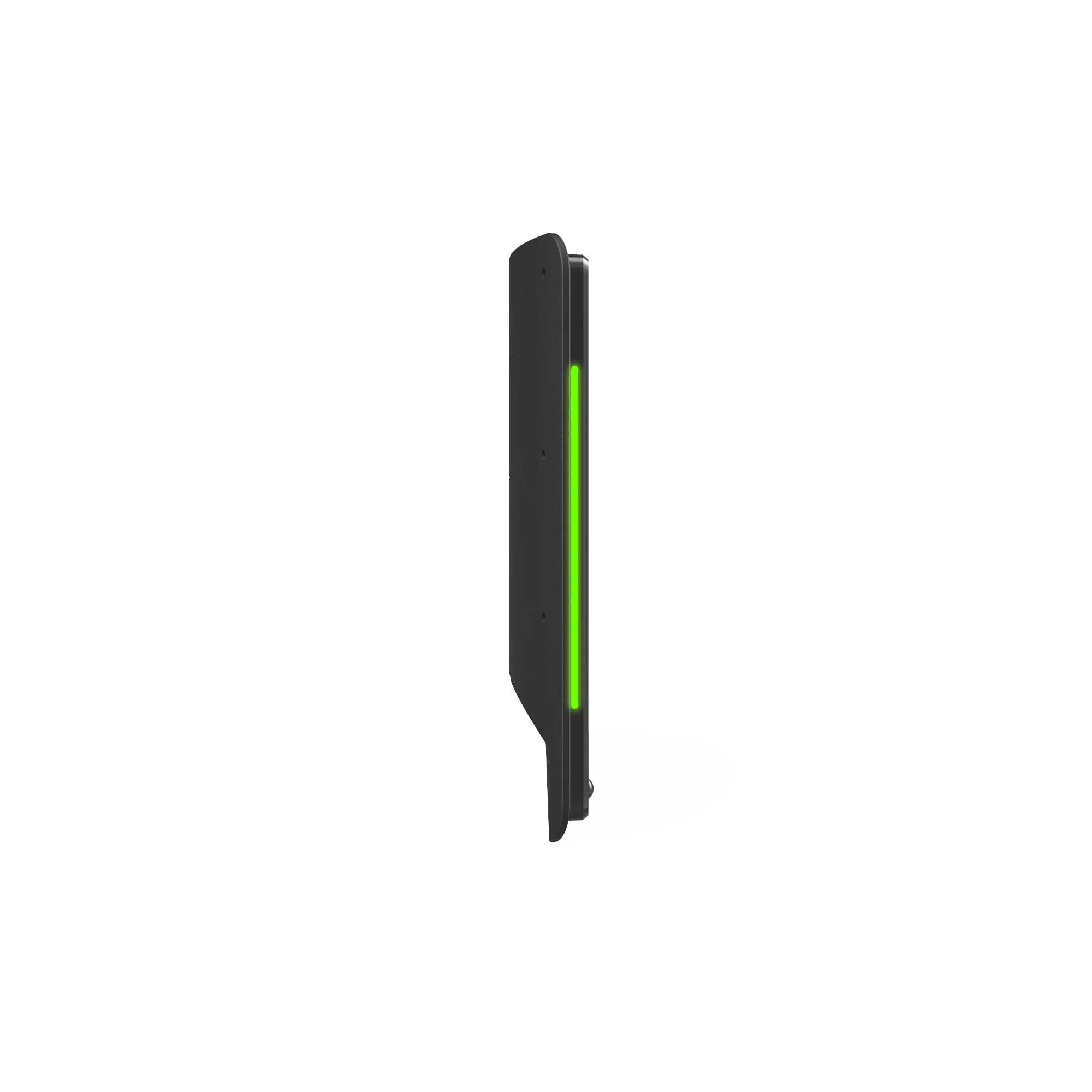

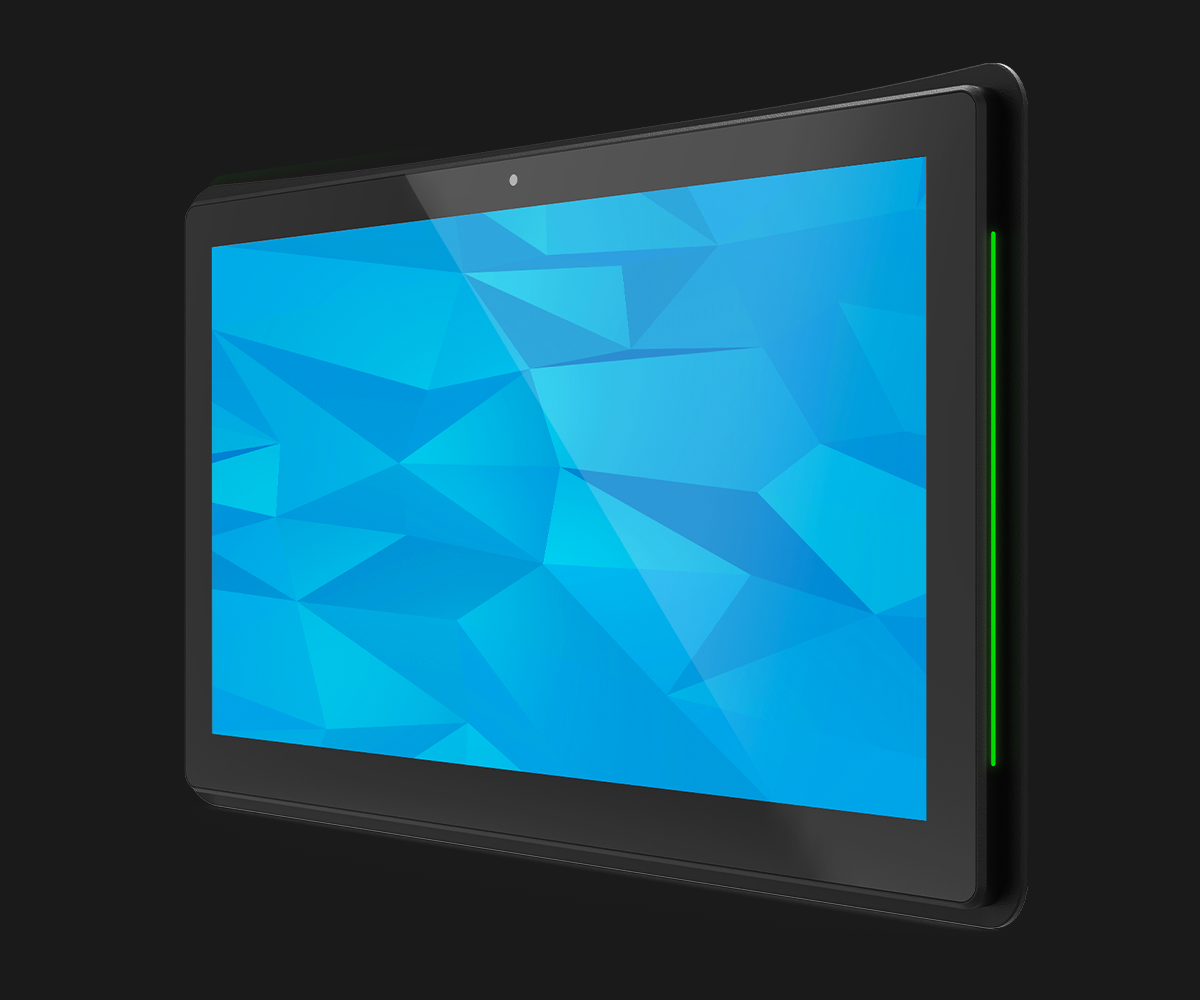

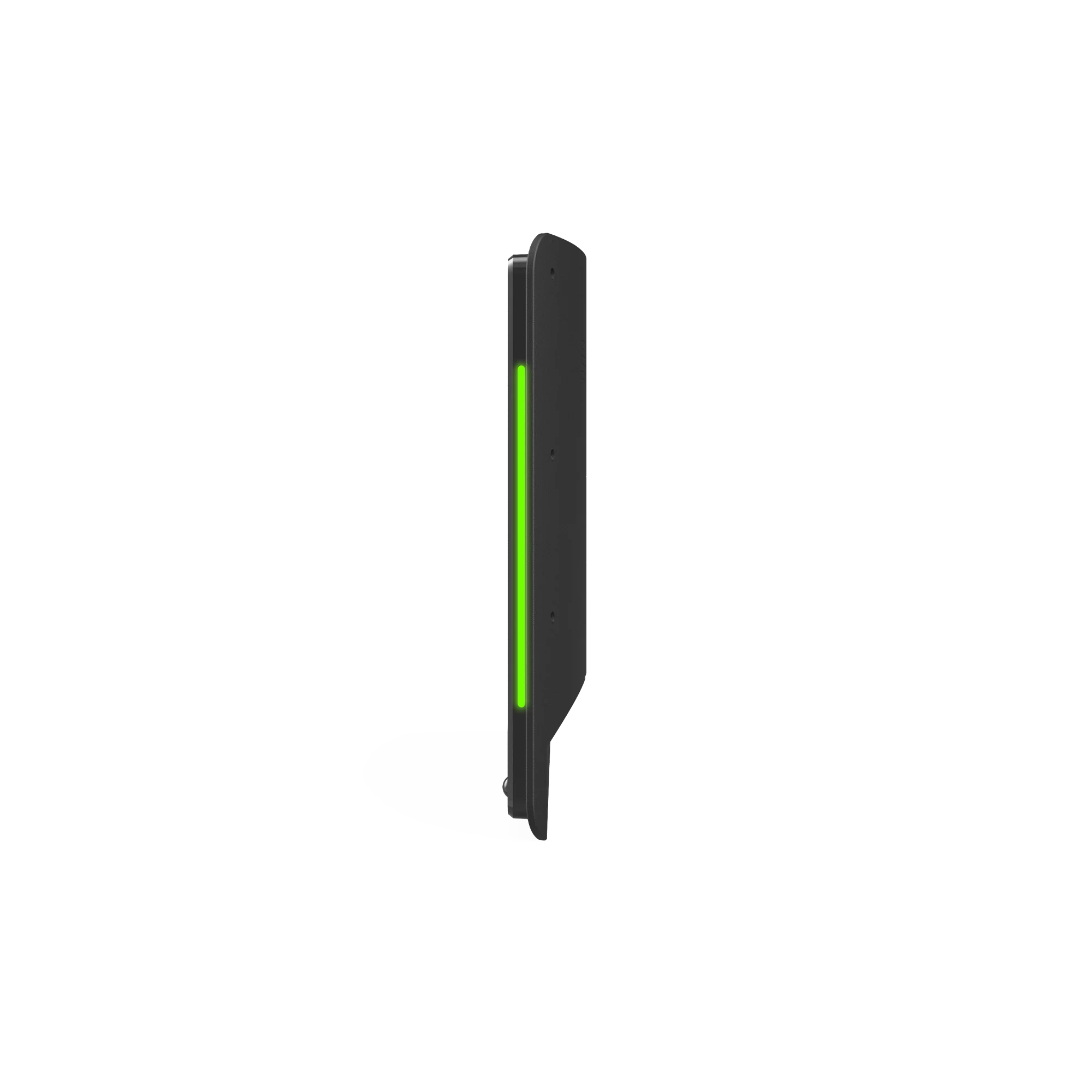

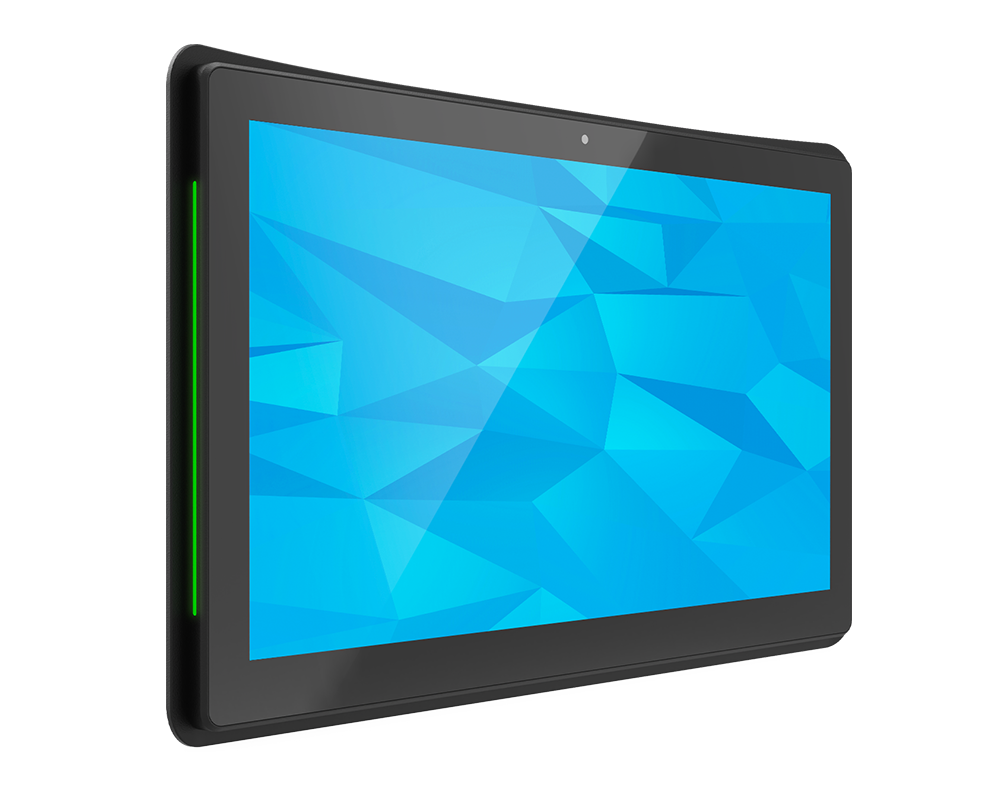

RGB EDGE LIGHTS
Highlight The Status With Lights.
You can customize the light to match your needs. For example, use a red or green LED light to indicate whether the conference room is available.
4 INSTALLATION METHODS
Flexibly Adjust Position for Best Viewing Comfort And Space Efficiency.

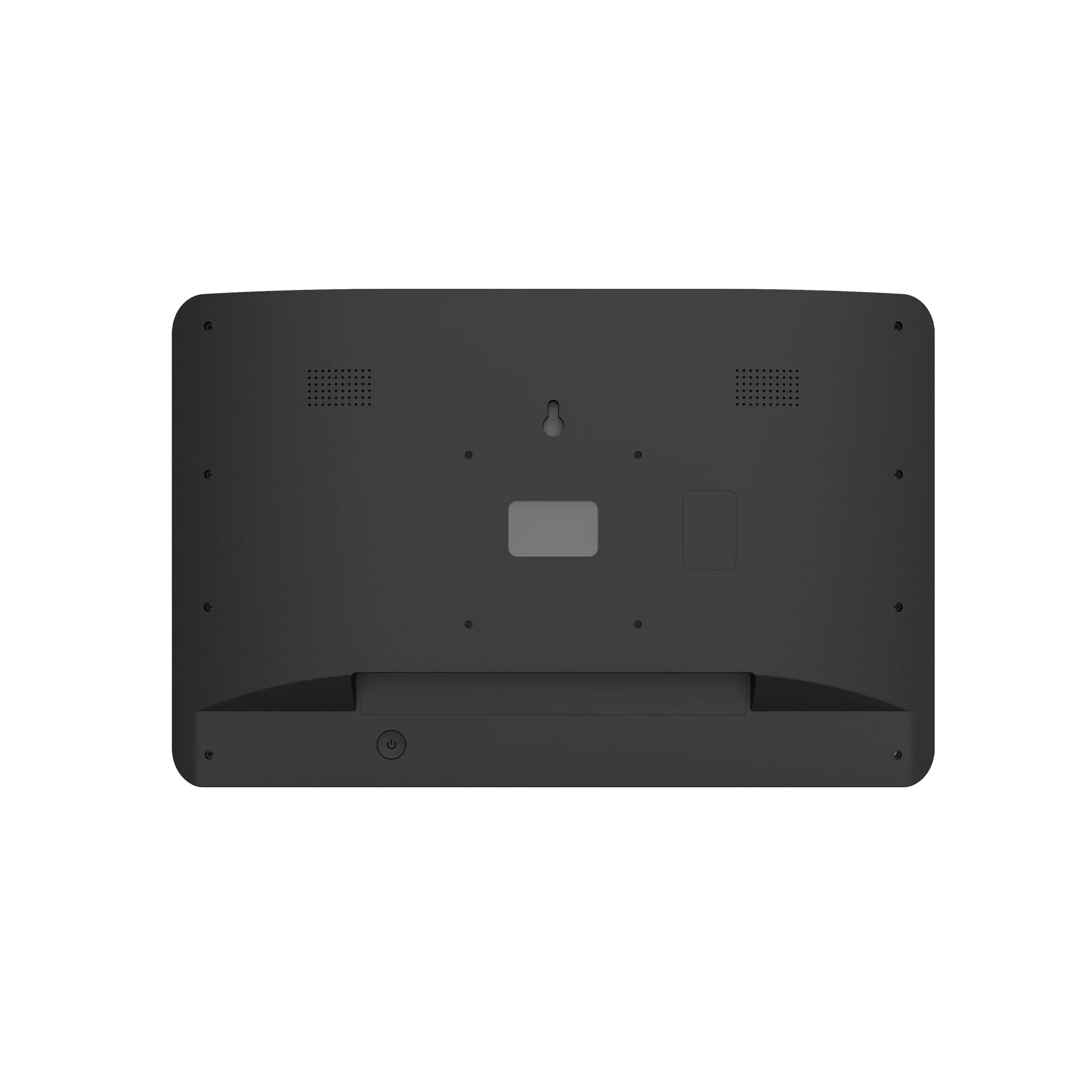

With the VESA attachment interface on the back of tablets, it allows installation of displays into a broad range of applications while positioning screens for increased flexibility and ergonomic benefit. Also, you can place it wherever you like with desk stand, floor stand or mount it with 3M tape.
Wall Mount
Desk Stand

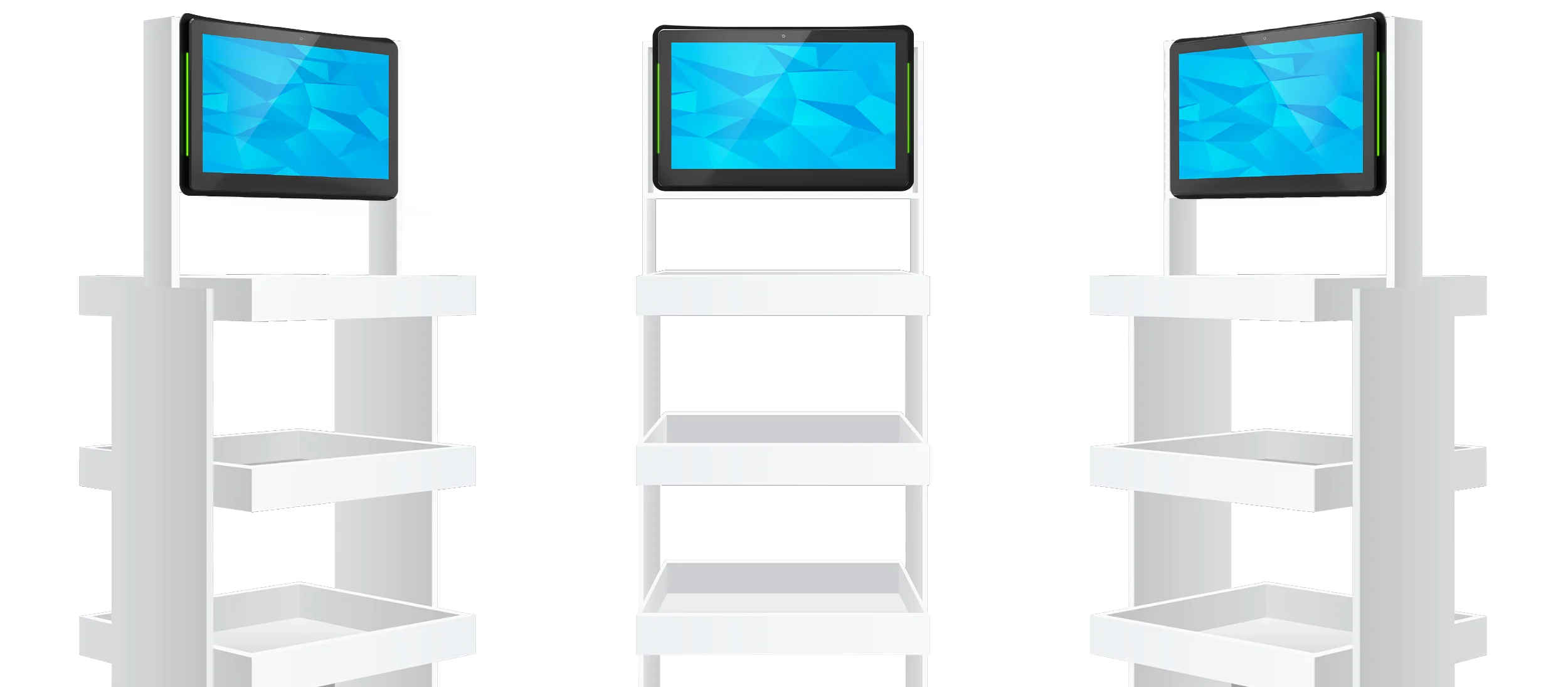

Floor Stand
Mount with 3M Tape
OPTIONAL NFC FUNCTION
Fast And Secure.
This tablet is optional equipped with NFC technology, providing a convenient and secure experience for payment, data transfer and access control. Simply tap or wave of devices to connect, eliminating tedious steps.
PORFORMANCE
Choose the Processor You Need.
We provide a variety of processors for you to choose from, and you can also choose different RAM and ROM to match your different needs.
OPERATING SYSTEM
Personalize With Ease.
Easily personalize devices to suit your preferences and style. Also, Android provides strong support for multi-tasking, allowing users to run multiple apps simultaneously, switch between them seamlessly, and perform various tasks at the same time.
BUILT-IN CAMERA, SPEAKERS AND MIC
Ideal For On-the-go Use.
Integrated into a device, there is no need to connect external devices, just turn on your device and start using the camera, speakers, and mic.

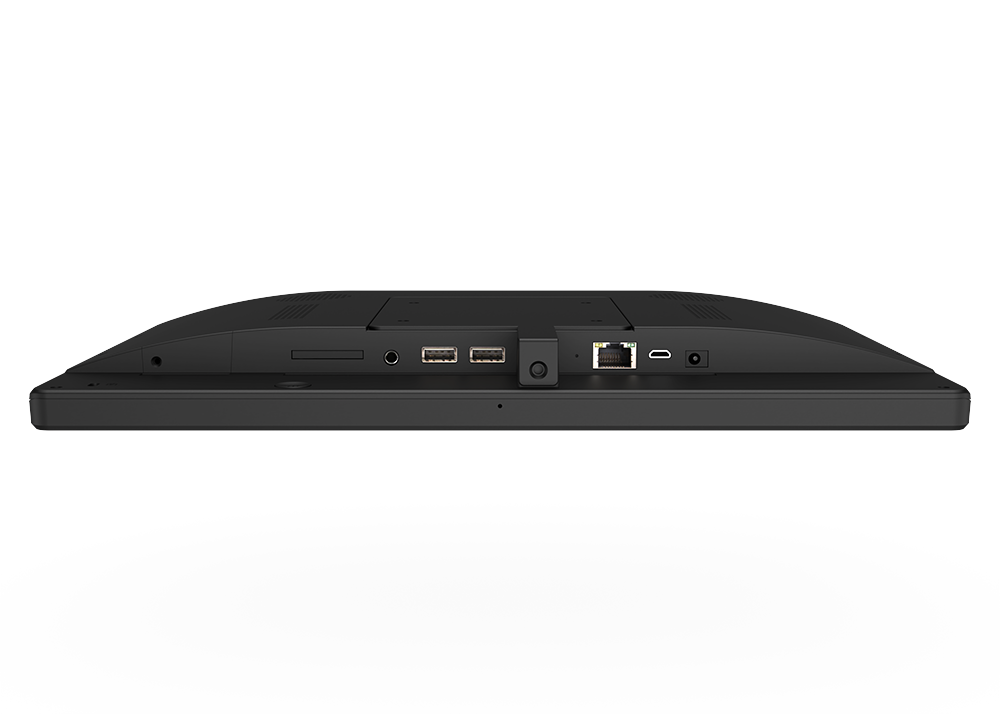

CONNECTIONS AND EXPANSION
Easy Connectivity.
This 13.3-inch touchscreen signage is equipped with various interfaces to meet your various needs, USB, 3.5mm audio out and RJ45 ethernet port.
13.3" Edge-Light Tablet
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
RK3588S Quad-core cortex A55+Quad-core cortex A76 | 4GB RAM | 32GB ROM
WA1332T | WA1333T | WA1336T | WA1338T | WA1335T
Specifications
Display
13.3-inch (LCD)
1920 x 1080 pixels
16:9
R/L 85/85, U/D 85/85
Normally black
800:1
250 nits
10-point
Processor
- WA1332T: RK3288 Quad-core cortex A17
- WA1333T: RK3399 Dual-core A72+Quad-core A53
- WA1336T: RK3566 Quad-core cortex A55
- WA1338T: RK3568 Quad-core cortex A55
- WA1335T: RK3588S Quad core cortex A55+Quad core cortex A76
- WA1332T: 2GB
- WA1333T: 2GB (Optional 4GB)
- WA1336T: 2GB (Optional 4GB)
- WA1338T: 2GB (Optional 4GB)
- WA1335T: 4GB (Optional 8GB)
- WA1332T: 16GB
- WA1333T: 16GB (Optional 32GB/64GB)
- WA1336T: 16GB (Optional 32GB/64GB)
- WA1338T: 16GB (Optional 32GB/64GB)
- WA1335T: 32GB (Optional 64GB)
- WA1332T: Android 5.1/8.1/10.0
- WA1333T: Android 7.1/9.0/10.0
- WA1336T: Android 11
- WA1338T: Android 11
- WA1335T: Android 12
Size and Weight
348.56 x 223.74 x 30.2 mm (L × W × D)
Wireless
- WA1332T: IEEE 802.11b/g/n
- WA1333T: IEEE 802.11a/b/g/n/ac
- WA1336T: IEEE 802.11b/g/n
- WA1338T: IEEE 802.11b/g/n
- WA1335T: IEEE 802.11a/b/g/n/ac/ax (WiFi6)
- WA1332T: Bluetooth 4.2
- WA1333T: Bluetooth 4.2
- WA1336T: Bluetooth 4.2
- WA1338T: Bluetooth 4.2
- WA1335T: Bluetooth 5.2
I/O Ports
- WA1332T: USB Host
- WA1333T: USB 3.0 host
- WA1336T: USB 3.0 host
- WA1338T: USB 3.0 host
- WA1335T: USB 3.0 Host
- WA1332T: USB for serial (RS232 Level), Optional USB Host
- WA1333T: USB for serial (RS232 Level), Optional USB Host
- WA1336T: USB for serial (TTLLevel), Optional for USB Host
- WA1338T: USB for serial (TTLLevel, UATR 0), Optional for USB Host
- WA1335T: USB for serial (TTLLevel, UATR 0), Optional for USB Host
WA1335T: Full Function (Except for charging function)
SD card, Max support to 64GB
DC power input
Media Format
- WA1332T: MPEG-1,MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WA1333T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WA1336T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WA1338T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WA1335T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
MP3/WMA/AAC, etc
JPEG
Others
Black
75mm × 75mm
2W*2
Single microphone
Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO15693/Mifare classic/Sony felica
Wide-angle 2.0MP
Multi-language
CE/FCC
0℃-40℃
In The Box
12V/1.5A
×1
